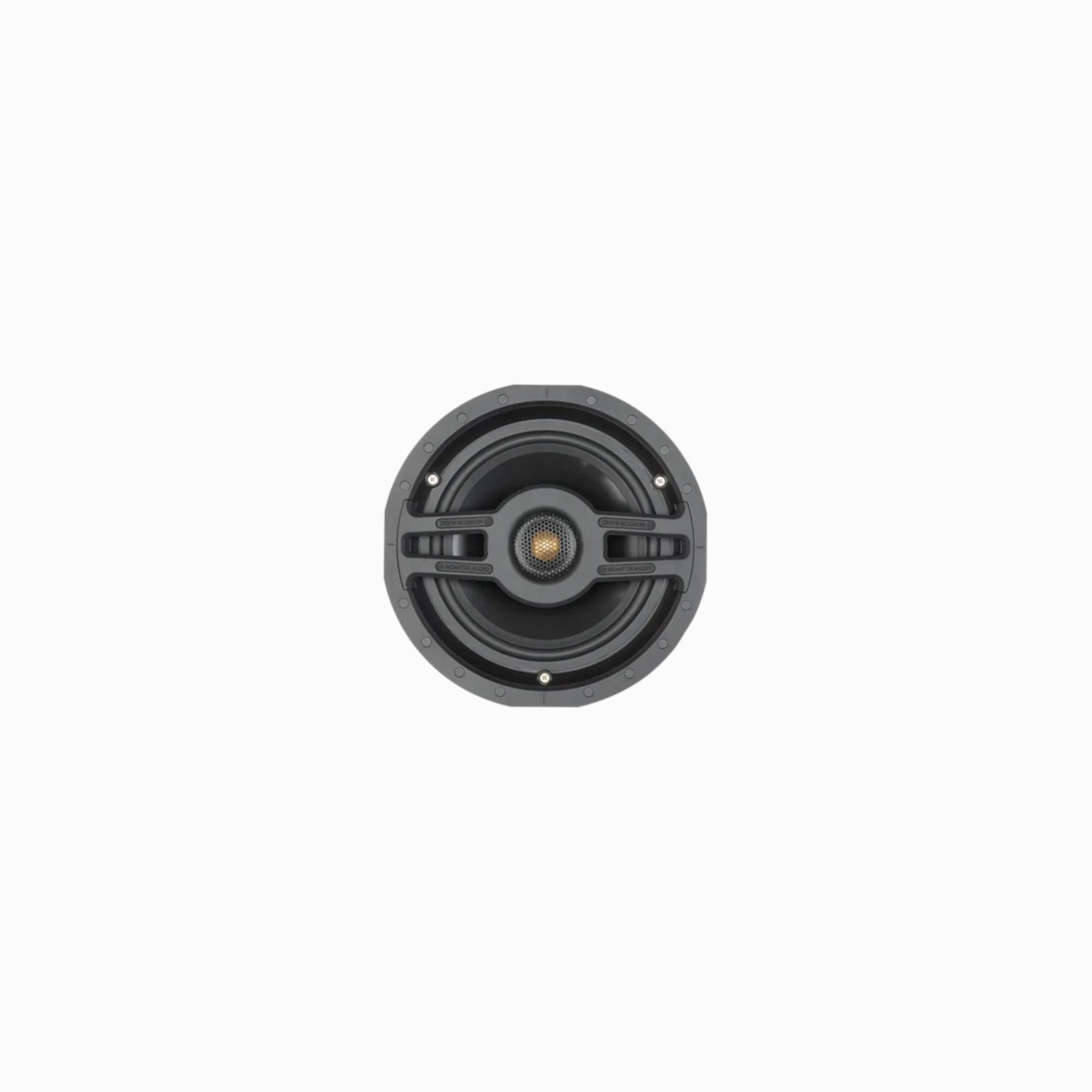

Monitor Audio CS 180 - Super Slim 8 Inches Driver Size In-Ceiling Speaker (Each)

Key Features

  • Super-slim in-ceiling speaker designed for installations with very limited ceiling depth

  • 8-inch bass driver delivers clear midrange and controlled low-frequency performance

  • Pivoting high-frequency tweeter allows precise sound direction toward the listening area

  • Wide, even sound dispersion suitable for music and home theatre applications

  • Ideal for residential and commercial installations where space is restricted

  • Designed for flush, discreet ceiling mounting with a low-profile aesthetic

  • High-quality driver materials ensure accurate and consistent sound reproduction

  • Compatible with multi-room audio and surround sound systems

  • Easy installation with secure mounting system

  • Paintable grille to blend seamlessly with interior décor

  • Durable construction for long-term reliability and performance

Description

The CS180 in-ceiling model marries our 8-inch MMP II driver with the CWT family’s pivoting C-CAM Gold Dome tweeter.

Slim CS180Offering superlative dynamic delivery in a super-discreet format, the CS180 will deliver fabulous full-range sound with stealthy versatility.

Please specify a round or square grille option when ordering.





Specifications

Frequency Response

48 Hz – 30 kHz

Nominal Impedance

6 ohms

Sensitivity (1W@1M)

90 dB

Maximum SPL

110.6 dBA

Power Handling (RMS)

120 W

Recommended Amplifier Requirements

30 – 120 W

Drive Unit Complement

1 x 8″ MMP II cone bass driver.1 x 1″ (25 mm) C-CAM pivoting Gold Dome tweeter

Acoustic Configuration

2-way

Overall Dimensions (Including Grille (H x W))

Round: 251.7 mm (915/16″)Square: 246.7 x 246.7 mm (911/16 x 911/16″)

Mounting Depth

99.4 mm (315/16”)

Cut-Out Hole Diameter

213 mm (83/8”)

Fixing Type

3-position Tri-Grip dog fixings

Connection

Gold-plated ‘push’ type terminals

Grille Attachment

Magnetic

Construction Material

Mineral-filled ABS, RoHS compliant

Weight

2.72 kg (6 lb)

Pre-Construction Bracket

CB6 Pre-Construction Bracket (Purple)

Back Box

CCBOX-R
