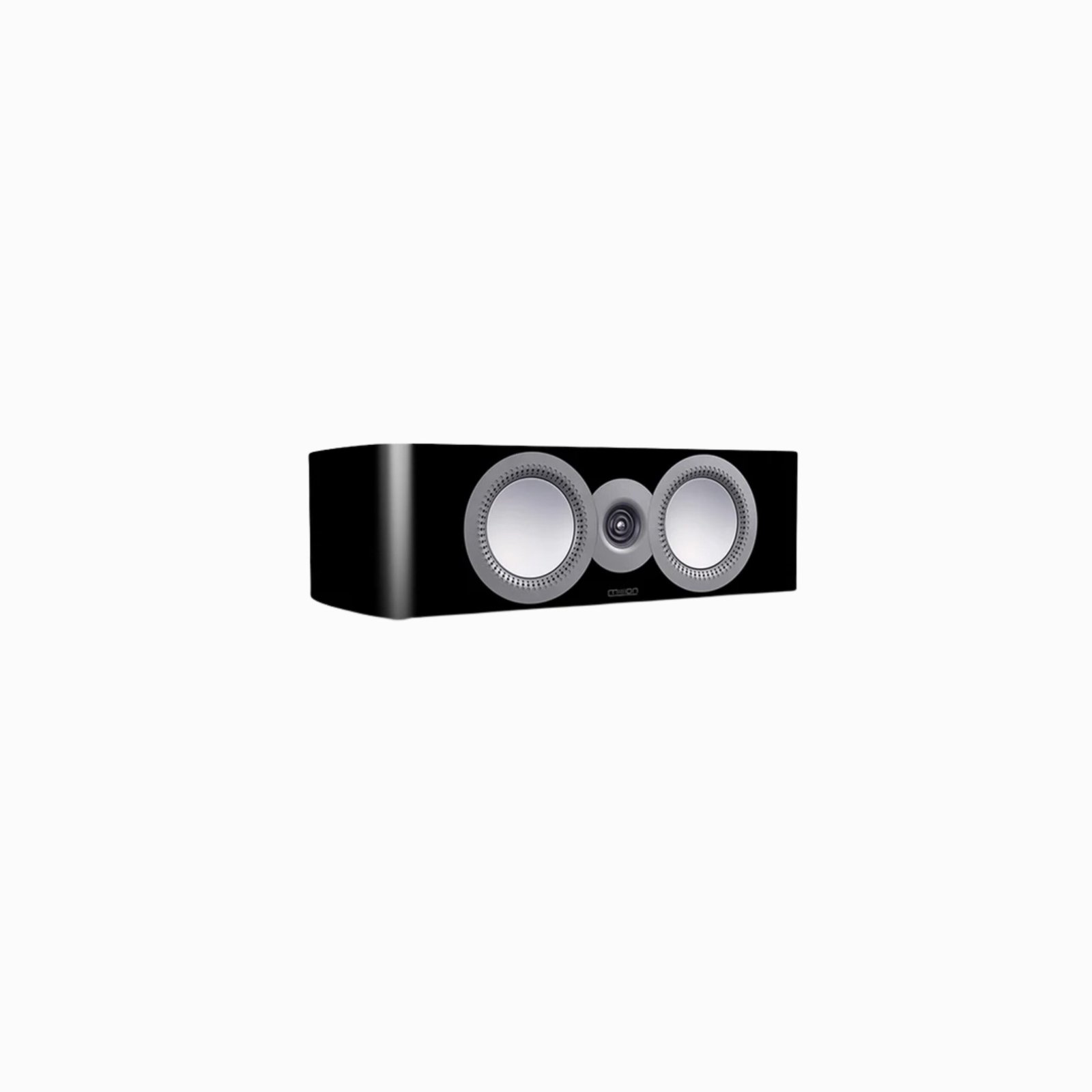

Mission ZX-C1- Dual 5.25" Centre Speaker (Each)

Key Features

  • Strong Midrange and Vocal Clarity: The dual drivers should provide robust reproduction of dialogue, vocals, and mid-frequency content. That’s essential for intelligible speech in movies or TV.

  • Good Low-Mid Presence for a Centre Speaker: Compared to small “satellite-sized” centres, the larger drivers help in producing better lower-midrange — so effects like explosions or bass-heavy soundtracks will have more weight (though deep bass still depends on a subwoofer).

  • Balanced Centre Imaging: As centre-channel units are designed to match front L/R speakers (or at least function as a centre), the ZX-C1 aims to anchor the soundstage — making action and dialogue feel like they come from the screen center.

  • Compatibility with Floor-standing or Bookshelf Mains: If paired with suitably matched front speakers (bookshelf or floorstanders), the ZX-C1 would help maintain tonal balance across channels, particularly for home-theatre setups.

Description

Mission ZX-C1- Dual 5.25″ Centre Speaker

The ZX Series is the latest in a long line of distinguished and revered Mission loudspeakers and joins more recent Award-winning products. The ZX series represents the most technologically advanced loudspeakers in the Mission family, with a distinct ID that will complement the finest electronics and décor.

Mission ZX incorporates purpose-designed bass driver cones, precision-engineered motor systems, advanced treble units and more.

Key Features

  • Dual 5.25″ (130mm) Aluminium cone Woofer
  •  1.5″ (38mm) Ring dome Tweeter
  •  48Hz – 24kHz Frequency response
  •  89 dB Sensitivity; 45 Hz Bass extension
  • 109 dB Peak SPL; 2.5 kHz Crossover frequency
  • 25-150W Recommended amplifier power; 8 ohm Impedance



Specifications

General Description
2-way centre speaker
Enclosure Type
Bass reflex
Transducer Complement
2-way
Bass Driver
5.25″ (130mm) aluminium cone x 2
Treble Driver
1.5″ (38mm) ring dome
AV Shield
No
Sensitivity (2.0V @ 1m)
89dB
Recommended Amplifier Power
25-150W
Peak SPL
109dB
Nominal Impedance
8 compatible
Minimum Impedance
4.0
Frequency Response(+/-3dB)
48Hz ~ 24kHz
Bass Extension(-6dB)
45Hz
Crossover Frequency
2.5kHz
Dimensions (HxWxD)
180 * 600 * (300+12)mm
Net Weight
12.6kg/pcs
