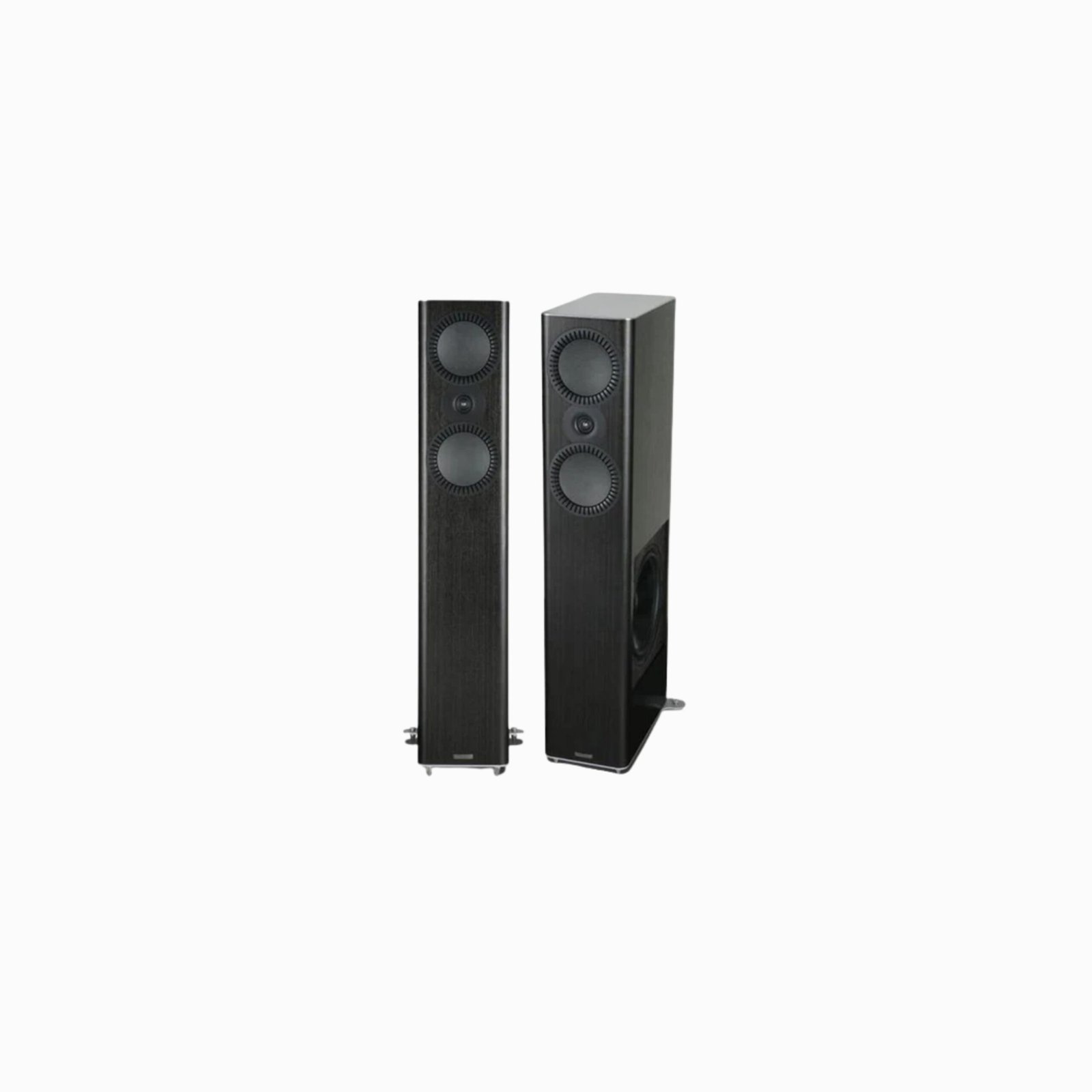

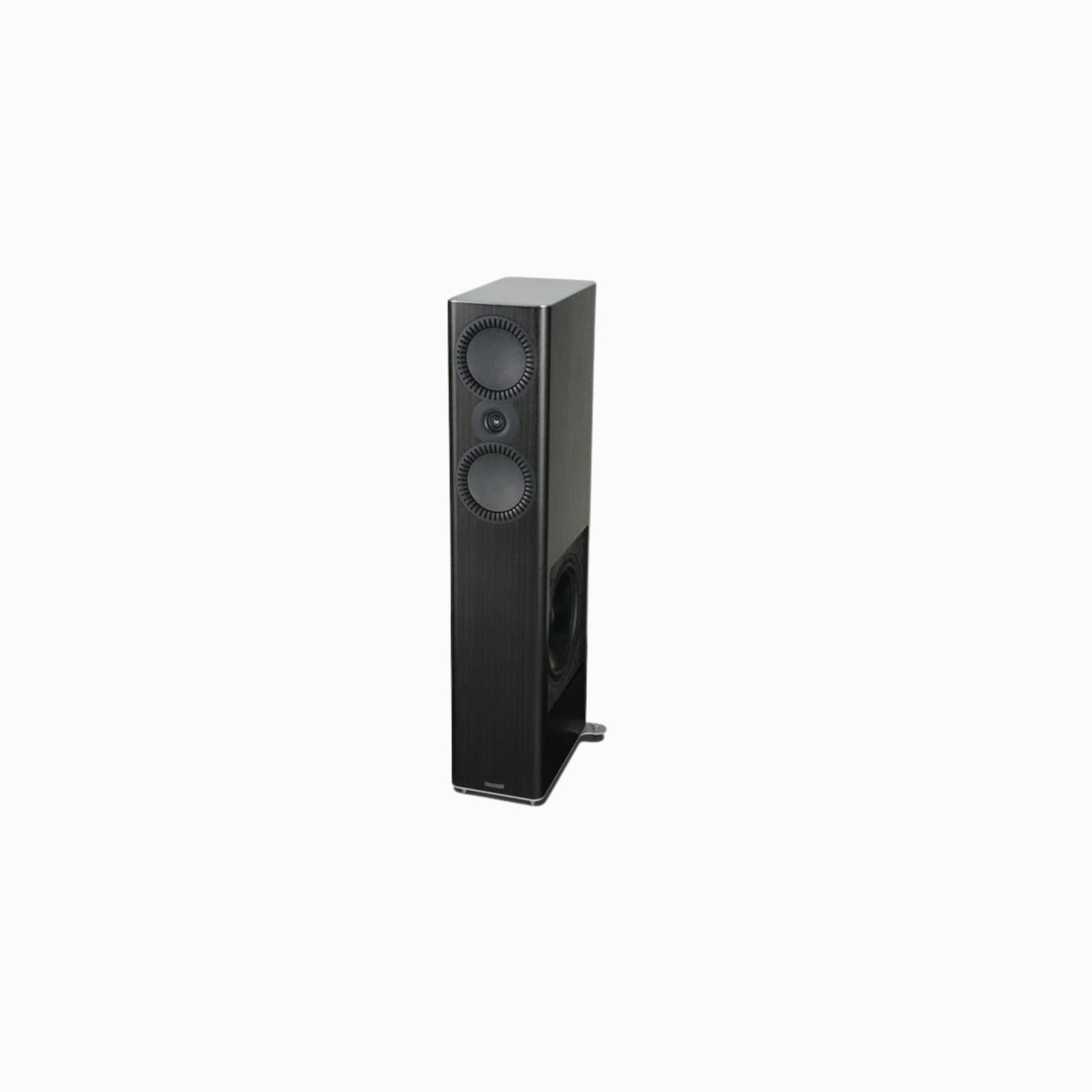

Mission QX-5- 12″ 3-Way Floorstanding Speakers

Mission brings its 40 years of audio expertise to an all-new speaker range. The QX range has striking looks and impressive performance – offering amazing value in both hi-fi and AV set-ups. Advanced new designs and extensive, exacting listening tests have evolved a loudspeaker that offers exciting and dramatic performance, no matter what style of music or movies you prefer. Five core hi-fi models – 2 bookshelf designs and 3 floor standing speakers – are joined in the Mission QX range by a dedicated centre speaker, two-way surround speaker and selection of subwoofers.

• Advanced DiaDrive cone system – front inverted dome cone delivers smooth response, driven by secondary sub cone to transfer maximum transient impact from the motor system
•  Oversized magnet motor system offers high sensitivity for maximum dynamic impact from any amplifier
• New ‘ring dome’ treble unit offers high levels of musical detail with low distortion – the usual dome cavitation effects are avoided.
• The slot port is profiled to reduce ‘chuffing’ distortion, yielding accurate bass performance
• Carefully crafted acoustic crossover slopes achieve perfect integration between the drivers for a seamless performance
•  Crossover uses a laminated iron core bass coil, audiophile standard polypropylene capacitors, spaced on the PCB to avoid magnetic field interaction

THE DESIGN CONCEPT

QX series was designed to marry advanced engineering with a highly attractive and unique design that lets the speakers fit perfectly into the modern home. The front panel appearance hints at the advanced technology inside the speakers, whilst presenting an attractive face to the listener.

REVERSE GEOMETRY DRIVEN DESIGN

Mission QX series utilises Mission’s classic IDG (Inverted Driver Geometry) driver format. By positioning the treble unit below the bass/midrange driver, the length of path is equalised so the sound waves coincide at the listener’s head height. This principle improves ‘time alignment’.

NEW “RING DOME” TREBLE UNIT

New ‘ring dome’ treble unit offers high levels of musical detail with low distortion – the usual dome cavitation effects are completely avoided
Dual ring radiator – Mission’s exclusive ‘ring dome’ utilises a woven, textile material formed in a double ring arrangement. The combination of the textile dome and the multi-ring surround applied optimum stiffness to the maximum radiating area.
Twin rear cavity non-reflecting design – back pressure from the diaphragm is vented to a twin rear cavity, reducing resonance and maintaining a wide operating bandwidth.

Woofer

Bass drivers feature the Mission DiaDrive system
Natural midrange quality with superb bass transient impact is provided by a seam-free curvilinear cone formulated from a mixture of soft pulp and acrylic fibre specially designed for midrange clarity and lucidity.

DiaDrive twin cone design：

Backing the curvilinear front cone is a stiff, conical support with increased area of contact with the voice coil for outstanding transient impact.

“Comb-Tooth Trim”

The drive unit surround and fixing screws are cleverly concealed behind this unique trim design giving a highly technical look to the front face of the speaker.

Key Features

• 12″ (300mm) Cone Long-Throw Woofer
• Two 6.5″ (165mm) Long Fiber Composite cone Midrange
•  1.5″ (38mm) Textile ring dome Tweeter
•  32Hz – 24kHz Frequency response
•  90 dB Sensitivity; 27 Hz Bass extension
•  96 dB Peak SPL; 180Hz, 1.8 kHz Crossover frequency
• 30-200W Recommended amplifier power; 8 ohm Impedance
