Description

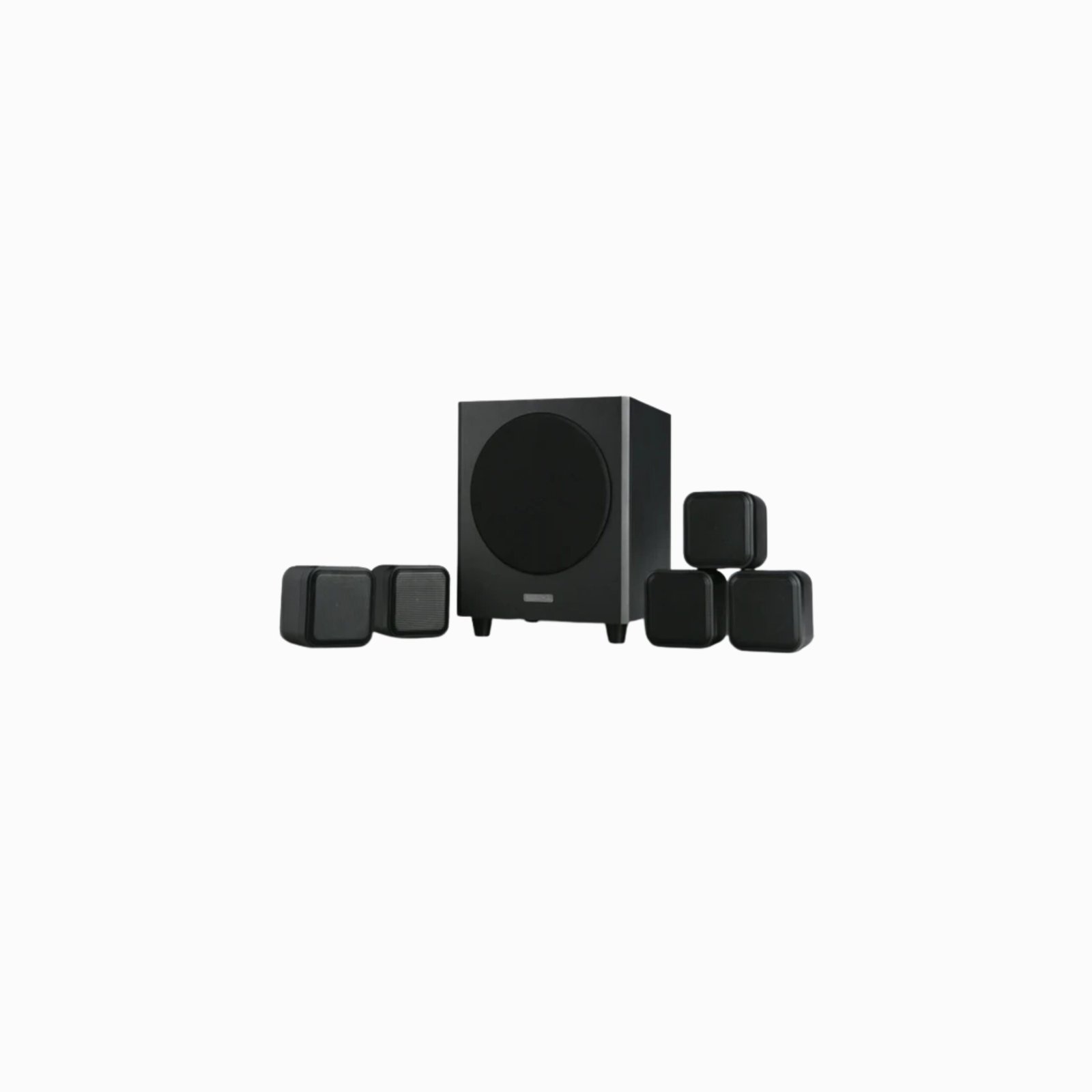

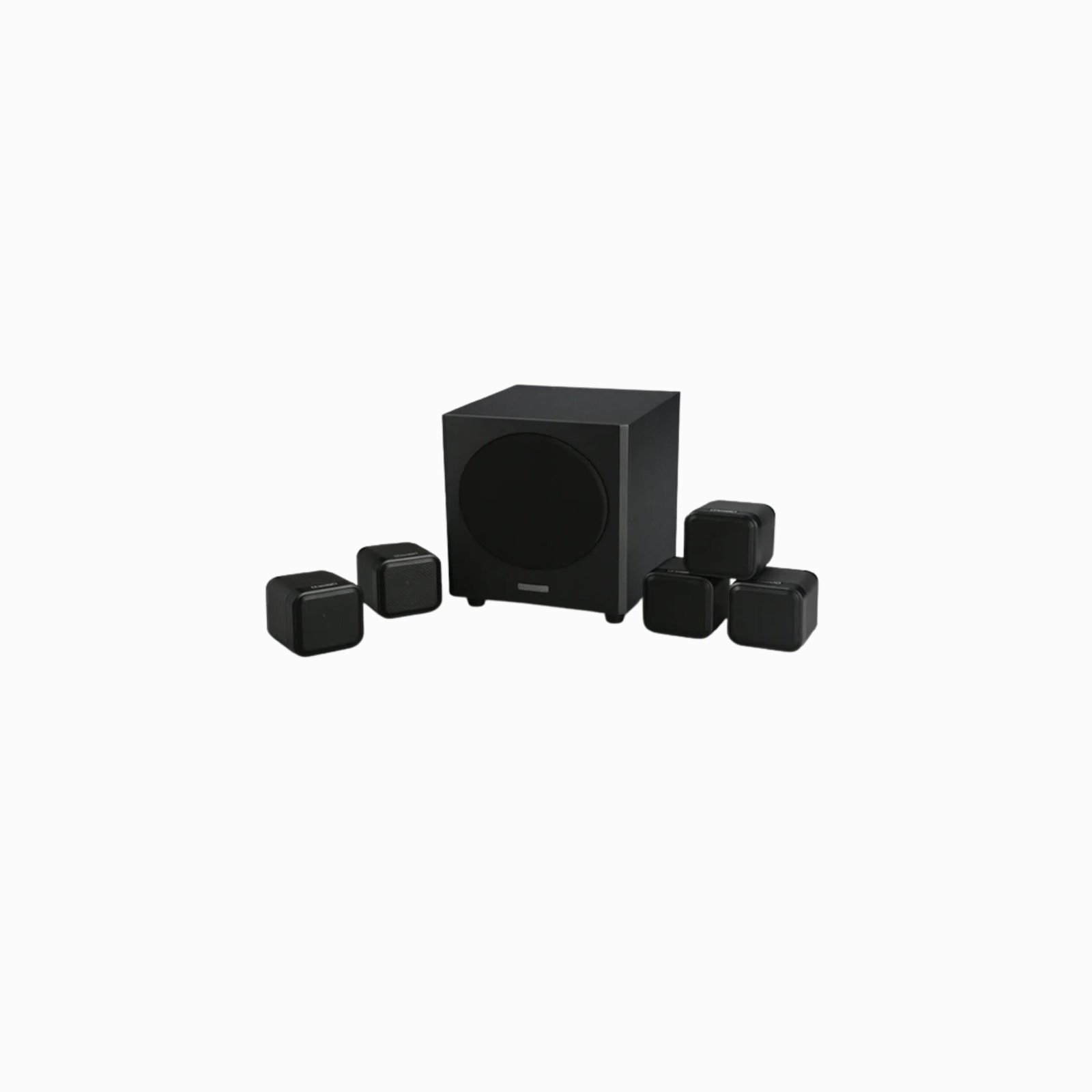

Continuing the success of the M-CUBE series, we, at Mission, bring to you this latest version, which is sure to be a favourite. This is the all-new M-CUBE+SE 5.1 surround sound system from the innovative M-CUBE range.
The M-CUBE+SE is designed specifically to meet the requirements of the home user who requires a fuss-free solution to Cinema and Surround Sound music in the home. Installation is simple thanks to the small, elegant appearance of the M-CUBE+SE satellite speakers, the multiple mounting arrangements, and the wide dispersion characteristics.
DRIVERS
The full-range driver in each M-CUBE+SE satellite speaker not only covers the frequency range 120Hz to 20kHz, output by an AV processor set to ‘Small’ but also disperses its output over a wide listening area.
SUBWOOFER
The M-CUBE+SE subwoofer is a powerhouse accepting LFE output from the AV processor and achieving a 35 – 150Hz power spectrum with exceptional dynamics and control. This is the result of using a 200mm long-throw, high linearity sub-bass unit driven by a new 150 Watt Class D amplifier equipped with precisely aligned equalization for a clear and powerful bass rendition that matches the satellites.
With easy-install on-wall or shelf mounting, the new Mission M-CUBE+SE is the solution for anyone looking for hi-fi quality sound from AV and music sources who require a versatile and discrete loudspeaker system.
| GENERAL DESCRIPTION | Wide bandwidth bookshelf/surround speaker |
| ENCLOSURE TYPE | Closed box |
| TRANSDUCER DRIVER | 3” Full range |
| AV SHIELD | No |
| SENSITIVITY (2.83V@1M) | 85 dB |
| RECOMMENDED AMPLIFIER POWER | 40-80 W |
| NOMINAL IMPEDANCE | 8 Ohms |
| MINIMUM IMPEDANCE | 3.6 Ohms |
| FREQUENCY RESPONSE (+/-3dB) | 120Hz-20kHz |
| BASS EXTENSION (-6dB) | 110 Hz |
| CABINET VOLUME (in lites) | 0.52 L |
| DIMENSION (H x W x D) in mm | 100 x 100 x 103 |
| CARTON SIZE (L x W x H) in mm | 390 x 390 x 525 (packed in system, including subwoofer and 5 pcs satellite speakers) |
| NET WEIGHT (Kg) | 12 Kg (Packed in a system, including subwoofer and 5 pcs satellite speakers) |
| GROSS WEIGHT (Kg) | 14 Kg (Packed in a system, including subwoofer and 5 pcs satellite speakers) |
| FINIS COLOUR | Graphite black & ivory |
| STANDARD ACCESSORIES | Desk stand, user manual, guarantee certificate |
SUBWOOFER SPECIFICATIONS
| GENERAL DESCRIPTION | Active closed-box subwoofer system |
| ENCLOSURE TYPE | Closed box |
| TRANSDUCER COMPLEMENT | 8” (200mm) long-throw bass driver |
| INPUT SENSITIVITY | 200mV for maximum output |
| AMPLIFIER POWER OUTPUT | 70W |
| PEAK POWER OUTPUT | 150W |
| PEAK SPL | 110 dB |
| FREQUENCY RESPONSE | 40 Hz – 150 Hz |
| BASS EXTENSION (-6dB) | 35 Hz |
| CROSSOVER FREQUENCY | 35 Hz – 150 Hz |
| SIGNAL TO NOISE RATIO (s/n) | >85 dB |
| SPECIAL FEATURES | Phase inversion, Auto on/off, Low-pass filter frequency adjustment |
| DIMENSION (H x W x D) in mm | 328 x 268 x 294 |
| CARTON SIZE (L x W x H) in mm | 390 x 390 x 525 (packed in system, including subwoofer and 5 pcs satellite speakers) |
| NET WEIGHT (Kg) | 12 Kg (Packed in a system, including subwoofer and 5 pcs satellite speakers) |
| GROSS WEIGHT (Kg) | 14 Kg (Packed in a system, including subwoofer and 5 pcs satellite speakers) |
| FINIS COLOUR | Graphite black & ivory |
| STANDARD ACCESSORIES | Desk stand, user manual, guarantee certificate |
