Mission LX-C1 MKII - Centre Speaker

    • Key Features & Specifications

      Based on manufacturer specification sheets:

      • Description: 2-way centre channel speaker (part of the LX MKII series from Mission). Mission+2AVStore+2

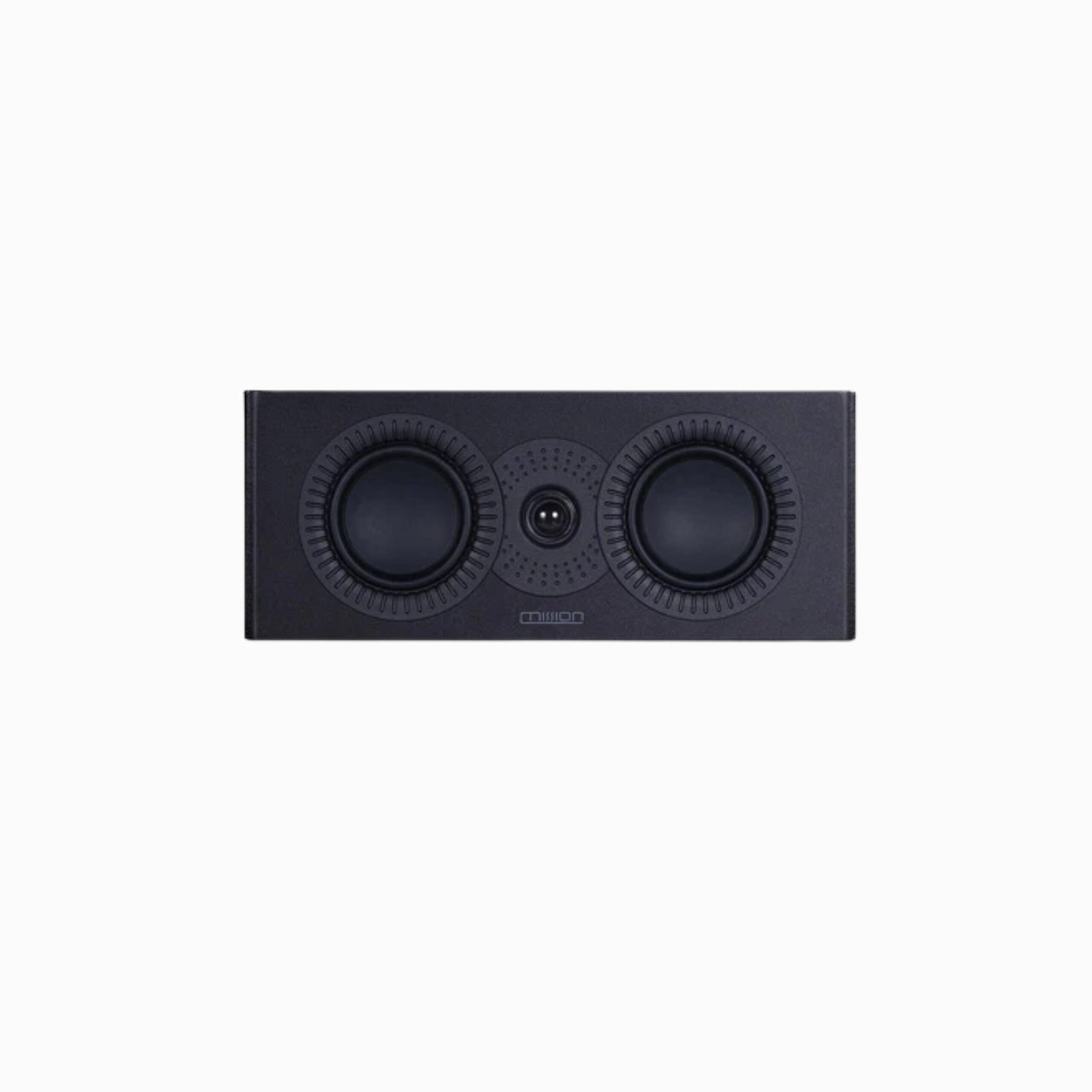

      • Driver complement: Two 4″ (100 mm) composite-fibre woofer/bass drivers + one 25 mm micro-fibre dome tweeter. Sound & Sight+2Mission+2

      • Sensitivity: ~88 dB (2.83V @ 1m) nominal. Mission+1

      • Nominal impedance: 8 Ω compatible (minimum impedance ~4.3 Ω). Home AV Direct+1

      • Frequency response (+/-3 dB): ~75 Hz to 20 kHz. Bass extension (~-6 dB): ~70 Hz. Sound & Sight

      • Recommended amplifier power: ~20-100 W. www.av.com+1

      • Dimensions: Width ~400 mm; Depth ~200 mm plus terminals; Height ~160 mm on plinth. Weight ~6.1 kg each. Mission+1

      • Finishes: Lux Black, Lux White, Walnut Pearl. All Home Living

      • Special design notes: Uses Mission’s “Inverted Driver Geometry” layout (tweeter below woofer) to optimise time alignment and transient response. Avatron+1

Description

The LX MKII Series is the latest in a long line of distinguished Mission loudspeakers, joining the multi-award-winning speakers from the mid-level QX Series and the flagship ZX Series. LX MKII maintains the Mission trademark ‘Inverted Driver Geometry’ design, which means the path length between the drivers is optimised. Unique at this price point, this arrangement allows the precision-tuned crossover to yield improved transient attack and astonishing detail.

Perfected over hundreds of hours of critical listening by Mission’s lead acoustic designer, Peter Comeau, Mission LX MKII utilises trickle-down innovations from the revered ZX series. Improvements in the famous Mission DiaDrive bass unit offer superior control of the low-frequency diaphragm, while a refined high-frequency performance and a re-engineered cabinet bracing system further help create a loudspeaker system that outperforms its price class.

Features:

Continuous Innovation

From over 40 years of British Hi-Fi heritage and experience, LX MKII is a representation of Mission’s non-stop pursuit of improvement and excellence.

Advanced New Driver Surrounds and Crossover

One of the critical areas highlighted by the development of Mission ZX and QX models was the use of serrations in the driver surrounds to help scatter interfering reflections from localised surfaces to the dome and cone.

LX MKII now incorporates these serrations into the driver surrounds, adding further finesse to the drive unit outputs and providing a smoother frequency response.

With minor perturbations in the driver response ironed out, the crossover for each model has been optimised to take advantage of the improved performance.

The result is that the LX MKII builds on the winning formula of the LX, both enhancing the clarity of midrange and treble detail and improving the micro-dynamics of the musical performance for an even more thrilling listener experience.

Inverted Geometry Drive Design

Mission’s classic IDG (Inverted Driver Geometry) driver format positions the high frequency below the bass/midrange driver, meaning the length of path is equalised so the sound waves coincide at the listener’s head height. A proprietary principle that improves ‘time alignment’ and thus transient performance in Mission speakers.

A New Start, With a New Finish

Standout new finish options follow the Mission mantra of fusing Hi-Fi heritage with contemporary design.

LX MKII is the epitome of affordable high-end audio, harnessing materials, techniques, and technologies that you would only expect to find in other speakers costing many times the price.

Whatever your choice of music, LX MKII will reproduce it with outstanding accuracy, detail, and realism, embodying Mission’s traditional adage since the 1970s.

Technical Specifications:

General description 2-way bookshelf speaker
Enclosure type closed-box system
Transducer complement 2-way
Bass driver 4″(100mm) composite fibre
Treble driver 25mm microfibre dome
AV shield No
Sensitivity (2.83V @ 1m) 88dB
Recommended amplifier power 20-100W
Peak SPL 103dB
Nominal impedance 8Ω Compatible
Minimum impedance 4.3Ω
Frequency response (+/-3dB) 75Hz ~ 20kHz
Bass extension(-6dB) 70Hz
Crossover frequency 3.5kHz
Cabinet Volume (in litres) 7.6L
Height (on plinth) 160mm
Width 400mm
Depth (with terminals) (200+8)mm
Carton size 495 x 300 x 255mm
Net weight 6.1kgs
