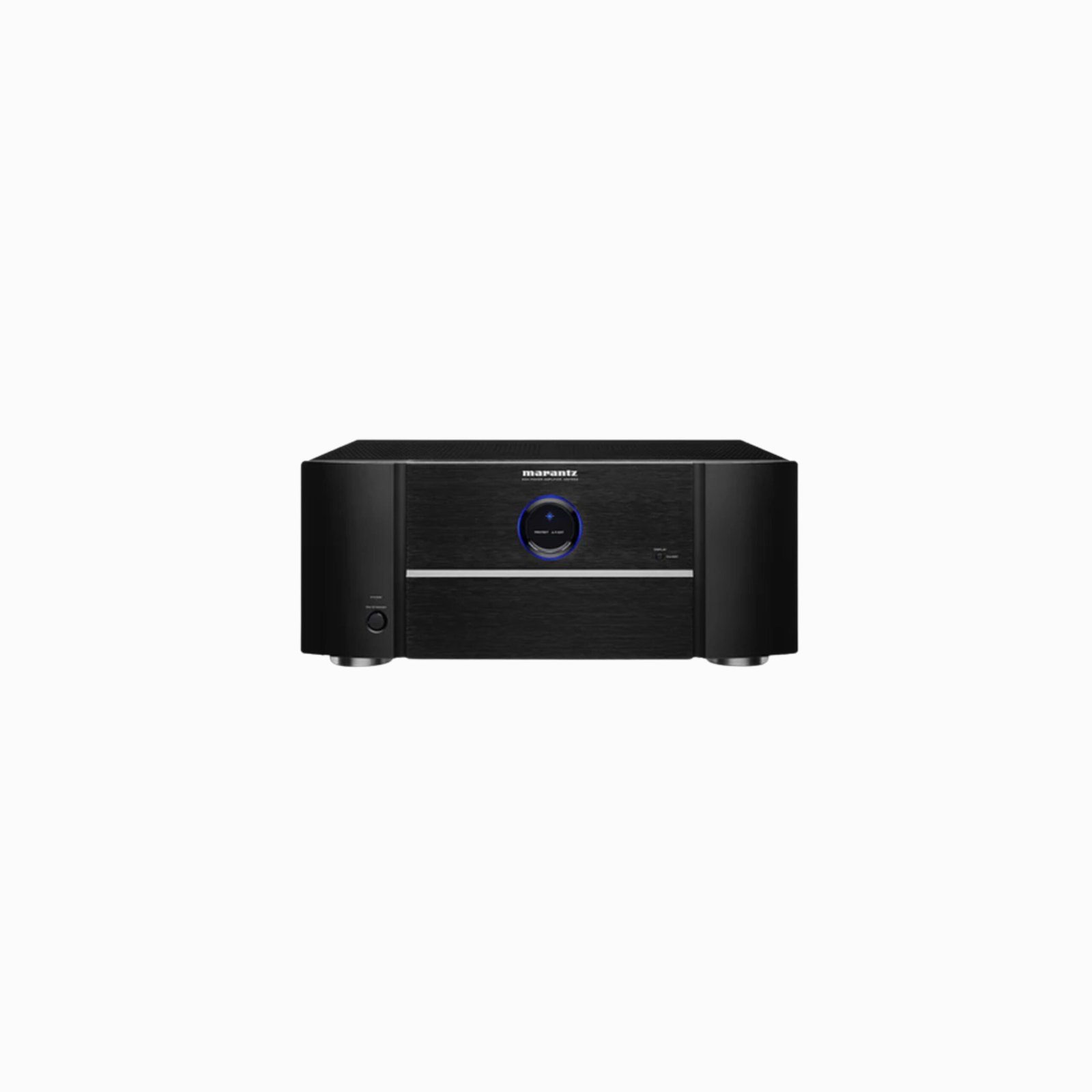

MARANTZ MM7055- 5-Channel Power Amplifier

Key Features

5-Channel Output — Powers all five main channels of a standard 5.1/5.0 setup from one box. Helps keep wiring and amplification simpler than using separate amps.

Consistent Power Across Channels — Balanced amplification gives each channel the same driving strength, helping maintain tonal balance and dynamic consistency across front and surround speakers.

High Headroom & Clean Power — A dedicated power amplifier typically delivers more stable current and voltage than many AV receiver power sections. Good for demanding speakers or higher volume with less distortion.

Simplified System Design — Instead of multiple stereo amplifiers or a high-end AVR, a 5-channel amp + pre-amp/AVR pre-out can be a cleaner, more powerful solution.

Better for Power-Hungry or Low-Sensitivity Speakers — If you use speakers that need more wattage or have lower sensitivity, a dedicated power amp like MM7055 can drive them more effectively than many integrated amps.

Flexibility for Upgrades — You can upgrade your pre-amp/processor or speakers independently; since amplification is separate, future upgrades don’t require replacing the amp.

Description

The MM7055 power amplifier produces 140 watts of high-current output from each of its five channels. This is “real world” power, too, measured across the full audio bandwidth (20 Hz – 20 kHz) at 8 ohms with 0.08% Total Harmonic Distortion. Among other attributes, this means the MM7055 is capable of long-term power delivery into low impedance speakers.

The Many Faces of Excellence

In practical terms, the MM7055 is ideal for a “5.1” home theater system, whether based on a moderately powered receiver or a surround sound processor. You can use it to power speakers in different areas of your home; stereo reproduction in two rooms plus a mono channel for secondary areas such as a den or kitchen. For more complex home theater systems, the MM7055 pairs with one or several MM7025s to help create a totally immersive “7.1” or “9.1” audio experience.

Inside The MM7055

A massive power supply includes a multiple-secondary EI-core transformer and over 65,000 µF of custom-designed energy storage capacity. Critical circuit components from many world-class suppliers were chosen only after extensive listening tests. Among these, the LAPT Hyper Power output devices were first used in Reference Series components. Current feedback topology ensures astounding accuracy and control under high-drive conditions.

A Temperature-Controlled Environment

Physically, the MM7055’s output stages mount on an extruded aluminum “thermal tunnel” for efficient heat dissipation. With temperature-sensing forced air cooling, this configuration assures cool operating temperatures for long-term reliability, even when making full use of the amplifier’s substantial output capabilities.

Flexible Connections

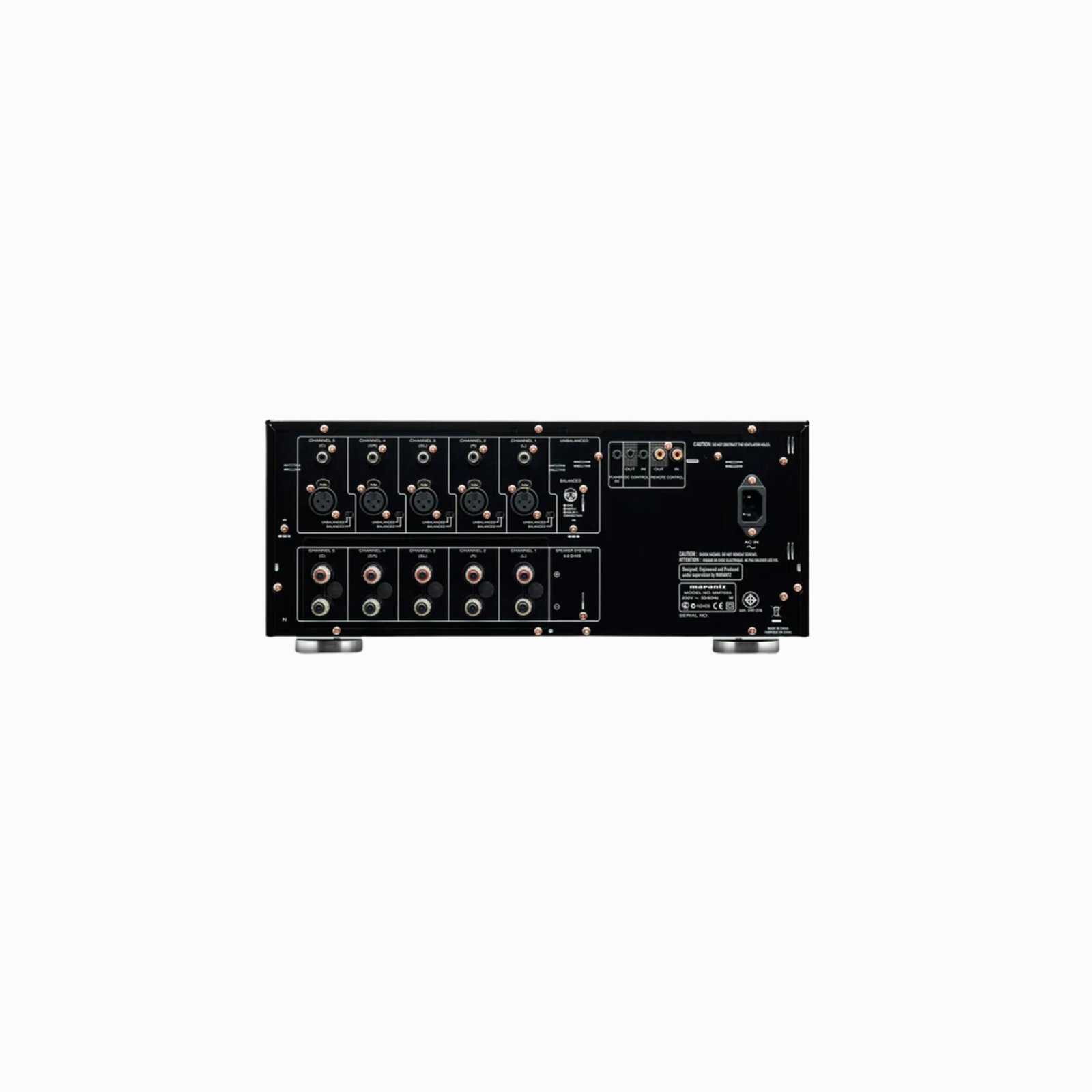

Balanced inputs and single-ended RCA inputs are both supported, and you can choose either type of input for each channel, individually, for easy and flexible connectivity. Audiophile-grade, gold-plated four-way binding post speaker terminals ensure tight connections to your choice of speaker wire.

Custom Touches

The MM7055 includes input and output jacks for DC “trigger” pulses as well as RC-5 jacks for total remote control convenience, even with legacy Marantz products.

The chassis itself is heavy-gauge steel for maximum isolation from external vibration as well as electromagnetic and radio frequency interference. And chassis depth is less than 14½”, so the MM7055 will fit quite nicely on a shelf, in a cabinet, or in a conventional system rack with the optional rack mount kit RMK8003MM.

Additional Information

MULTI CHANNEL/SURROUND

THX
DTS
Dolby
DSD(SA-CD)/NEURAL
SRS

SOUND ENHANCEMENTS

HDCD Decoder
Current Feedback Topology	Yes
Discrete Amplification	Yes
Power Transformer	Large Capacity EI
D/A Conversion
Digital Signal Processing
Video Off (Pure Direct)
Source Direct
Source Direct	Steel
Variable X-over	Steel
Display Off	Blue LED Illumination off mode available
Video Up-conversion
Auto Calibration by MIC
Satellite Radio Ready
AM/FM Tuner
Bass Redirection
Lip-sync (digital audio delay)
Software Upgradable

Power Output140W (20Hz-20kHz, 0.08%)S/N Ratio105dBFreq. Response (Analog In)8Hz-100kHz (+/- 3dB)Freq. Response (Dig In)TUNER SECTION FMFrequency RangeS/N Ratio (Mono/Stereo)TUNER SECTION AMFrequency RangeS/N RatioVIDEO SECTIONVideo Freq. Response (Component)Video Freq. Response (Composit, S-Video)Signal to Noise
