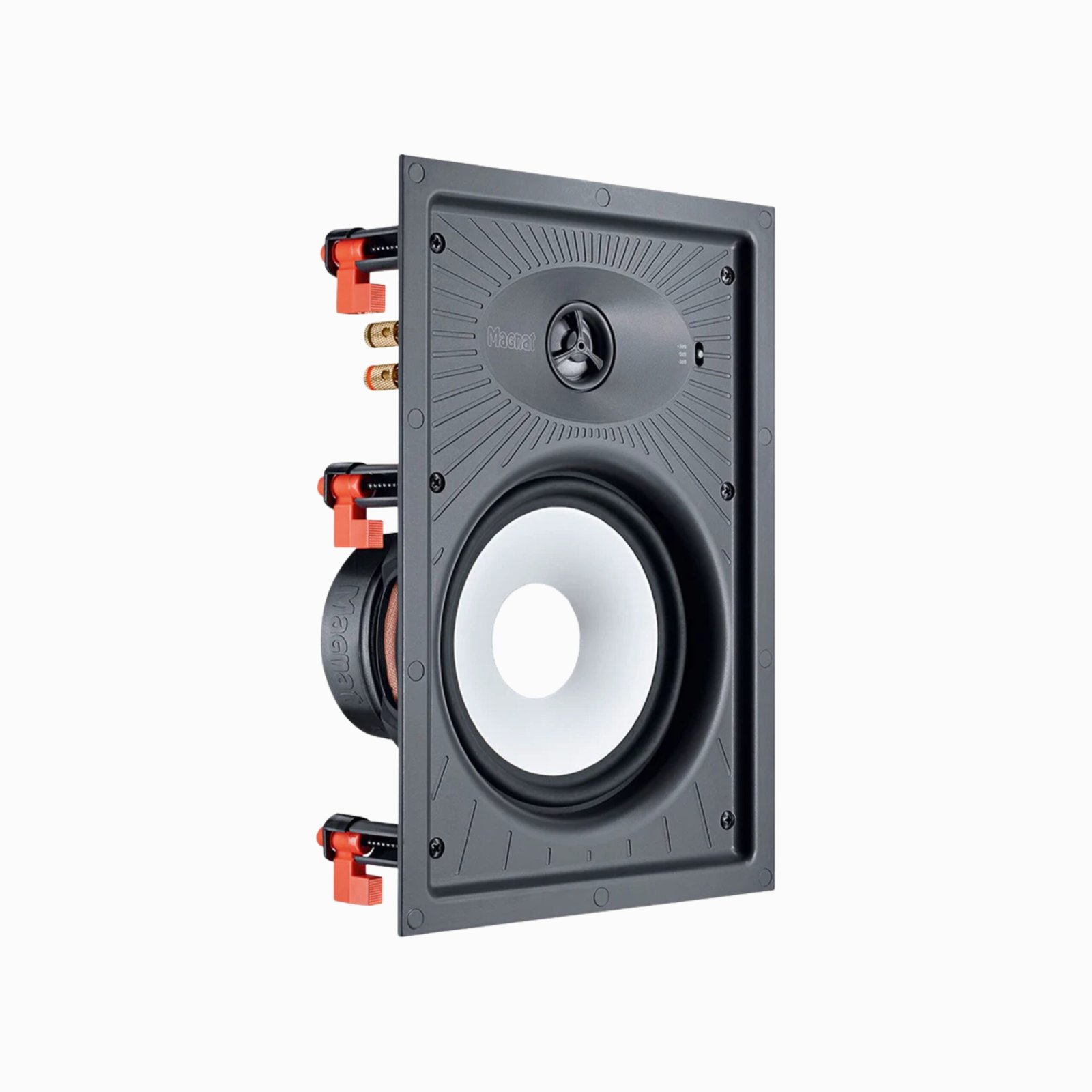

Magnat Signature IWT 162 In-Wall Speaker

Key Features & Specifications

Type: 2-way in-wall/in-ceiling speaker (though marketed primarily for wall installation). Pacific Hi Fi+2magnat21demo.mdc.de+2

Drivers: 1 × 160 mm (≈ 6.5″) woofer-midrange + 1 × 25 mm (≈ 1″) dome tweeter. MAGNAT Website+1

Power handling (RMS / Max): 110 W / 180 W. MAGNAT Website+1

Impedance: 4 Ω nominal. MAGNAT Website+1

Sensitivity: 91 dB (2.8V/1m). Soundlab New Zealand+1

Frequency response (manufacturer-claim): 32 Hz – 28,000 Hz. magnat21demo.mdc.de+1

Recommended amplifier power: 20-180 W. MAGNAT Website

Mounting / dimensions: Outer size ~220 × 320 mm, mounting depth ~102 mm. Cut‐out ~186 × 286 mm. Weight ~2.15 kg. elektrowelt24.eu+1

Special features:

High-quality aluminium/ceramic sandwich cone for the woofer. magnat21demo.mdc.de+1
Treble level adjustment in 3 steps (to adapt for installation position/room acoustics). Pacific Hi Fi
Installation friendly: designed for dry-walls, doesn’t necessarily need a separate “enclosure” in certain installations. Pacific Hi Fi+1

Description

Magnat Signature IWT 162

Key Features

High-end chassis technology with ceramic/aluminum bass-midrange drivers and a coated fabric dome
High load capacity with compact dimensions
Uncomplicated installation thanks to a sophisticated mounting system
Tonal structure is perfectly coordinated with the Signature series, therefore can be individually combined
Treble level can be adjusted in 3 stages

DESCRIPTION

The compact version for wall installation is the IWT 162, which features one woofer and a tweeter, yet still ensures a full-blooded sound. The 16 cm woofer with its aluminum/ceramic cone and a tweeter with coated fabric dome cater for the full frequency range down to 32 Hz. The treble level can be adjusted in three stages here as well, thereby enabling a wide range of installation positions. Measuring 320 x 220 mm with a mounting depth of 102 mm, the Signature IWT 162 doesn´t pose any problems during installation. It doesn´t require special housing and is perfectly accommodated in any drywall, and from a volume of 20 liters. The IWT 162 is suitable for use as a front speaker, as a fully-fledged front channel in a home cinema setup, as well as a luxurious rear channel speaker.

Specifications

PRINCIPLE	2-way in-wall/in-ceiling loudspeaker
DRIVERS	1 x 6.5“ woofer-midrange
DRIVERS	1 x 1“ dome tweeter
POWER HANDLING (RMS/MAX.)	110 / 180 watts
SENSITIVITY (2.8V/1M)	91 dB
IMPEDANCE	4 Ohms
FREQUENCY RESPONSE	32 – 28000 Hz
CROSSOVER FREQUENCIES	3.100 Hz
RECOMMENDED AMPLIFIER OUTPUT	20 – 180 Watts
OUTER DIMENSIONS Ø	220 x 320 mm
MOUNTING DEPTH	102 mm
CUTTING OUT (WXH)	186 x 286 mm
WEIGHT	2.15 kg
