Magnat Signature ICT-62 - 6.5 Inches Angled In-Ceiling Speaker (Pair)

  • Key Features

    • Angled In-Ceiling Speaker Design
      Each speaker features a tilted driver assembly that directs sound toward the listening area, improving imaging and clarity compared to standard in-ceiling units.

    • 6.5-Inch Woofer Drivers (Pair)
      Mid-size woofers deliver balanced low and mid frequencies with good definition and depth for music and home theatre audio.

    • Dedicated Tweeters
      Each speaker includes a separate tweeter for crisp, detailed high-frequency reproduction, enhancing vocals, detail, and treble extension.

    • Wide Sound Dispersion
      Engineered to radiate sound broadly throughout the space, providing even coverage and immersive audio across room seating positions.

    • Flush-Mount Installation
      Designed for secure in-ceiling mounting with included hardware, producing a clean, low-profile finish that blends with interior décor.

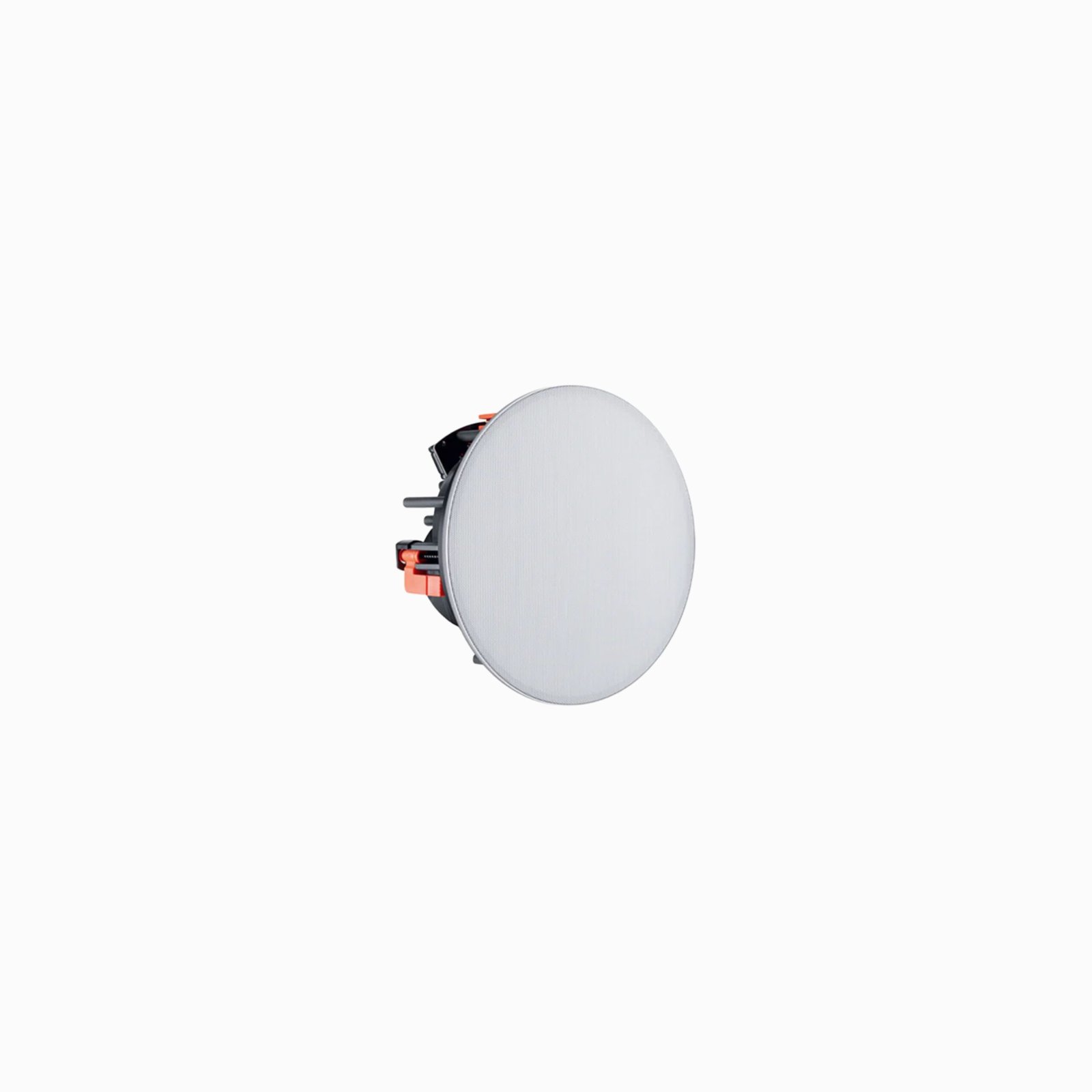

    • Paintable, Low-Profile Grilles
      Grilles can be painted to match ceiling color for seamless aesthetic integration.

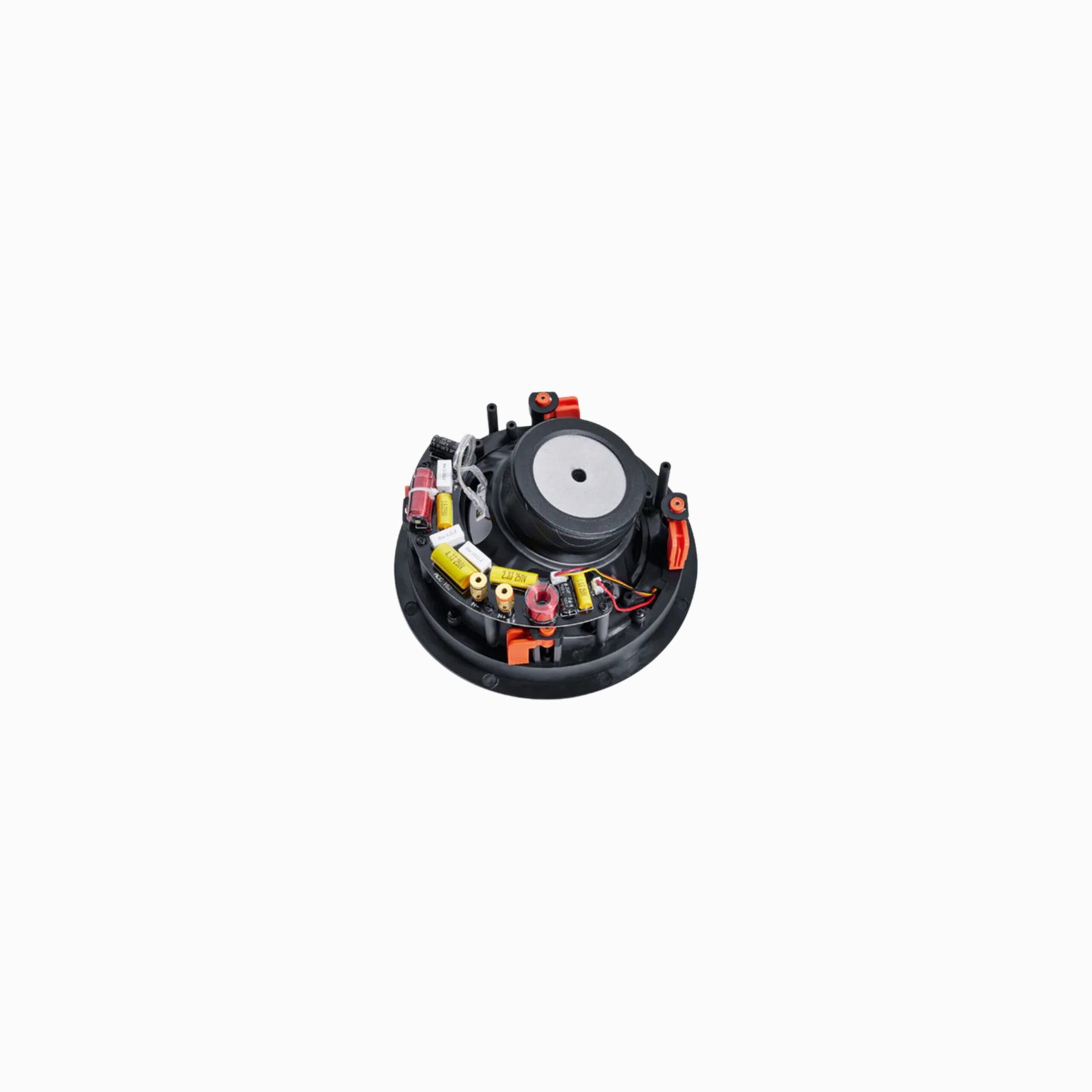

    • Optimized Crossover Network
      Precision crossover components ensure smooth frequency hand-offs between woofer and tweeter for coherent, balanced sound.

    • Durable Construction
      Built with quality materials for long-lasting performance in residential or commercial audio systems.

    • Versatile Application
      Ideal for distributed audio systems, background music zones, or high-quality in-ceiling front/rear channels in home theatre setups.

    • Easy Connectivity
      Standard speaker wire terminals make hooking up to amplifiers or AV receivers straightforward.

Description

Magnat Signature ICT-62 – 6.5 Inches Angled In-Ceiling Speaker

Signature ICT 62

  •  High-end chassis technology with ceramic/aluminum bass-midrange drivers and a coated fabric dome
  •  High load capacity with compact dimensions
  •  Uncomplicated installation thanks to a sophisticated mounting system
  •  Tonal structure is perfectly coordinated with the Signature series, therefore can be individually combined
  •  Angled alignment to the listening position

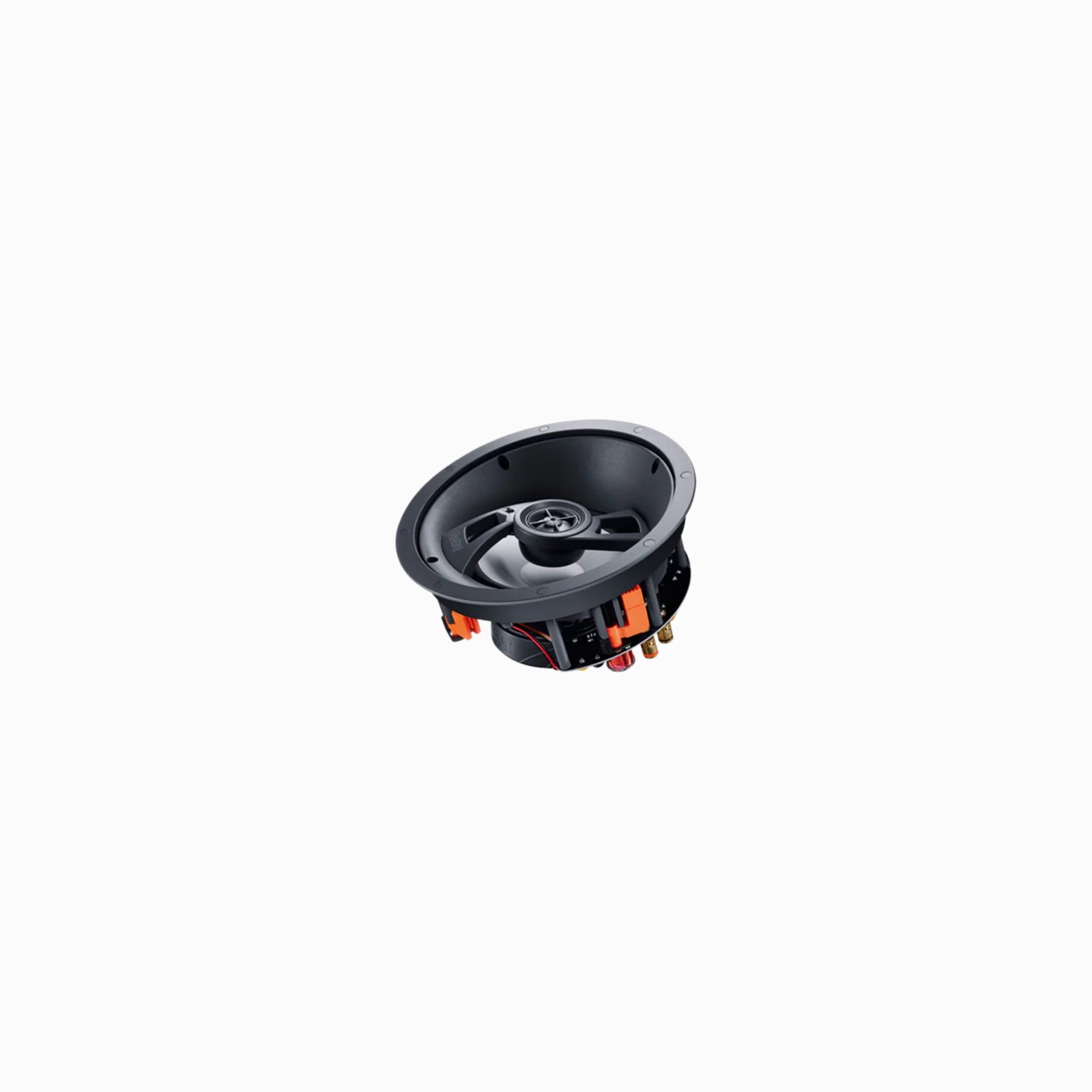

The round ICT 62 in-ceiling speaker completes the product range. It combines a 160 mm woofer with a 25 mm tweeter dome, and its angled design allows perfect alignment to the listening position, meaning that even if a mounting position is only available in the ceiling, an appealing, spatial representation is still produced. In addition, the ICT 62 is also perfectly suited for use with Dolby Atmos configurations in a direct sound mode. Thanks to the acoustic coordination that is compatible with the rest of the Signature series, all imaginable setups and configurations can be realized. With an outer diameter of 238 mm and an installation depth of 130 mm, it is extremely compact despite its high performance.



Specifications

Principle
2-way in-wall/in-ceiling loudspeaker
Drivers
1 x 6.5“ woofer-midrange 1 x 1” dome tweeter
Power Handling (RMS/Max.)
110 / 180 watts
Sensitivity (2.8V/1m)
91 dB
Impedance
4 Ohms
Frequency Response
32 – 28000 Hz
Crossover Frequencies
3.100 Hz
Recommended Amplifier Output
20 – 180 Watts
Outer Dimensions Ø
238 mm
Cutting Out Ø
206 mm
Mounting depth
130 mm
Weight
1,82 kg
