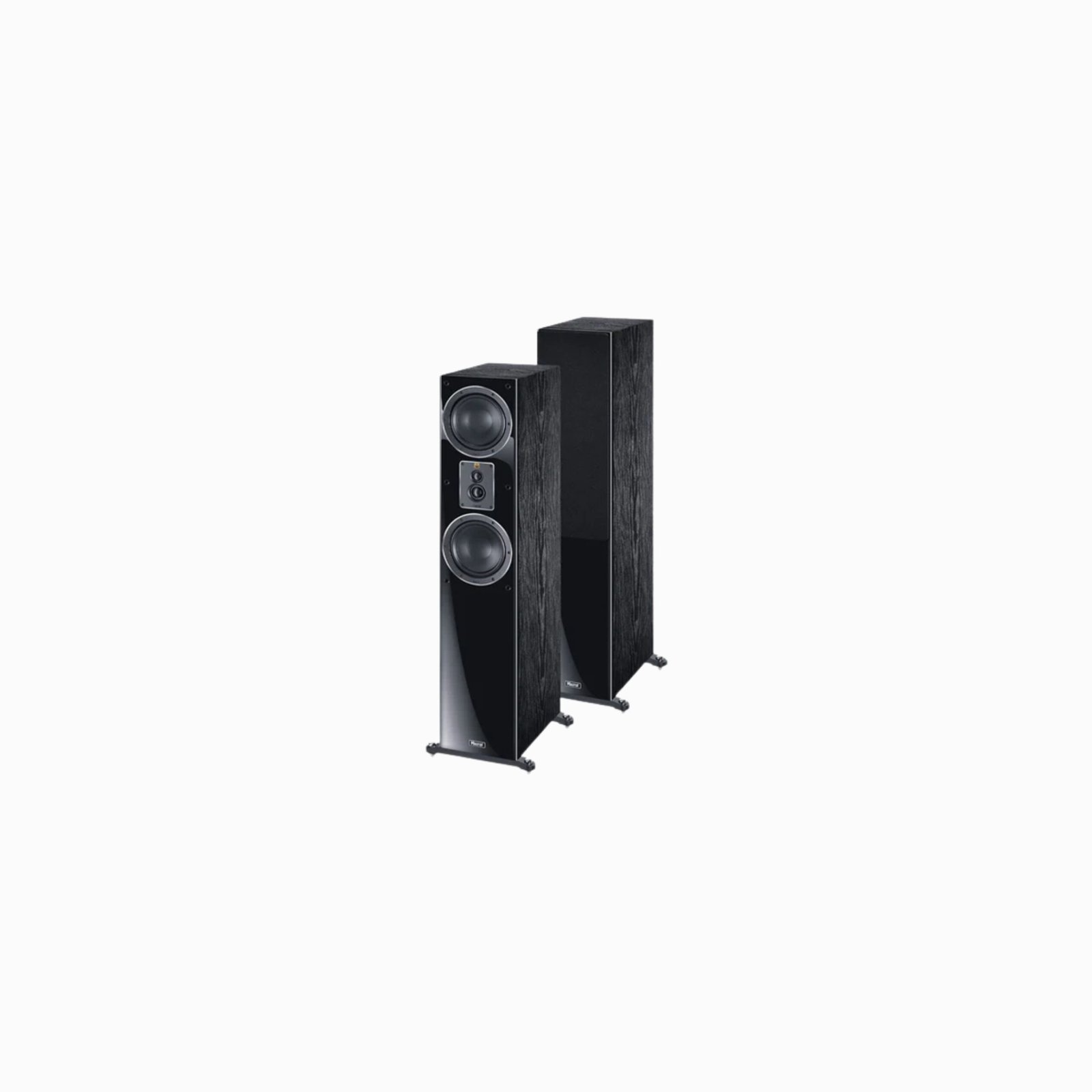

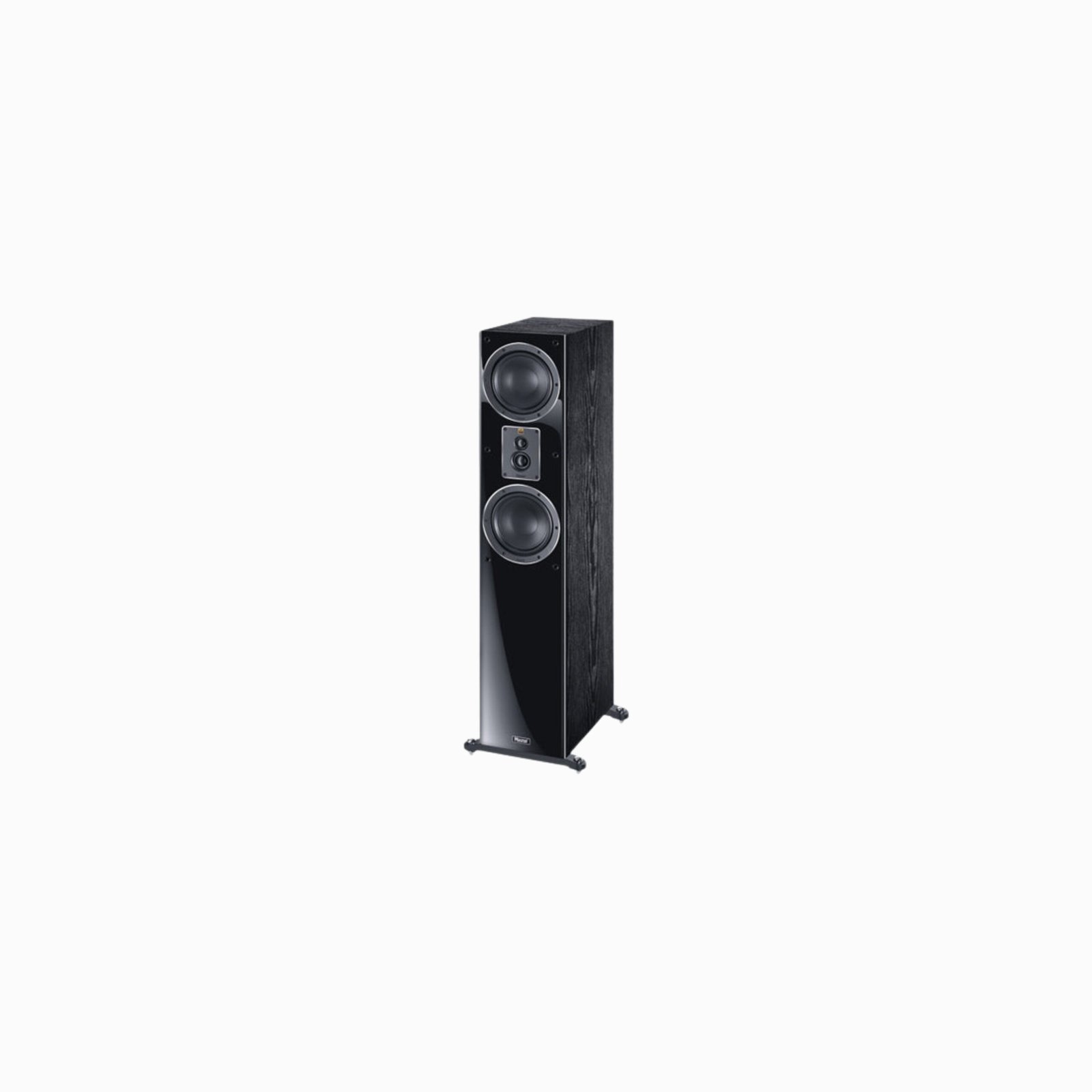

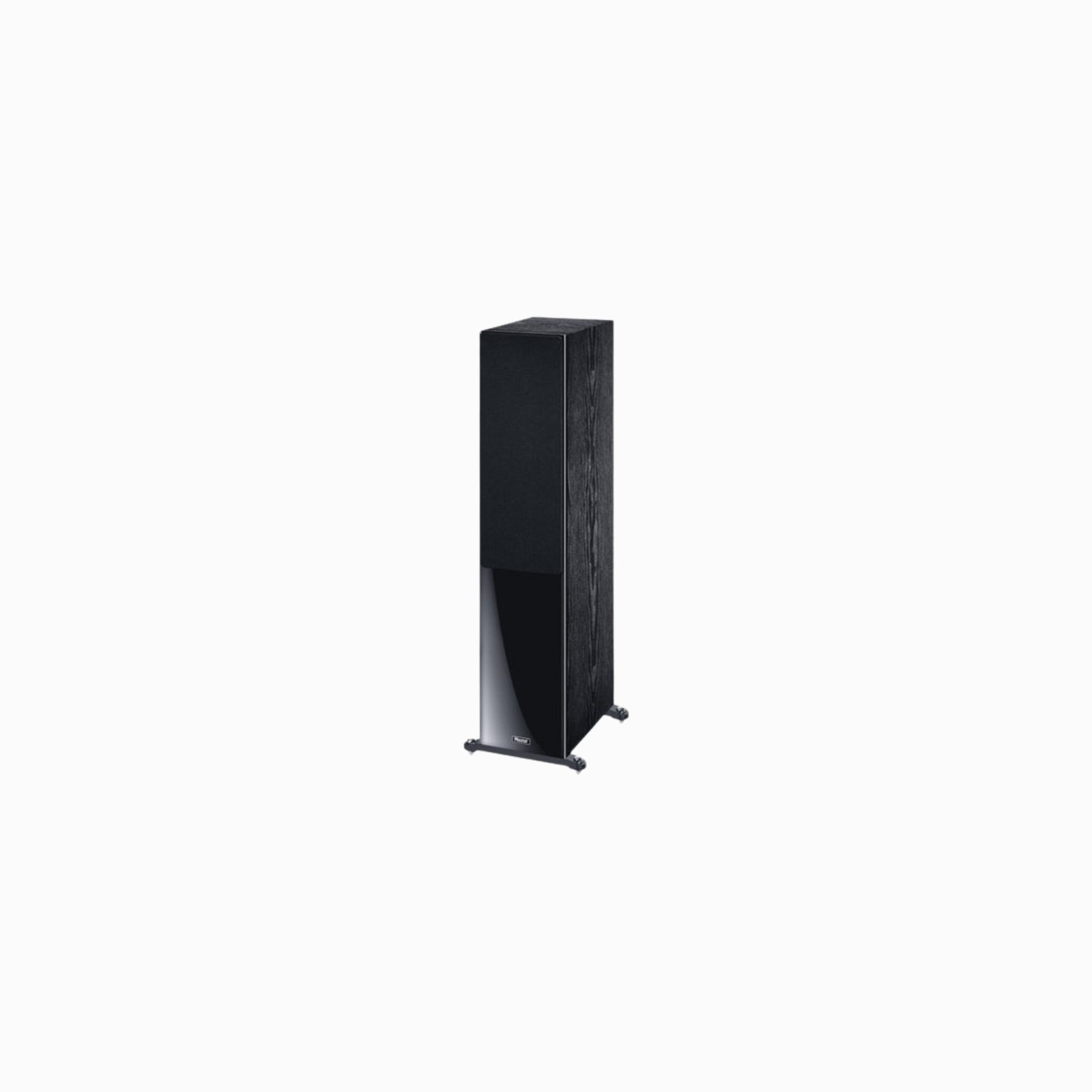

Magnat Signature 505- Slim 3-Way Floor Standing Speaker (Pair)

Key Features

  • Slim 3-Way Floor-Standing Design
    Combines dedicated tweeter, midrange, and bass drivers in a tall, slim cabinet for balanced, full-range sound with clarity and depth.

  • High-Quality Driver Configuration
    Includes a soft-dome tweeter, midrange driver, and multiple bass drivers tuned to deliver detailed highs, expressive mids, and tight, impactful bass.

  • Balanced Sound with Wide Dispersion
    Engineered to produce broad sound coverage and precise imaging across different listening positions.

  • Optimized Crossovers
    Precisely designed crossover networks ensure seamless transitions between frequency ranges for natural, coherent audio.

  • Rigid Cabinet Construction
    Solid, low-resonance enclosure minimizes unwanted vibrations and coloration, improving clarity and accuracy.

  • Slim, Space-Efficient Profile
    Tall, narrow design fits easily into modern living rooms or entertainment spaces without dominating the room visually.

  • Premium Materials and Build Quality
    High-grade components and refined finishes enhance aesthetics and long-term reliability.

  • Floor-Standing Presence
    Designed to deliver more powerful performance than typical bookshelf speakers, with fuller bass and broader dynamic range.

  • Flexible Placement
    Ideal for home audio systems, stereo setups, or front left/right speakers in a home theatre system.

  • Easy Integration with AV Systems
    Standard speaker terminals make connection to amplifiers, AV receivers, and processors straightforward.

Description



 Signature 505Slim floor-standing model with 3.5-way components

  • Hi-Res certified dual tweeter module with two fmax domes
  • 3.5-way speaker with bass reflex technology
  • Klippel-optimised bass-midrange unit and woofer
  • Ventilated voice-coil unit for maximum resilience and dynamics
  • Spikes for secure positioning and acoustic decoupling



Slim floor-standing model with 3.5-way componentsThe Signature 505 is the more compact of the two floor-standing speakers, but still fully grown at a height of 930 mm. It is equipped with the Hi-Res certified dual tweeter module with two fmax domes and also features a 170 mm bass-midrange unit, as well as a further 170 mm woofer. The front panel with its integrated wave guides also optimises the dispersion characteristics. The spikes supplied with the package not only ensure secure positioning of the Signature 505, but they can also be used for acoustic decoupling. As a stereo speaker, it cuts an equally outstanding figure in terms of sound as it does in its role as a front channel in a home cinema system.



Specifications

  •   3.5 way, dual 6.5″ woofer-midrange, bass reflex

Principle

  •   6.5“ woofer 6.5“ woofer-midrange 0.75″ super-tweeter 1.2″ dome-tweeter

Drivers

  •   170/300 Watts

Power Handling (RMS/Max.)

  •   92 dB

Sensitivity (2.8V/1m)

  •   4 – 8 Ohms

Impedance

  •  24 – 53000 Hz

Frequency Response

  •  330 Hz / 2800 Hz / 17500 Hz

Crossover Frequencies

  •   > 30 watts

Recommended Amplifier Output

  •   Enclosure: 205 x 930 x 332 Enclosure incl. Spikes: 286 x 970 x 332 mm

Dimensions (WxHxD)

  •   18.8 kg

Weight
