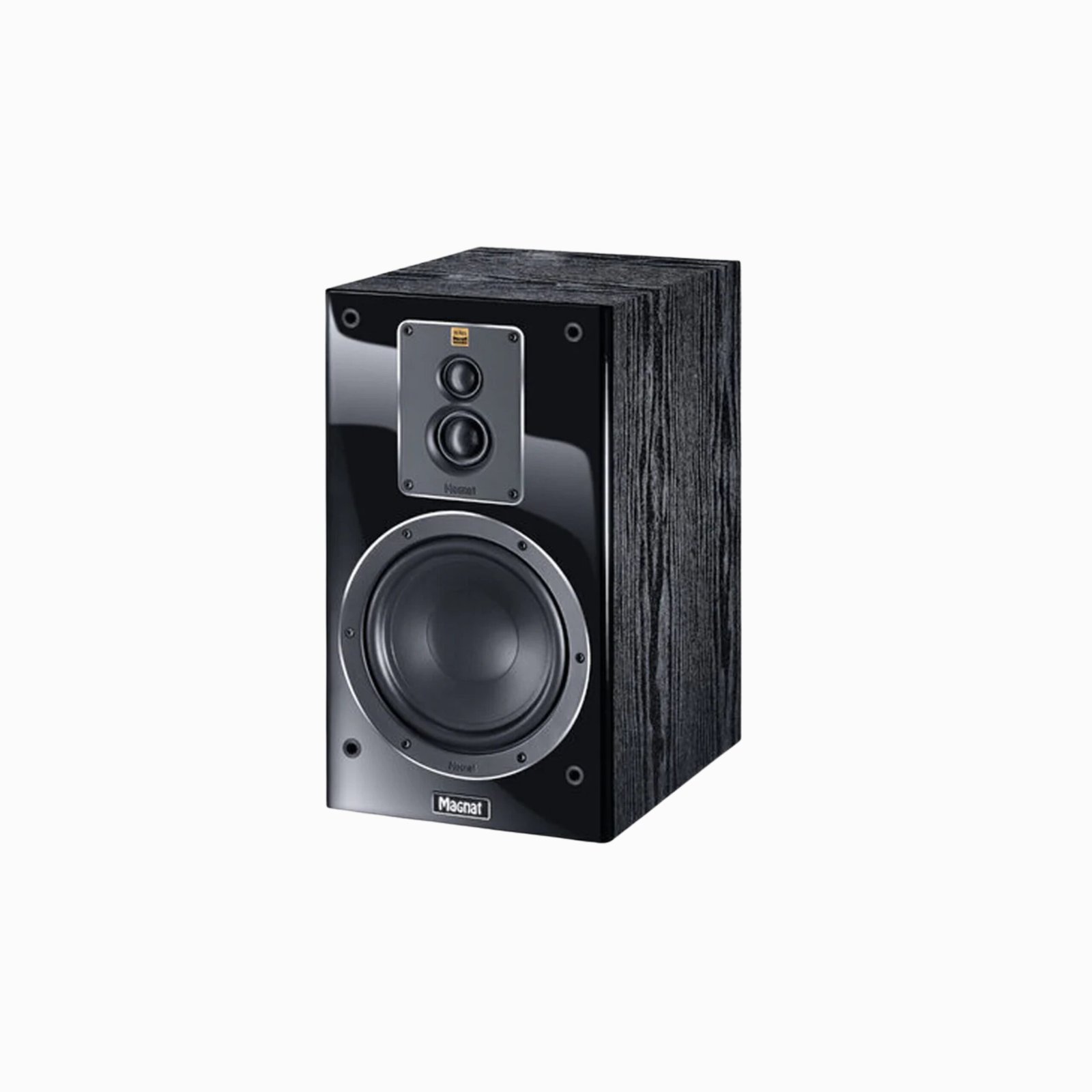

Magnat Signature 503 - 3 Way Bookshelf Speaker (Black)(Pair)

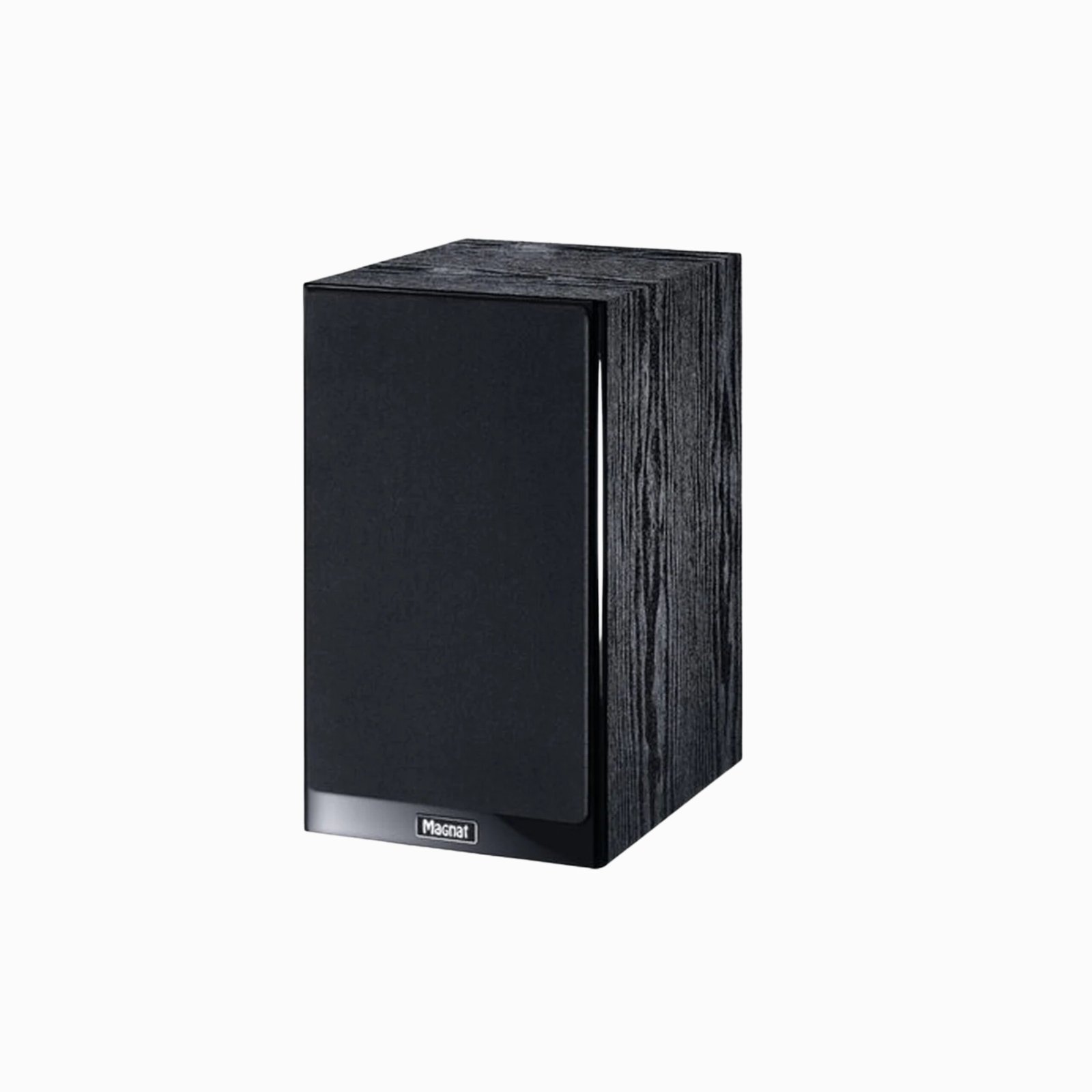

Magnat Signature 503 - 3 Way Bookshelf Speaker (Black)(Pair) - Image 2

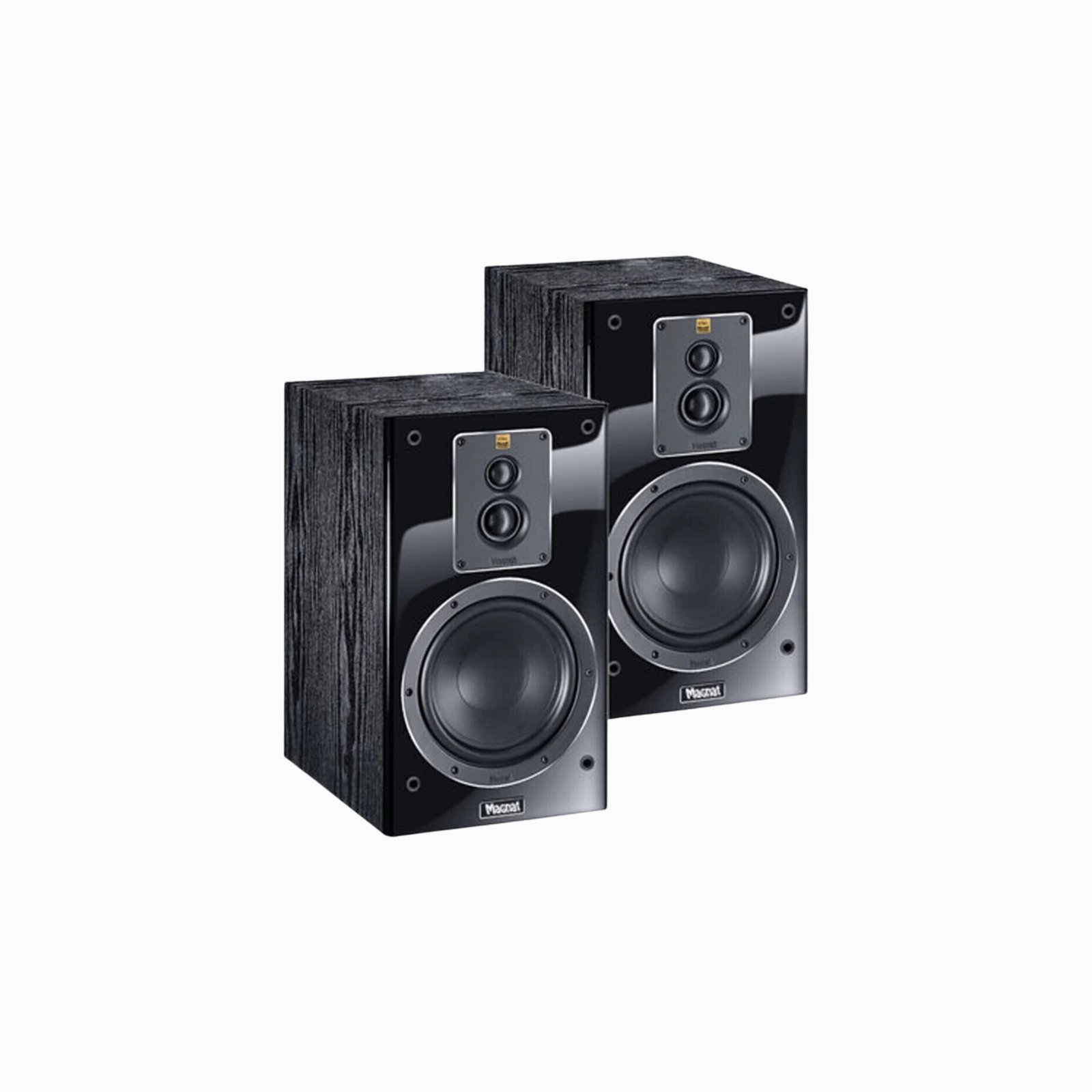

Magnat Signature 503 - 3 Way Bookshelf Speaker (Black)(Pair) - Image 3
Magnat Signature 503 - 3 Way Bookshelf Speaker (Black)(Pair)
Magnat Signature 503 - 3 Way Bookshelf Speaker (Black)(Pair)
Magnat Signature 503 - 3 Way Bookshelf Speaker (Black)(Pair)
Category: Speaker

Magnat Signature 503 - 3 Way Bookshelf Speaker (Black)(Pair)

Key Features

3-Way Acoustic Design

  • Dedicated drivers for treble, midrange, and bass frequencies

  • Reduced distortion and improved clarity across the spectrum

  • Better separation and imaging compared with typical 2-way bookshelf speakers

Premium Driver Components

  • Soft-dome tweeter for smooth, extended high frequencies

  • Midrange driver for natural, articulate vocals and instruments

  • Woofer driver optimized for punchy, controlled low frequencies

Refined Cabinet Construction

  • Sturdy, low-resonance enclosure for cleaner sound reproduction

  • Black finish that complements modern audio systems

  • Compact form factor ideal for bookshelves, stands, or desktop placement

Acoustic Tuning

  • Optimized crossover network for seamless driver integration

  • Balanced tonal performance across listening levels

Ask a question
Delivery & Return

Description

Magnat Signature 503 – 3 Way Bookshelf Speaker

The Signature 503 is, as a shelf-top speaker, the most compact representative of the new 500 range. As a three-way system, it combines the hi-res dual tweeter module with a 17 cm bass-midrange unit. It unites all this in a footprint smaller than an A4 sheet of paper and a height of 365 mm. The sturdy MDF housing is available in two elegant finishes: black ash or mocca. It is just as practical as a compact stereo solution as it is when using it as a surround sound speaker in a home cinema set-up. Thanks to identical components like the front panel systems, it delivers an absolutely homogeneous soundscape. The Signature 503 is the best proof that perfect sound does not necessarily require huge speakers



Specifications

Technical specifications

PRINCIPLE
 3 way bass reflex
DRIVERS
 6.5“ woofer-midrange 0.75″ super-tweeter 1.2″ dome-tweeter
POWER HANDLING (RMS/MAX.)
 100 / 170 watts
SENSITIVITY (2.8V/1M)
 91 dB
IMPEDANCE
 4 – 8 Ohms
FREQUENCY RESPONSE
 32 – 53000 Hz
CROSSOVER FREQUENCIES
 2800 Hz / 17500 Hz
RECOMMENDED AMPLIFIER OUTPUT
 > 20 Watts
DIMENSIONS (WXHXD)
 205 x 365 x 282 mm

PARAMETERS AND SPECIFICATIONS

Type
 Bookshelf
Bluetooth
 No
System
 Passive
Bandwidth
 3 Bandwidth
Power
 100 W
Colour
 Black
Bass Reflex Port
 Yes
Frequency Range
 32 Hz – 53 kHz
Crossover Frequency
 2,8 kHz, 17,5 kHz
Woofer
 6,5″
Tweeter
 1,2”
Original Colour by Producer
 Black
Housing
 Plywood Housing
USB
 No
Package Quantity (pcs)
 2
Package Contents
 Manual
Remote Control
 No
Width (cm)
 20,5
Height (cm)
 36,5
Depth (cm)
 28,2
Net Weight (kg)
 8
