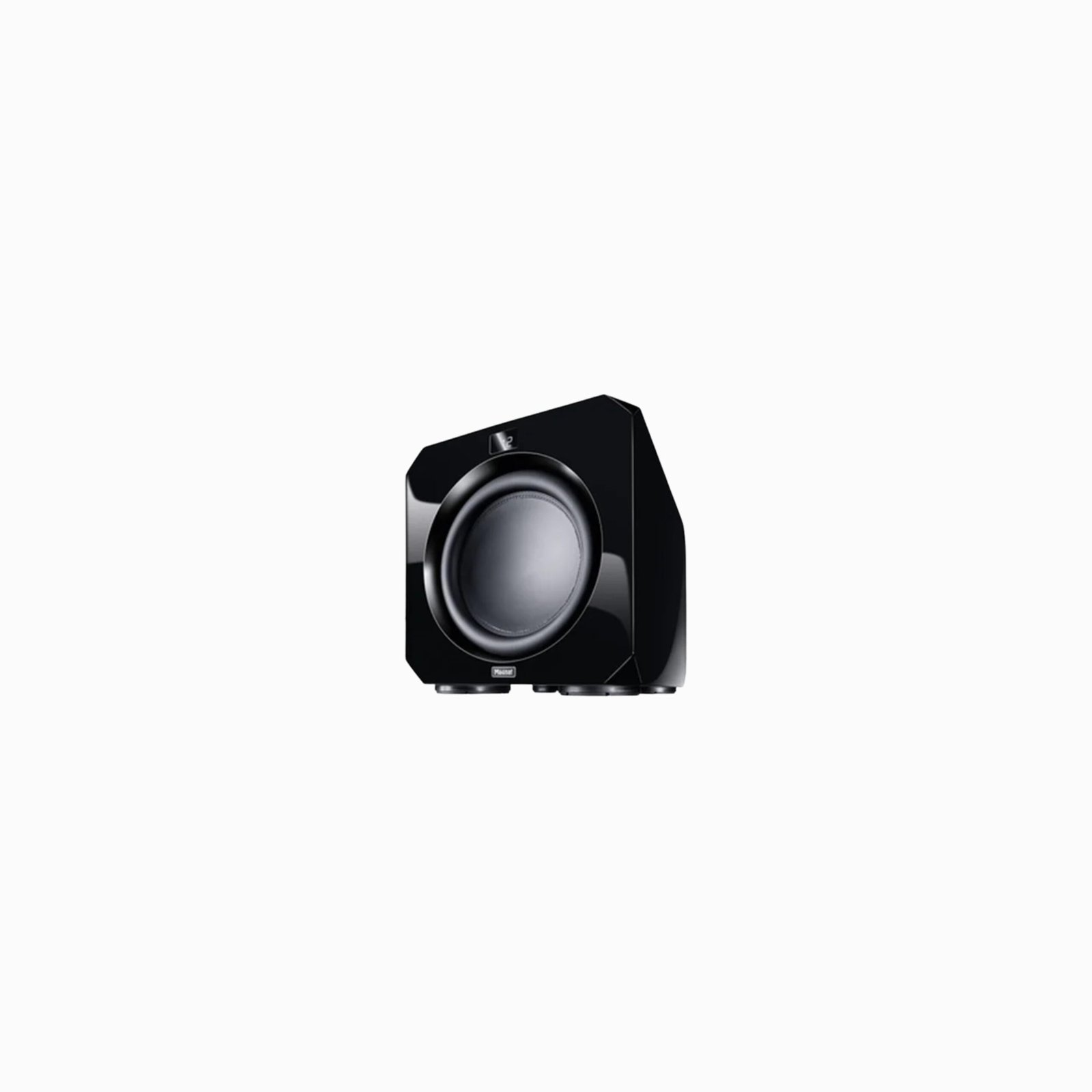

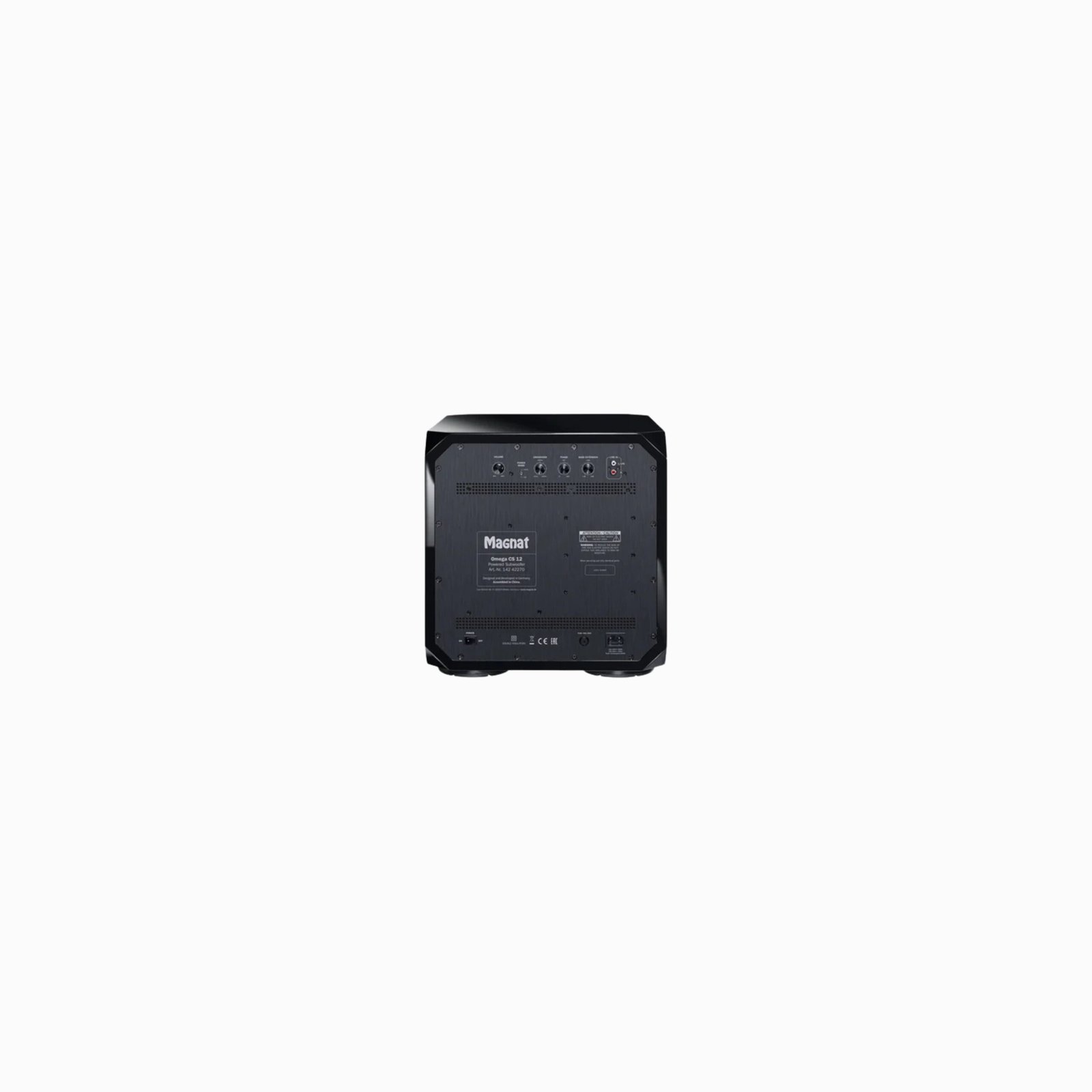

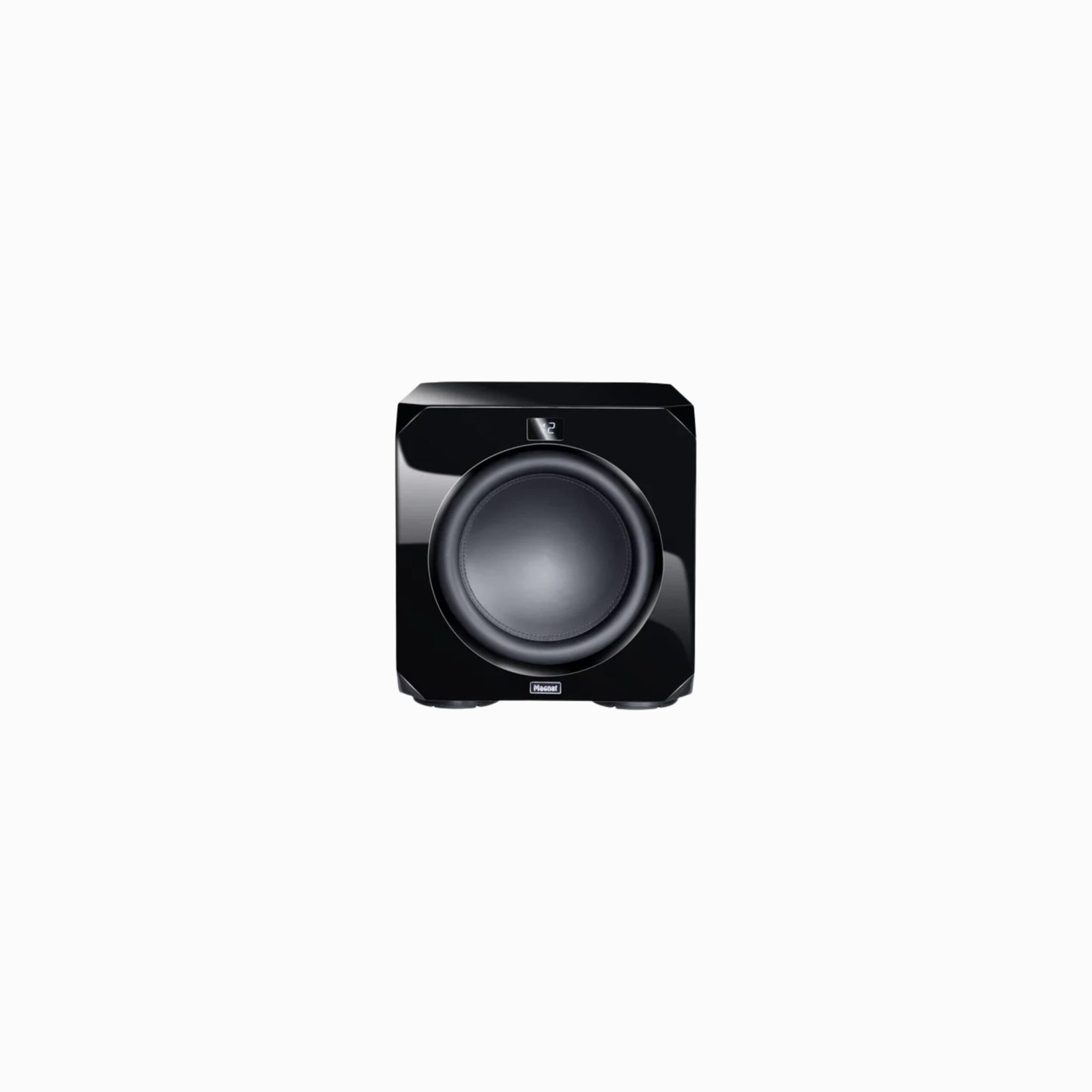

Magnat Omega CS12 -12 Inches Powered SubwooferMagnat Omega CS12 -12 Inches Powered Subwoofer

  • Key Features

    • 12-Inch Long-Throw Driver
      Large high-excursion woofer delivers deep, powerful bass with excellent authority and dynamic impact, enhancing movies and music.

    • Built-In High-Power Amplifier
      Robust internal amplification provides plenty of clean, controlled power, ensuring impactful low-frequency performance without distortion.

    • Front-Firing Bass Output
      Front-firing configuration allows flexible placement near walls or furniture without compromising bass performance.

    • Adjustable Crossover Control
      Lets you fine-tune the subwoofer’s frequency roll-off to match your main speakers and room acoustics for seamless integration.

    • Phase Control
      Allows alignment of the subwoofer’s output with other speakers in your system for coherent bass timing and improved impact.

    • Auto On / Standby Function
      Automatically powers the subwoofer on when an audio signal is detected and enters standby when not in use, increasing energy efficiency.

    • Rigid, Low-Resonance Cabinet
      Sturdy enclosure minimizes internal vibrations and coloration, resulting in tighter, cleaner bass response.

    • Wide Frequency Extension
      Capable of reproducing low frequencies with depth and clarity, adding weight and dimensionality to soundtracks and music.

    • Durable Construction
      Built with quality materials designed to withstand long-term use in home audio setups.

    • Versatile Connectivity
      Includes line-level and possibly speaker-level inputs (depending on the specific model variation) for straightforward integration with AV receivers, amplifiers, and processors.

Description

 Overview

Thanks to a cone construction that has been specifically developed for the deep bass range and an extremely powerful amplifier, the Magnat Omega CS 12 active subwoofer is the perfect addition to any hi-fi or home cinema system.

The specially hardened and coated material has been constructed in a dual cone configuration measuring an impressive 30 cm in diameter. The drive is provided by a 70 mm high-performance coil and a 170 mm ferrite magnet. Together with the bonded and additionally stitched long-throw surround, the overall result is a sub that has been optimized using Klippel laser technology and can optimally reproduce frequencies between 18 and 200 Hz.

The integrated Class-D power amplifier delivers a brutal 525 watts in continuous operation and up to 1100 watts of peak power. The high-speed DSP also linearizes the frequency response and enables continuous adjustment of the crossover frequency, the phase, and the adjustable bass extension at 35 Hz. This means all of the prerequisites are in place for harmonious integration of the Omega CS 12 into a hi-fi or home cinema system.

It couldn´t be much more compact: The developers have constructed an ultra-solid MDF housing that is hardly any larger than the 12-inch chassis. The enclosed construction radiates sound towards the front of the unit and thus minimizes room interference. In its high-gloss black finish, the Omega CS 12 is discreet yet elegant at the same time, regardless of whether it´s located in a prominent position or set up discreetly in the background.

Regardless of whether you have audiophile shelf speakers, floorstanding speakers, or a home cinema solution, one or more active subwoofers such as the CS 12 are always a welcome addition. They relieve existing speakers of their duties in the deep bass range and inspire them to achieve acoustic feats.

Features

  • High-performance active subwoofer with 30 cm long-throw woofer and extra-large diaphragm mount
  •  High-power Class-D amplifier unit with up to 1100 watts of peak power
  •  Enclosed housing construction for a deep and precise bass response
  •  High-speed digital sound processor (DSP) for frequency response linearization and control of the limiter control circuit
  •  Various setting options, including adjustable bass extension fora  perfect combination with home cinema speakers
  •  Innovative extended surface dampers (ESDs) for enhanced stability
  •  Remote control for volume adjustment and a large display to indicate the current setting
  •  Stereo low-level inputs (RCA connections)
  •  Mains connection
  •  Very sturdy, low-resonance MDF housing
  •  Elegant high-gloss black finish
  •  Bass speaker in a ‚front-firing‘ configuration
  •  Enclosed housing construction for a deep and precise bass response
  •  Large „Extended Surface Dampers“ (ESDs) for enhanced stability
  •  High-performance class-D amplifier
  •  DSP-controlled filter and limiter unit
  •  Adjustable volume
  •  Volume and Power ON/STBY mode can also be controlled via the remote control
  •  Crossover frequency can be adjusted between 50 and 150 Hz
  •  The phase can be adjusted between 0° and 180
  •  Adjustable bass extension between 0dB and +6dB at 35 Hz center frequency
  •  Active frequency response equalization up to 150 Hz for easy integration into AV environments
  •  A large two-digit display indicates the current volume
  •  Automatic standby function with a low power consumption of <0.5 watts (can be deactivated)
  •  Mains voltage: 100-240 V
  •  Power switch
  •  300 mm high-power long-throw woofer with Klippel®-optimized magnet system
  •  Magnet system with 170 mm high-performance ferrite ring
  •  Special cone construction that has been optimized for the subsonic frequency range and consists of a hardened and specially coated dual cone, which is bonded with an extra-wide long-throw surround and double stitched seams
  •  A ventilated 75 mm high-performance voice coil with aluminum voice coil support guarantees maximum operational reliability



Specifications

  •  PRINCIPLE Active closed subwoofer, ‘frontfire’
  •  DRIVERS 1 x 12“ powered subwoofer
  •  FREQUENCY RESPONSE 18 – 200Hz
  •  PHASE 0° – 180° adjustable
  •  DIMENSIONS (WXHXD) Cabinet: 385 x 400 x 450 mm Cabinet dimensions incl. amplifier: 385 x 400 x 465 mm
  •  WEIGHT 24 kg
