Magnat Monitor Supreme 202 Bookshelf Speakers

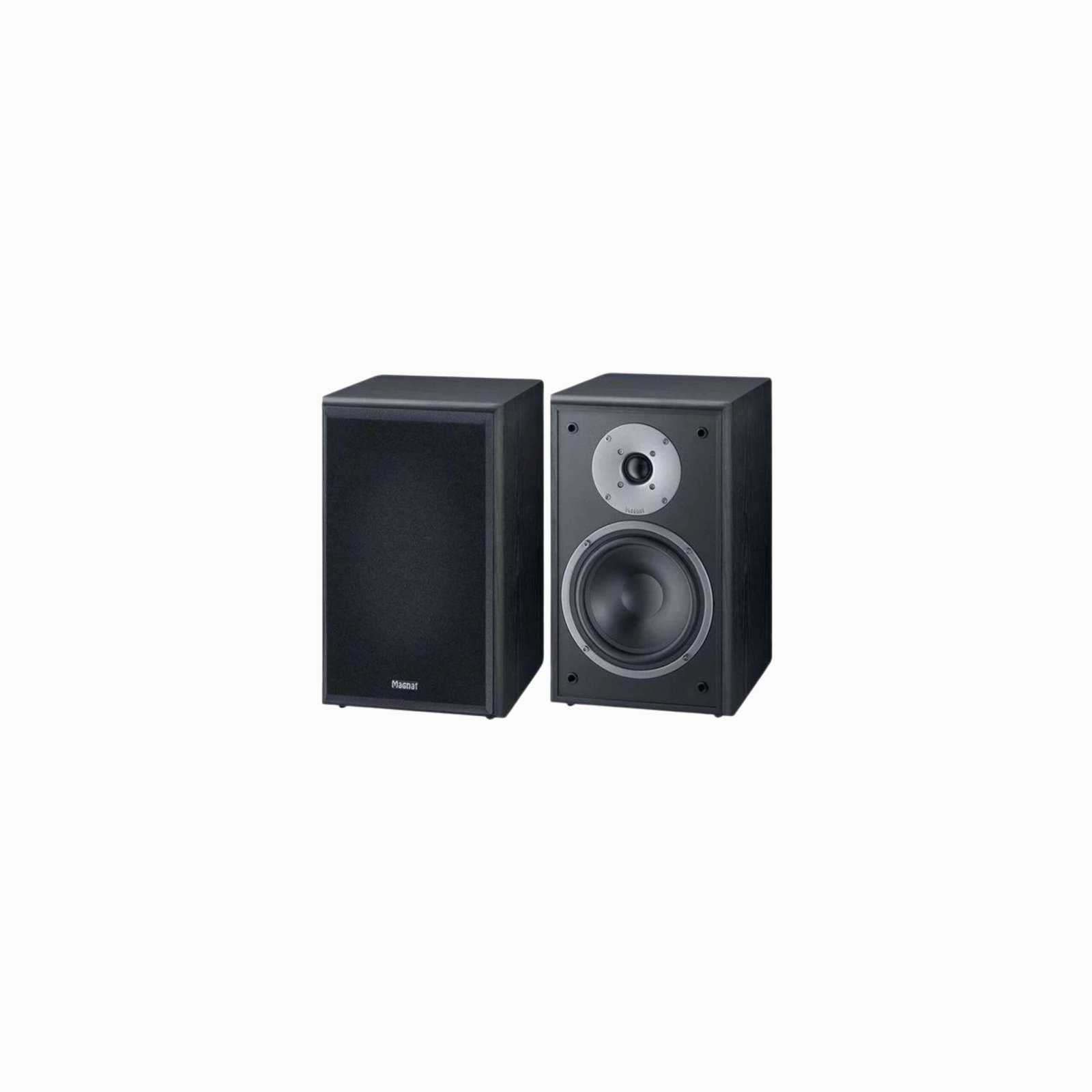

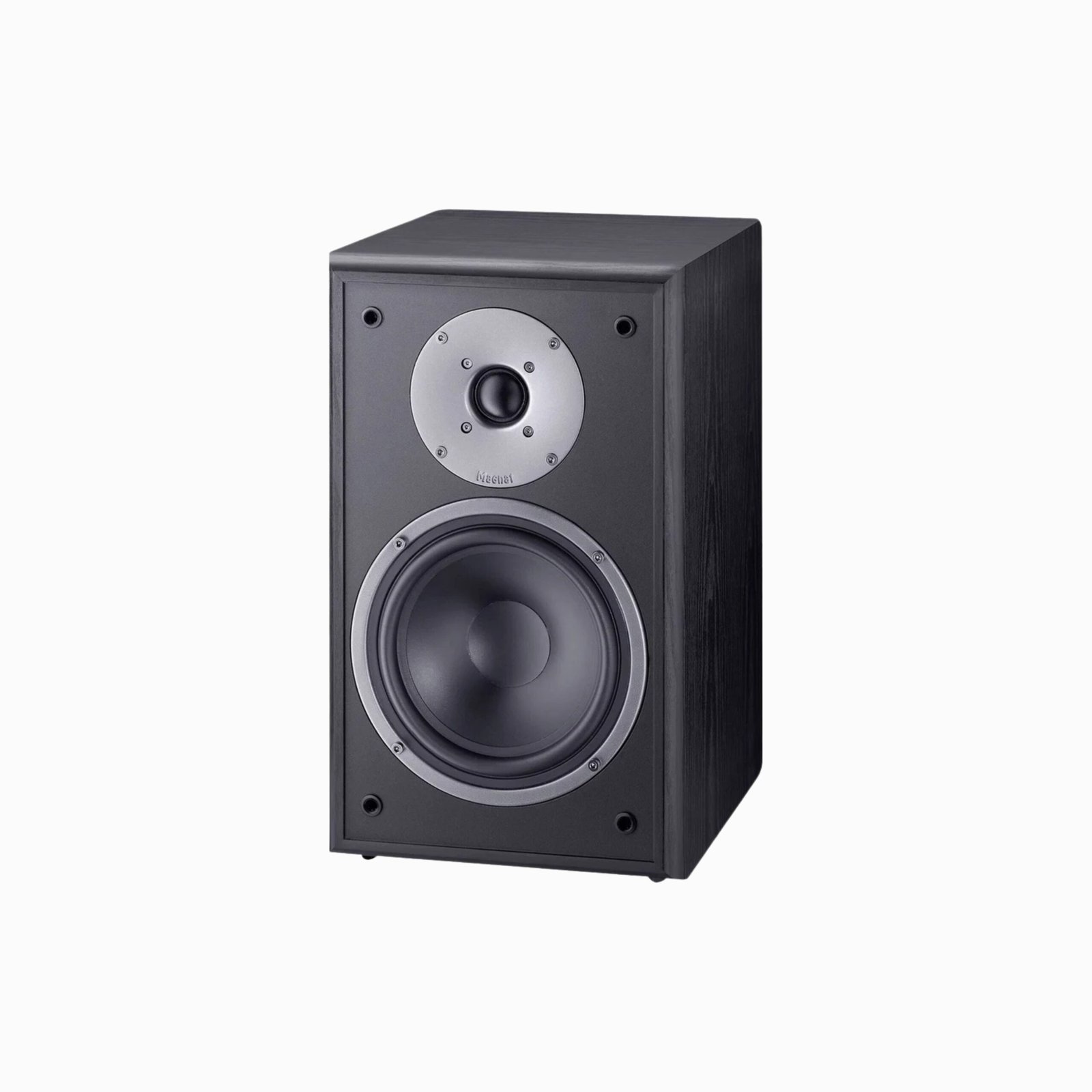

Magnat Monitor Supreme 202 2-way bookshelf loudspeaker Mocca
The housing of the large shelf speaker is made of solid MDF boards manufactured and therefore particularly resistant to unwanted natural resonance. As with all models of the series sets the Monitor Supreme 202 sets the recessed baffle, completes and thus determines the appearance of the compact box.
The speaker is available in two high-quality wooden decors and features a 170-mm mid-woofer with specially coated paper membrane in bass-reflex housing, height bass dynamics and an excellent connection to the tweeter. The new 25 mm cloth dome with your newly styled flange delivers an improved and very precise radiation behaviour.
This text is machine-translated.
Highlights & Details
- 2-way bass reflex
- 1 x 170 mm mid-bass drive unit
- 25 mm dome tweeter
- Maximum load capacity 200 watts
- This text is machine-translated.
Facts
- Stable and resonance-poor Gehause
- Rounded edges on front and back
- High-quality wood decor, contrasting black baffle
- Detachable fabric cover
- Mid-woofer with partial vibration-free, coated paper diaphragm and inverted dome
- Gold-plated screw terminals
- Tweeter with 25 mm fabric membrane, strong ferrite drive and neugestalteter front plate for balanced tone playback and even radiation
- Deep, precise bass playback thanks to reflex double bass construction
- Rounded reflex tube opening to minimise the flow noises
- 12 dB (high-tone 18 dB crossover frequency with phase correction)
- CE, RoHS and REACH compliant.
Specifications
|
Content
|
1 Pair |
|---|---|
|
Series
|
Magnat Monitor Supreme II |
|
Max. audio capacity
|
200 W |
|
Power handling (sinus)
|
100 W |
|
Min. frequency
|
34 Hz |
|
Max. frequency
|
40000 Hz |
|
Frequency range
|
34 Hz – 40000 Hz |
|
Impedance
|
4 – 8 Ω |
|
SPL
|
93 dB |
|
Colour
|
Mocca |
|
Width
|
215 mm |
|
Height
|
354 mm |
|
Depth
|
273 mm |
|
Weight
|
6.2 kg |
|
Dim
|
(W x H x D) 215 x 354 x 273 mm |
|
Product type
|
Bookshelf speaker |
