Magnat Cinema Ultra THX RD 200 Dipole Surround Speakers

Key Features & Specifications

Certified for the THX Ltd. Ultra2 standard (as a dipole surround) — meaning it meets higher home-theatre performance criteria. MAGNAT Website+1

Dipole surround speaker: the two tweeters on each sloping side fire in opposite phase (reversed polarity) to produce a diffuse, enveloping sound field rather than a direct “point-source” image. magnathifimuseum.wordpress.com+1

Drivers: 170 mm (≈ 17 cm) woofer/mid driver + 2 × 42 mm dome tweeters. cinesound.in+1

Power handling: 150 W RMS / 240 W max. MAGNAT Website+1

Sensitivity: 89 dB (2.8 V/1m) MAGNAT Website

Impedance: 4-8 Ω nominal. MAGNAT Website

Frequency response: approx 80 Hz to 27 000 Hz. magnat-usa.com+1

Crossover frequency: 1,500 Hz (the dipole tweeter arrangement is active from this point to create the diffuse effect) magnathifimuseum.wordpress.com

Dimensions: 400 mm (W) × 300 mm (H) × 160 mm (D) and weight ~7.6 kg. Magnat Schweiz+1

Cabinet: sealed (closed) 2-way, dipole configuration, designed for wall-mounting (flat/trapezoid cabinet depth only 16 cm) with VESA bracket options. MAGNAT Website

Description

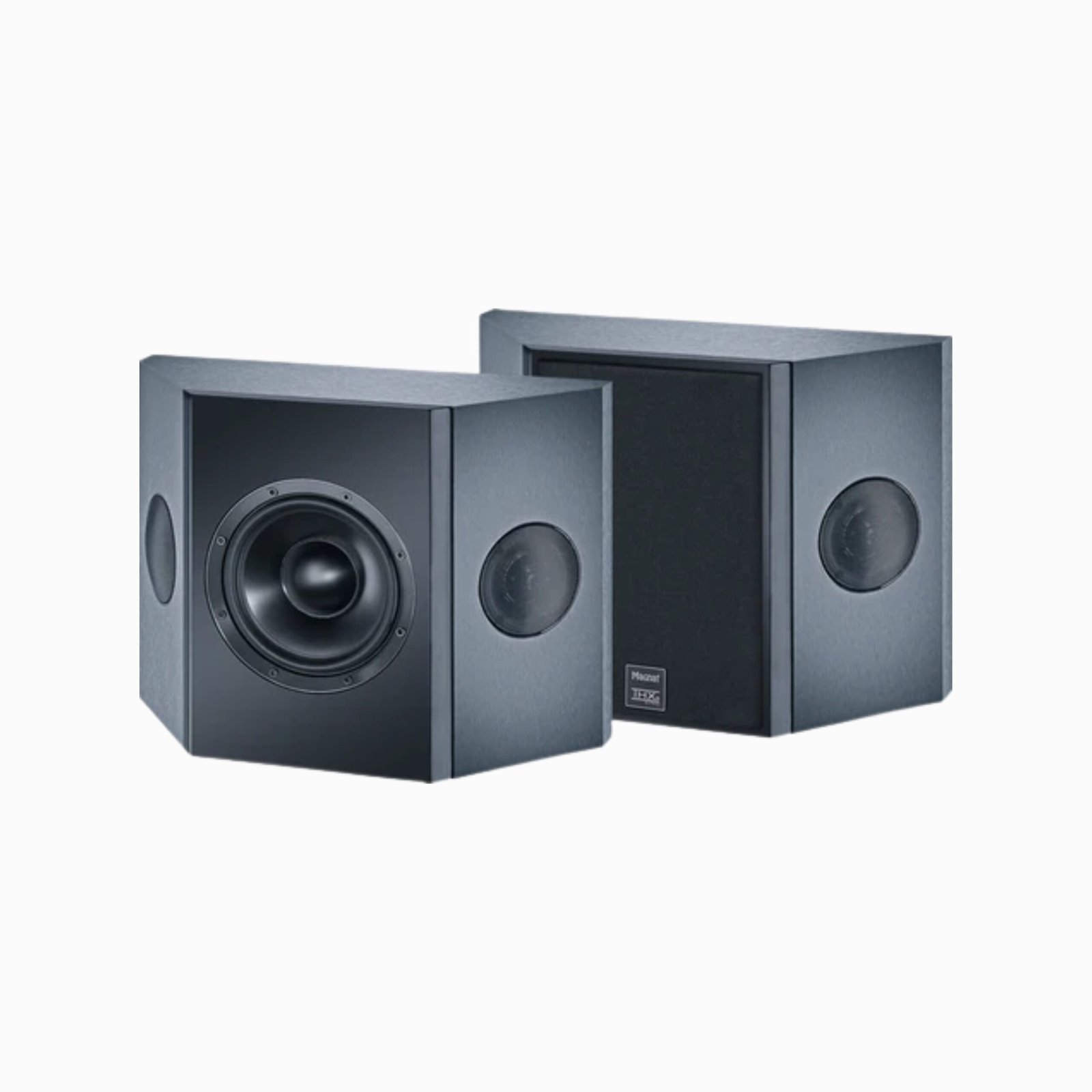

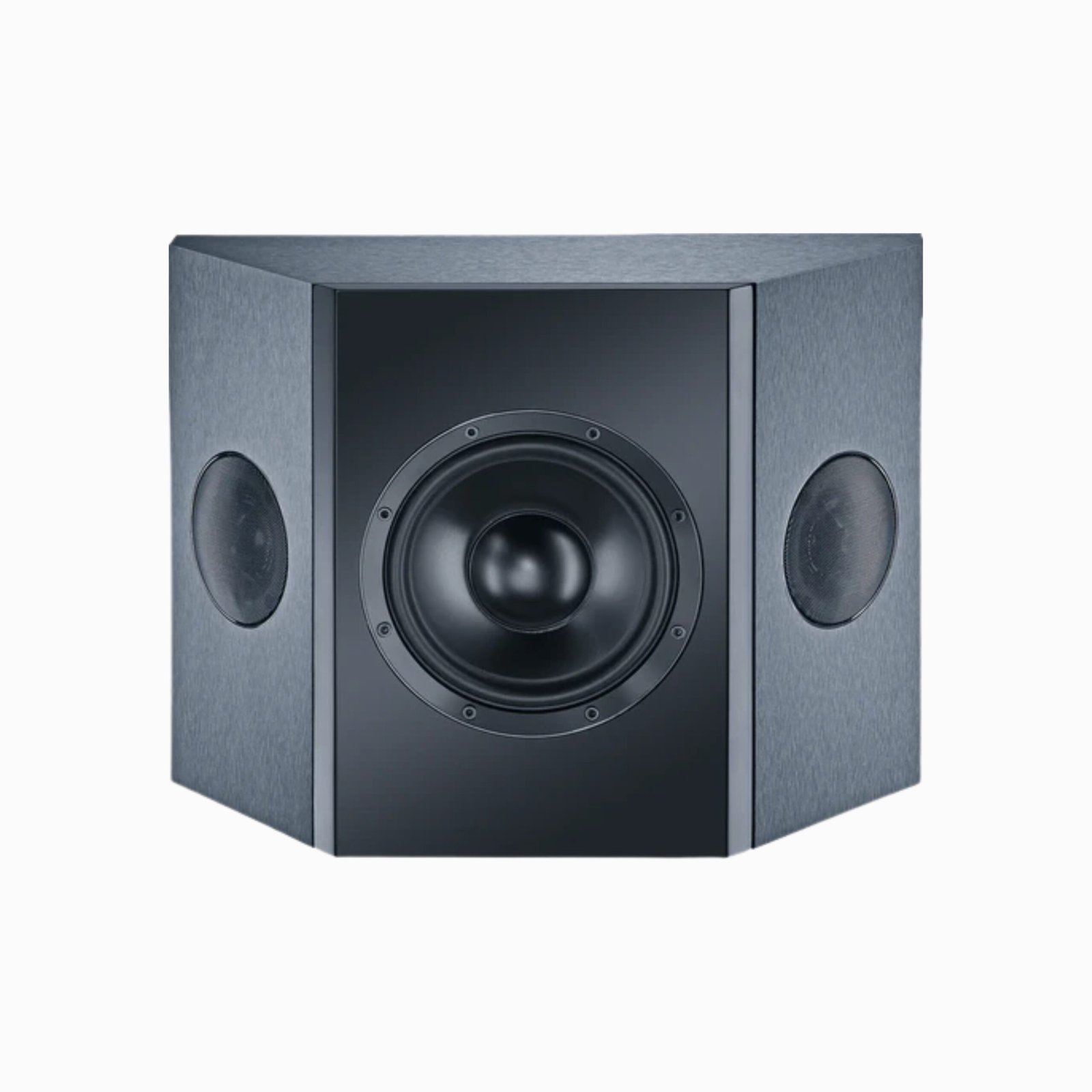

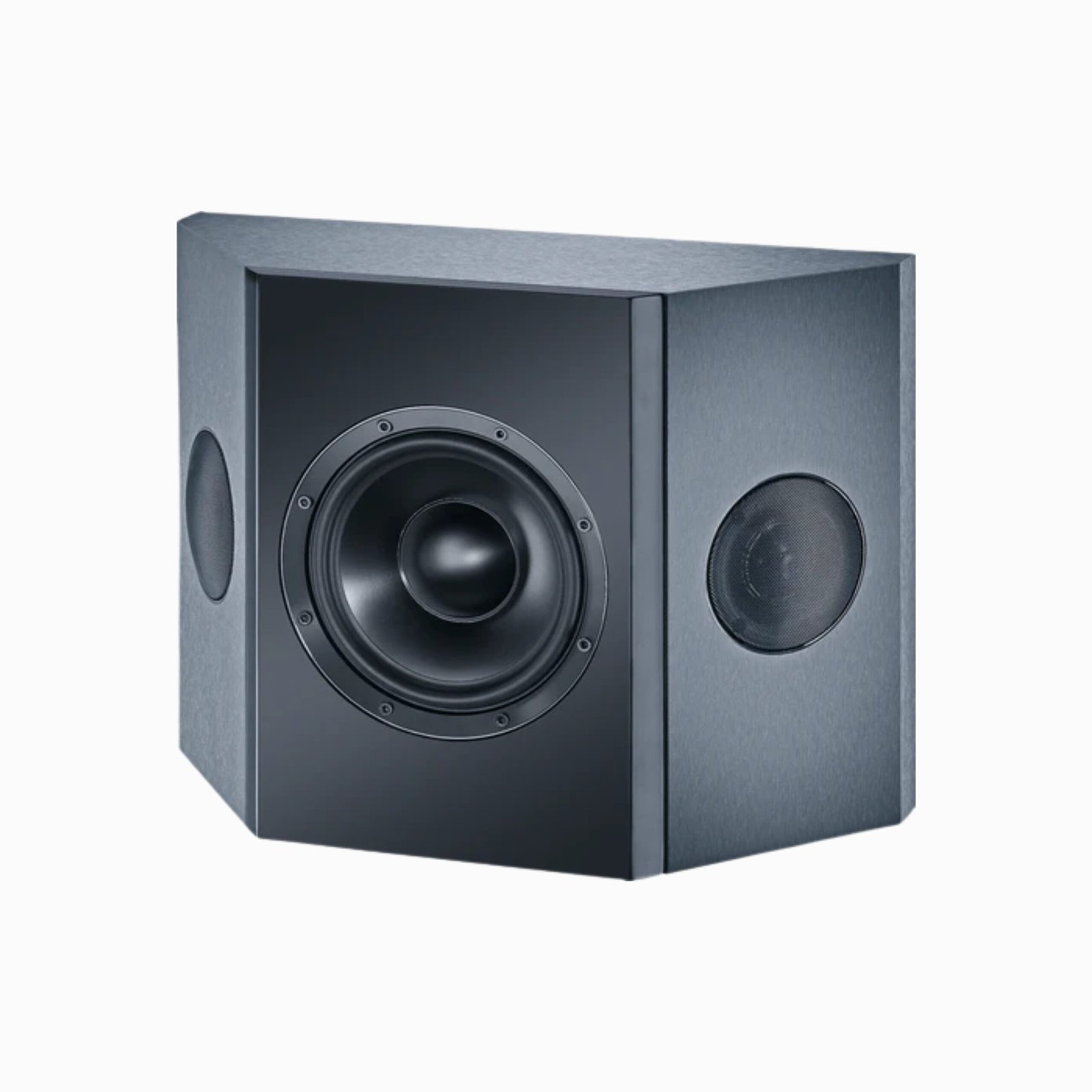

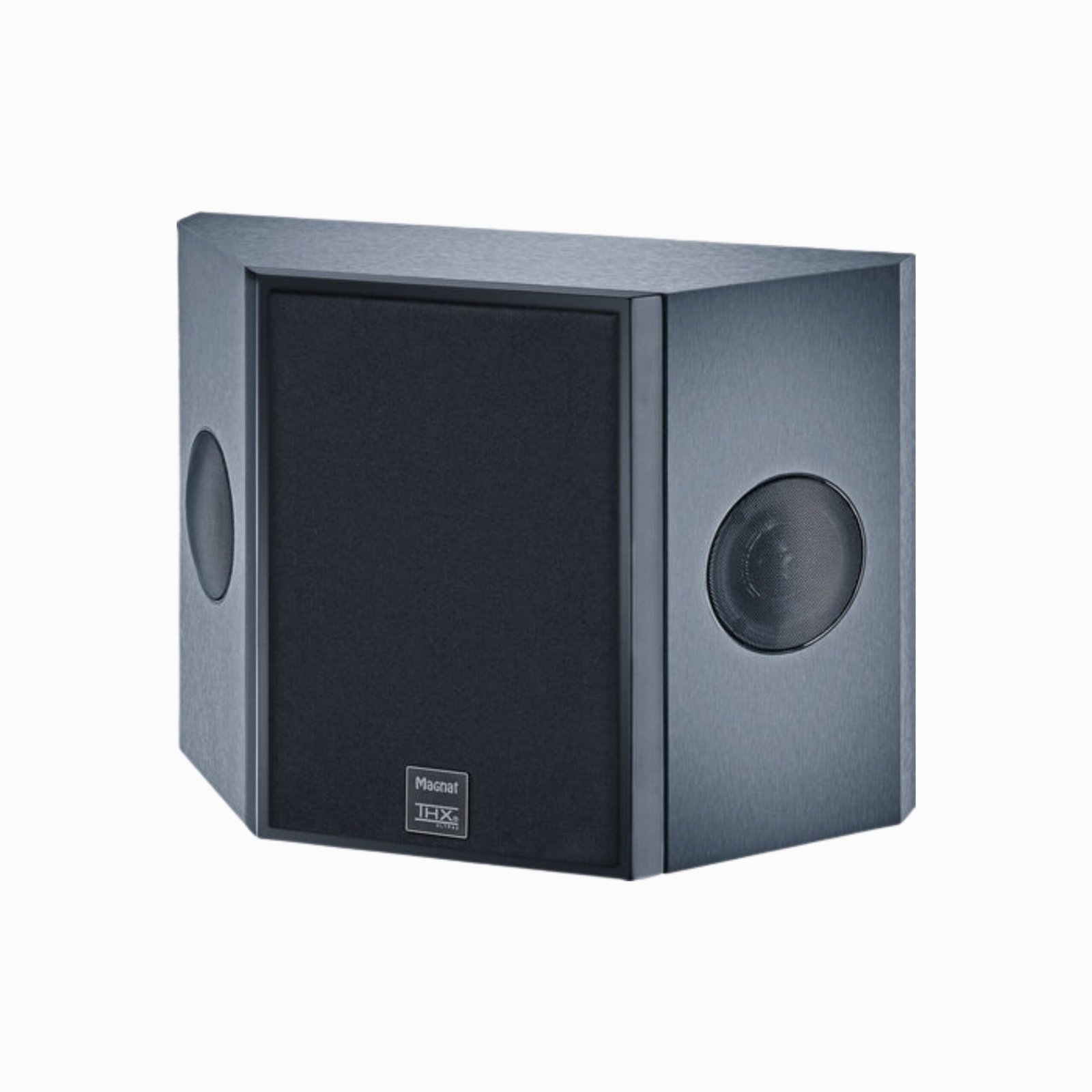

One of the 42 mm tweeter cones is located on each sloping side at the centre of the powerful 17 cm subwoofers: The Cinema Ultra RD 200-THX follows the ideal structure of classic dipole speakers. The two tweeters are – as stipulated by THX® – connected together with reversed polarity to produce a diffuse, very three-dimensional soundscape. Because our cone operates in an extremely wide band, the Cinema Ultra RD 200-THX creates this desired diffuse sound field from as low as 1500 hertz. Despite its small size and moderate overall depth of just 16 centimetres, the effect speaker is capable of impressive sound levels – an important factor for the best cinema sound. And optimum installation is also child´s play, thanks to the large number of wall-mounting options, including VESA brackets.

Warranty:

1 year manufacturer’s warranty

Features:

Outstanding surround sound in cinema quality, thanks to the dipole design
Two high-performance 42 mm dome tweeters in dipole configuration for authentic surround sound
Extremely powerful 17 cm woofer for punchy, dynamic surround sound reproduction
Flat trapezoid cabinet for practical wall mounting

Technical Specifications:

Principle	2-way, sealed
Principle	THX® Ultra2-certified dipole surround Speaker
Equipment	170 mm woofer-midrange
Equipment	2 x 1.65″ dome-tweeter
Power Handling (RMS / Max.)	150 / 240 watts
Sensitivity (2.8V/1m)	89 dB
Impedance	4 – 8 ohms
Frequency Response	80 – 27.000 Hz
Crossover Frequencies	1.500 Hz
Recommended Amplifier Output	> 40 watts
Dimensions (WxHxD)	400 x 300 x 160 mm
Weight	7.6 kg
Cabinet surface	Front: black silk matt /
Cabinet surface	body: textured film – anthracite
