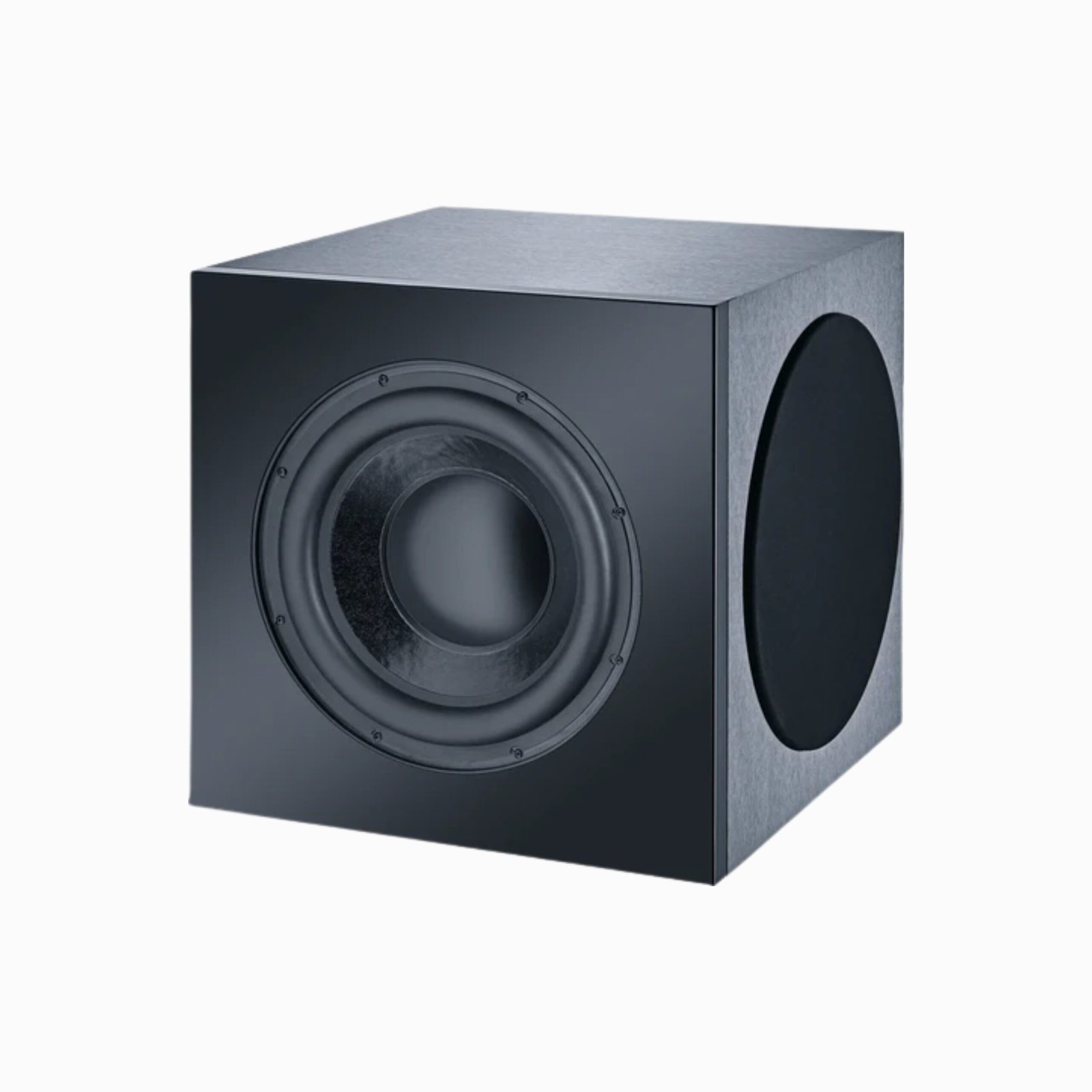

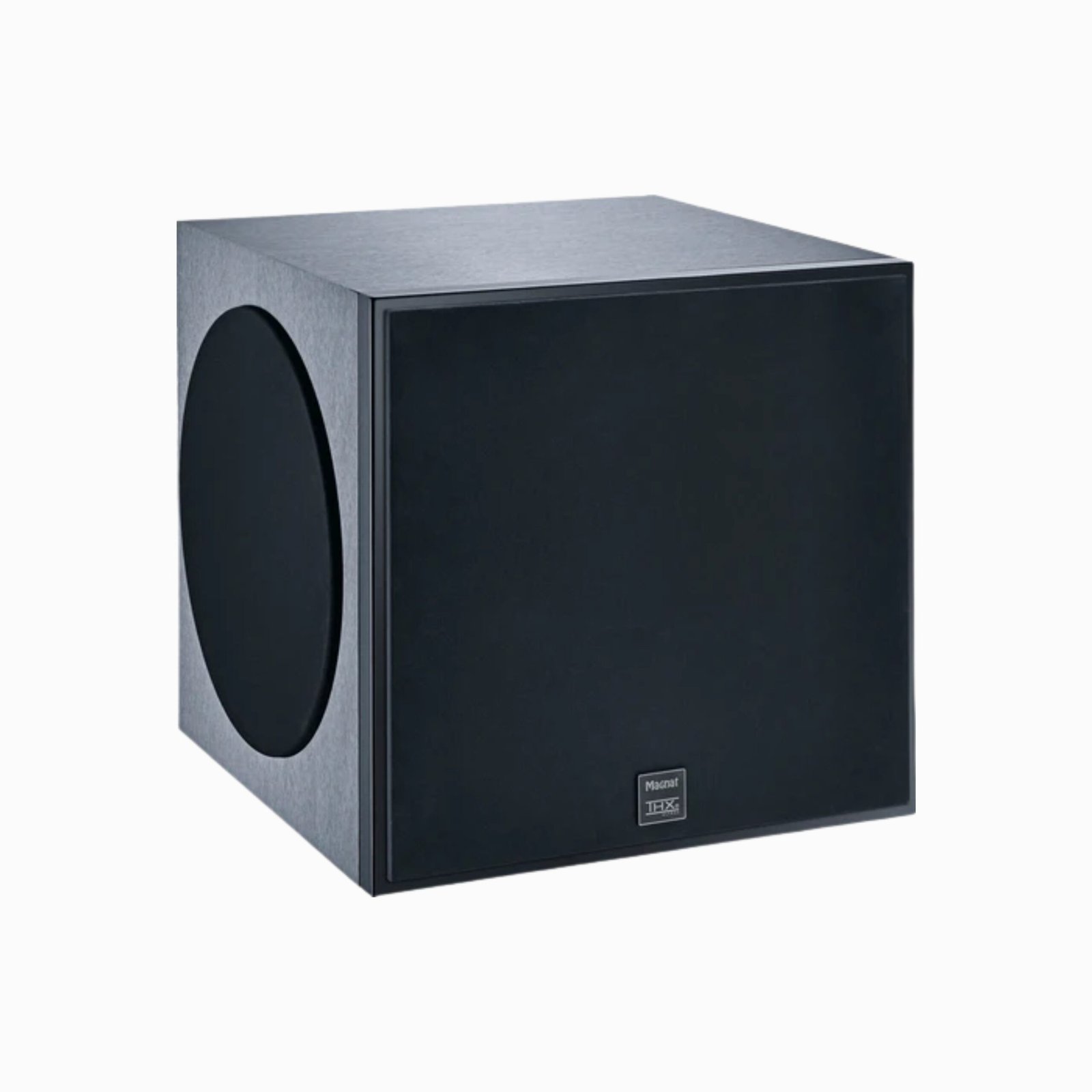

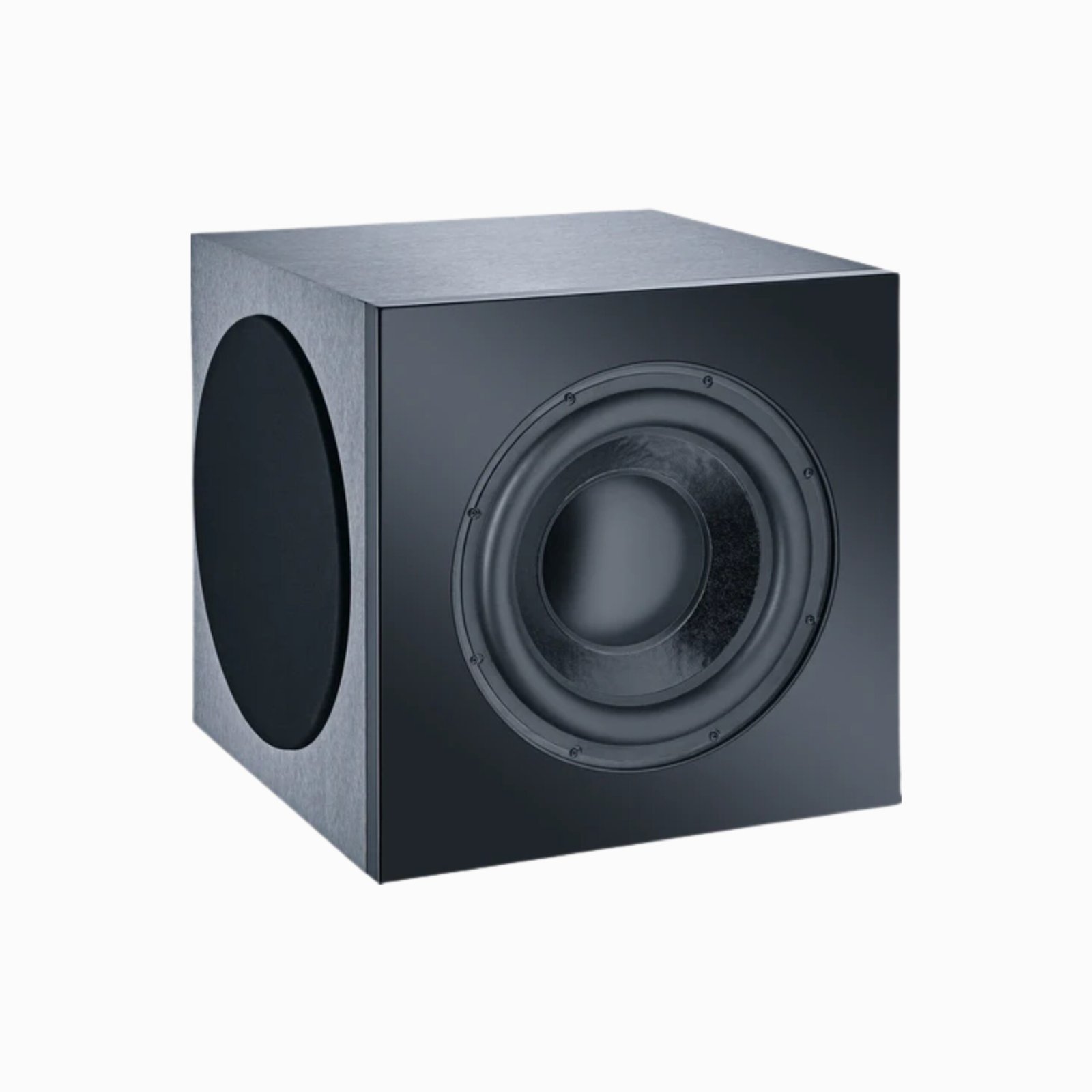

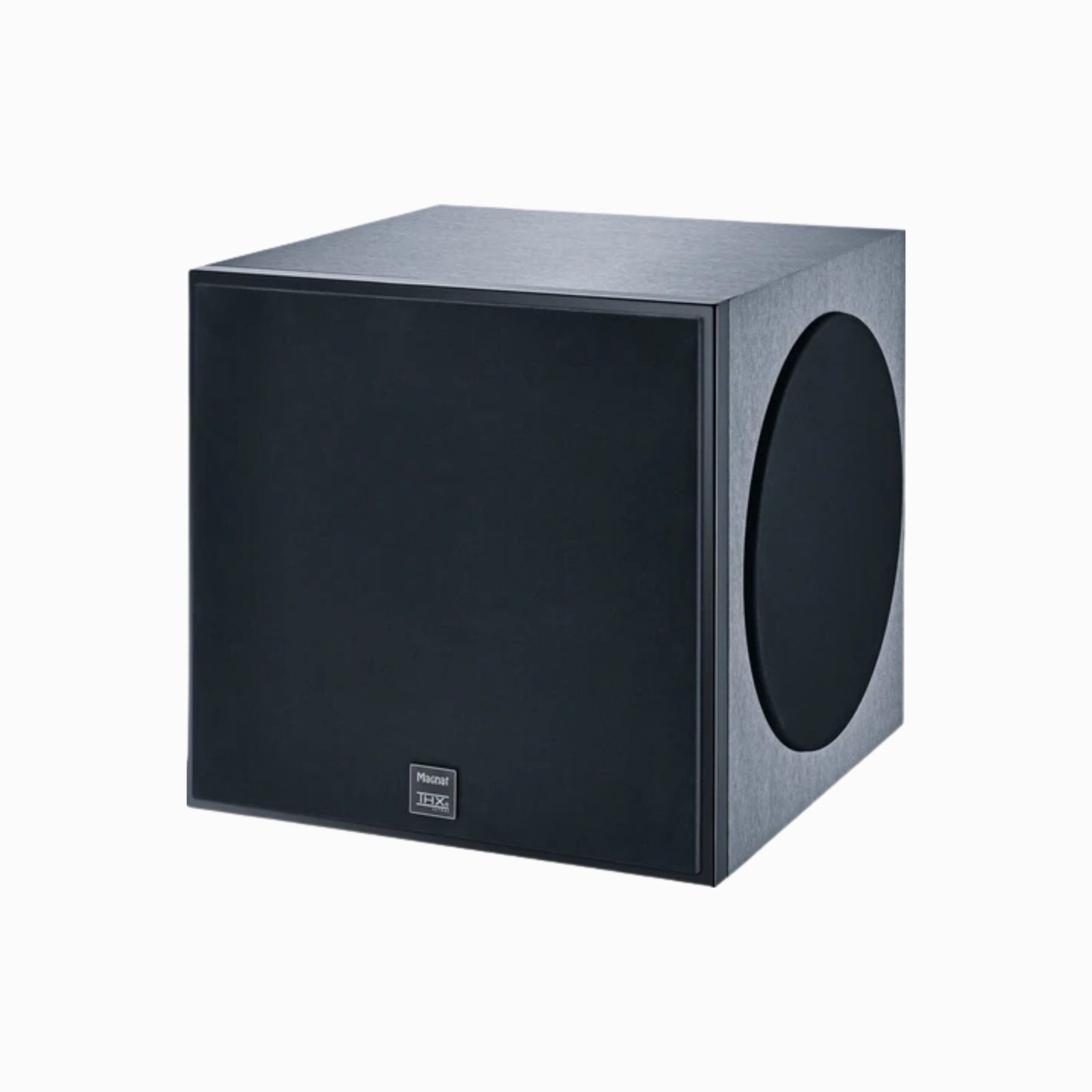

Magnat Cinema Ultra SUB 300-THX Subwoofer

Key Features & Specifications

Certified for THX Ltd. Ultra2 standard — this means it meets very strict performance criteria for home-cinema quality subwoofers. Magnat Schweiz+3MAGNAT Website+3MAGNAT Website+3

Driver / passive radiators: 320 mm (about 12.6″) high-performance woofer + 2 × 320 mm passive radiators (i.e., dual large passive diaphragms) to enhance low-end output. MAGNAT Website+1

Amplifier power: 550 W RMS class-D built-in amplifier, with 1,100 W peak output. MAGNAT Website+1

Frequency response down to 18 Hz (claimed) — extremely low for a home subwoofer. MAGNAT Website+1

Crossover / phase: Variable phase (0°–180°) control, crossover adjustable in Line‐mode (40-180 Hz) or THX mode (no filtering). MAGNAT Website

Size / weight: Approx dimensions 468 mm × 461 mm × 460 mm (including amplifier 478 mm deep) and weight ~32.5 kg. MAGNAT Website+1

Cabinet construction: Very robust MDF enclosure with a 45 mm thick baffle to suppress vibration/resonance.

Description

The Cinema Ultra Sub 300-THX subwoofer also amazed the THX engineers: It is the smallest woofer so far to have been awarded THX Ultra2™ certification. Here, too, the basis for the record is the very latest technology. The 32 cm high-performance driver is optimised for a large stroke and minimal distortions. For power right from the bottom – the Cinema Ultra Sub 300-THX goes all the way down to 18 Hertz! – The subwoofer is supported by two passive radiators of the same size and appearance. Together with the newly developed 550-watt Class D power amp, they are located in a compact, extremely sturdy enclosure where the baffle alone, made of 45 mm thick MDF, effectively suppresses a lot of vibrations

Warranty:

1 year manufacturer’s warranty

Features:

Solid, dynamic bass for home cinemas up to 18 Hz
Smallest THX Ultra 2-certified single subwoofer in the world
32 cm high-performance woofer supported by two 32 cm passive membranes
Integrated Class D amplifier with 550 watts RMS and 1,100 watts of maximum power output
Extremely sturdy MDF cabinet with solid 45 mm baffle

Technical Specifications:

Principle	THX® Ultra2-certified active high-performance subwoofer, Dual passive radiator
Equipment	320 mm subwoofer
Equipment	2 x 320 mm passive radiator
Output power (RMS / Max.)	550 / 1100 watts
Frequency Response	18 – 200 Hz
Crossover Frequencies	THX: without filtering Line-Modus: 40-180 Hz
Phase	0° to 180° continuously variable
Dimensions (WxHxD)	468 x 461 x 460 mm
Dimensions (WxHxD)	468 x 461 x 478 mm (incl. amplifier)
Weight	32.5 kg
Cabinet surface	Front: black silk matt /
Cabinet surface	body: textured film – anthracite
