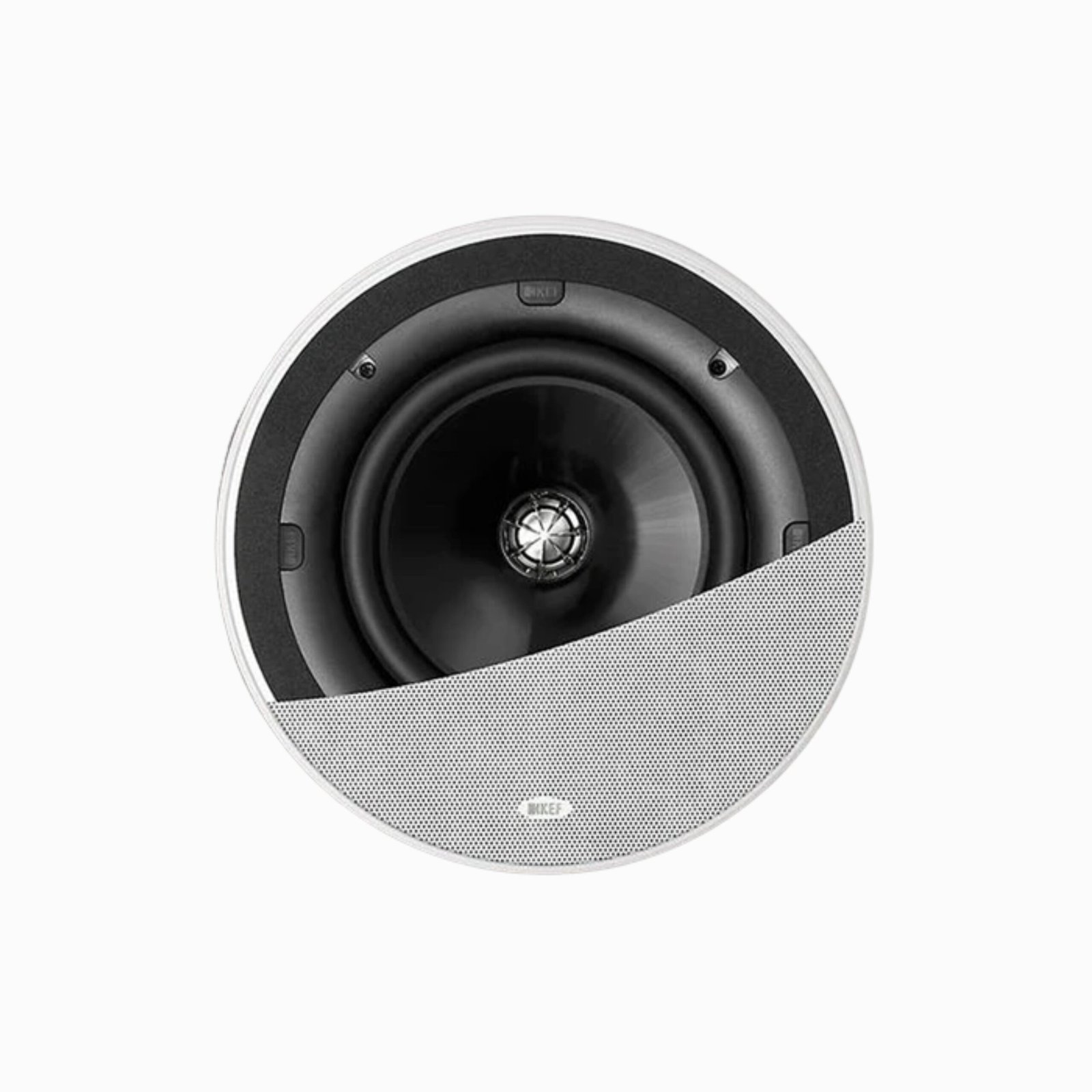

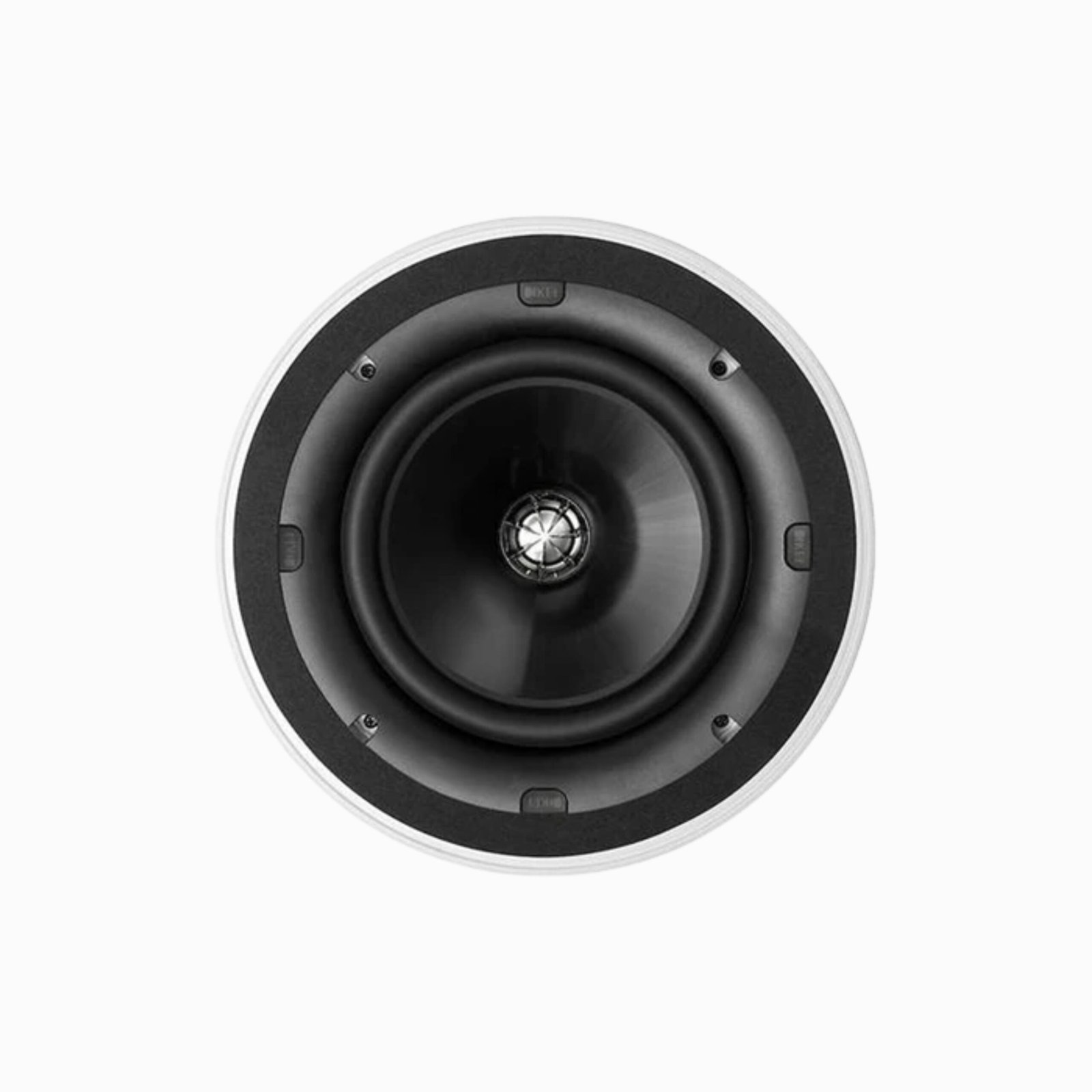

KEF Ci200QR In-Ceiling Speaker (Each)

Key Specifications & Features

Driver configuration: 200 mm (8″) low-frequency woofer + 25 mm (1″) aluminium dome tweeter in a concentric/coincident arrangement (KEF’s Uni-Q® driver array) for point-source behaviour. KEF Asia Pacific+2assets.kef.com+2
Frequency response (±6 dB, open-back): approximately 35 Hz – 34 kHz. ListenUp+2assets.kef.com+2
Sensitivity: 90 dB (2.83 V/1 m) – fairly high for an in-ceiling speaker. KEF Asia Pacific+1
Nominal impedance: 8 Ω. Recommended amplifier power ~10-150 W. KEF International+1
Physical/mounting specs:
- Outer diameter ~289.6 mm (≈11.4″). KEF Asia Pacific+1
- Cut-out diameter ~240 mm (≈9.45″). KEF International+1
- Mounting depth from surface ~103.3 mm (≈4.07″) for the product when installed. ListenUp+1
Installation & design features:
- Ultra Thin Bezel (UTB) design for minimal visible rim. assets.kef.com+1

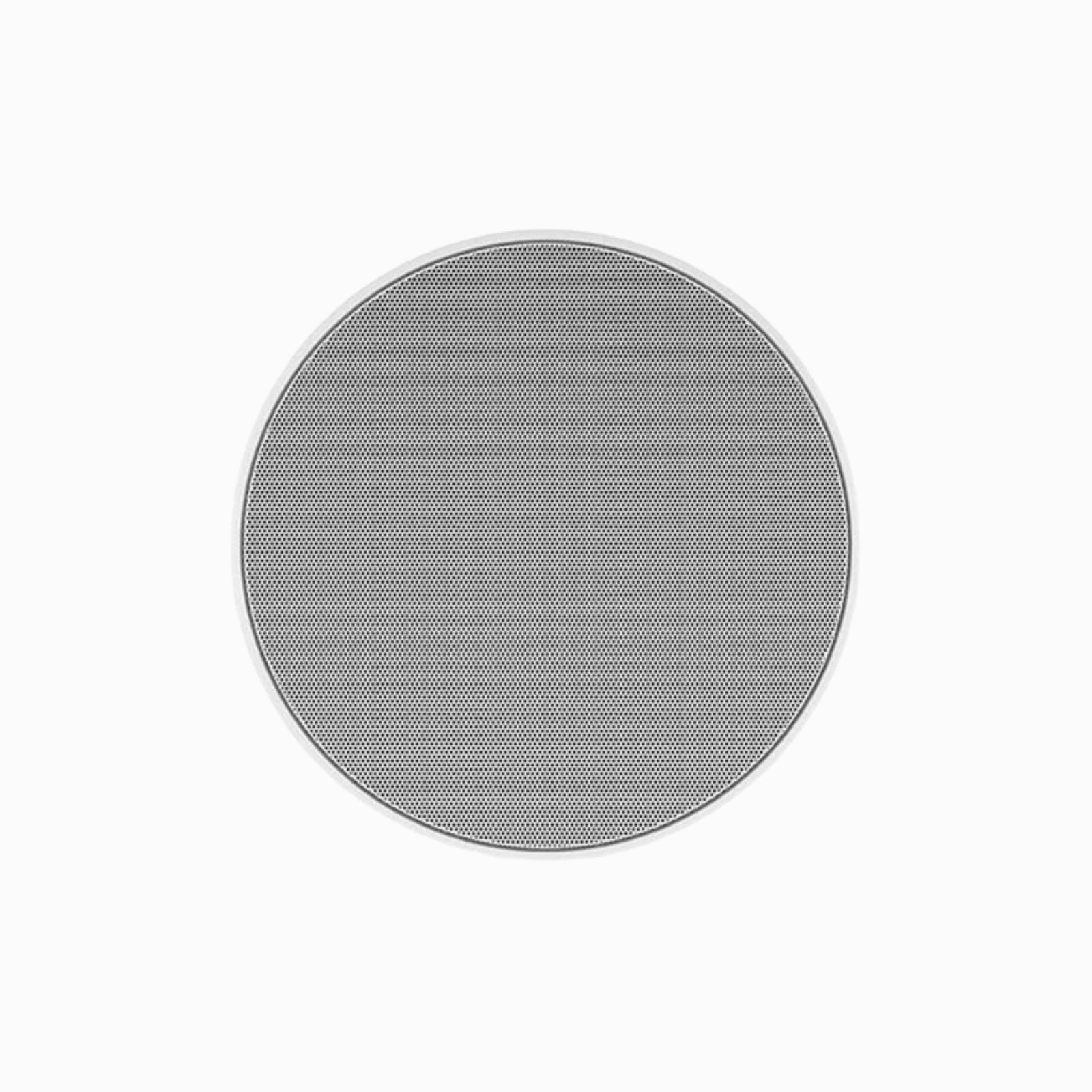

- Magnetic paintable grille for aesthetics. Abt.com+1
- Weather-resistant / UV-protected construction, suitable for humid or challenging environments (IP64 rated) in some versions. Audio Volt+1
Dispersion & driver tech: The Uni-Q driver with Tangerine Waveguide gives broad coverage (the spec sheet notes approximately 115° coverage). KEF Asia Pacific+1

Description

A thin bezel and narrow rim allow for flawless integration
The stylish Ci200QR’s thin bezel and narrow rim allow for flawless integration into your ceiling and KEF’s new Uni-Q driver, which spreads sound over a wider area, enabling you to use fewer speakers. These two features alone combine to make the Ci200QR perfect for any space.

Warranty:

2-year manufacturer’s warranty

Features:

USB Ultra Thin Bezel
200mm (8″) Uni-Q driver array
25mm (1″) Aluminium dome tweeter
HF ‘Tangerine’ waveguide

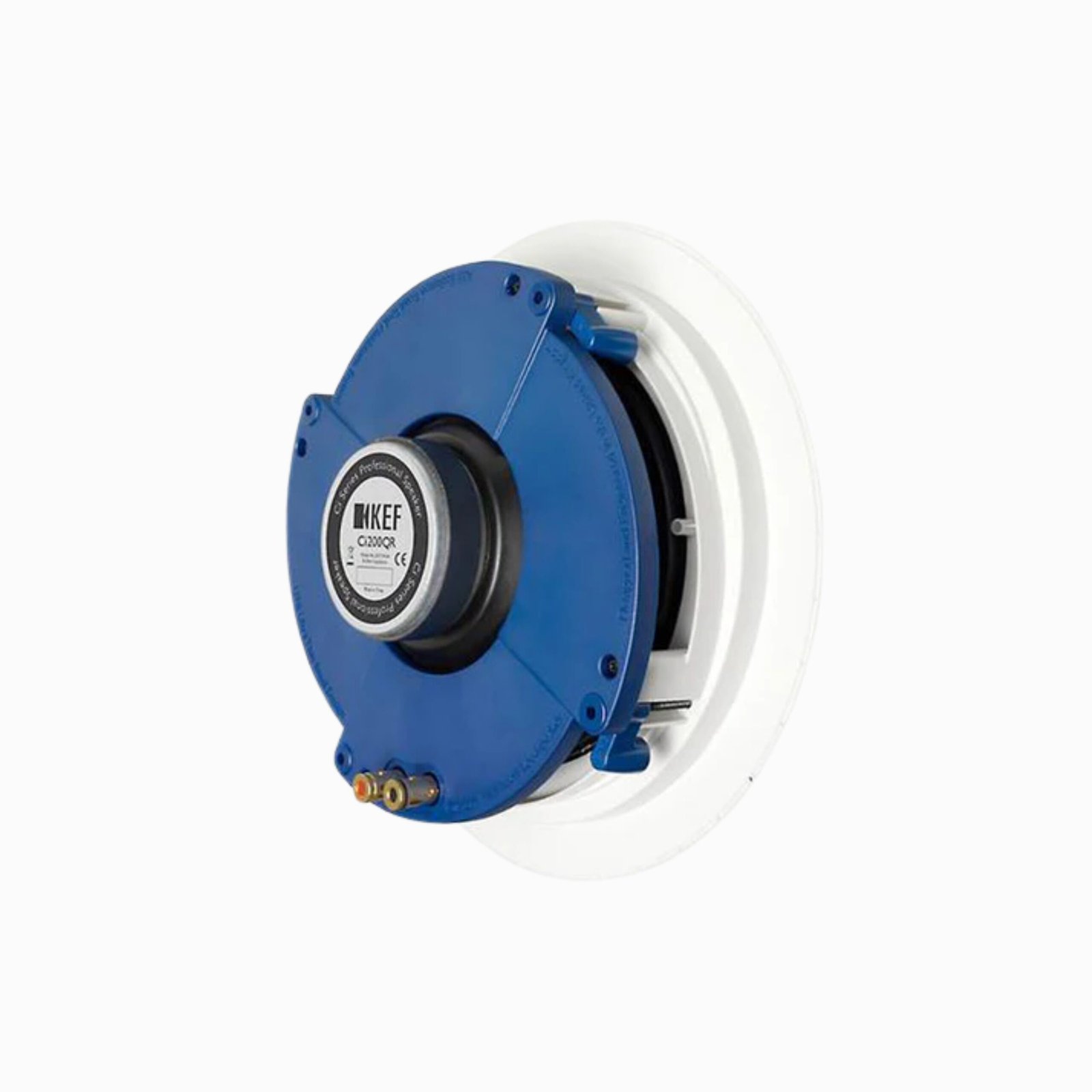

Gold-plated spring-loaded binding posts

Ci200QR
Featuring KEF’s sophisticated ‘sit anywhere’ Uni-Q driver array, which places the tweeter in the acoustic center of the bass/midrange cone, this allows both the tweeter and woofer to act as a single point source that disperses the sound widely and evenly throughout the room. Together with the discreet Ultra Thin Bezel (UTB) design, offering the slimmest possible visible rim around the speaker, the Ci Q Series range gives you tremendous freedom to position the speakers where you please.

Technical Specifications:

Brand	Kef
Dimension	‎32.39 x 32.39 x 17.15 cm
Weight	2.39 Kg
Colour	White
Brand	Kef
Depth	98mm (3.86in)
Cut-out Dimensions	Diameter: 196mm (7.71in)
Cut-out Dimensions	Diameter: 196mm (7.71in)
Mounting Depth from Surface	91mm (3.58in)
Frequency Range	89dB (2.83V/ 1m)
Frequency Response	38Hz – 34kHz (±6dB) 2pi/open-backed
NOMINAL IMPEDANCE	8 ohms
Max Power	10-125W
Speaker Depth	Slim (100mm & Under)
Speaker Size	6-6.5″
Speaker Type	In-Ceiling
