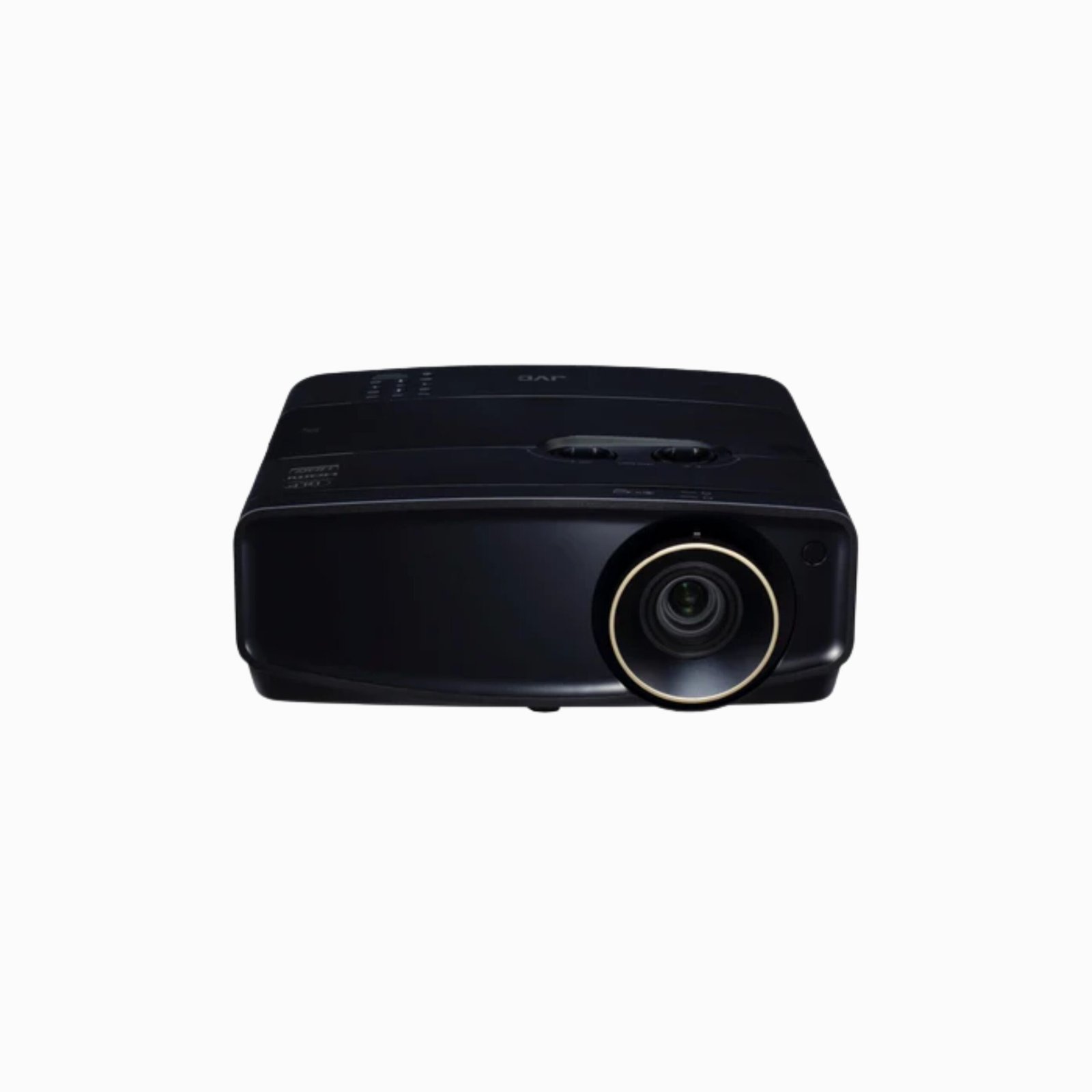

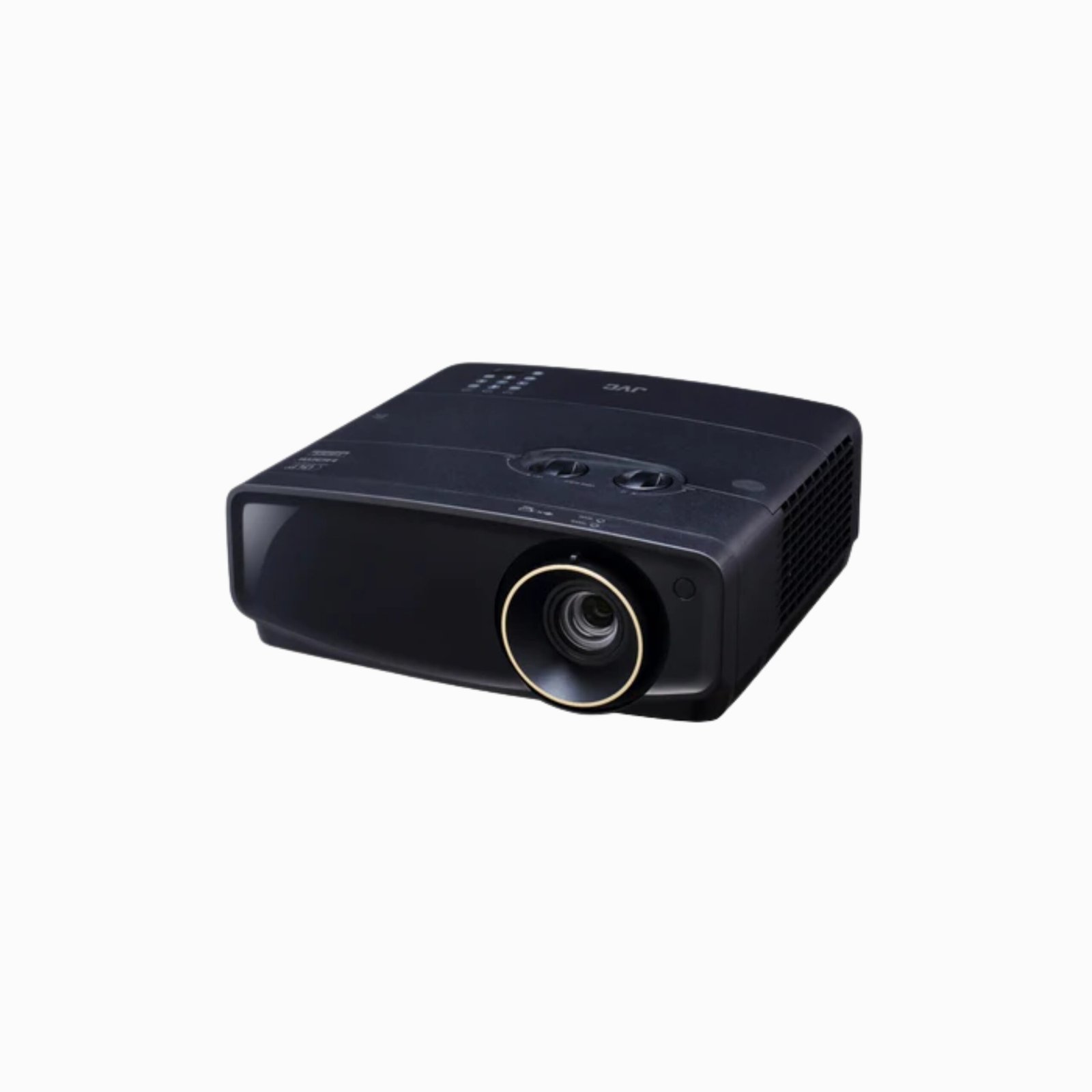

JVC LX-UH1B - 4K HDR DLP Projector

Warranty:

1-year manufacturer’s warranty

Features:

• Provides a ±60% vertical lens shift and ±23% horizontal lens shift
• Data transfer rates up to 18Gbps
• Recommended Screen size 60～200 inch
• BT.2020 compatible – displays HDR content
• 4K (3840 x 2160) via e-shift technology
• HDMI/HDCP2.2 standard
• 100% of the Rec 709 color space
• New 0.47-inch TRP digital micro-mirror device (DMD)
• HDR10 and Hybrid Log Gamma
• RGBRGB color wheel
• 2000 lumens

Full 4K Support with HDCP2.2
The LX-UH1 is compatible with full-spec 4K input at 18Gbps throughput – supporting 4K/60p 4:4:4/36bit, 4K/60p 4:2:2/36bit, and 4K/24p 4:4:4/36bit signals – for more vivid colors and subtle gradations. What’s more, HDCP2.2 compatibility means that this projector supports the latest video-streaming services and copyright-protected content such as UHD Blu-ray discs.

HDR (High Dynamic Range) for a More Realistic Image
High Dynamic Range (HDR) is a technology to accurately reproduce realistic, dynamic images in which finer gradations and colors are visible, even in the lightest and darkest areas of the picture. The LX-UH1 supports both HDR10 for UHD BD content and Hybrid Log Gamma (HLG) for broadcast signals.

Bright Picture and 100% Coverage of Rec. 709
Viewing movies, broadcasts, and other content in a room that’s well-lit can be difficult with a conventional projector. But despite its compact size, the LX-UH1 offers a brightness of 2,000 lumens thanks to a highly efficient lamp system. And 100% coverage of the Rec. 709 gamut means you enjoy beautiful color rendition.

Newly Developed 0.47-inch DMD for Bright High-definition 4K Images
4K resolution (3840 x 2160 pixels) is four times the full HD resolution. As 4K content rapidly becomes mainstream for broadcasting, streaming, and optical discs, you can be sure that the LX-UH1 will make the most of it, providing a bright, vibrant picture with all the detail. Impressive color reproduction almost makes you feel immersed in the scenes unfolding on the screen.

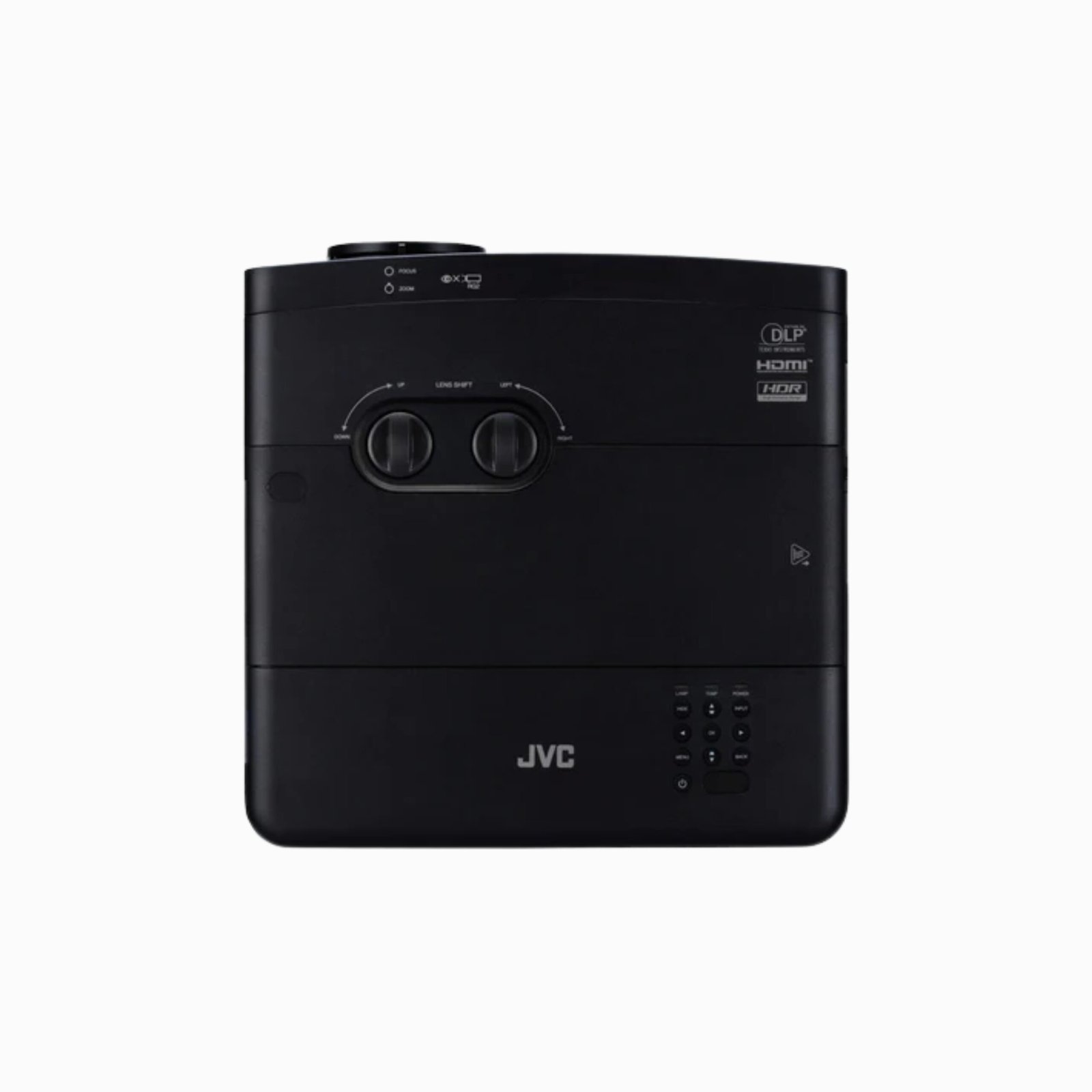

Wide Lens Shift Function: ±60% Vertical, ±23% Horizontal
A compact design facilitates projector installation – but if lens shift is insufficient, it may require keystone adjustment, which can degrade the picture quality. There are no such worries with the LX-UH1, however, as it features a wide lens shift: ±60% vertically and ±23% horizontally.

1.6x High-resolution Lens
The LX-UH1 features a 1.6-times zoom lens. For a typical 100-inch picture size, the projector would be installed between 3 and 4.8 m / 9.8′ and 15.7′ from the screen – an added convenience when space is at a premium. Refer to the Projection Distance Chart on the back of the brochure for more.
