JBL Studio 698 - 3 Way 8 Inches Floor Standing Speaker (Each)

Key Features

High-Performance Audio Design

  • 3-Way Driver Configuration
    Separate woofer, midrange, and tweeter drivers deliver clear, detailed sound with accurate frequency separation.

  • 8-Inch Dual Bass Woofers
    Dual large woofers provide strong low-frequency output, deep bass, and high dynamic headroom for impactful music playback.

  • Advanced Compression Driver and High-Frequency Tweeter
    Designed for extended high-frequency response and smooth, detailed treble performance.

Sound Quality Enhancements

  • Optimized Crossover Network
    Precisely balances the output across drivers for seamless integration and coherent sound reproduction.

  • Wide Frequency Response
    Delivers rich lows, articulate mids, and clear highs across a broad range of music genres.

  • High Sensitivity and Power Handling
    Efficient design allows the speaker to play loudly with minimal distortion and handle significant amplifier power.

Construction & Design

  • Premium Cabinet Construction
    Rigid and well-damped enclosure minimizes resonance and coloration for cleaner sound.

  • Front-Firing Ports
    Enhances bass output while allowing flexible placement near walls without booming.

  • Elegant Aesthetic Styling
    Designed to complement home audio systems with a refined finish.

Performance & Compatibility

  • High Power Handling
    Can work with a wide range of amplifiers and AV receivers for home stereo and home theater use.

  • Stereo and Multi-Channel Systems
    Suitable as main left/right speakers in two-channel setups or part of a larger surround sound system.

Ease of Integration

  • Bi-Wire/Bi-Amp Ready
    Equipped with dual binding posts for optional bi-wiring or bi-amping to enhance performance.

  • Stable Floor-Standing Design
    Designed for secure placement and optimal sound projection in living rooms and listening spaces.

Description

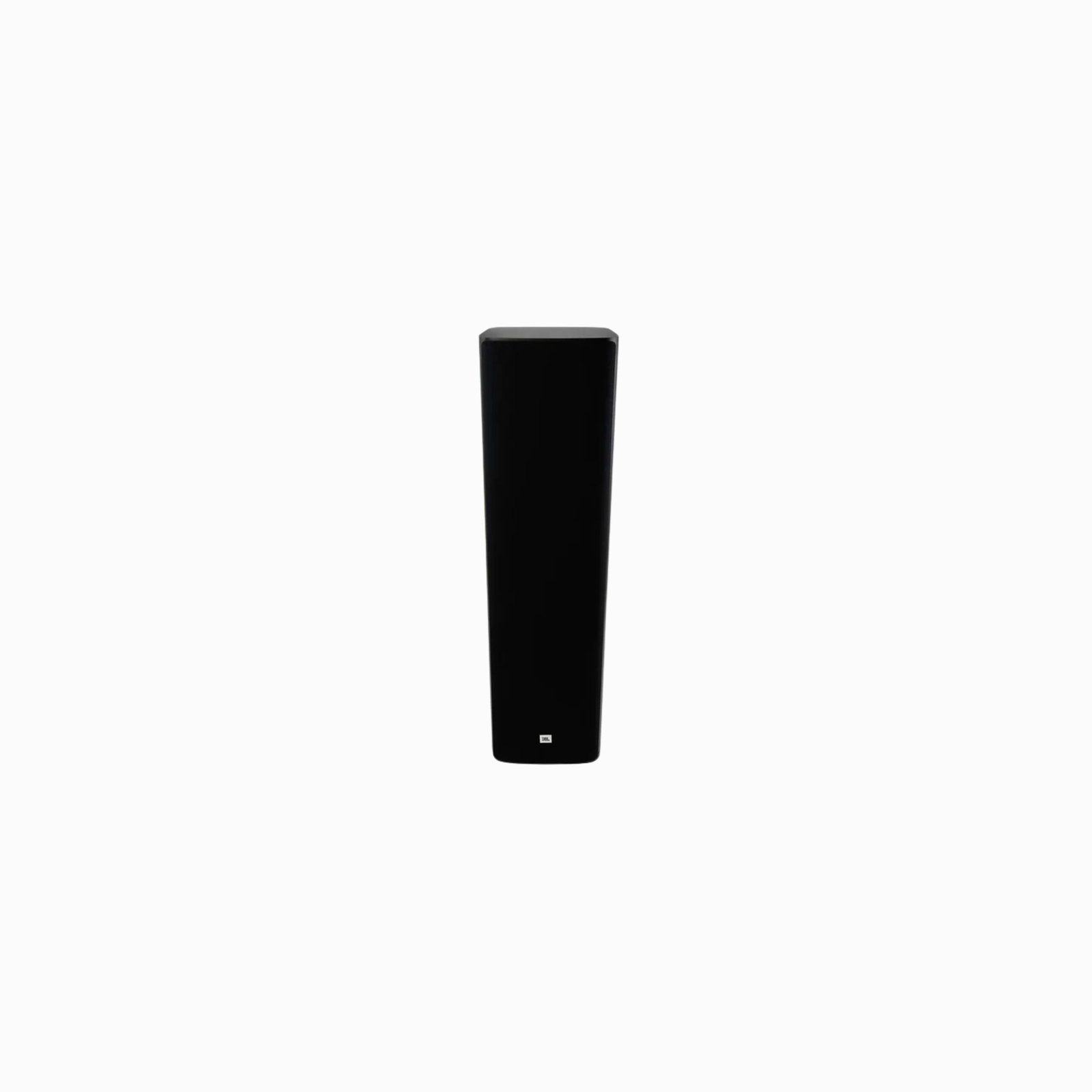

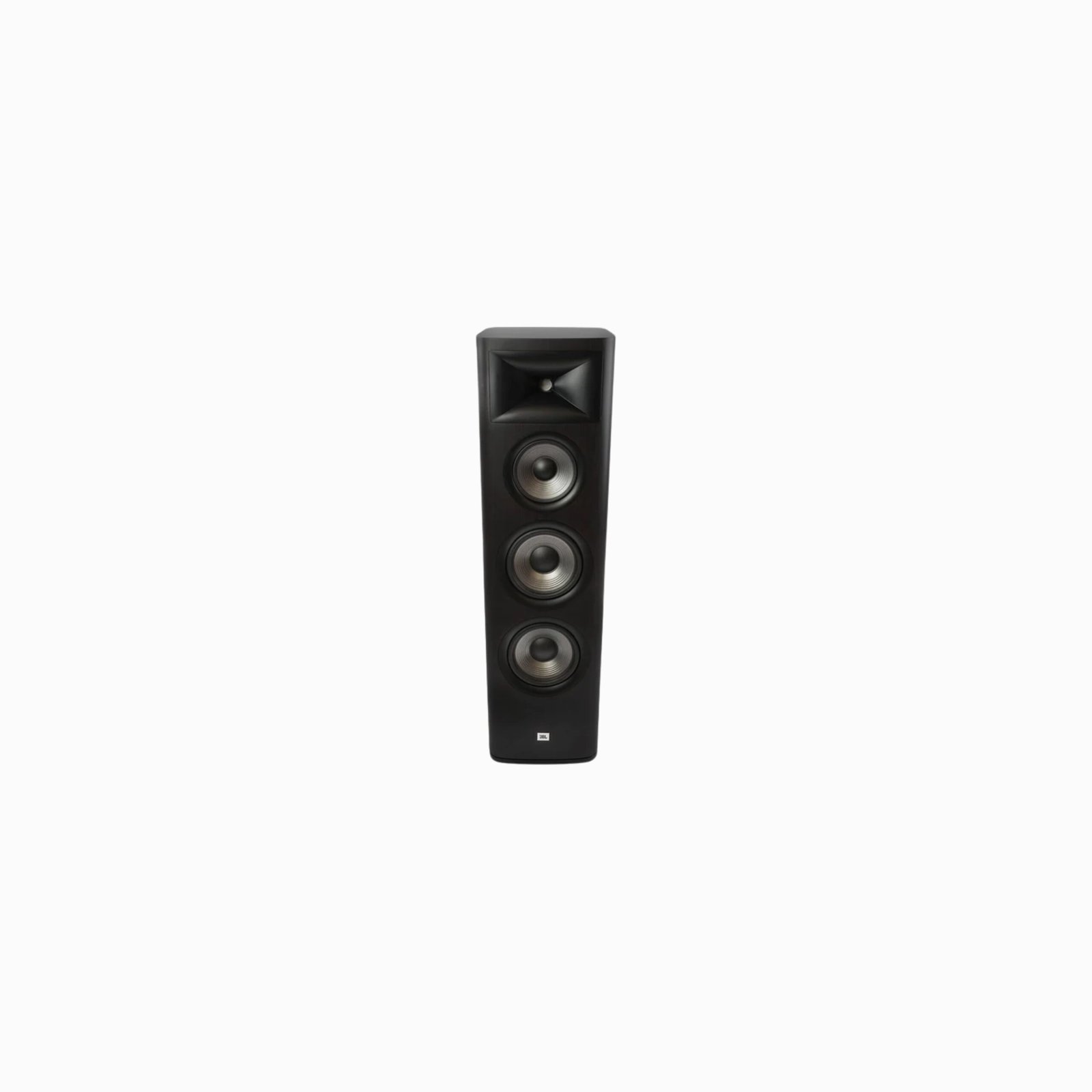

JBL Studio 698 – 3 Way 8 Inches Floor Standing Speaker (Pair)

The flagship speaker of the Studio 6 line The JBL Studio 698 is the flagship floor-standing speaker of the company’s impressive Studio 6 lineup. It features dual 8″ PolyPlas® woofers in a double-ported enclosure for deep, powerful bass, plus a dedicated 6″ midrange driver. High frequencies are handled by a 1″ horn-loaded tweeter with HDI (High Definition Imaging) waveguide technology that delivers detailed sound across a wide listening area.

We recommend giving this speaker high-current amplification from a quality power amp or integrated amplifier for best performance. Dual binding post speaker terminals allow bi-amping or bi-wiring.



Built on JBL’s storied audio heritage JBL famously pioneered horn-loaded compression drivers in speaker arrays at large concert venues — they’re able to fill space with clear sound in a way a standard dome tweeter can’t.

The cornerstone of the Studio 6 Series’ distinctive sound is JBL’s 1″ compression driver mated to a High-Definition Imaging (HDI) horn. The proprietary design helps this speaker deliver crystal-clear high frequencies throughout your room.



Product highlights

  • 3-way design
  • 1″ compression driver with HDI (High Definition Imaging) waveguide technology for clear highs across a wide listening area
  • 6″ PolyPlas® midrange driver for engaging detail with instruments and vocals
  • dual 8″ PolyPlas® cone woofers for deep, powerful bass
  • bass-reflex cabinet design with dual rear-firing ports
  • frequency response: 36-40,000 Hz
  • sensitivity: 90 dB
  • impedance: 6 ohms
  • High-current amplification from a quality power amp or integrated amplifier is recommended for best performance
  • power handling: up to 250 watts

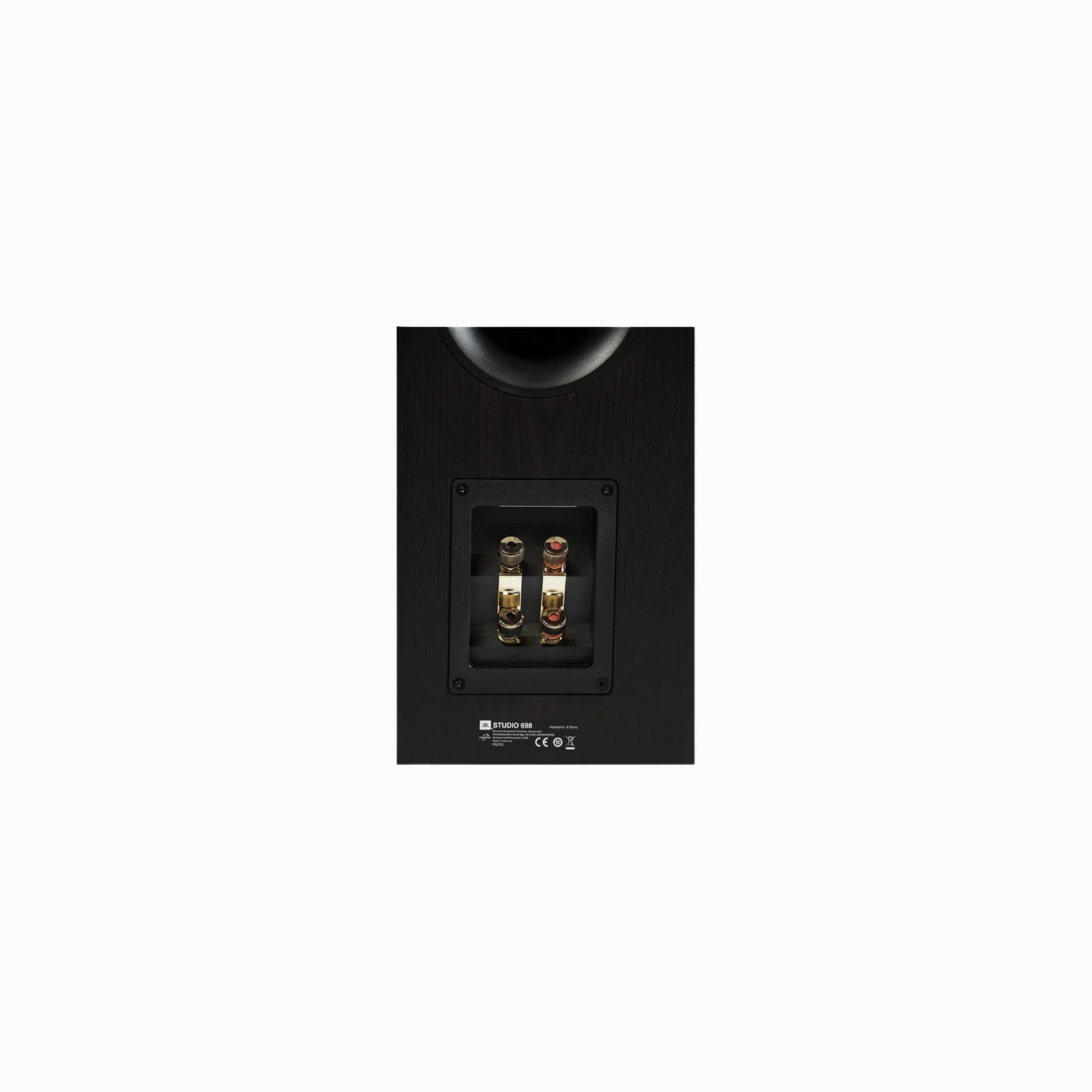

  • Two sets of binding post speaker terminals allow bi-amping or bi-wiring
  • removable magnetic grille

Additional Information



Specifications

Enclosure

Ported

Tweeter

Compression Horn

Tweeter Size (inches)

1

Midrange Size (inches)

6

Woofer Size (inches)

8

Woofer Composition

PolyPlas

Woofer Surround

Rubber

Built-in Powered Sub

No

Dolby Atmos Drivers

No

Connector Type

5-Way post

Bi-amp Inputs

Yes

Parts Warranty

5 Years

Labor Warranty

5 Years

Power Range

up to 250

Frequency Response

36-40k Hz

Sensitivity

90 dB

Impedance (Ohms)

6

Subwoofer Amp Power

Height (inches)

43-1/4

Width (inches)

11-3/4

Depth (inches)

16-1/16

Weight

79 lbs
