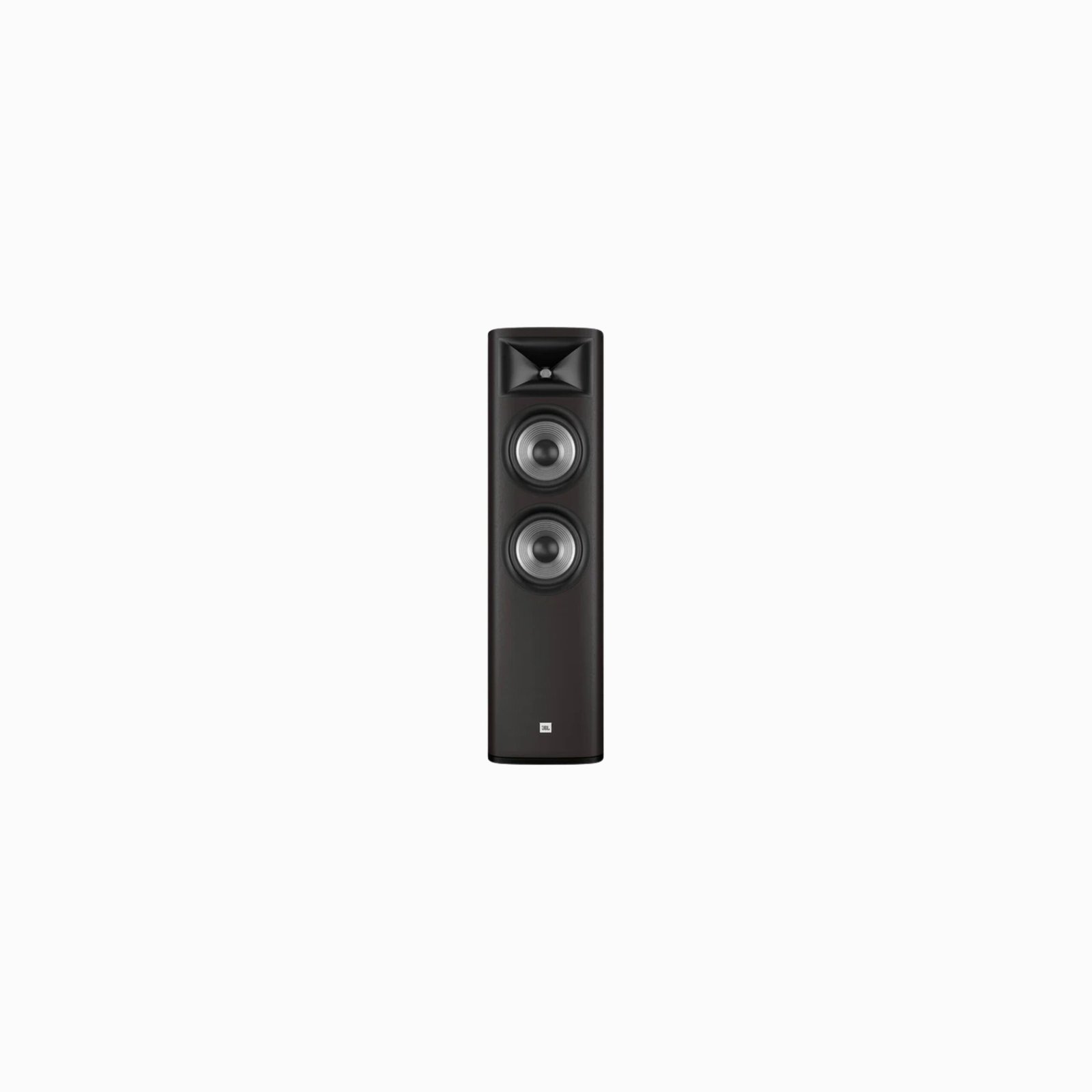

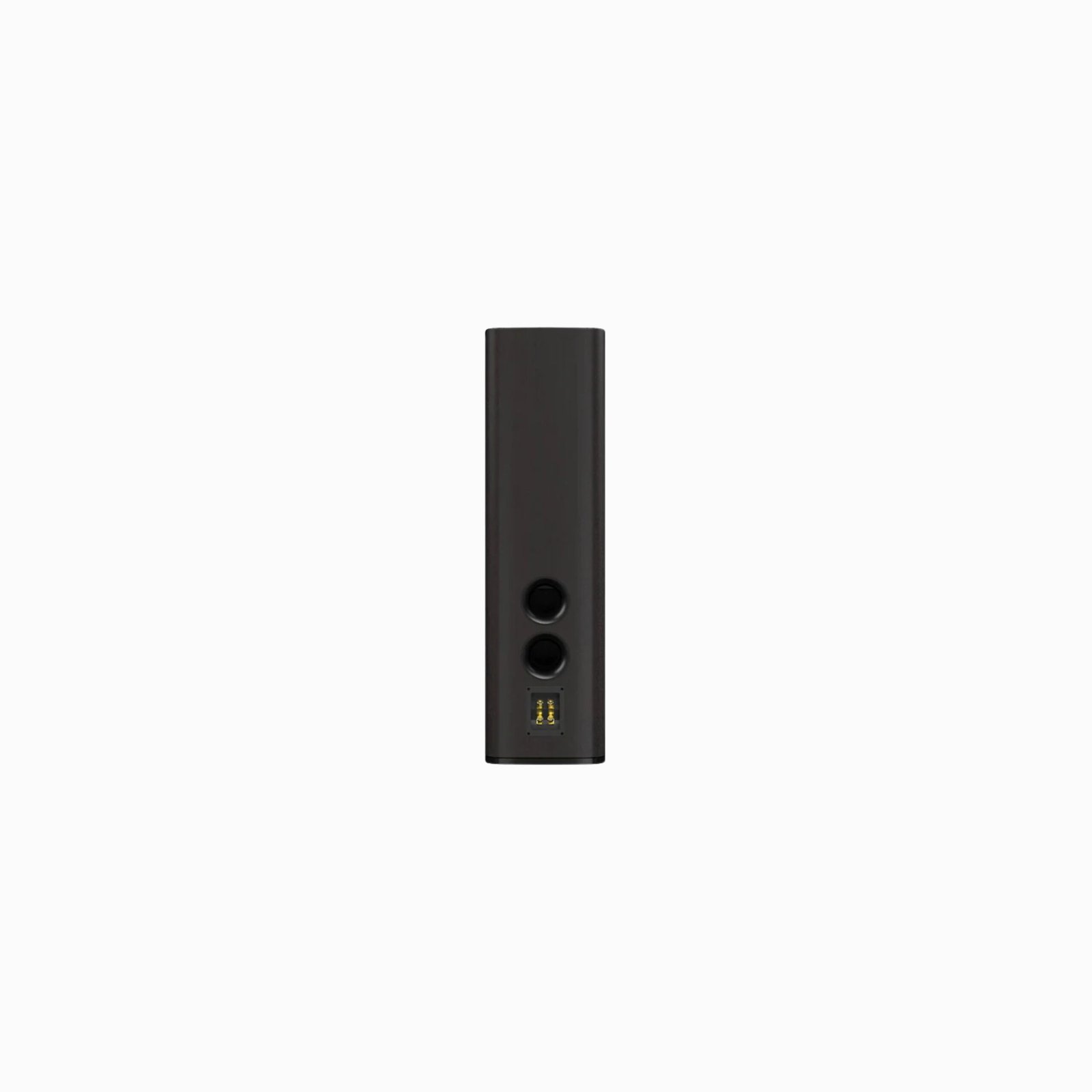

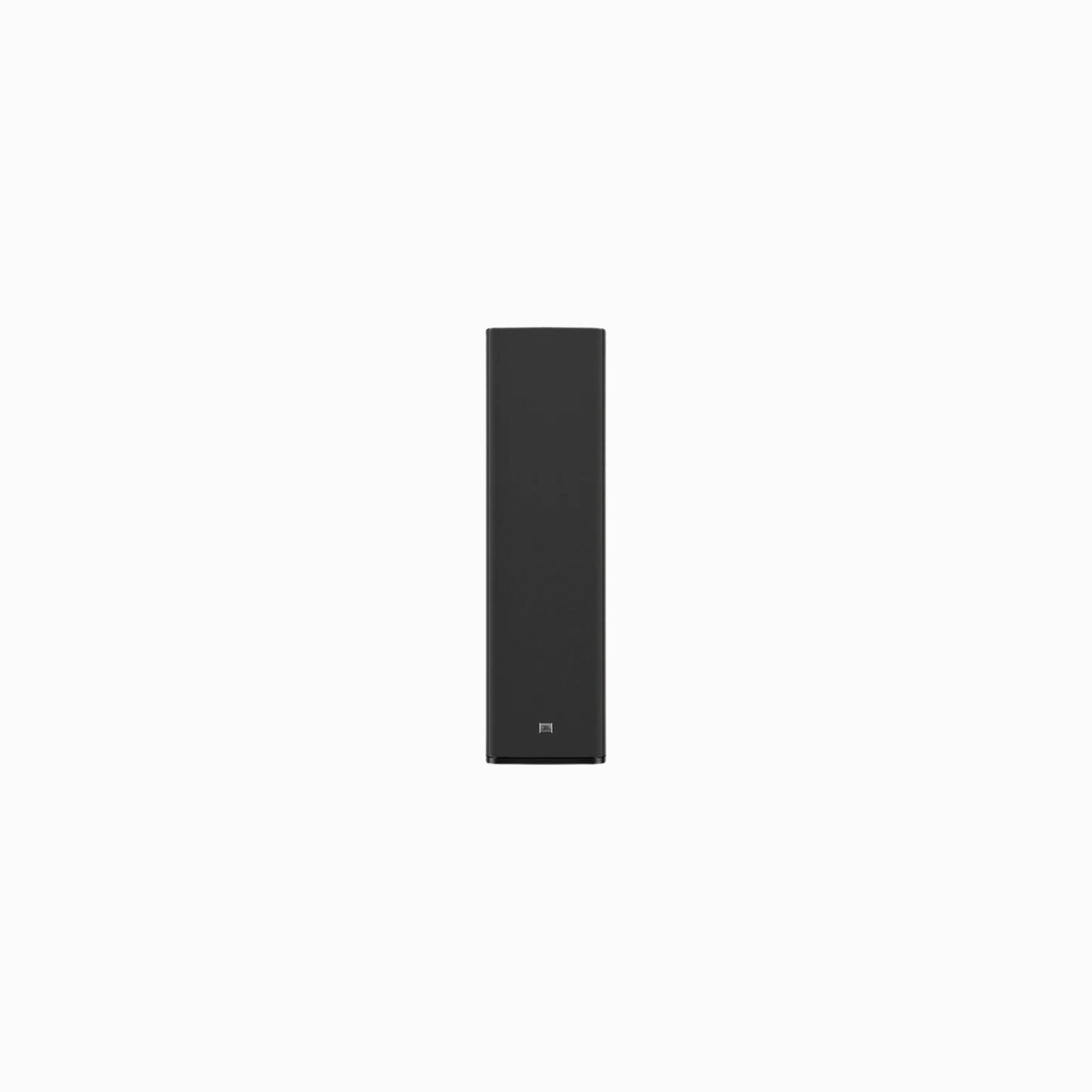

JBL Studio 690 - 2.5 Way 8 Inches Floor Standing Speaker (Each)

Key Features

High-Performance Audio Design

  • 2.5-Way Driver Configuration
    Includes dedicated drivers for lows, mids, and highs with optimized crossover design for smooth, balanced sound.

  • 8-Inch Dual Bass Woofers
    Large woofers provide strong low-frequency output with deep, impactful bass performance.

  • Advanced High-Frequency Tweeter
    Designed to deliver clear, detailed highs with excellent dispersion for an immersive listening experience.

Sound Quality Enhancements

  • Broad Frequency Response
    Delivers rich bass, detailed midrange, and crisp highs across various music genres and content types.

  • Optimized Crossover Network
    Ensures seamless integration between drivers for coherent and natural sound reproduction.

  • High Sensitivity and Power Handling
    Efficient design allows for high output with minimal distortion and supports a wide range of amplifier power.

Construction & Build

  • Rigid, Well-Damped Cabinet
    Reduces resonance and coloration, preserving the integrity of the audio signal.

  • Front-Firing Ports
    Improves bass response and allows flexible placement closer to walls without compromising performance.

  • Refined Aesthetic Finish
    Stylish design that complements modern home audio setups.

Performance & Compatibility

  • Wide System Integration
    Suitable as left/right main speakers in stereo setups or as part of larger multi-channel home theater systems.

  • Bi-Wire/Bi-Amp Ready
    Dual binding posts allow optional bi-wiring or bi-amping to maximize performance from compatible amplifiers.

  • Stable Floor-Standing Form Factor
    Designed for secure placement with optimal acoustic projection in living rooms and dedicated listening spaces.

Description



JBL Studio 698 – 3 Way 8 Inches Floor Standing Speaker (Pair) The JBL Studio 698 is the flagship floor-standing speaker of the company’s impressive Studio 6 lineup. It features dual 8″ PolyPlas® woofers in a double-ported enclosure for deep, powerful bass, plus a dedicated 6″ midrange driver. High frequencies are handled by a 1″ horn-loaded tweeter with HDI (High Definition Imaging) waveguide technology that delivers detailed sound across a wide listening area.

The flagship speaker of the Studio 6 lineWe recommend giving this speaker high-current amplification from a quality power amp or integrated amplifier for best performance. Dual binding post speaker terminals allow bi-amping or bi-wiring.



JBL famously pioneered horn-loaded compression drivers in speaker arrays at large concert venues — they’re able to fill space with clear sound in a way a standard dome tweeter can’t.

Built on JBL’s storied audio heritageThe cornerstone of the Studio 6 Series’ distinctive sound is JBL’s 1″ compression driver mated to a High-Definition Imaging (HDI) horn. The proprietary design helps this speaker deliver crystal-clear high frequencies throughout your room.





Product highlights

  • 3-way design
  • 1″ compression driver with HDI (High Definition Imaging) waveguide technology for clear highs across a wide listening area
  • 6″ PolyPlas® midrange driver for engaging detail with instruments and vocals
  • dual 8″ PolyPlas® cone woofers for deep, powerful bass
  • bass-reflex cabinet design with dual rear-firing ports
  • frequency response: 36-40,000 Hz
  • sensitivity: 90 dB
  • impedance: 6 ohms
  • High-current amplification from a quality power amp or integrated amplifier is recommended for best performance
  • power handling: up to 250 watts
  • Two sets of binding post speaker terminals allow bi-amping or bi-wiring
  • removable magnetic grille

Additional Information





Specifications

Enclosure

Ported

Tweeter

Compression Horn

Tweeter Size (inches)

1

Midrange Size (inches)

6

Woofer Size (inches)

8

Woofer Composition

PolyPlas

Woofer Surround

Rubber

Built-in Powered Sub

No

Dolby Atmos Drivers

No

Connector Type

5-Way post

Bi-amp Inputs

Yes

Parts Warranty

5 Years

Labor Warranty

5 Years

Power Range

JBL Studio 690 – 2.5 Way 8 Inches Floor Standing Speaker (Pair)

A top-notch tower speaker built on JBL’s storied heritage

The JBL Studio 690 is the flagship floor-standing speaker in the Studio line. It delivers excellent high-frequency response, in keeping with JBL’s tried-and-true approach to tweeter design. They famously pioneered the use of horn-loaded compression drivers in speaker arrays at large concert venues — they’re able to fill large spaces with clear sound in a way a standard dome tweeter can’t. The Studio 6 Series continues this tradition by mating JBL’s 1″ compression driver to a High-Definition Imaging (HDI) horn. This proprietary design helps the Studio 690 deliver crystal-clear highs throughout your room, no matter where you sit.

Accurate mids and solid low end

We know what makes the tweeter special, so what about the rest of the frequency range? Each Studio 690 speaker features dual 8″ PolyPlas® woofers for accurate mids and satisfyingly deep bass. Doubling up on these large, well-made drivers helps the speaker deliver a rich, full soundstage when listening to music or watching a movie. And the cabinet is equipped with two rear ports for enhanced bass response.

Product highlights

  • dual 8″ PolyPlas® woofers in a bass-reflex enclosure with dual tuned ports
  • 1″ compression driver with HDI (High Definition Imaging) waveguide technology for detailed sound across a wide listening area
  • frequency response: 36-40,000 Hz
  • sensitivity: 90 dB
  • impedance: 6 ohms
  • power handling: up to 250 watts
  • dual binding post speaker terminals allow bi-amping or bi-wiring
  • removable magnetic grille



Specifications

Enclosure
Ported
Tweeter
Compression Horn
Tweeter Size (inches)
1
Midrange Size (inches)
N/A
Woofer Size (inches)
8
Woofer Composition
PolyPlas
Woofer Surround
Rubber
Built-in Powered Sub
No
Dolby Atmos Drivers
No
Connector Type
5-Way post
Bi-amp Inputs
Yes
Parts Warranty
5 Years
Labor Warranty
5 Years
Power Range
up to 250
Frequency Response
36-40k Hz
Sensitivity
90 dB
Impedance (Ohms)
6
Subwoofer Amp Power
Height (inches)
43-1/8
Width (inches)
11-3/4
Depth (inches)
15-1/16
Weight
64.8 lbs
