Category: Speaker

JBL Studio 6 8IW - 2 Way 8 inches In-Wall Speaker (Each)

Key Features

High-Performance Audio

  • 2-Way Driver Configuration
    Combines an 8-inch woofer with a high-definition compression tweeter to deliver balanced, full-range sound from an in-wall installation.

  • Large 8-Inch Woofer
    Provides extended low and midrange response with controlled bass impact for music and movies.

  • High-Definition Tweeter
    Produces clear, detailed high frequencies for vocals, effects, and ambient sound.

Sound Quality & Precision

  • Wide Frequency Response
    Ensures detailed and natural sound reproduction across lows, mids, and highs.

  • Optimized Crossover Network
    Smoothly blends output from the woofer and tweeter for coherent and accurate audio.

  • High Sensitivity Design
    Offers strong output with minimal distortion when driven by a compatible AV receiver or amplifier.

In-Wall Installation & Design

  • Flush-Mounted Installation
    Designed to mount directly into walls for a clean, discreet look that blends with room décor.

  • Paintable Grille
    Allows customization to match wall color for a seamless visual integration.

  • Rigid Enclosure Structure
    Reduces resonance and vibration for clearer sound performance within the wall cavity.

System Integration

  • Timbre-Matched with Studio 6 Series
    Ensures consistent tonal balance when paired with other Studio 6 speakers in a multi-channel system.

  • Versatile Use Cases
    Suitable as front, surround, or height channel speakers in custom home theater installations.

  • Stable Mounting Mechanism
    Secure in-wall fitment designed to remain stable and minimize rattle or vibration.

Description

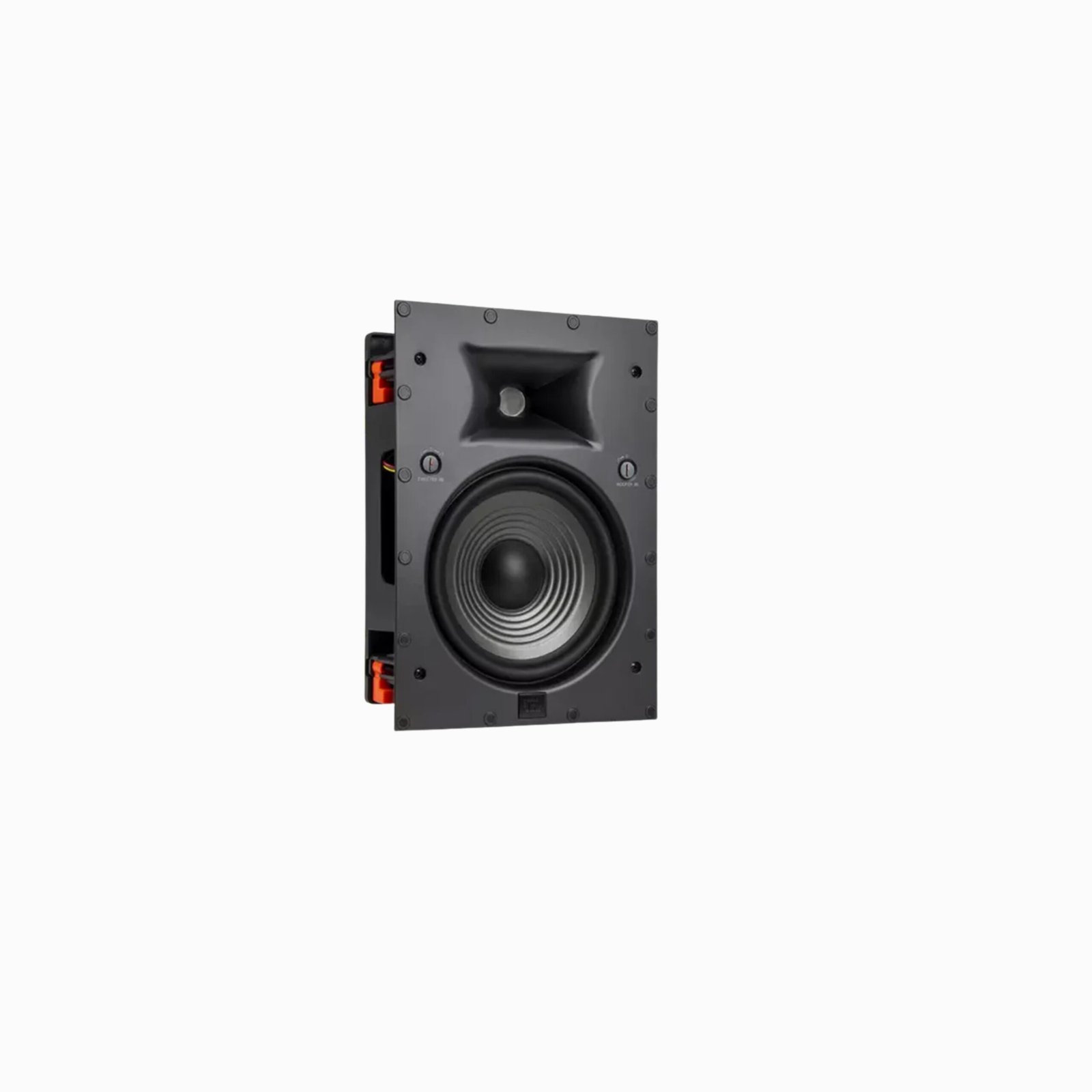

JBL Studio 6 8IW – 2 Way 8-inch In-Wall Speaker (Each)

Studio 8IW

 8″ (203mm) 2-way In-Wall Loudspeaker

For more powerful bass, the Studio 8IW features an 8″ (203mm) Polyplas® cone woofer and a 1″ (25mm) Compression Driver with High-Definition Imaging (HDI™) waveguide for more impact from front, side, and rear channels. The Dog Leg mounting system allows for easy installation, and the zero bezel grilles make the 8IW visually discrete, so they blend into the walls seamlessly.

1″ (25mm) Compression Driver with High-Definition Imaging (HDI™) waveguide

8″ (203mm) Polyplas® cone woofer

High frequency level adjustment and Low Frequency boundary compensation

 FEATURES

  • Premium air-core inductors and mylar capacitor crossover network components

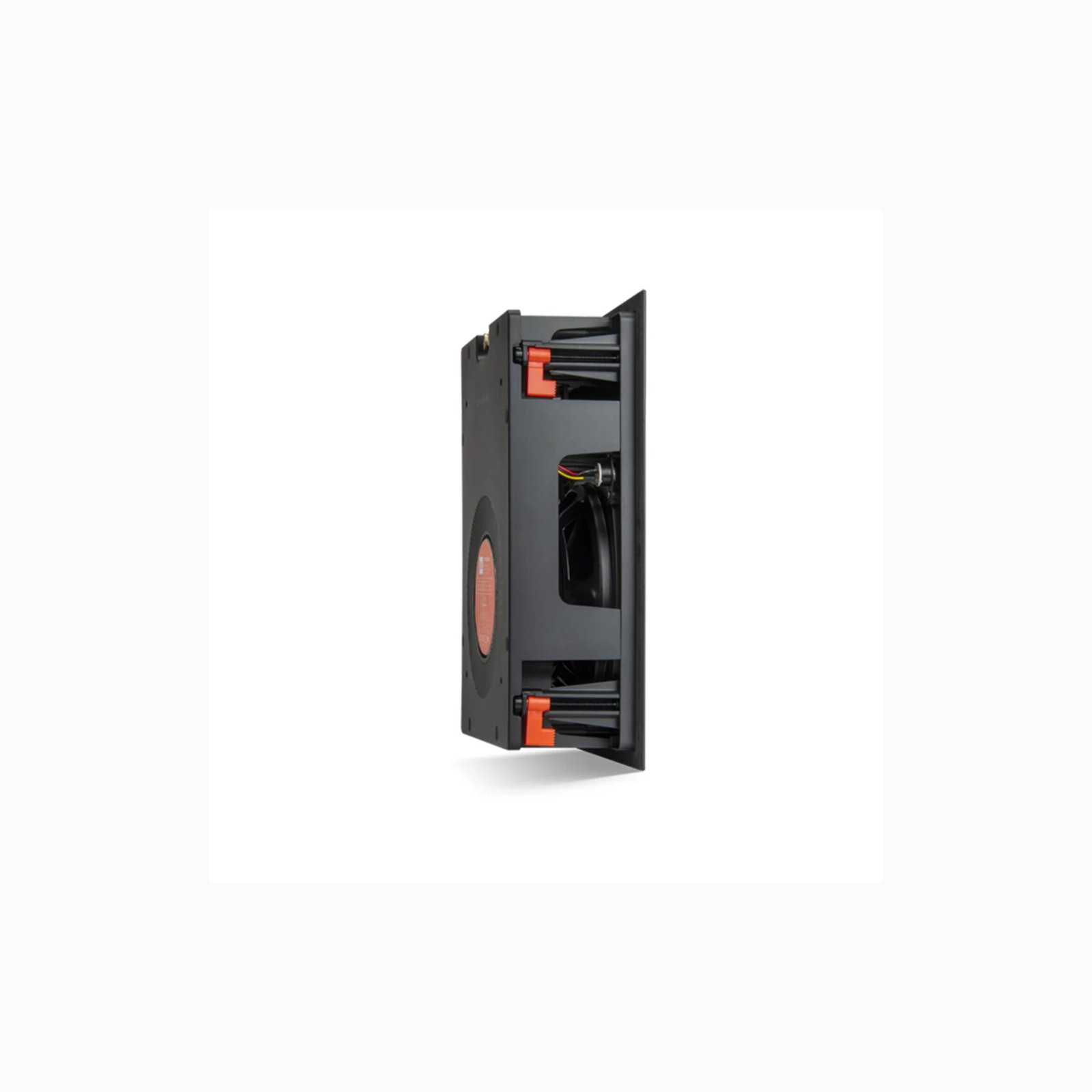

  • Dog Leg installation system for quick and easy installation

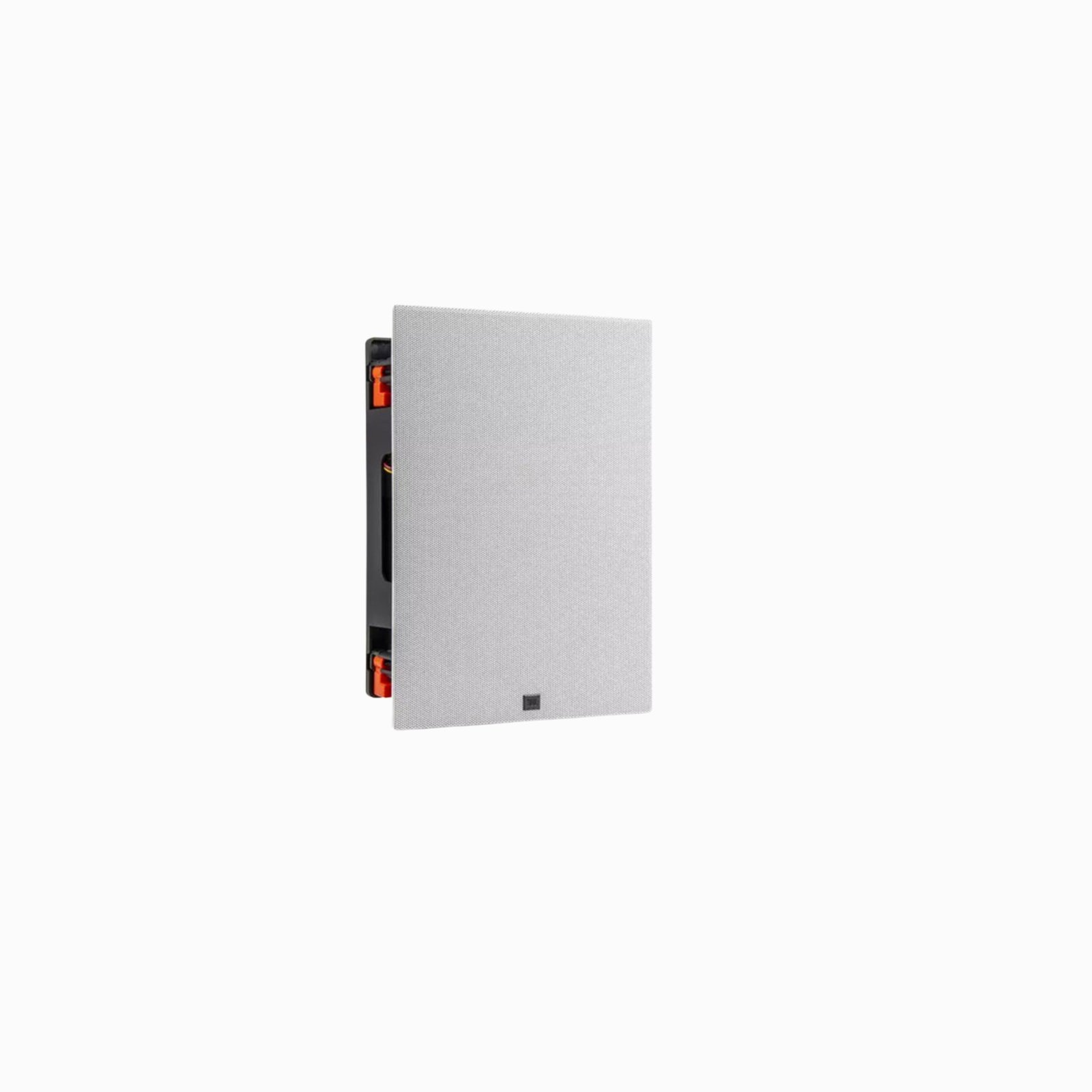

  •  Zero bezel metal grille installs flush to the wall or ceiling for a clean, inconspicuous appearance

 8″ (203mm) 2-way In-Wall Loudspeaker

For more powerful bass, the Studio 8IW features an 8″ (203mm) Polyplas® cone woofer and a 1″ (25mm) Compression Driver with High-Definition Imaging (HDI™) waveguide for more impact from front, side, and rear channels. The Dog Leg mounting system allows for easy installation, and the zero bezel grilles make the 8IW visually discrete, so they blend into the walls seamlessly.



Specifications

High Frequency Transducer
1″ (25mm) Compression Driver with High-Definition Imaging (HDI™) waveguide
Low Frequency Transducer
8″ (203mm) Polyplas® woofer
Nominal Impedance
6-Ohm
Sensitivity (2.83V@1m)
93dB
Power Handling
60W RMS (250W Dynamic)
Recommended Amplifier Power
50 – 80W
Frequency Response
43Hz – 20kHz
Crossover Frequency
2.5kHz
Grille Dimensions (HxW)
9.9″ x 13.7″ (251mm x 349mm)
Cutout Dimensions (HxW)
8.7″ x 12.5″ (221mm x 318mm)
Mounting Depth
3.74in (95mm)
