Category: Speaker

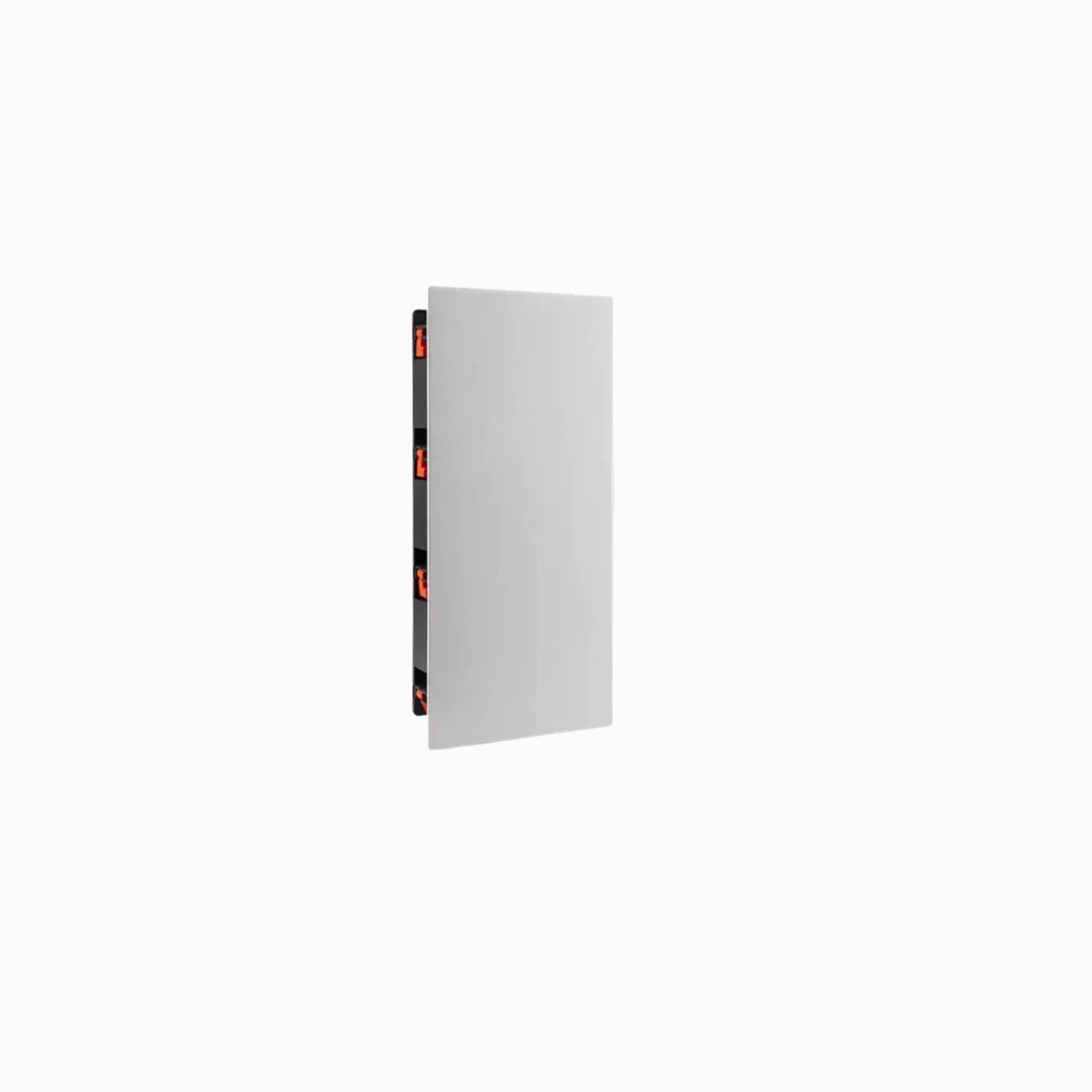

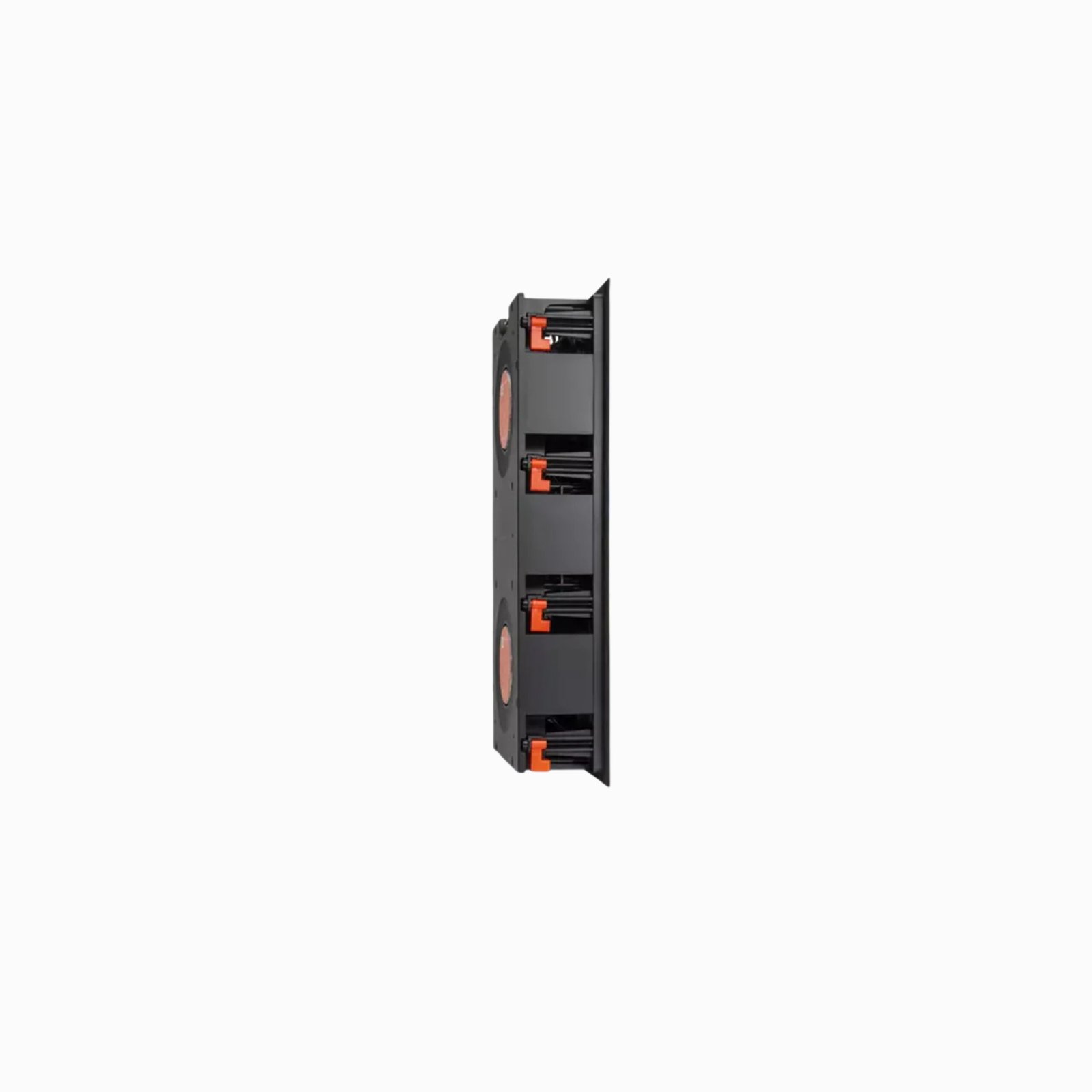

JBL Studio 6 66LCR - 2 Way Dual 6.5 inches In-Wall Speaker (Each)

Key Features

Balanced Home Theater Audio

  • 2-Way Dual-Driver Configuration
    Dual 6.5-inch woofers and a high-definition compression tweeter work together to deliver clear, balanced sound for dialogue, music, and effects.

  • Dual Woofer Setup
    Provides solid mid-bass foundation and enhanced low-mid performance for fuller, more dynamic sound.

  • High-Definition Tweeter
    Produces crisp, detailed highs that improve clarity and imaging.

Sound Quality & Performance

  • Wide Frequency Response
    Reproduces a broad range of audio frequencies with minimal distortion, ensuring natural and accurate sound.

  • Optimized Crossover Network
    Smoothly integrates output from the woofers and tweeter for coherent and natural audio performance.

  • High Sensitivity
    Offers strong output with minimal amplifier power, making it efficient and easy to drive.

In-Wall Installation & Design

  • Flush In-Wall Mounting
    Designed to mount directly into the wall for a clean and discreet installation that blends with your décor.

  • Paintable Grille
    Allows the speaker to visually match wall finishes for a seamless integrated look.

  • Rigid Enclosure Structure
    Reduces resonance and coloration for clearer sound within the wall cavity.

System Integration

  • Ideal for LCR or Surround Channels
    Designed for use as left, center, or right channels in custom home theater audio systems.

  • Timbre-Matched with Studio 6 Series
    Ensures consistent tonal balance when combined with other JBL Studio 6 speakers in multi-channel setups.

  • Versatile Placement Options
    Suitable for front, center, or rear surround channels in dedicated home theater systems.

Description

JBL Studio 6 66LCR – 2 Way Dual 6.5 inches In-Wall Speaker (Each)

Studio 66LCR

 Dual 6.5″ (165mm) 2-way In-Wall Loudspeaker

With dual 6.5″ (165mm) Polyplas® woofers and a 1″ (25mm) Compression Driver with High-Definition Imaging (HDI™) waveguide, the Studio 66LCR is perfect for front channels in any home theater. The Dog Leg mounting system allows for easy installation, and the zero bezel grilles make the 66LCR visually discrete, so they blend into the walls seamlessly.

1″ (25mm) Compression Driver with High-Definition Imaging (HDI™) waveguide

Dual 6.5″ (165mm) Polyplas® woofer

High frequency level adjustment and Low Frequency boundary compensation

 FEATURES

  • Premium air-core inductors and mylar capacitor crossover network components
  • Dog Leg installation system for quick and easy installation
  •  Zero bezel metal grille installs flush to the wall or ceiling for a clean, inconspicuous appearance

Dual 6.5″ (165mm) 2-way In-Wall Loudspeakers

With dual 6.5″ (165mm) Polyplas® woofers and a 1″ (25mm) Compression Driver with High-Definition Imaging (HDI™) waveguide, the Studio 66LCR is perfect for front channels in any home theater. The Dog Leg mounting system allows for easy installation, and the zero bezel grilles make the 66LCR visually discret,e so they blend into the walls seamlessly.



Specifications

High Frequency Transducer
1″ (25mm) Compression Driver with High-Definition Imaging (HDI™) waveguide
Low Frequency Transducer
Dual 6.5″ (165mm) Polyplas® woofer
Nominal Impedance
6-Ohm
Sensitivity (2.83V@1m)
91dB
Power Handling
50W RMS (200W Dynamic)
Recommended Amplifier Power
50 – 70W
Frequency Response
45Hz – 20kHz
Crossover Frequency
2.5kHz
Grille Dimensions (HxW)
8.2″ x 18.6″ (209mm x 473mm)
Cutout Dimensions (HxW)
7″ x 17.4″ (180mm x 443mm)
Mounting Depth
3.74in (95mm)
