Description

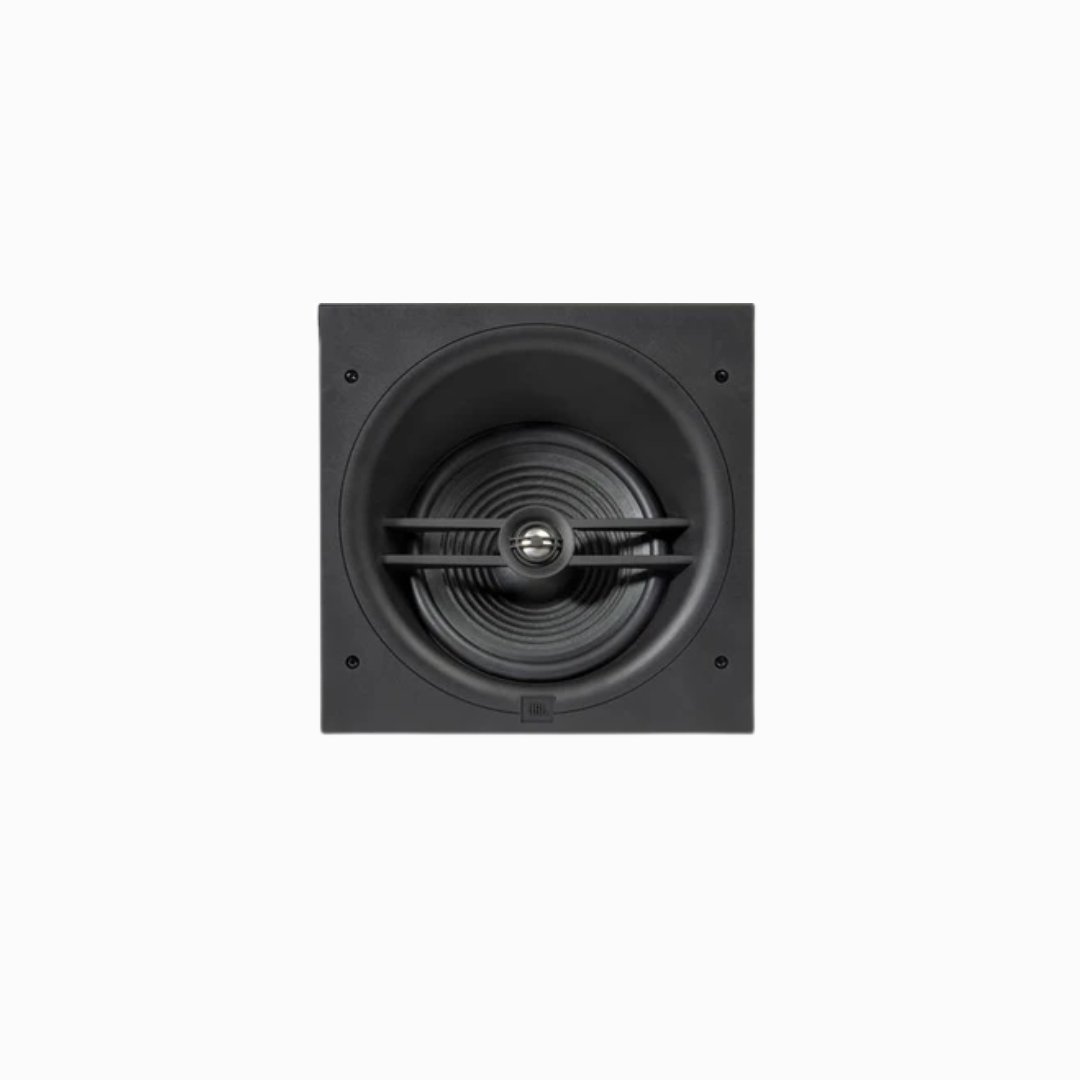

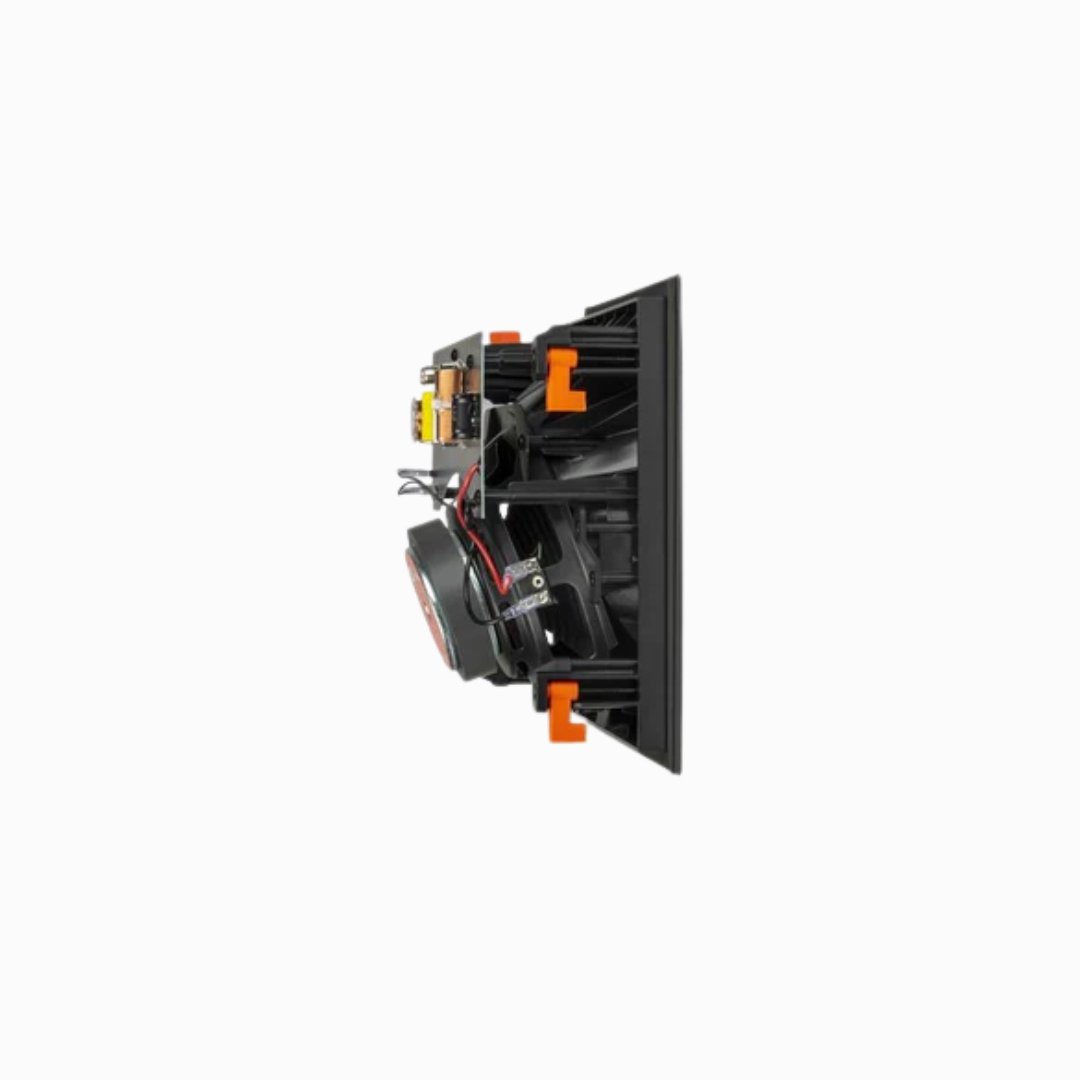

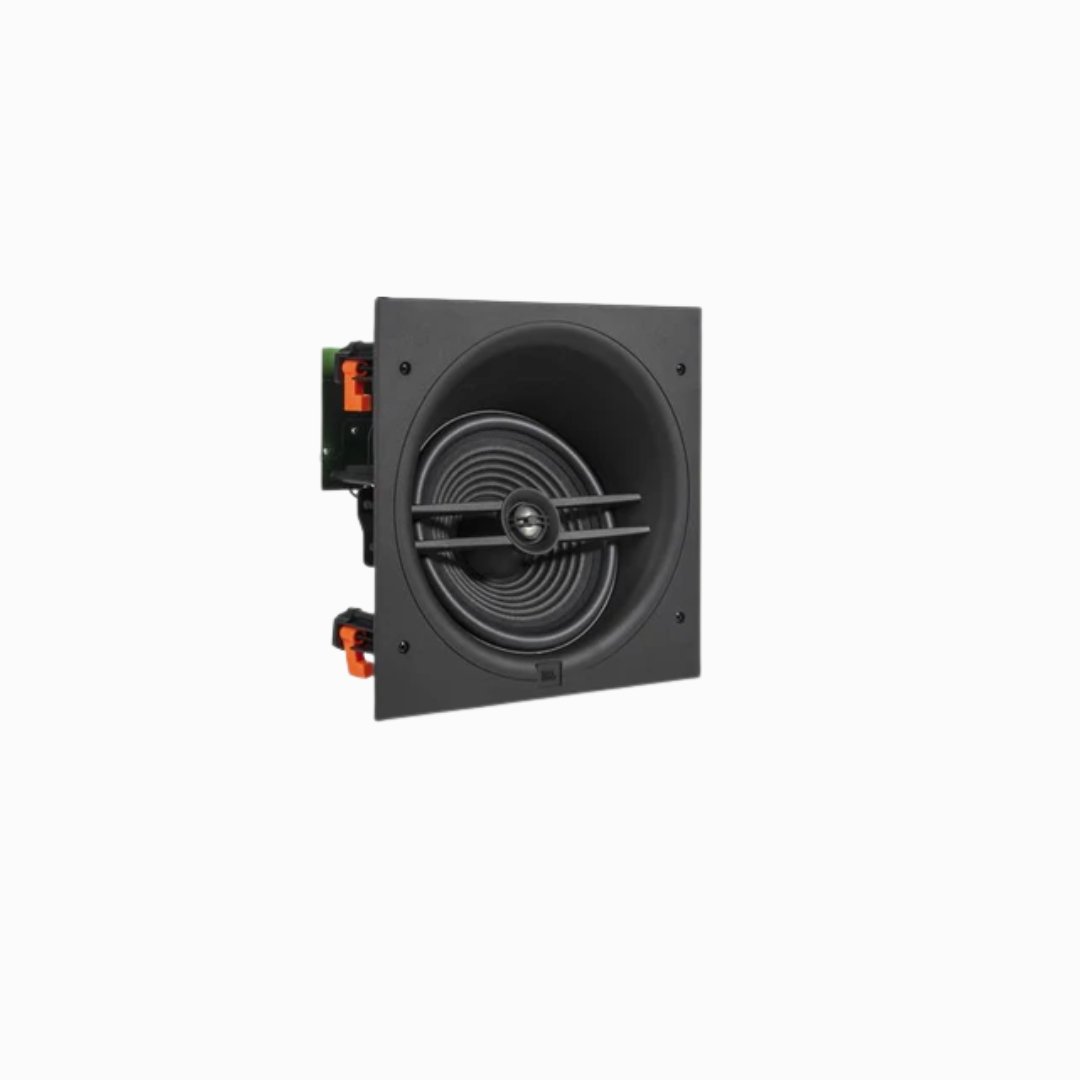

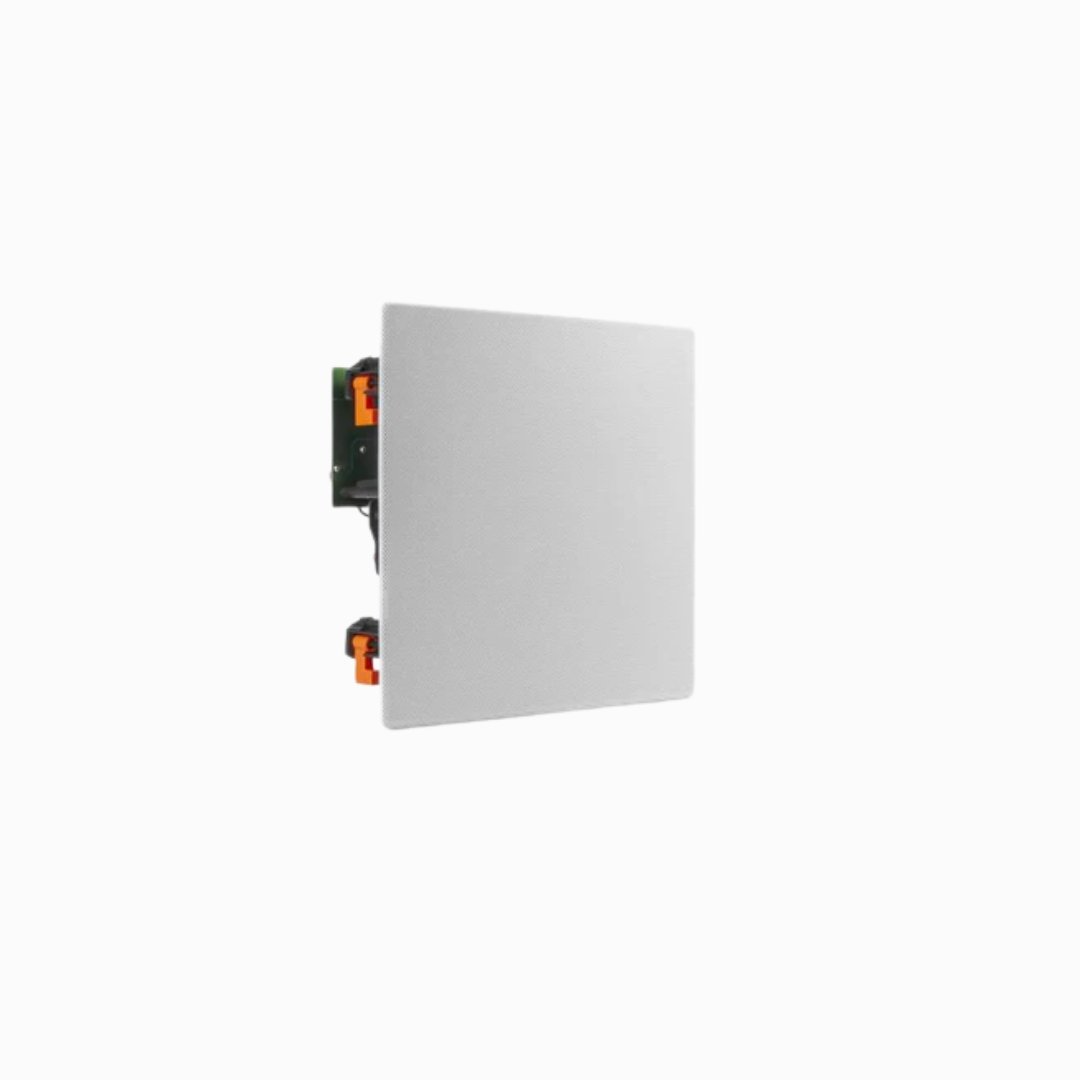

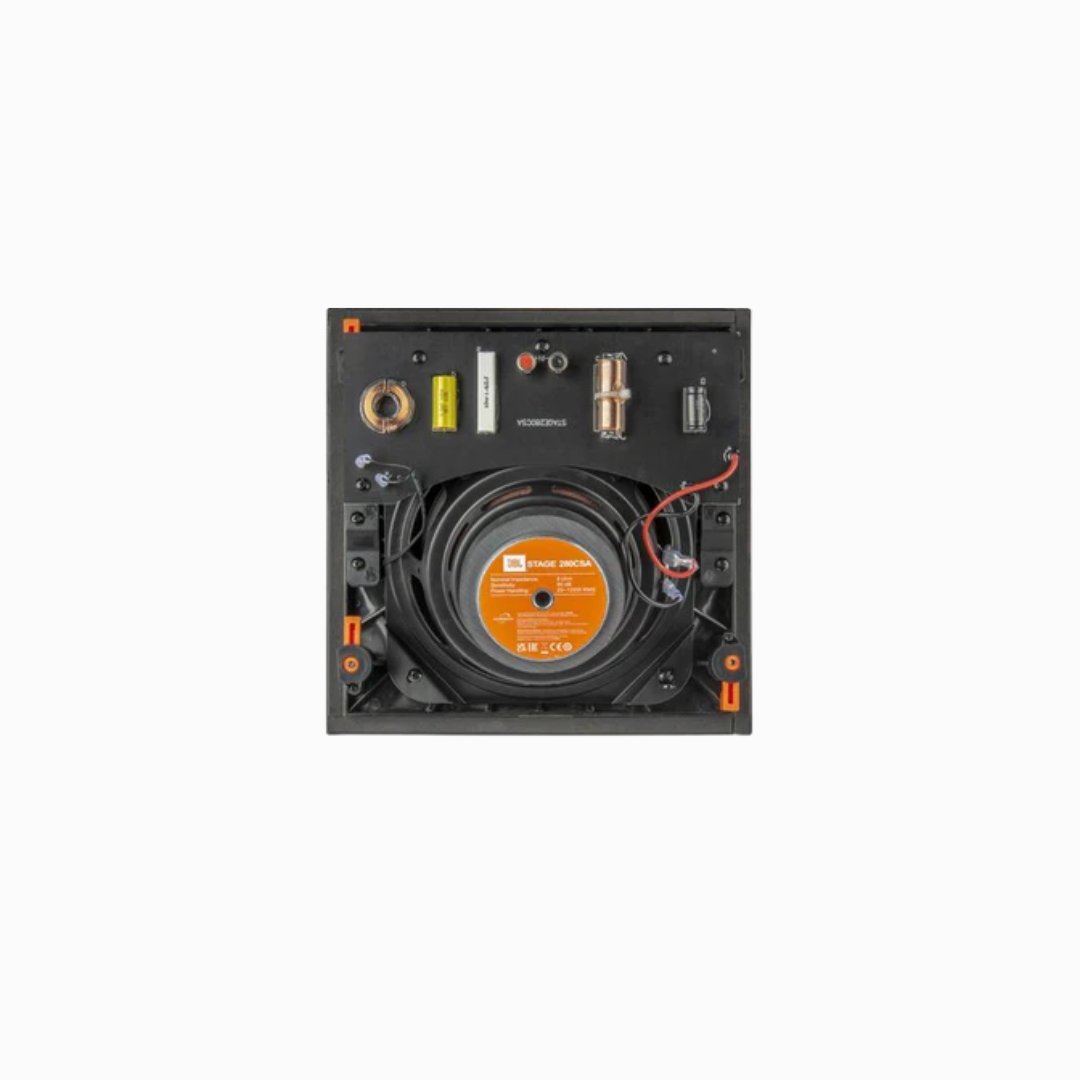

The angled design of the Stage 280CSA allows for accurate aiming of the 8″ (200mm) Polycellulose cone woofer and 1″ (25mm) Aluminum dome tweeter with acoustic lens waveguide towards the listening area. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements, including baffles with acoustic smoothing and acoustic lens tweeters, have been incorporated into the design to ensure that the sound is clear and accurate.
Warranty:
1-year manufacturer’s warranty
Features:
- 8″ polycellulose woofer
- 1″ aluminum dome tweeter with acoustic lens and waveguide
- angled, acoustically optimized baffle
- frequency response: 42-25,000 Hz (-6dB)
- power handling: up to 120 watts RMS
- impedance: 8 ohms
- sensitivity: 90 dB
What’s in the box:
- In-ceiling loudspeaker
- Grille
- Cut-Out Template
- Quick Start Guide
Technical Specifications:
| High Frequency Transducer | 1″ (25mm) Aluminum dome with Acoustic Lens |
| Low Frequency Transducer | 8″ (200mm) Polycellulose cone woofer |
| Recommended Amplifier Power (Full Range) | 20-120W RMS |
| Frequency Response | 42Hz-25kHz (-6dB on-axis) |
| Sensitivity (2.83V@1m) | 90dB |
| Nominal Impedance | 8ohm |
| Crossover Frequency | 2900Hz |
| Inputs | Nickel-plated spring-loaded connectors |
| Grille Dimensions | H 11.4in (289mm) x W 11.4in (289mm) |
| Cutout Dimensions | H 10.2in (260mm) x W 10.2in (260mm) |
| Mounting Depth | 5.4in (138mm) |
| Product Weight (Kg) | 2.9Kg |
| Shipping Carton Dimensions | L 13.6in (346mm) x W 13.6in (346mm) x H 6.5in (166mm) |
| Shipping Carton Weight | 8.42lbs (3.82Kg) |
