JBL Stage 280CSA - 2 Way 8 inches Angled In-Ceiling Speaker (Each)

Key Features

Focused In-Ceiling Audio Performance

  • 2-Way Speaker Design
    Combines an 8-inch woofer with a high-frequency tweeter to deliver balanced, full-range sound for music and home theater use.

  • Angled Driver Baffle
    Directs sound toward the listening area rather than straight down, improving clarity, imaging, and overall soundstage.

  • 8-Inch Woofer
    Provides strong mid-bass response and fuller sound compared to smaller in-ceiling speakers.

  • High-Frequency Tweeter
    Produces clear, detailed highs for vocals, dialogue, and ambient effects.

Sound Quality & Coverage

  • Wide Frequency Response
    Ensures natural reproduction of lows, mids, and highs for immersive listening.

  • Optimized Crossover Network
    Seamlessly integrates woofer and tweeter for smooth and coherent sound output.

  • High Sensitivity Design
    Efficient performance allows strong output with moderate amplifier power.

In-Ceiling Installation & Design

  • Flush-Mount In-Ceiling Installation
    Creates a clean, discreet look that blends seamlessly into ceilings.

  • Paintable Magnetic Grille
    Allows the speaker to visually match ceiling color for a seamless appearance.

  • Secure Mounting System
    Designed for stable, vibration-free installation.

System Integration

  • Ideal for Dolby Atmos and Surround Channels
    Well-suited for height channels, surround sound, and immersive home theater setups.

  • Timbre-Matched with JBL Stage Series
    Ensures consistent tonal balance when paired with other JBL Stage speakers.

  • Versatile Usage
    Suitable for home theaters, living rooms, and distributed audio systems.

Description

JBL Stage 280CSA – 2 Way 8-inch Angled In-Ceiling Speaker (Each)

Stage 280CSA

 2-way 8in (203mm) Angled In-Ceiling Loudspeaker

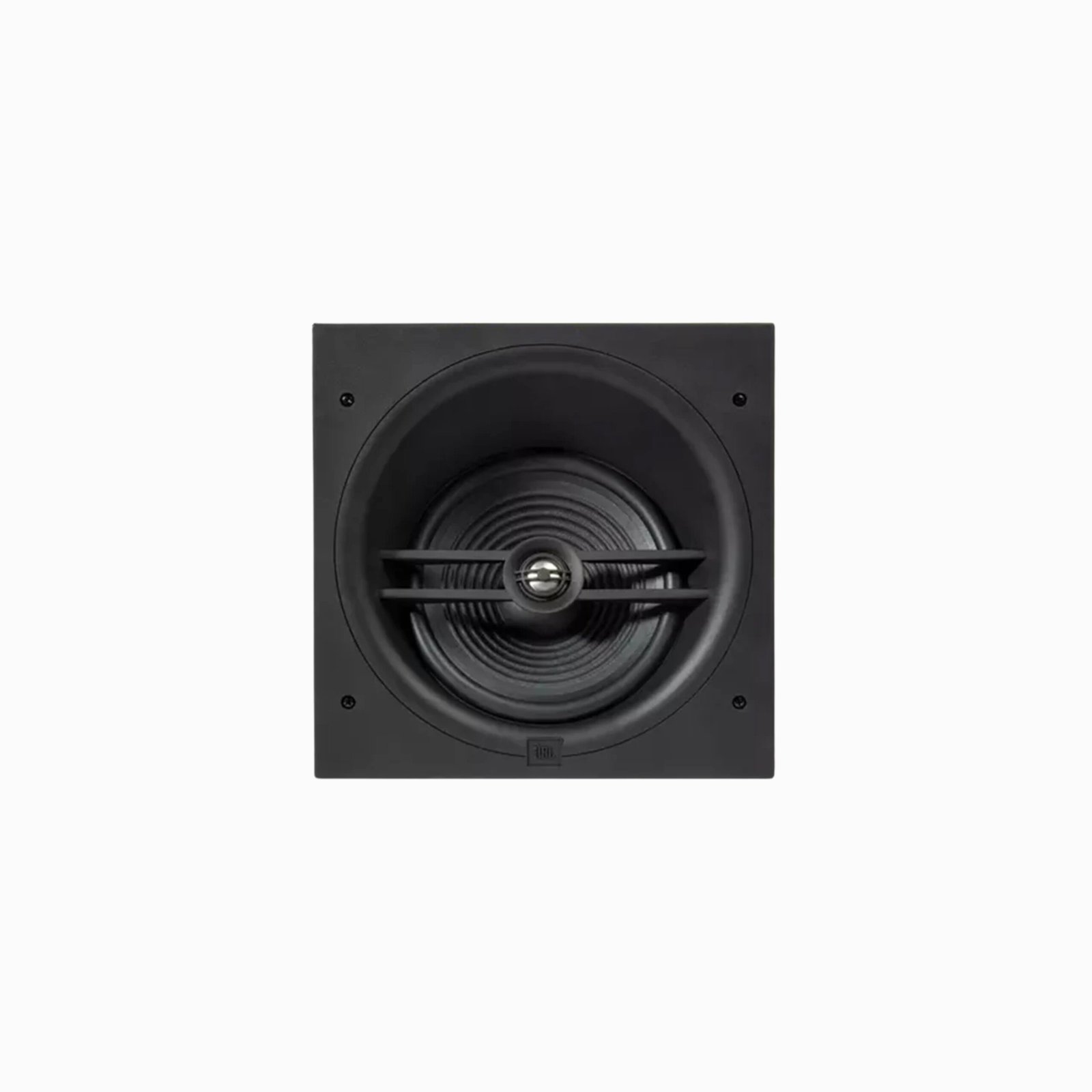

The angled design of the Stage 280CSA allows for accurate aiming of the 8″ (200mm) Polycellulose cone woofer and 1″ (25mm) Aluminum dome tweeter with acoustic lens waveguide towards the listening area. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements, including baffles with acoustic smoothing and acoustic lens tweeters, have been incorporated into the design to ensure that the sound is clear and accurate.

Angled Baffle allows for accurate aiming towards the listening area

1″ (25mm) Aluminum dome with acoustic lens waveguide

8″ (200mm) Polycellulose cone woofer

 FEATURES

  • Rigid Baffle design with acoustic smoothing for improved transducer integration
  • XL-2 installation system compatible with up to 2” (50mm) thick wall/ceiling material.
  •  Zero bezel metal grille installs flush to the wall or ceiling for a clean, inconspicuous appearance

 Stage 280CSA

The angled design of the Stage 280CSA allows for accurate aiming of the 8″ (200mm) Polycellulose cone woofer and 1″ (25mm) Aluminum dome tweeter with acoustic lens waveguide towards the listening area. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements, including baffles with acoustic smoothing and acoustic lens tweeters, have been incorporated into the design to ensure that the sound is clear and accurate.



Specifications

High Frequency Transducer
1″ (25mm) Aluminum dome with Acoustic Lens
Low Frequency Transducer
8″ (200mm) Polycellulose cone woofer
Recommended Amplifier Power (Full Range)
20-120W RMS
Frequency Response
42Hz-25kHz (-6dB on-axis)
Sensitivity (2.83V@1m)
90dB
Nominal Impedance
8ohm
Crossover Frequency
2900Hz
Inputs
Nickel-plated spring-loaded connectors
Grille Dimensions
H 11.4in (289mm) x W 11.4in (289mm)
Cutout Dimensions
H 10.2in (260mm) x W 10.2in (260mm)
Mounting Depth
5.4in (138mm)
Product Weight (Kg)
2.9Kg
Shipping Carton Dimensions
L 13.6in (346mm) x W 13.6in (346mm) x H 6.5in (166mm)
Shipping Carton Weight
8.42lbs (3.82Kg)
