Category: Speaker

JBL Stage 280C - 2 Way 8 inches In-Ceiling Speaker (Each)

Key Features

High-Performance In-Ceiling Audio

  • 2-Way Speaker Design
    Combines an 8-inch woofer with a dedicated high-frequency tweeter for balanced, full-range sound suitable for music and home theater applications.

  • Large 8-Inch Woofer
    Provides extended low and midrange response with controlled bass performance for richer in-ceiling audio.

  • High-Frequency Tweeter
    Produces clear, detailed highs for vocals, dialogue, and ambient effects.

Sound Quality & Integration

  • Wide Frequency Response
    Delivers accurate reproduction across lows, mids, and highs for engaging listening experiences.

  • Optimized Crossover Network
    Smoothly blends woofer and tweeter outputs for coherent and natural sound.

  • High Sensitivity
    Efficient design enables strong output with minimal amplifier power.

Ceiling Installation & Design

  • Flush-Mount In-Ceiling Installation
    Fits into ceilings with a discreet, low-profile look that blends with room décor.

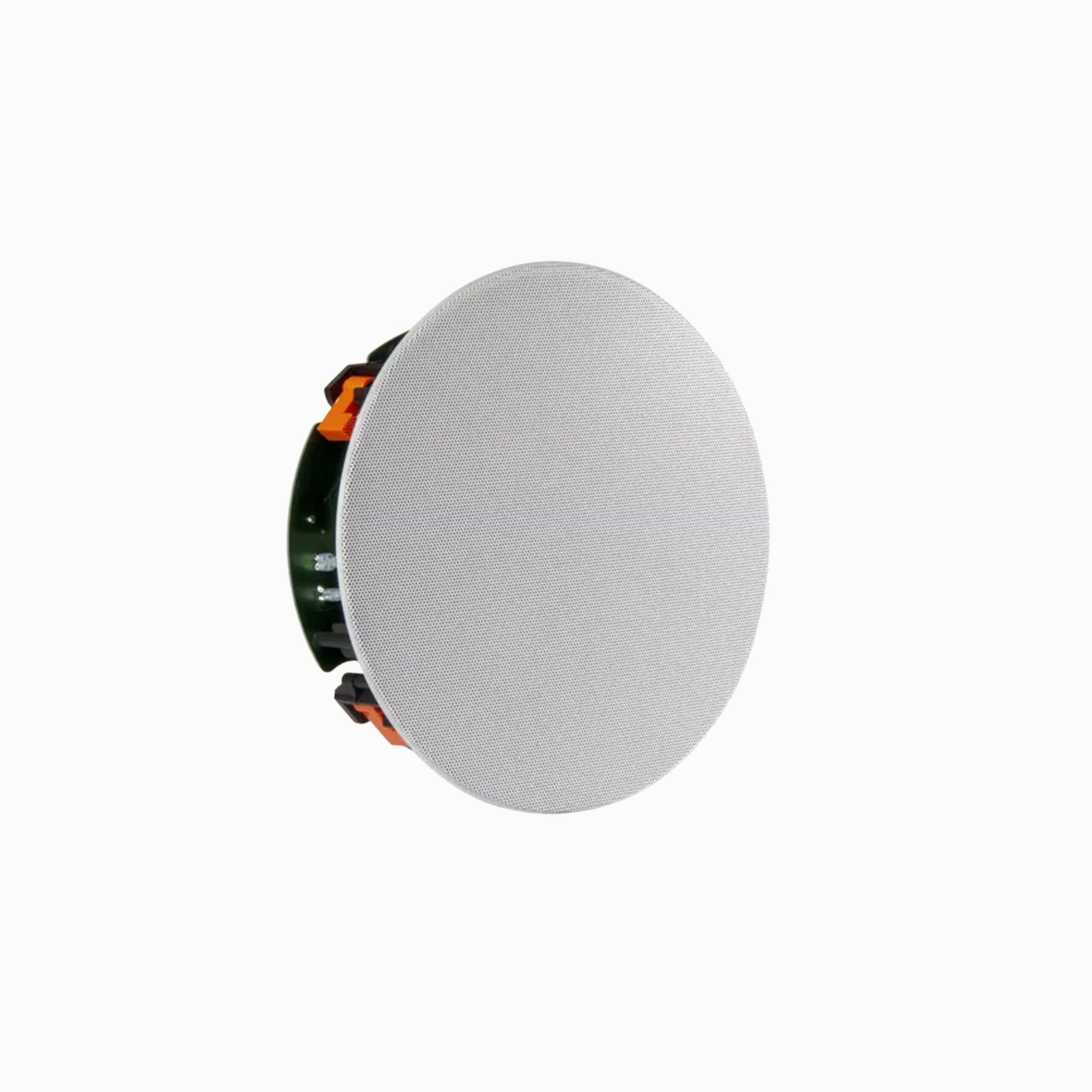

  • Paintable Magnetic Grille
    Allows the speaker to be customized to match ceiling color for a seamless appearance.

  • Secure Mounting System
    Designed for stable installation with minimal vibration or rattle.

System Compatibility

  • Timbre-Matched with JBL Stage Series
    Ensures consistent tonal balance when paired with other JBL Stage speakers in multi-channel systems.

  • Versatile Usage
    Suitable for surround, height, or distributed in-ceiling audio in home theater and whole-home audio setups.

Description

JBL Stage 280C – 2 Way 8-inch In-Ceiling Speaker (Each)

Stage 280C

 2-way 8in (203mm) In-Ceiling Loudspeaker

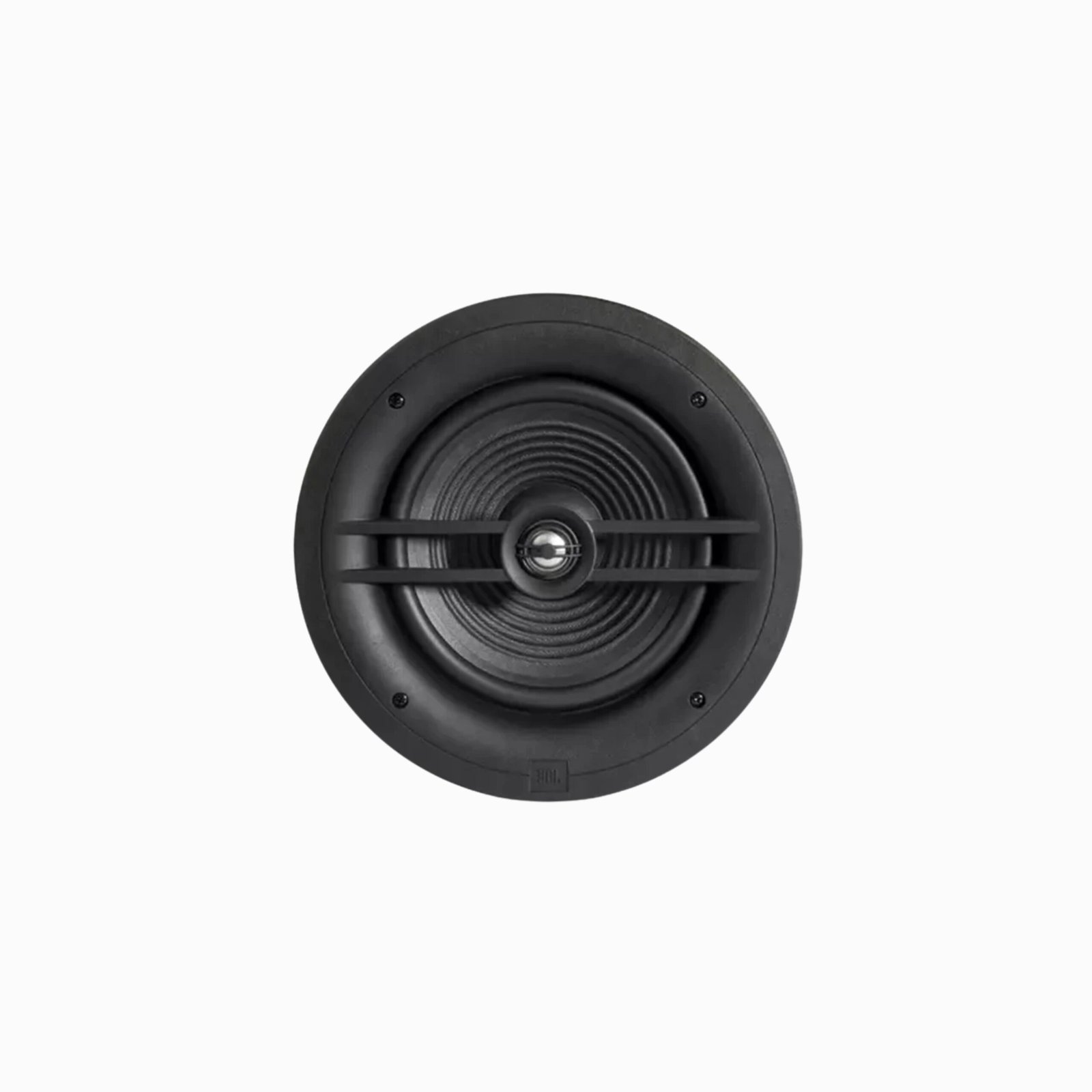

The Stage 260C has an 8″ (200mm) Polycellulose cone woofer and a 1″ (25mm) Aluminum dome tweeter with an acoustic lens waveguide. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements, including baffles with acoustic smoothing and acoustic lens tweeters, have been incorporated into the design to ensure that the sound is clear and accurate.

1″ (25mm) Aluminum dome with acoustic lens waveguide

8″ (200mm) Polycellulose cone woofer

Premium air-core inductors and mylar cap capacitor crossover network components ensure that sound remains dynamic at all listening levels.

 FEATURES

  • Rigid Baffle design with acoustic smoothing for improved transducer integration
  • XL-2 installation system compatible with up to 2” (50mm) thick wall/ceiling material.
  •  Zero bezel metal grille installs flush to the wall or ceiling for a clean, inconspicuous appearance

 Stage 280C

The Stage 260C has an 8″ (200mm) Polycellulose cone woofer and 1″ (25mm) Aluminum dome tweeter with an acoustic lens waveguide. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements, including baffles with acoustic smoothing and acoustic lens tweeters, have been incorporated into the design to ensure that the sound is clear and accurate.



Specifications

High Frequency Transducer
1″ (25mm) Aluminum dome with Acoustic Lens
Low Frequency Transducer
8″ (200mm) Polycellulose cone woofer
Recommended Amplifier Power (Full Range)
20-120W RMS
Frequency Response
42Hz-25kHz (-6dB on-axis)
Sensitivity (2.83V@1m)
90dB
Nominal Impedance
8ohm
Crossover Frequency
3400Hz
Inputs
Nickel-plated spring-loaded connectors
Grille Dimensions
Dia 10.8in (275mm)
Cutout Dimensions
Dia 9.6in (244mm)
Mounting Depth
4.3in (108mm)
Product Weight (Kg)
2.2Kg
Shipping Carton Dimensions
L 12.7in (322mm) x W 12.7in (322mm) x H 5.6in (142mm)
Shipping Carton Weight
6.97lbs (3.16Kg)
