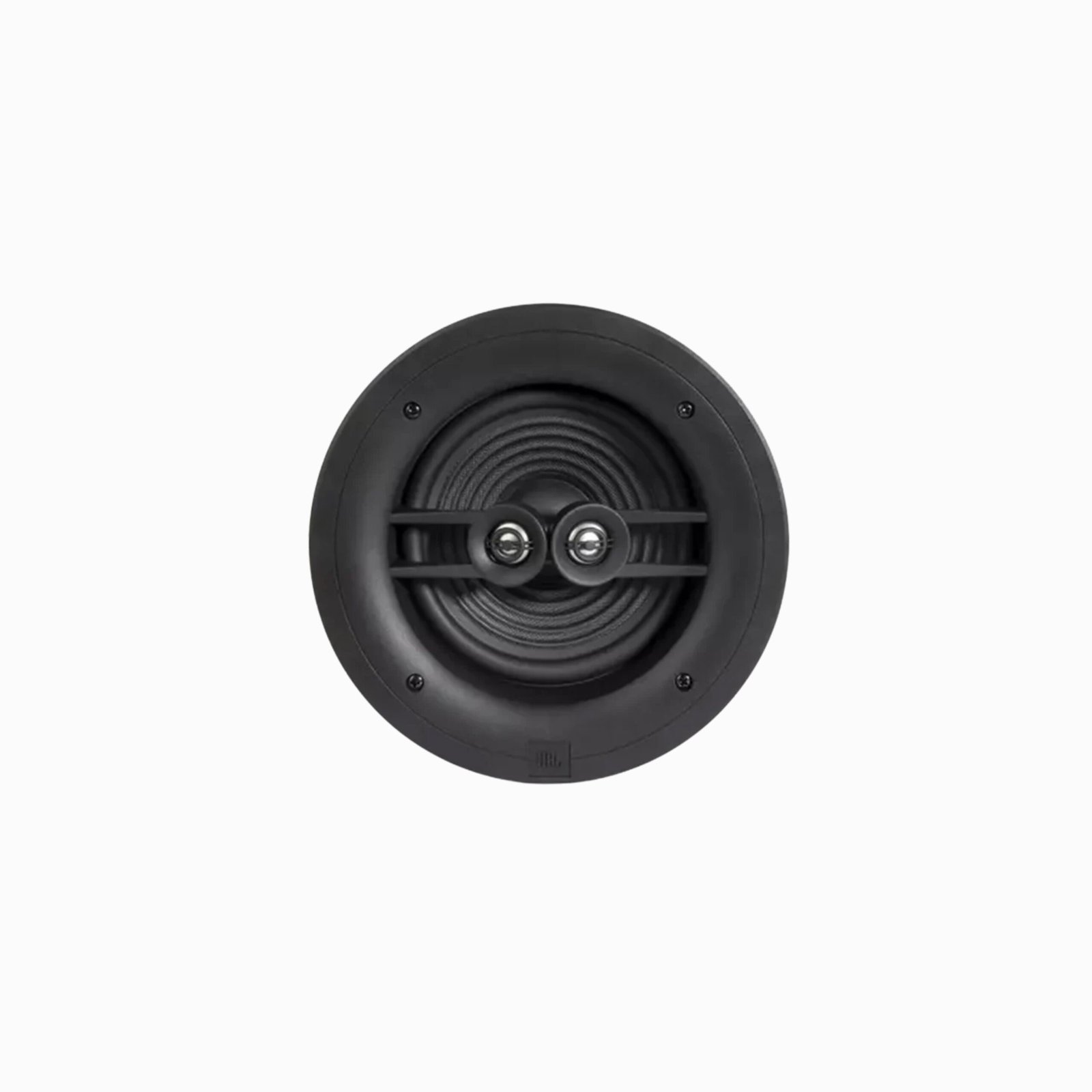

JBL Stage 260CDT - 2 Way Dual Tweeter 6.5 inches In-Ceiling Speaker (Each)

Key Features

  • 6.5-inch polycellulose woofer delivers clean, detailed mid-bass performance

  • Dual 1-inch aluminum dome tweeters for stereo sound from a single speaker

  • Ideal for hallways, bathrooms, bedrooms, or compact spaces

  • Wide dispersion design ensures even room coverage

  • Paintable magnetic grille blends seamlessly with your ceiling

  • High sensitivity for strong output even with modest amplification

  • Sturdy dog-leg clamps allow quick and secure in-ceiling installation

  • Great for multi-room music, ambient audio zones, and home integration systems

Description

JBL Stage 260CDT – 2 Way Dual Tweeter 6.5 inches In-Ceiling Speaker (Each)

Stage 260CDT

 2-way 6.5in (166mm) Dual Tweeter In-Ceiling Loudspeaker

Featuring Dual 3/4″ (19mm) Aluminum dome tweeters and a dual voice coil 6.5″ (165mm) woofer, the Stage 260CDT delivers stereo sound from a single speaker. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements, including baffles with acoustic smoothing and acoustic lens tweeters, have been incorporated into the design to ensure that the sound is clear and accurate.

Dual 3/4″ (19mm) Aluminum domes with acoustic lens waveguides

6.5″ (165mm) Polycellulose cone woofer

Premium air-core inductors and mylar cap capacitor crossover network components ensure that sound remains dynamic at all listening levels.

 FEATURES

  • Rigid Baffle design with acoustic smoothing for improved transducer integration
  • XL-2 installation system compatible with up to 2” (50mm) thick wall/ceiling material.
  •  Zero bezel metal grille installs flush to the wall or ceiling for a clean, inconspicuous appearance

 Stage 260CDT

Featuring Dual 3/4″ (19mm) Aluminum dome tweeters and a dual voice coil 6.5″ (165mm) woofer, the Stage 260CDT delivers stereo sound from a single speaker. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements, including baffles with acoustic smoothing and an acoustic lens tweeter, have been incorporated into the design to ensure that the sound is clear and accurate.



Specifications

High Frequency Transducer
Dual 3/4″ (20mm) Aluminum dome with Acoustic Lens
Low Frequency Transducer
Dual VC 6.5″ (165mm) Polycellulose cone woofer
Recommended Amplifier Power (Full Range)
20-75W RMS
Frequency Response
50Hz-25kHz (-6dB on-axis)
Sensitivity (2.83V@1m)
90dB
Nominal Impedance
8ohm
Crossover Frequency
2900Hz
Inputs
Nickel-plated spring-loaded connectors
Grille Dimensions
Dia 9.2in (233mm)
Cutout Dimensions
Dia 8in (203mm)
Mounting Depth
4.2in (106mm)
Product Weight (Kg)
2.2Kg
Shipping Carton Dimensions
L 11in (280mm) x W 11in (280mm) x H 5.4in (136mm)
Shipping Carton Weight
6.22lbs (2.82Kg)
