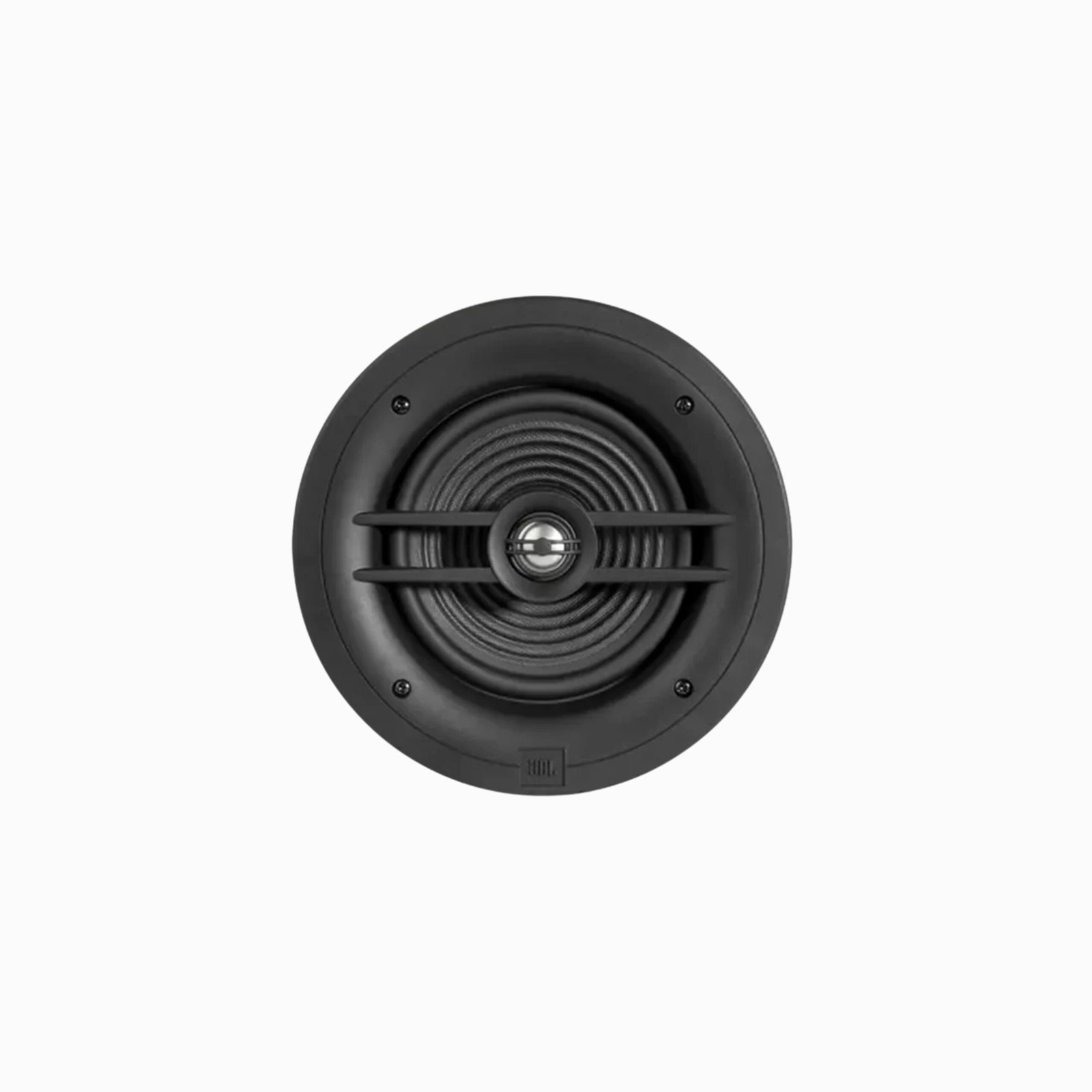

JBL Stage 260C - 2 Way 6.5 inches In-Ceiling Speaker (Each)

Key Features

Balanced In-Ceiling Audio Performance

  • 2-Way Speaker Design
    Combines a 6.5-inch woofer with a high-frequency tweeter to deliver clear and balanced sound for music and home theater use.

  • 6.5-Inch Woofer
    Provides strong midrange response and controlled bass performance in an in-ceiling form factor.

  • High-Frequency Tweeter
    Produces crisp, detailed highs for improved clarity in vocals, dialogue, and ambient effects.

Sound Quality & Coverage

  • Wide Frequency Response
    Ensures natural reproduction of lows, mids, and highs for immersive listening.

  • Optimized Crossover Network
    Smoothly integrates the woofer and tweeter for coherent sound output.

  • High Sensitivity Design
    Efficient performance delivers strong output with moderate amplifier power.

Ceiling Installation & Design

  • Flush-Mount In-Ceiling Installation
    Creates a clean, discreet look that blends seamlessly into ceilings.

  • Paintable Magnetic Grille
    Allows the speaker to match ceiling décor for a seamless appearance.

  • Secure Mounting System
    Designed for stable, vibration-free installation.

System Integration

  • Timbre-Matched with JBL Stage Series
    Ensures consistent tonal balance when paired with other JBL Stage speakers in multi-channel systems.

  • Versatile Usage
    Suitable for surround channels, height speakers, or distributed audio applications.

Description

JBL Stage 260C – 2 Way 6.5 inches In-Ceiling Speaker (Each)

Stage 260C

 2-way 6.5in (166mm) In-Ceiling Loudspeaker

The Stage 260C has a 6.5″ (165mm) Polycellulose cone woofer and 1″ (25mm) Aluminum dome tweeter with an acoustic lens waveguide. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements, including baffles with acoustic smoothing and acoustic lens tweeters, have been incorporated into the design to ensure that the sound is clear and accurate.

1″ (25mm) Aluminum dome with acoustic lens waveguide

6.5″ (165mm) Polycellulose cone woofer

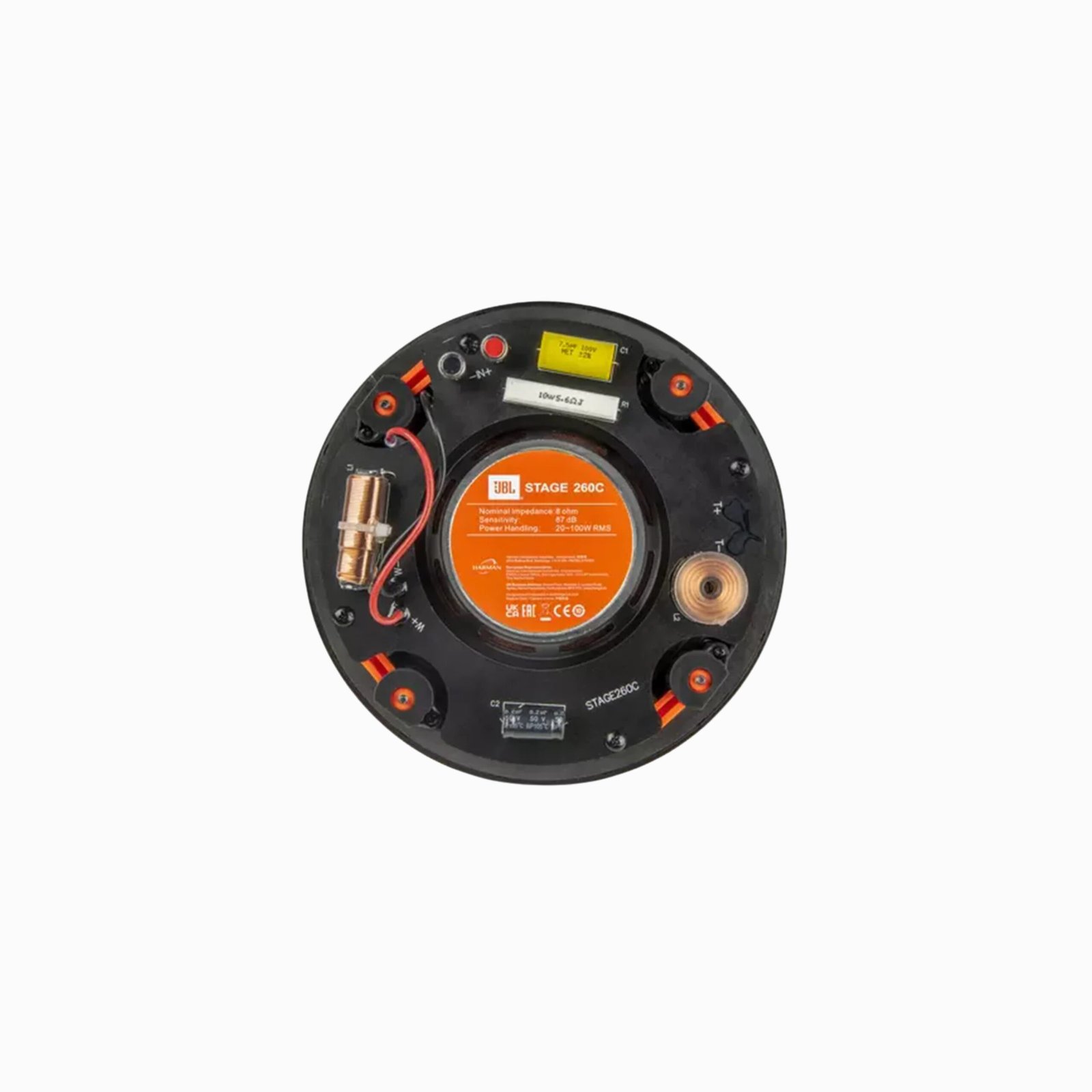

Premium air-core inductors and mylar cap capacitor crossover network components ensure that sound remains dynamic at all listening levels.

 FEATURES

  • Rigid Baffle design with acoustic smoothing for improved transducer integration
  • XL-2 installation system compatible with up to 2” (50mm) thick wall/ceiling material.

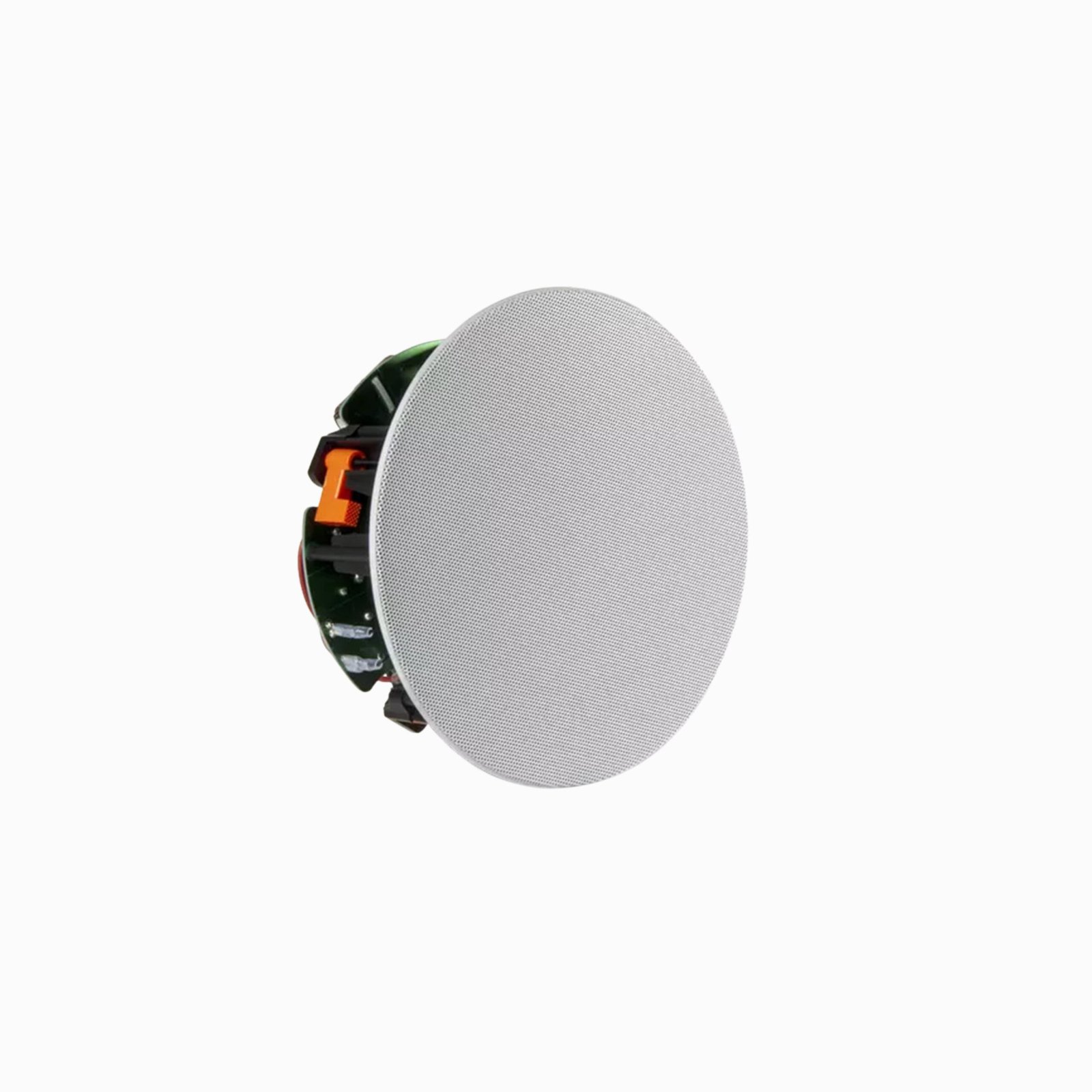

  •  Zero bezel metal grille installs flush to the wall or ceiling for a clean, inconspicuous appearance

 Stage 260C

The Stage 260C has a 6.5″ (165mm) Polycellulose cone woofer and 1″ (25mm) Aluminum dome tweeter with an acoustic lens waveguide. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements, including baffles with acoustic smoothing and acoustic lens tweeters, have been incorporated into the design to ensure that the sound is clear and accurate.



Specifications

High Frequency Transducer
1″ (25mm) Aluminum dome with Acoustic Lens
Low Frequency Transducer
6.5″ (165mm) Polycellulose cone woofer
Recommended Amplifier Power (Full Range)
20-120W RMS
Frequency Response
50Hz-25kHz (-6dB on-axis)
Sensitivity (2.83V@1m)
87dB
Nominal Impedance
8ohm
Crossover Frequency
3000Hz
Inputs
Nickel-plated spring-loaded connectors
Grille Dimensions
Dia
Cutout Dimensions
Dia
Mounting Depth
3.9in (100mm)
Product Weight (Kg)
1.9Kg
Shipping Carton Dimensions
L 11in (280mm) x W 11in (280mm) x H 5.4in (136mm)
Shipping Carton Weight
5.6lbs (2.54Kg)
