JBL Stage 250WL - 2 Way 5.25 inches In-Wall Speaker (Each)

Key Features

Clear In-Wall Audio Performance

  • 2-Way Speaker Design
    Uses a 5.25-inch woofer and a dedicated tweeter to deliver balanced sound for music and home theater applications.

  • 5.25-Inch Woofer
    Provides clear midrange response and controlled bass suitable for compact in-wall installations.

  • High-Frequency Tweeter
    Produces crisp, detailed highs for improved clarity in vocals, dialogue, and ambient sound.

Sound Quality & Efficiency

  • Wide Frequency Response
    Ensures natural and accurate audio reproduction across lows, mids, and highs.

  • Optimized Crossover Network
    Seamlessly integrates the woofer and tweeter for smooth and coherent sound.

  • High Sensitivity Design
    Efficient output allows strong performance with modest amplifier power.

In-Wall Installation & Design

  • Flush-Mount In-Wall Design
    Integrates cleanly into walls for a discreet and space-saving appearance.

  • Paintable Grille
    Allows the speaker to blend visually with wall décor for a seamless finish.

  • Secure Mounting System
    Designed for stable installation with minimal vibration or rattle.

System Integration

  • Timbre-Matched with JBL Stage Series
    Ensures consistent tonal balance when paired with other JBL Stage speakers.

  • Versatile Application
    Suitable for front, surround, or distributed audio use in home theater and multi-room systems.

Description

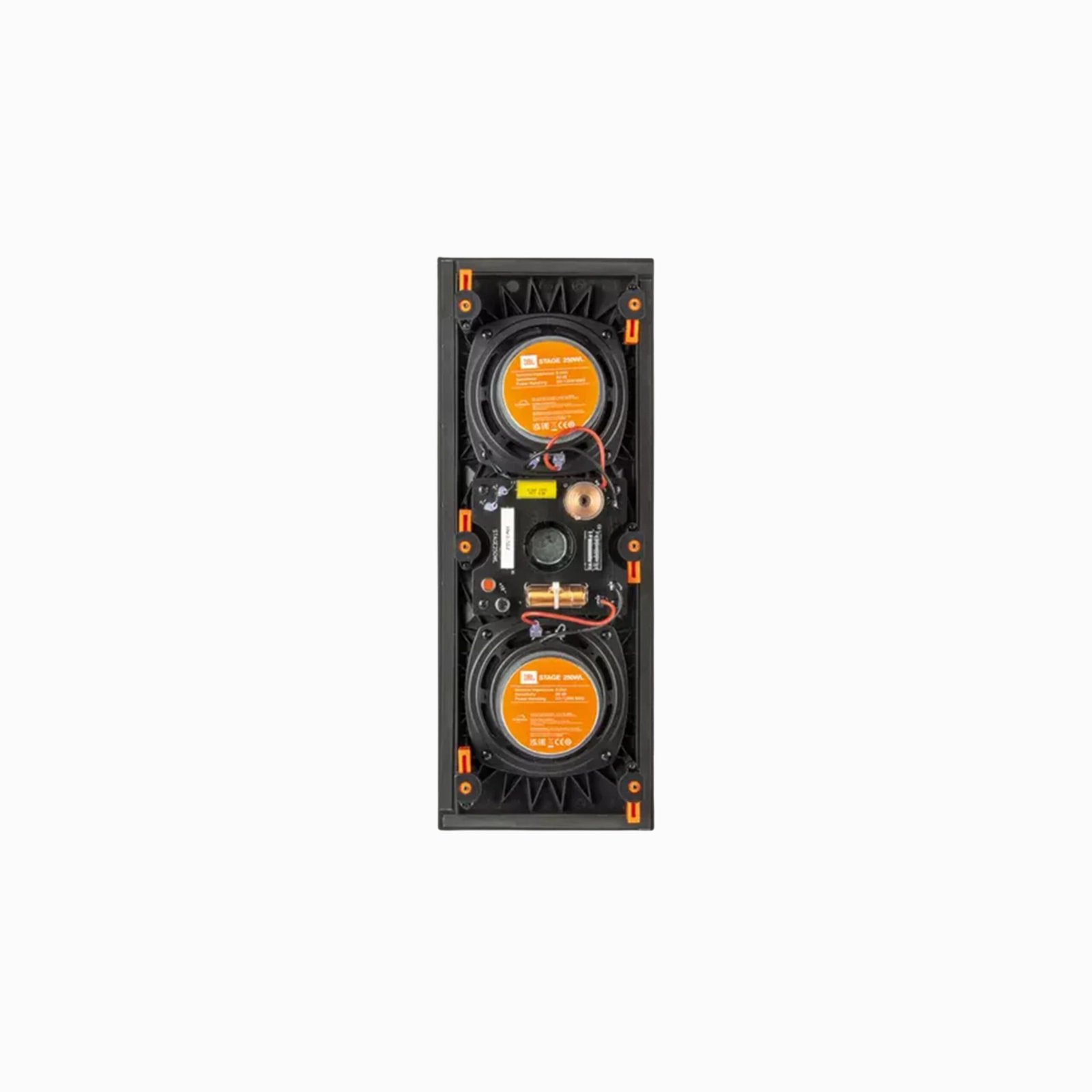

JBL Stage 250WL – 2 Way 5.25 inches In-Wall Speaker (Each)

Stage 250WL

 2-way Dual 5.25in (133mm) In-Wall Loudspeaker

Featuring Dual 5.25″ (130mm) woofers and a 1” (25mm) Aluminum tweeter with an acoustic lens and HDI™ waveguide, the Stage 250WL in-wall speaker is right at home as the main channels in a home theater. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements including baffles with acoustic smoothing, acoustic lens tweeters, and patented High-Definition Imaging (HDItm) waveguide geometry have been incorporated into the design to ensure that the sound is clear and accurate.

 1″ (25mm) Aluminum dome with High-Definition Imaging (HDI™) waveguide

 Dual 5.25″ (130mm) Polycellulose cone woofers

Premium air-core inductors and mylar cap capacitor crossover network components ensure that sound remains dynamic at all listening levels.

 FEATURES

Rigid Baffle design with acoustic smoothing for improved transducer integration

XL-2 installation system compatible with up to 2” (50mm) thick wall/ceiling material.

Zero bezel metal grille installs flush to the wall or ceiling for a clean, inconspicuous appearance

 Stage 250WL

Featuring Dual 5.25″ (130mm) woofers and a 1” (25mm) Aluminum tweeter with an acoustic lens and HDI™ waveguide, the Stage 250WL in-wall speaker is right at home as the main channels in a home theater. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements including baffles with acoustic smoothing, acoustic lens tweeters, and patented High-Definition Imaging (HDItm) waveguide geometry have been incorporated into the design to ensure that the sound is clear and accurate.



Specifications

High Frequency Transducer
1″ (25mm) Aluminum dome with High-Definition Imaging (HDI™) Waveguide
Low Frequency Transducer
Dual 5.25″ (130mm) Polycellulose cone woofer
Recommended Amplifier Power (Full Range)
20-120W RMS
Frequency Response
52Hz-25kHz (-6dB on-axis)
Sensitivity (2.83V@1m)
90dB
Nominal Impedance
8ohm
Crossover Frequency
2100Hz
Inputs
Nickel-plated spring-loaded connectors
Grille Dimensions
H 19.5in (496mm) x W 7.6in (194mm)
Cutout Dimensions
H 18.1in (460mm) x W 6.4in (162mm)
Mounting Depth
3.8in (96mm)
Product Weight (Kg)
3.5Kg
Shipping Carton Dimensions
L 21.7in (552mm) x W 9.9in (252mm) x H 4.7in (120mm)
Shipping Carton Weight
9.61lbs (4.36Kg)
