Key Features

Dolby Atmos “reflective / height-channel” speaker design — As part of JBL’s Stage series, these speakers are built to reflect sound upwards or provide height-channel effects for Atmos/DTS:X-enabled home-theatre setups. That enables a more immersive, three-dimensional soundstage when paired with a suitable AV receiver and main speakers.

2-Way driver configuration — The 240H uses a woofer + tweeter arrangement to cover mids and highs clearly. This helps in delivering crisp dialogues, surround effects and upper-frequency detail when used as height / Atmos channels.

Pair configuration — ready for Atmos height setup (Left + Right) — Sold as a matched pair, so you can install them as left and right height speakers right away without worrying about matching.

Compact bookshelf / bookshelf-speaker size and form factor — Easier to place than large floorstanders; good for apartments or living rooms where space is limited. Reflective Atmos speakers like 240H don’t need to be mounted high on walls or ceilings, giving flexibility in placement.

Passive speaker design — flexible amplifier / AV receiver pairing — As with most speakers in the Stage line, these are passive: you can pair them with your existing AV receiver or amplifier, giving flexibility depending on your budget or system configuration.

Description

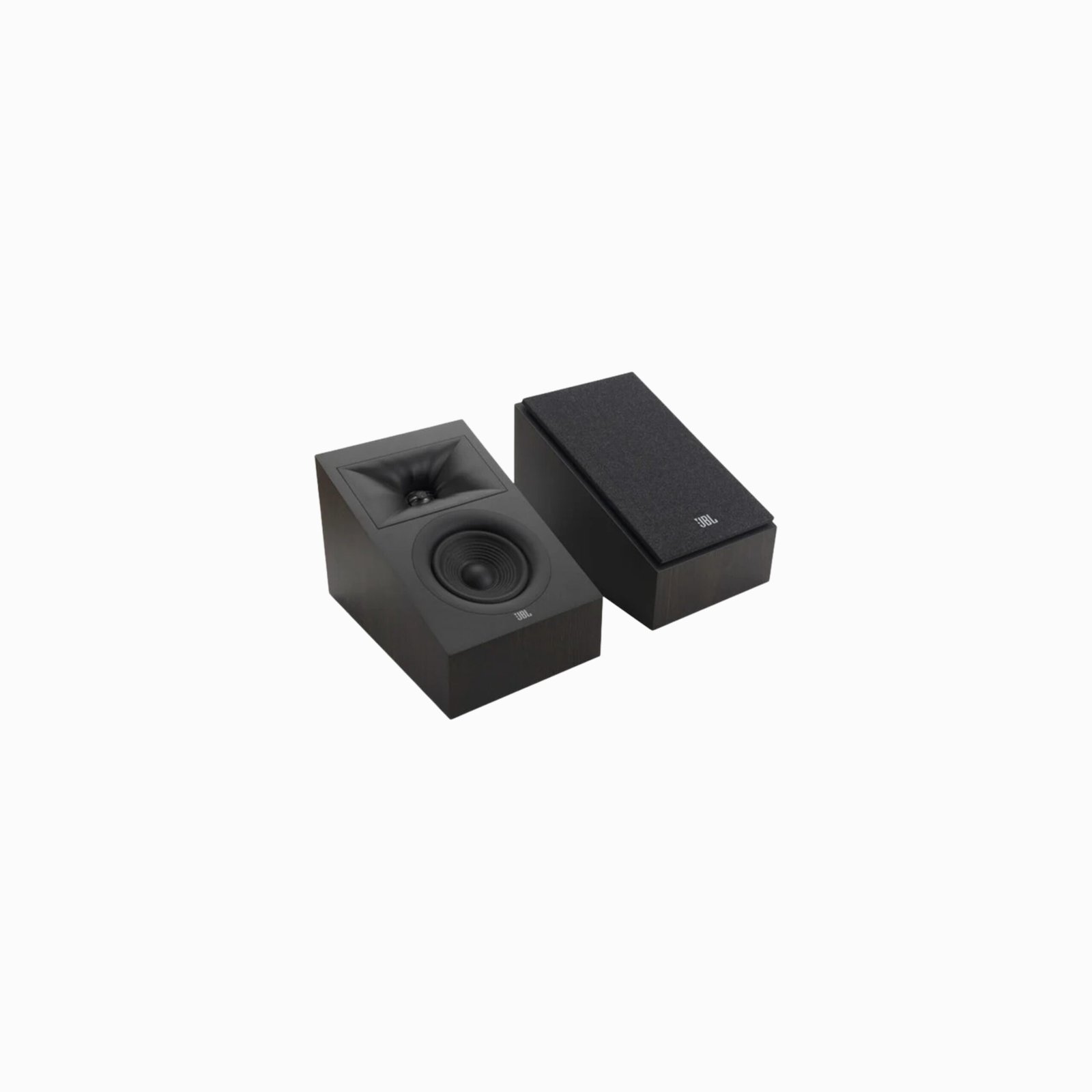

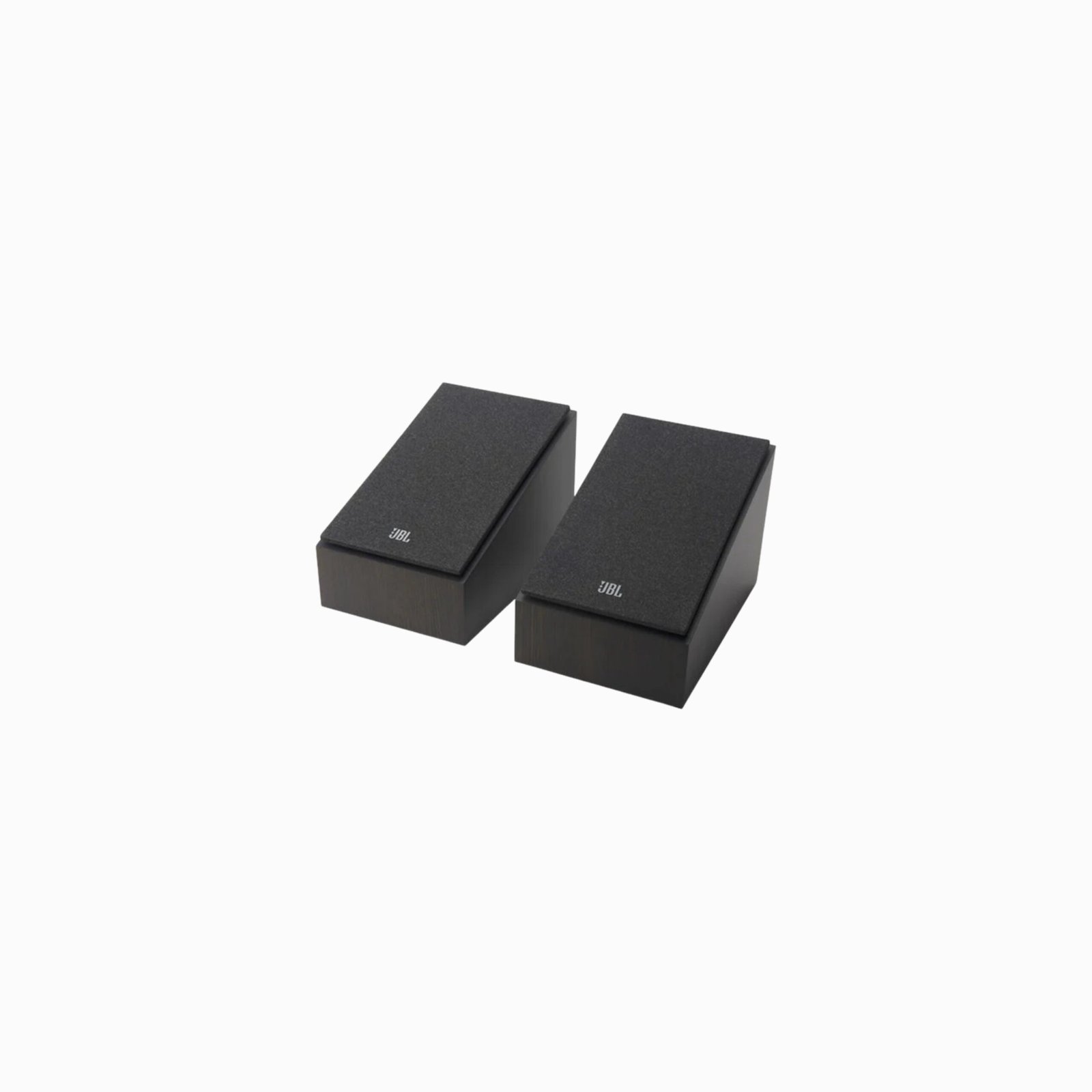

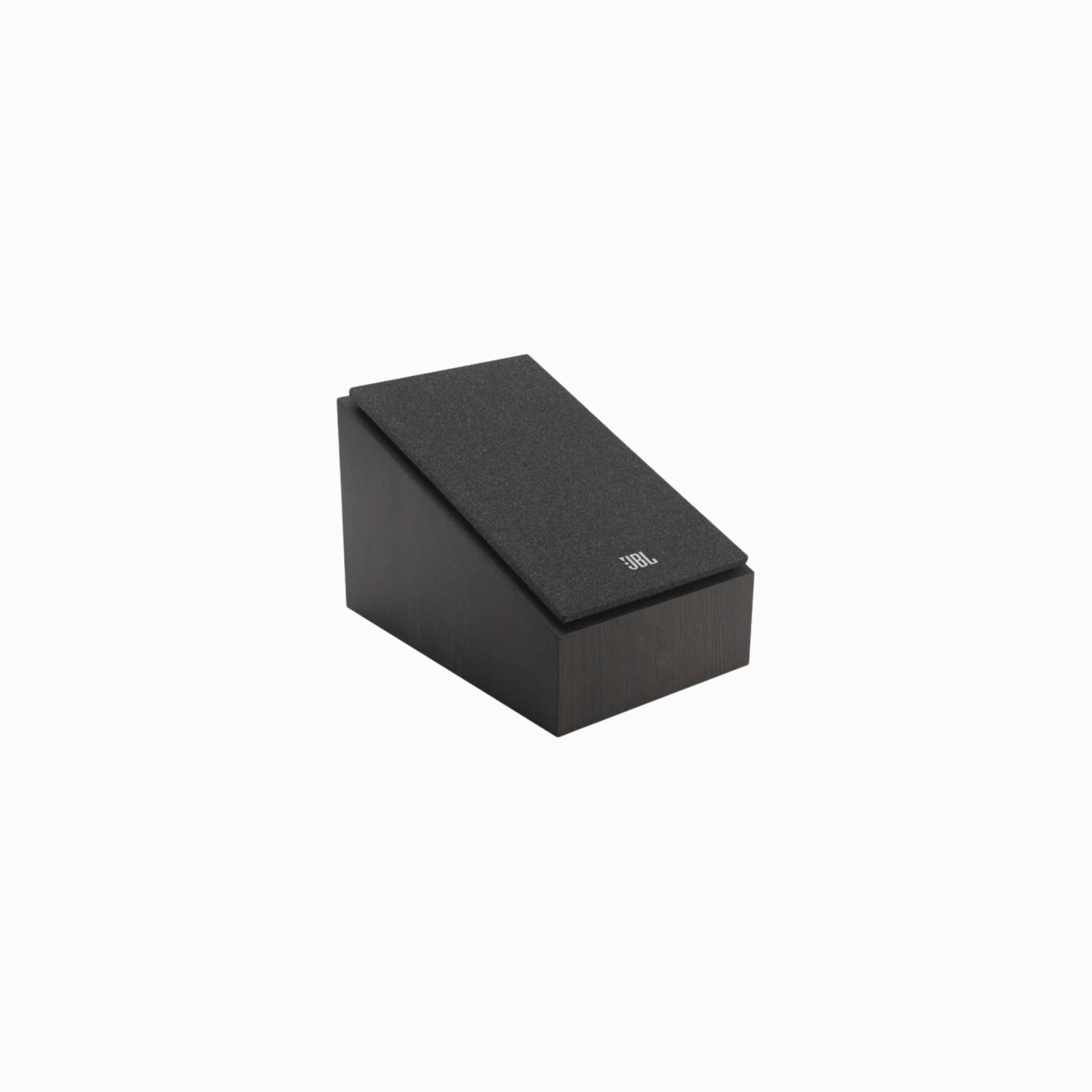

JBL Stage 240H – 2 Way Reflective Dolby Atmos Speaker (Pair)

JBL Stage 240H Overview

The JBL Stage 240H 2-Way Dolby Atmos Surround Sound Speakers in espresso finish are the height-channel option for the JBL Stage Series speakers and are well-suited for use as Dolby Atmos or rear surround speakers. The 240H is comprised of JBL’s 4.5″ Polycellulose ribbed cone woofer to handle the bass and midrange, with a 1″ anodized aluminum tweeter coupled to the Stage 2 HDI horn for the high frequencies.

The Stage 240H features sturdy 5-way binding posts to connect to your amplifier or receiver. For placement on speaker tops and other flat surfaces, anti-slip pads are provided to secure the speaker and reduce vibration. Alternatively, the 240H speakers include a key-hole slot and 1/4″-20 threaded insert for wall mounting.

1″ Anodized Aluminum Tweeter in HDI Waveguide

Through intense research of previous waveguide designs, JBL has developed a new complex geometry that improves directivity and reduces diffraction. In the Stage 240H speaker, the Stage 2 HDI Horn is coupled to a 1″ anodized aluminum dome tweeter. This design offers a neutral frequency response both on and off axis.

Additional Features

Floating front baffle design
Magnetically attached grille
The toggle switch changes the speaker from Atmos to surround sound mode
Partners perfectly as a speaker topper for the Stage 280F and 260F floorstanding speakers

Specifications

Key Specs

Speaker Configuration	2-Way
Power Handling	75 W RMS
Drivers	1x 4.5″ / 114.3 mm Polycellulose Cone Mid-Woofer 1x 1″ / 25.4 mm Anodized Aluminum Tweeter
Frequency Response	85 Hz to 25 kHz (-6 dB) 100 Hz to 25 kHz (-3 dB)
Inputs/Outputs	1x 5-Way Binding Post Pair (Audio)

Speaker System

Speaker Configuration	2-Way
Power Handling	75 W RMS
Recommended Amplifier Power	20 to 150 W
Drivers	1x 4.5″ / 114.3 mm Polycellulose Cone Mid-Woofer 1x 1″ / 25.4 mm Anodized Aluminum Tweeter
Passive Radiators	No
Enclosure Type	Sealed
Ports	No
Frequency Response	85 Hz to 25 kHz (-6 dB) 100 Hz to 25 kHz (-3 dB)
Impedance	6 Ohms
Magnetic Shielding	No
Inputs/Outputs	1x 5-Way Binding Post Pair (Audio)
Crossover	1.6 kHz
Sensitivity	85 dB

Physical

Color	Espresso Woodgrain / Black
Placement & Mounting Options	Speaker Topper, Tabletop/Bookshelf Wall-Mount (with Optional Hardware)
Floor Contacts	Rubber Feet
Grille	Cloth (Removable)
Dimensions	7.1 x 7.3 x 10.6″ / 180 x 185 x 270 mm (Each, with Feet, with Grille)
Weight	10.1 lb / 4.6 kg (Each)
