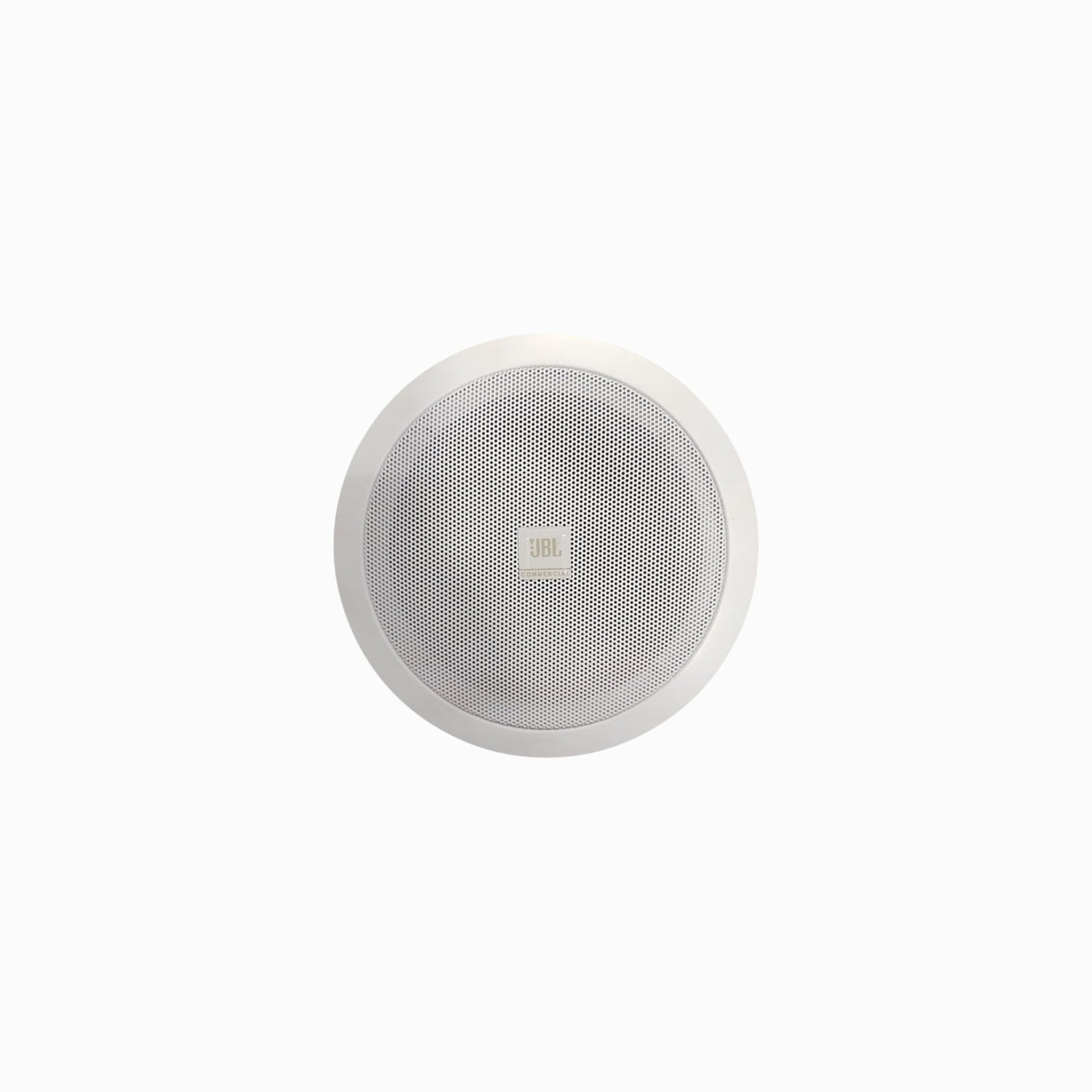

JBL ICS05M - 8 Watts 5.25 inches In-Ceiling Speaker (Pack of 4)

5.25-inch woofer drivers for balanced midrange and bass in in-ceiling applications
Built-in 8-watt power handling per speaker suitable for distributed audio systems
Tweeter for clear and intelligible high frequencies
Broad sound dispersion for even coverage across listening areas
Paintable magnetic grilles to blend seamlessly with ceilings and décor
Slim, low-profile design for discreet installation
Cut-out template and mounting hardware included for easier installation

Performance Specifications

Configuration: 2-way in-ceiling speakers
Driver size: 5.25 inches
Power handling: 8 watts per speaker (suitable for common distributed audio systems)
Installation type: Flush-mount into standard ceiling cavities
Dispersion: Wide off-axis coverage for consistent sound distribution

Description

Brand	JBL
Model	ICS05M
Component	133mm (5.25 in) Full Range
Effective Frequency Range (-10dB)	85Hz-20KHz
Sound Pressure Level at rated Power/1W (@1KHz, 1m)	89dB
Nominal Driver Impedance	8 ohms
Driver Maximum Power Capacity	8W
Transformer Taps	(100V: 6W, 3W, 1.5W), (70V: 3W, 1.5W, 0.8W)
Ambient Temperature Range	-35° to 70°C
Connector	4 Pin Screw type
Colour	White
Net Weight	570 g (Per PCS)
Cut-out Dimension	145mm Diameter
Outside Dimensions (Diameter x Depth)	172.5mm Diameter x 67 7mm Depth
Shipping Weight and Dimensions	2.5KG, W 32cm, D 20cm, H 20cm
