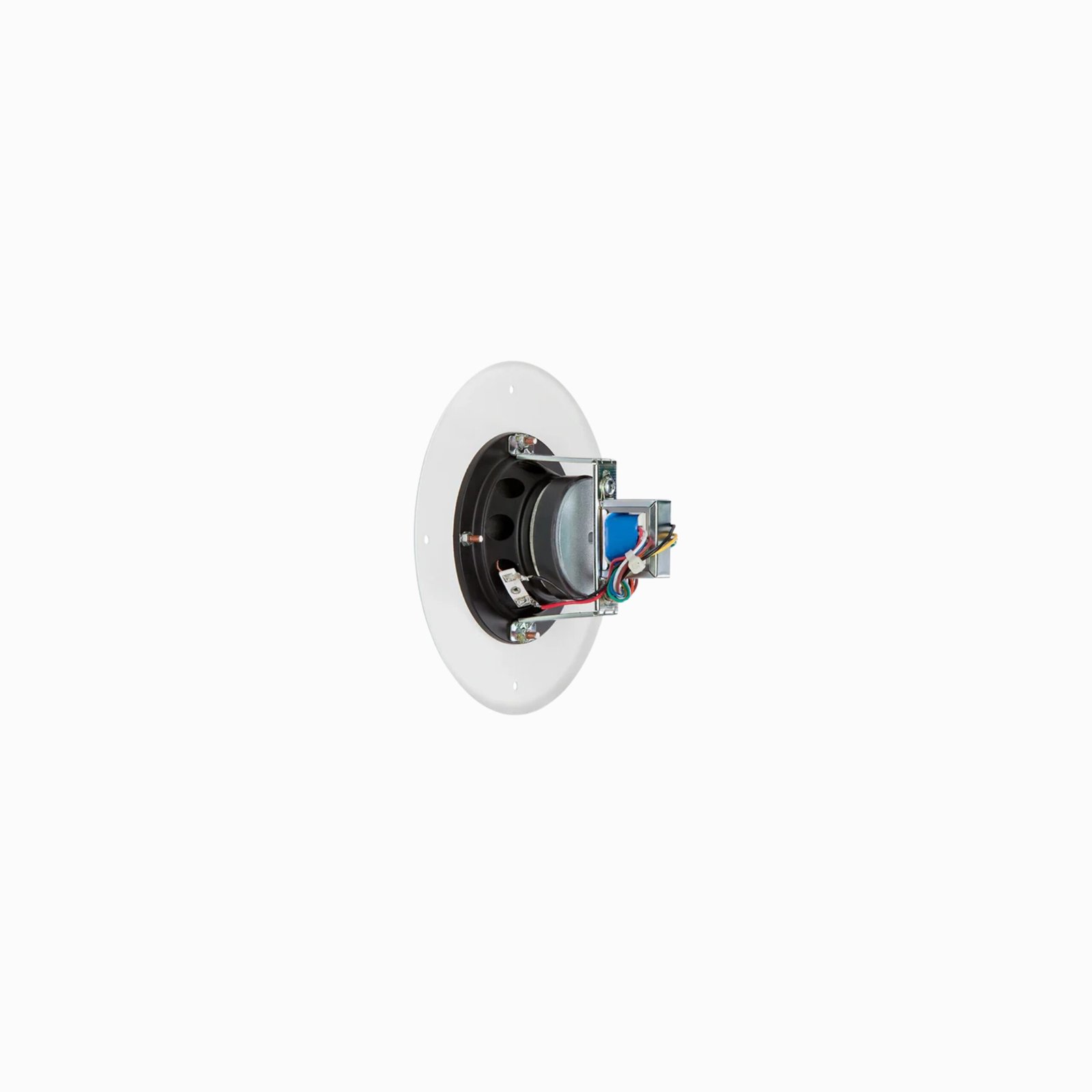

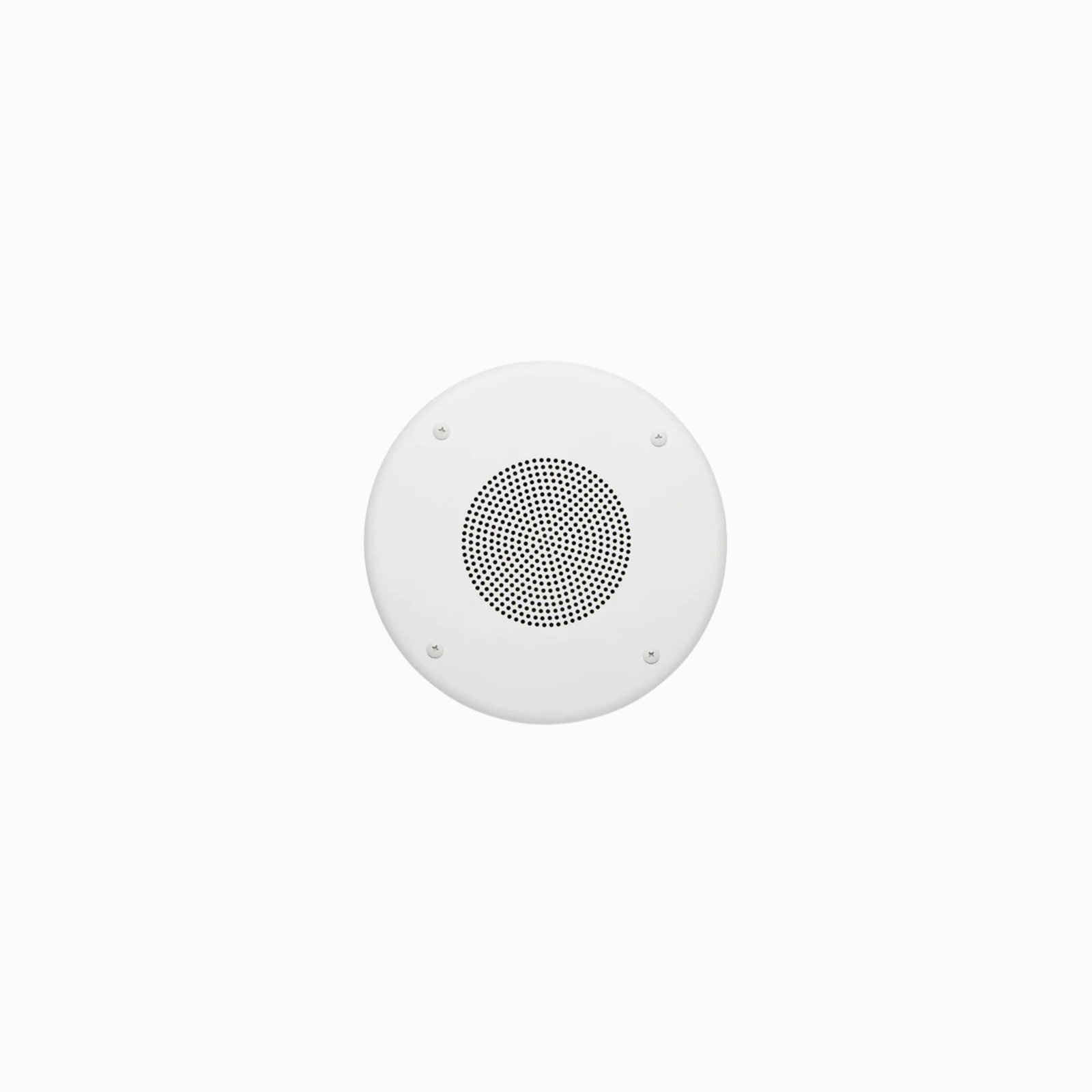

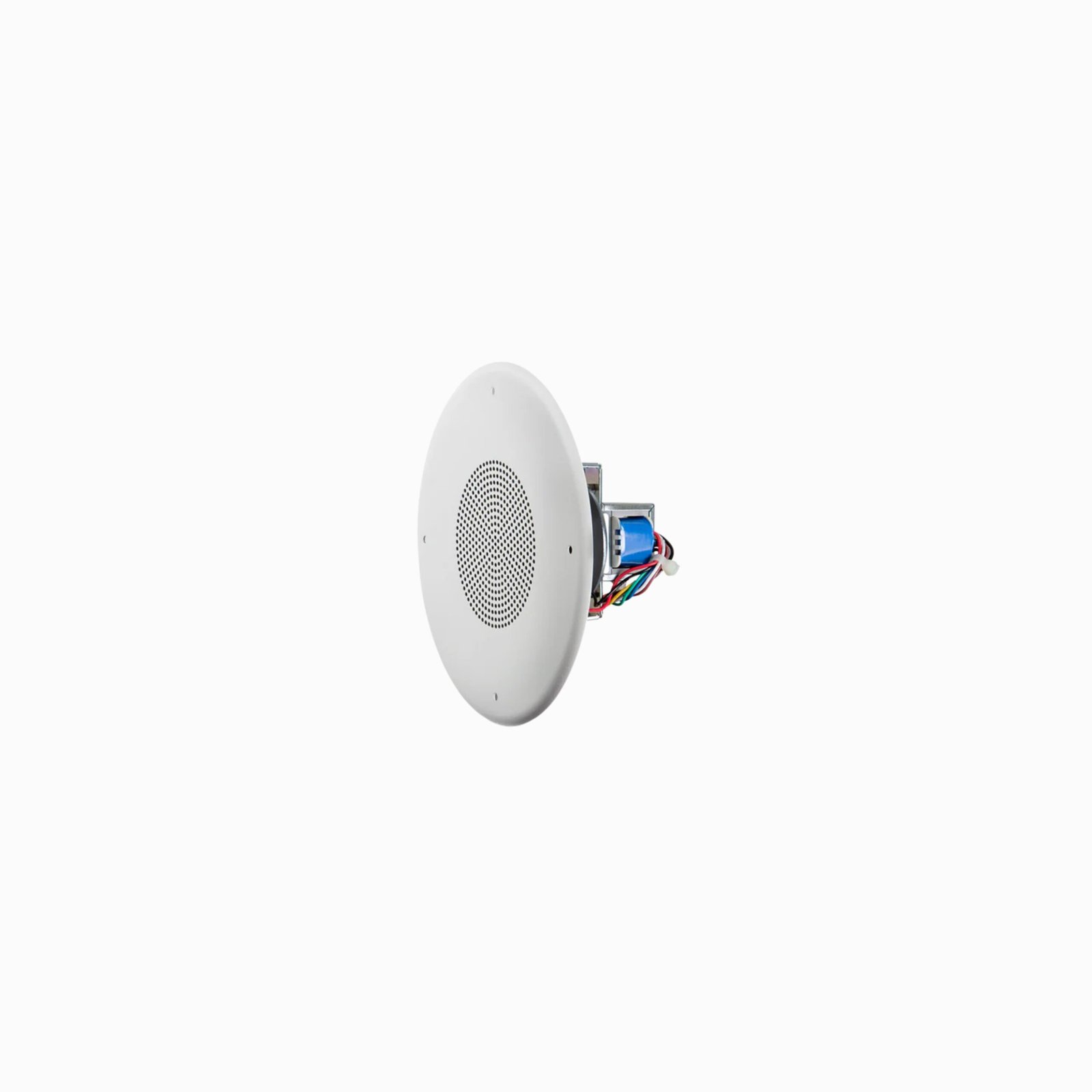

JBL CSS8004 - 4″ 15W Full-Range In-Ceiling Speaker (Each)

4-inch full-range driver for clear, balanced audio suitable for background music and general sound reinforcement
15 W power handling for reliable performance in small spaces
In-ceiling design for discreet installation and seamless integration with interiors
Wide dispersion for even sound coverage throughout the listening area
Durable construction for long-term reliability in commercial or residential environments
Protective grille and mounting hardware included for straightforward installation
Ideal choice for offices, retail areas, restaurants, classrooms, and distributed audio systems
Designed to deliver consistent, quality sound without visual impact

Description

Drivers	100 mm (4 in)
Sensitivity	90 dB (2k – 6k Hz)
Frequency Range (- -10 dB) Driver/Grille Assembly	85 Hz – 18 kHz
Installed in CSS-BB backcan	130 Hz – 18 kHz
Coverage Angle	175° conical
Driver Continuous Power Handling	15 Watts
Transformer Taps	5W, 2.5W, 1.3W
Transformer Taps	5W, 2.5W, 1.3W, 0.7W
Transformer Taps	5W, 2.5W, 1.3W, 0.7W
Transformer Insertion Loss	1.5 dB Maximum
Transformer Connection	Bare wire
Motor Mass	200 g (7 oz)
Safety Agency	Suitable for use in air handling spaces per UL1480, UL2043, NFPA 90 & NFPA 70, when installed with a corresponding UL Listed backcan, below. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Matching CSS Backcan	CSS-BB4
Other Compatible Backcans	N/A
Bolt Mounting Circle to Backcan	4 points on 165 mm(6.5 in) diameter
Cutout Diameter Open-back	125 mm (5.0 in)
In CSS-BB backcan	170 mm (6.7 in)
Depth (behind grille)	94 mm (3.7 in)
Grille Diameter	198 mm (7.8 in)
Net Weight (each)	0.90 kg (1.0 lb)
Shipping Weight (ea)	1.26 kg (2.8 lb)
Included Accessories	4 pcs M4 x 40 mm sheet metal screws for attaching the speaker/driver/transformer assembly to the corresponding backcan.
Power Rating	See transformer taps
Transformer Taps	100V Taps – 5W, 2.5W, 1.3W 70V Taps – 5W, 2.5W, 1.3W, 0.7W 25V Taps – 5W, 2.5W, 1.3W, 0.7W
Maximum SPL (1m)	97 dB (top 25V/70V/100V tap)
Input Connectors	Bare wire
Backcan	formed steel (accessory)
Baffle/Rim	Metal
Ceiling Cutout Size	125 mm (5.0 in)
Plenum Usage	Yes, with accessory backpack
Color	White
