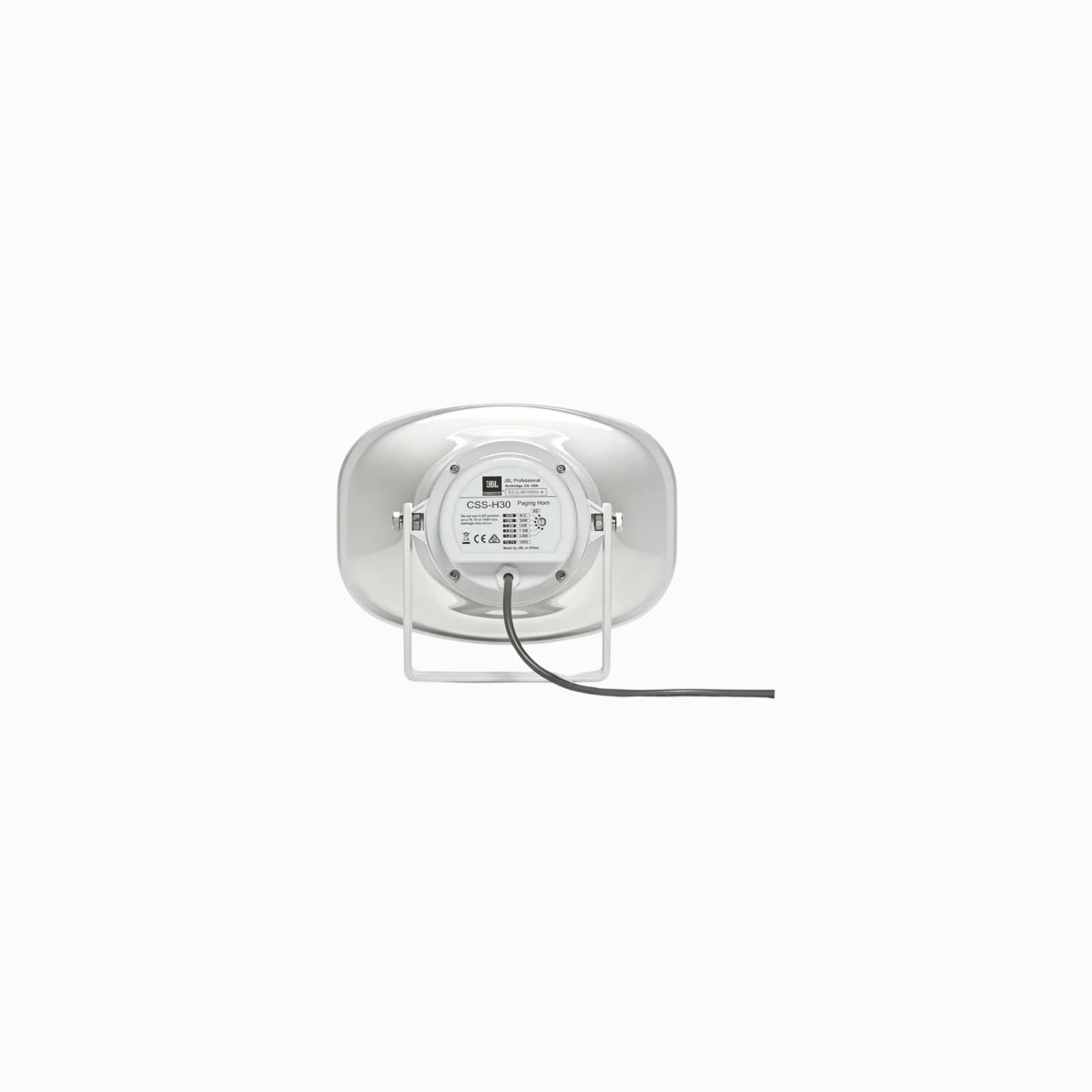

JBL CSS-H30 - 30 Watts Weather Resistant Paging Horn Speaker (Each)

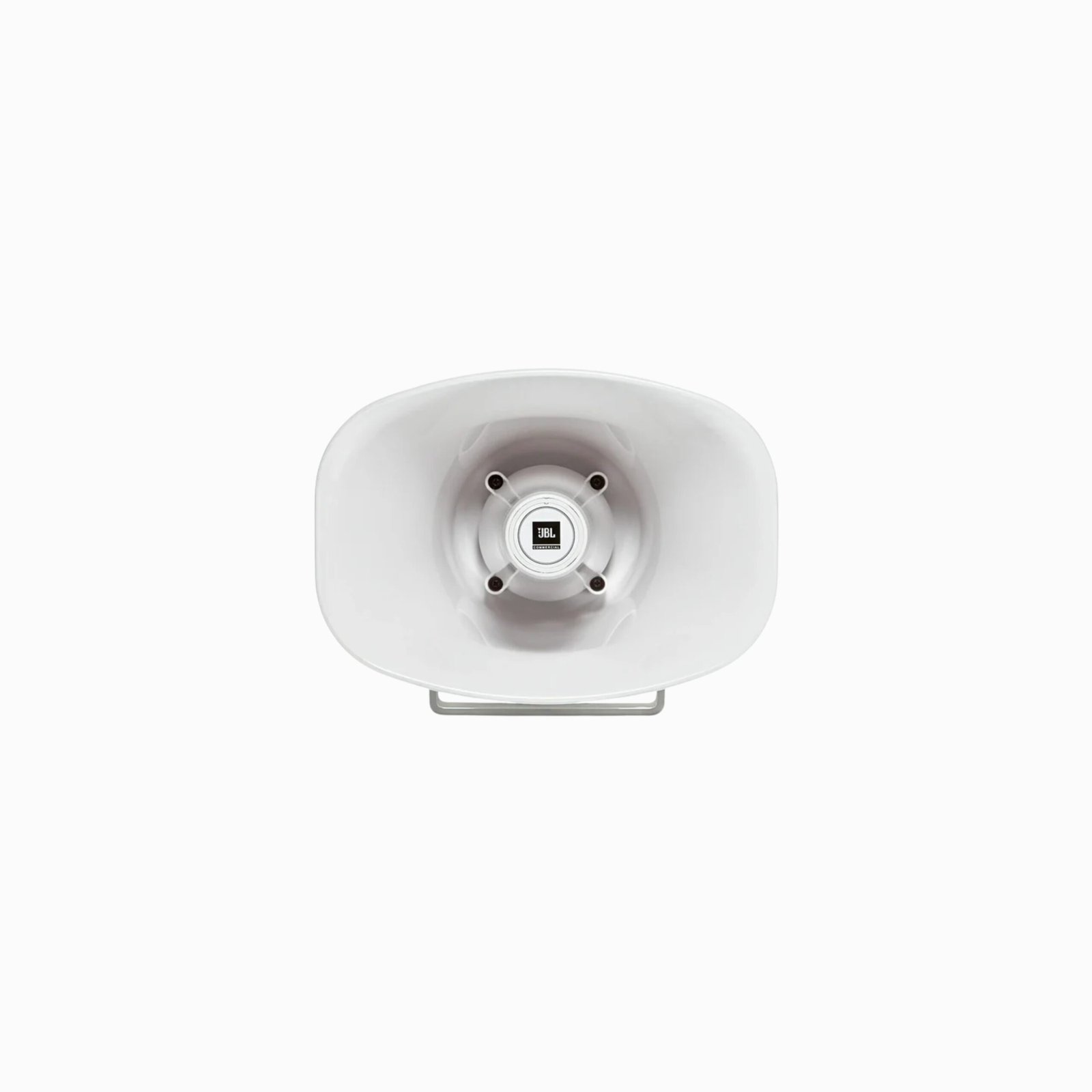

JBL CSS-H30 - 30 Watts Weather Resistant Paging Horn Speaker (Each) - Image 2

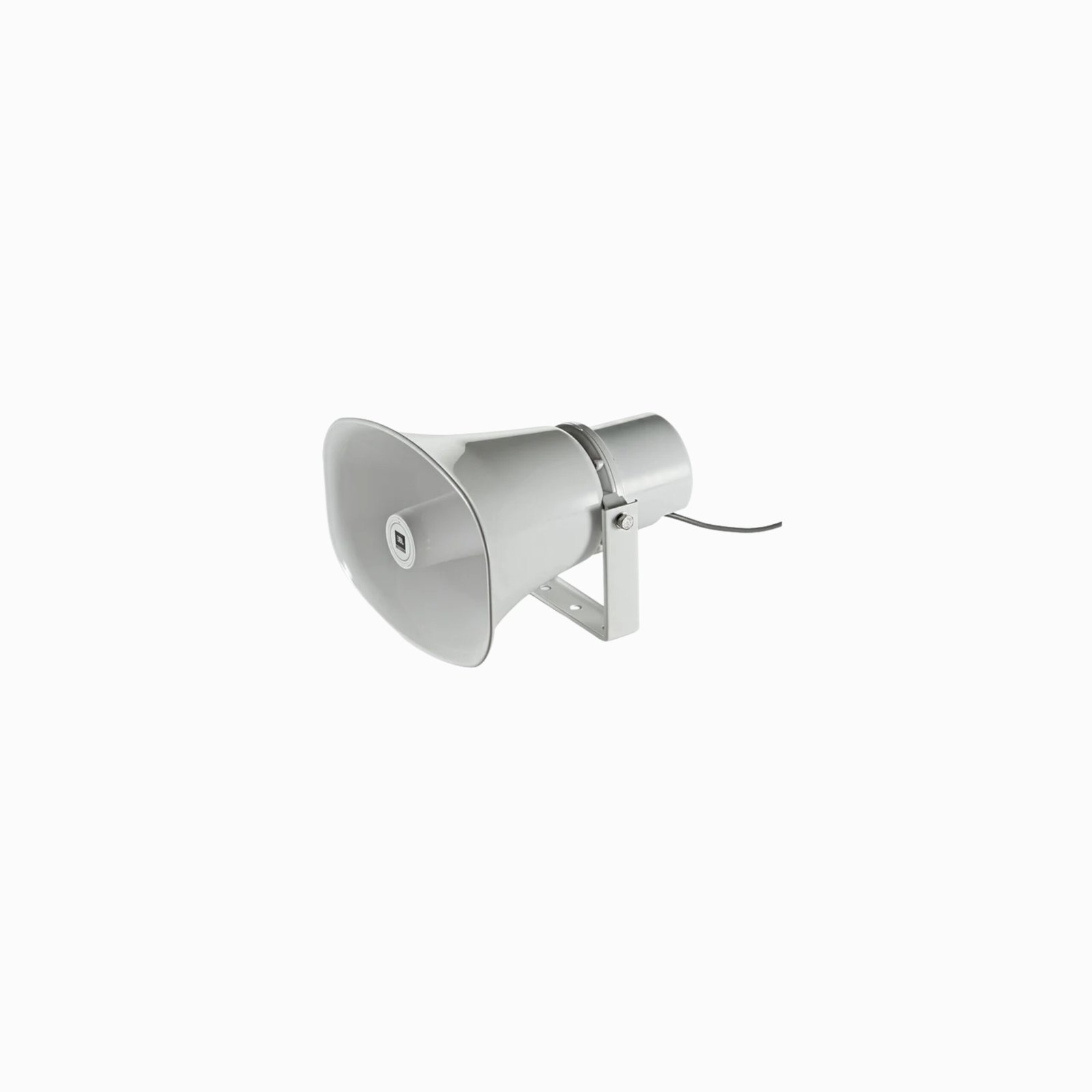

JBL CSS-H30 - 30 Watts Weather Resistant Paging Horn Speaker (Each) - Image 3
JBL CSS-H30 - 30 Watts Weather Resistant Paging Horn Speaker (Each)
JBL CSS-H30 - 30 Watts Weather Resistant Paging Horn Speaker (Each)
JBL CSS-H30 - 30 Watts Weather Resistant Paging Horn Speaker (Each)
Category: Speaker

JBL CSS-H30 - 30 Watts Weather Resistant Paging Horn Speaker (Each)

Key Features

  • 30 W power handling for clear, intelligible paging and communication audio

  • Weather-resistant construction designed for reliable outdoor and indoor use

  • Horn-loaded design for wide sound projection and enhanced speech clarity

  • Durable enclosure and grille for long-lasting performance in varied environments

  • Suitable for paging, announcements, and background audio in commercial or public spaces

  • Easy to install with flexible mounting options

  • Ideal for schools, warehouses, retail areas, stadiums, and other large venues

Ask a question
Delivery & Return

Description

JBL CSS-H30 – 30 Watts Weather-Resistant Paging Horn Speaker (Each)

30 Watt Paging Horn

The Commercial Solutions Series CSS-H30 Paging Horn provides excellent voice range clarity for public address systems, announcement/paging, intercom, security, alarm, and industrial applications. Designed for demanding environmental conditions, the CSS-H30 is highly weather resistant (IP-65 rated), so it can be used in either indoor or outdoor applications. The focused coverage pattern allows the horn to project the sound a farther distance than is the case with wider-coverage paging horns. Typical applications for this product are public access areas, warehouses, factories, schools, recreational facilities, commercial buildings, distribution centers, civic centers, and other commercial sound and protective signaling systems.

Features

  • Excellent voice range and clarity for announcement and paging.
  • High sensitivity delivers high sound levels with minimal power amplification.
  • Focused 50° horizontal by 70° vertical coverage for long throw capability.
  • Phenolic diaphragm driver for outdoor durability and high reliability.
  • UL-registered 30-watt multi-tap transformer, with 8 ohm direct bypass.
  • Built-in high-pass filter enhances reliability by protecting against low-frequency damage.
  • Highly weather-resistant, with stainless steel bracket and hardware.

Applications

  • Public Access Areas
  • Warehouses
  • Factories
  • Schools
  • Recreational Facilities
  • Commercial Buildings
  • Distribution Centers
  • Civic Centers
  • Other Commercial Sound and Protective Signaling Systems



Specifications

Frequency Range (-10dB)
 380 Hz – 6 kHz
Coverage Angle
 50°H x 70°V
Included High-Pass Filter
 A passive 350 Hz high-pass filter is built in to protect against damage from frequencies below the operational range.
Directivity Factor (Q)
 15.8 (2 kHz)
Directivity Index (DI)
 12 (2 kHz)
Power Rating
 30 W (120 W peak), 100 hrs.
Sensitivity (1W, 2.83V@ 1m)
 108 dB, ave. 1 kHz – 6 kHz112 dB at 1.4 kHz
Maximum SPL (1m)
 123 dB cont ave. (129 dB peak), 1 kHz – 6 kHz; 127 dB cont ave. (133 dB peak), 1.4 kHz, 30W input, 8 ohm Setting
Impedance
 30W/70V, NC/100V tap: 167 ohms 15W/70V, 30W/100V tap: 333 ohms 7.5W/70V, 15W/100V tap: 667 ohms 3.8W/70V, 7.5W/100V tap: 1333 ohms 1.9W/70V, 3.8W/100V tap: 2666 ohms 8 ohms at 8 ohm direct setting
Transformer Taps
 70V: 30W, 15W, 7.5W, 3.8W, 1.9W100V: 30 W, 15W, 7.5W, 3.8W
Drivers
 38 mm (1.5 in) diameter with phenolic diaphragm
Horn Material
 ABS
Mounting Hardware
 Stainless steel powder-coated U-bracket (yolk) with 3 x 10.4 mm (0.41 in) dia mounting holes, stainless steel exterior hardware.
Color
 RAL9016 (horn and bracket)
Input Connectors
 300 mm (12 in) pigtail to bare wire; entrance via watertight fitting. Wire colors: red = positive (+); black = negative (-).
Outdoor Capability
 IP-65 rating per IEC529, salt spray per B117, stainless steel U-bracket, and exterior hardware.
Safety Agency
 Transformer UL Registered per UL1876 “Isolating Signal and Feedback Transformers for Use in Electronic Equipment”
Dimensions (H x W x D)
 206 x 285 x 287 mm (8.2 x 11.2 x 11.3 in) horn 224 x 285 x 287 mm (8.9 x 11.2 x 11.3 in) including mounting bracket. Depth excludes cable exit.
Net Weight (each)
 4.5 lb/2.0 kg
Shipping Weight (ea)
 6.0 lb/2.7 kg
Included Accessories
 Stainless steel mounting bracket
