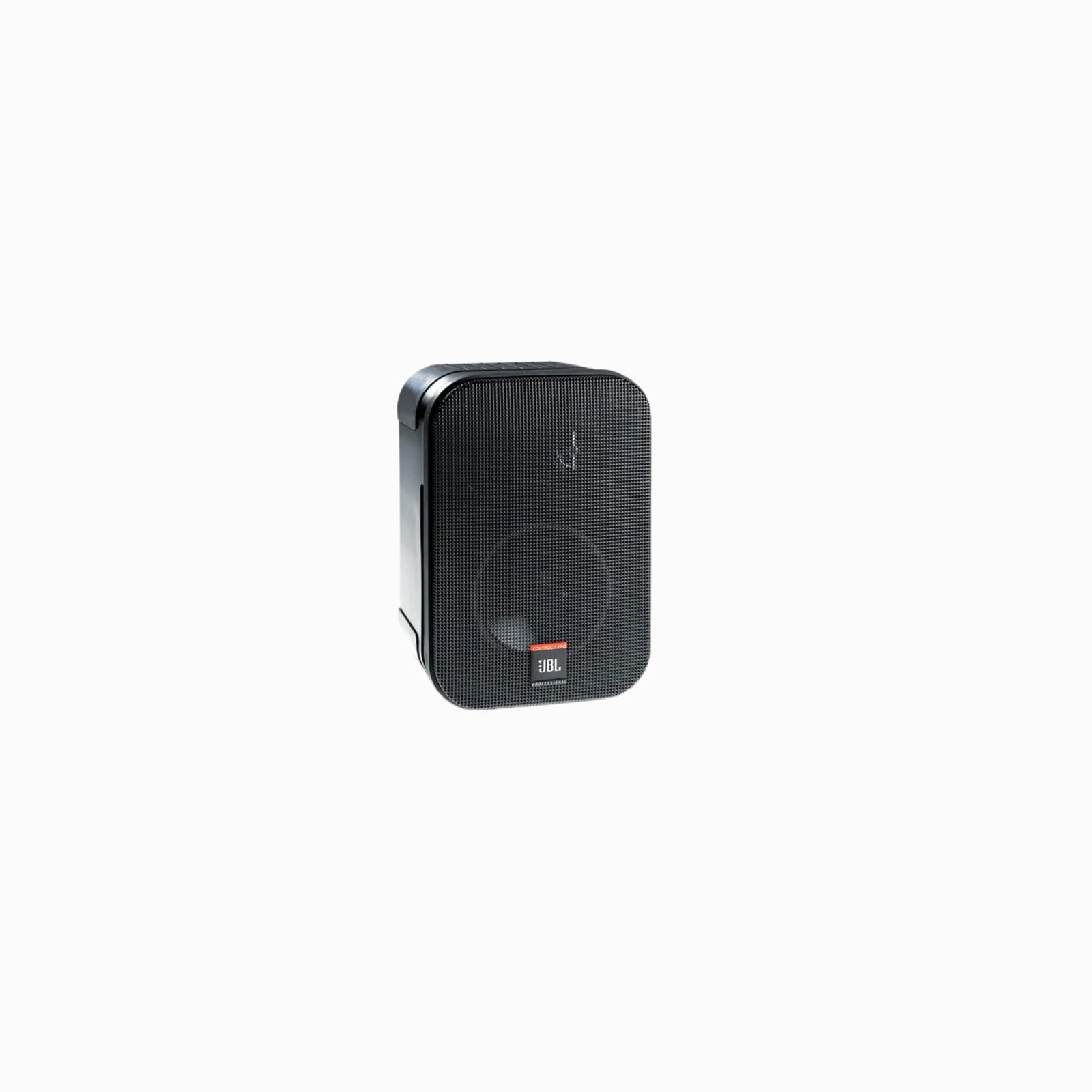

JBL CSS-1S/T Compact Two-Way On-Wall Speaker (Pair)

Compact two-way on-wall speaker designed for commercial audio applications
5.25-inch low-frequency driver delivers clear midrange and solid low-end performance
0.75-inch polycarbonate dome tweeter provides smooth and detailed high frequencies
Built-in multi-tap transformer for use with 70V and 100V distributed audio systems
Selectable power taps for flexible system design and amplifier matching
Switchable 8-ohm low-impedance mode for direct connection to standard amplifiers
Wide dispersion pattern ensures even sound coverage across listening areas
Included adjustable wall-mount brackets for easy installation and precise aiming
Durable polypropylene enclosure suitable for continuous commercial use
Optimized for clear speech intelligibility and background or foreground music

Description

Frequency Range (-10dB)	85 Hz – 18 kHz
Frequency Response (±3 dB)	120 Hz – 16 kHz
Power Capacity	60 Watts
Sensitivity	86 dB SPL, 1W (2.83V) at 1m (3.3 ft)
Maximum SPL (1m)	106 dB at 8 Ohm Direct setting; 96 dB at 10W setting
Nominal Coverage	120ºH x 120ºV
Directivity Factor (Q)	6.2
Directivity Index (DI)	7.9 dB
Nominal Impedance	8 ohms (in 8Ω DIRECT mode, selectable on back panel)
Transformer Taps	10 W, 5 W (& 2.5W @ 70V)
Crossover Frequency	4.3 kHz
LF Driver	135 mm (5.25 in) low-frequency driver
HF Driver	19 mm (0.75 in) polycarbonate dome tweeter
Input Connectors	Spring-loaded terminals
Enclosure Material	Polypropylene Structural Foam
Color	Black
Dimensions	229 mm x 159 mm x 143 mm(9.0 in x 6.3 in x 5.6 in)
Net Weight (each)	2.0 kg (4.5 lb)
Shipping Weight (pair)	4.8 kg (10.5 lb)
Included Accessories	Wall-mounting bracket assembly
