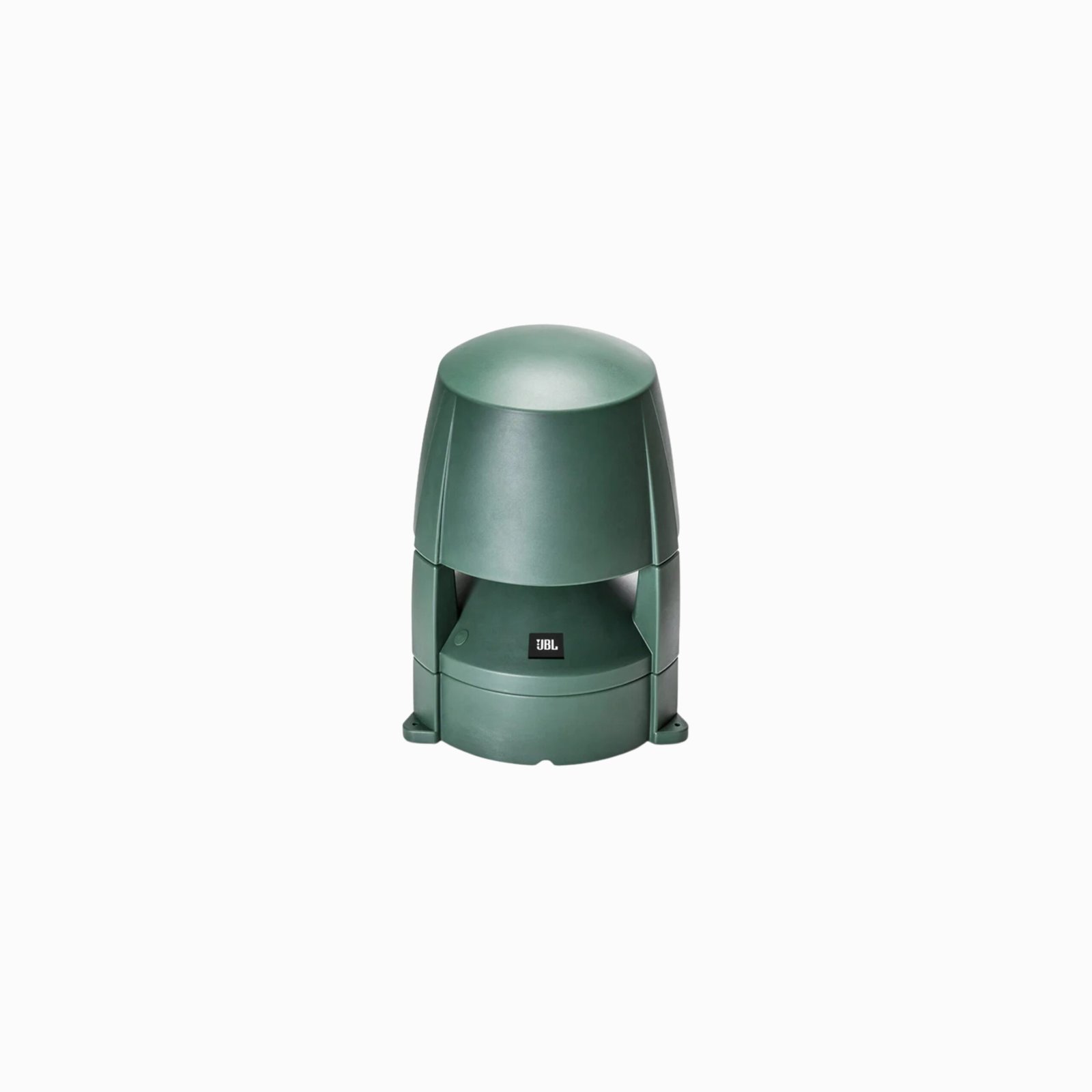

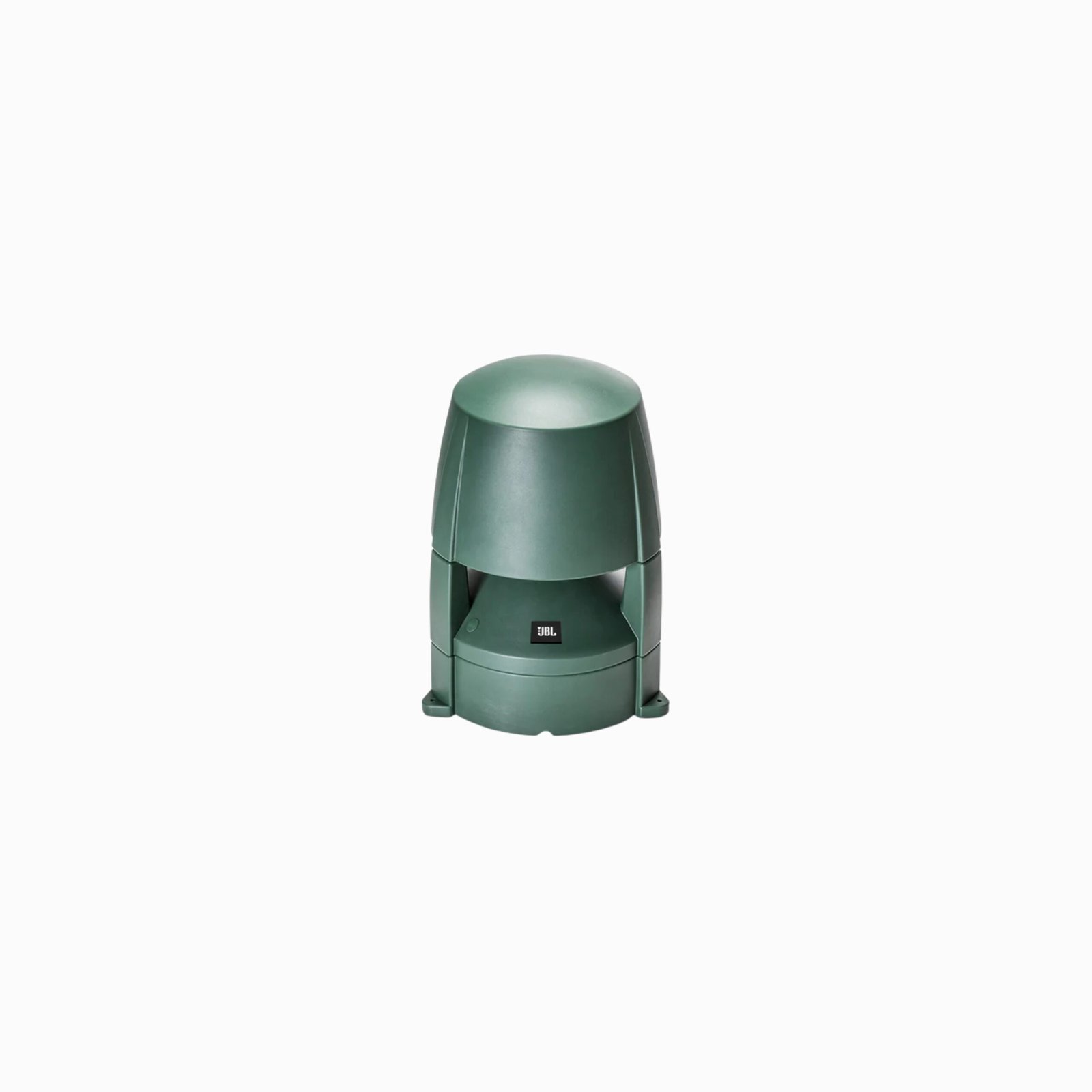

JBL Control 88M - Two-Way 8 inches Mushroom Landscape Speaker (Each)
JBL Control 88M - Two-Way 8 inches Mushroom Landscape Speaker (Each) - Image 2
JBL Control 88M - Two-Way 8 inches Mushroom Landscape Speaker (Each) - Image 3
JBL Control 88M - Two-Way 8 inches Mushroom Landscape Speaker (Each)
JBL Control 88M - Two-Way 8 inches Mushroom Landscape Speaker (Each)
JBL Control 88M - Two-Way 8 inches Mushroom Landscape Speaker (Each)
Category: Speaker

JBL Control 88M - Two-Way 8 inches Mushroom Landscape Speaker (Each)

Key Features

  • Rugged two-way landscape/outdoor speaker engineered for reliable performance in open spaces

  • 8-inch woofer paired with a high-frequency driver for balanced, full-range sound

  • Weather-resistant design built to withstand outdoor elements

  • Wide dispersion pattern for broad, even audio coverage in lawns, gardens, patios, and commercial outdoor areas

  • Durable enclosure with protective grille for long-term reliability

  • Easy mounting options for landscape and outdoor installations

  • Ideal for background music, paging, and ambient audio in residential or commercial outdoor environments

  • High sensitivity and broad power handling for use with a range of amplifiers

  • Designed for consistent sound quality and dependable performance in varied conditions

Ask a question
Delivery & Return

Description

JBL Control 88M – Two-Way 8 inches Mushroom Landscape Speaker (Each)

Two-Way 8-inch (200mm) Coaxial Mushroom Landscape Speaker

Designed for outdoor applications, the highly weather-resistant Control 80 Series Landscape speakers provide excellent full-range sound quality and 360-degree coverage. Designed to be mounted on or in the ground, Control 80 Series Landscape speakers can be used in a wide variety of applications, including shopping malls, theme parks, sports venues, hotels, casinos, resorts, restaurants, hospitality and leisure venues, entrance ways, and anywhere a high-quality music and/or paging speaker landscape speaker is required. Compact in design, the speaker is unobtrusive and easily blends in with its surroundings. A tough polyethylene enclosure resists abuse from lawn care equipment and the elements, and the enclosure color extends throughout the material, so the speaker will maintain color even when scraped or scratched.

Features

  • Components:
  • 8” highly weather-resistant driver
  • 1” soft-dome, highly weather-resistant tweeter
  • 120W Pink Noise Power Handling (240W program) in direct 8Ώ setting, plus built-in 60W 70V/100V multi-tap transformer
  • Tough polyethylene, highly weather-resistant enclosure
  • Fully isolated center chamber for wiring protection
  • High fidelity sound character with a broad frequency range of 47Hz – 16kHz



Specifications

Frequency Range (-10dB)
 47 Hz – 16 kHz
Power Rating
 240 W Continuous Program (2 hrs) 120W (480W peak), Continuous Pink Noise (2 hrs) 100W (400W peak), Continuous Pink Noise (100 hrs)
Transformer Taps
 70V: 60W, 30W, 15W & 7.5W 100V: 60W, 30W, 15W
Frequency Response (±3 dB)
 60Hz – 15 kHz
Maximum Input Voltage
 28.0 V
Sensitivity
 87 dB, 1W @ 1m (ave. 80Hz – 16kHz)
Coverage Pattern
 360° H, 160° V (primary listening 10° to 50° up from ground)
Directivity Factor (Q)
 2.1
Directivity Index (DI)
 3.2 dB
Maximum SPL (1m)
 108 dB
Impedance
 8Ω (at 8Ω setting)
Minimum Impedance
 6.6Ω at 9.5kHz
Insertion Loss
 <0.5 dB at any tap setting
Thru Setting
 8Ω nominal
Crossover Type
 2nd Order LPF on LF and 2nd Order HPF on HF
Recommended Protective High-Pass
 45 Hz for 8Ω operation, 24 dB/oct 80 Hz for 60W tap, 24 dB/oct 50 Hz for 30W, 7.5W, and 7.5W taps, 24 dB/oct
Drivers
 LF: 200 mm (8.00 in) diameter LF driver, Kapton™ former, 38mm (1.5 in) voice coil, polypropylene cone, and polyurethane surround.
HF: 25mm (1.0 in) diameter HF driver Polyetherimide (PEI) dome.
Enclosure
 LDPE Polyethylene plastic, 6 mm wall thickness, UL94V-0 rated.
Grille
 Powder-coated stainless steel.
Outdoor Capability
 IP-56 rating per IEC529 (dust protected and protected against jets of water). Exceeds MilSpec 810 for humidity, salt spray, temperature & UV. Passes Mil-STd-202F for salt spray. Enclosure UL94V0 rated.
Safety Agency
 UL1480, Transformer UL Recognized per UL1876, ROHS compliant.
Input Connectors
 Bare wire with dielectric-gel-filled wire nuts (internal to the top speaker section)
Wiring
 Water ingress is protected by two stages of gland nuts, one mounted on the outside of the enclosure (installed by the installer via drilling a 22 mm (0.875 in, 7/8 in) hole in any of multiple provided locations) and one between the bottom base and top speaker sections. Included gland nuts require round-jacketed wire with outside diameter between 4.0 mm and 9.0 mm (0.16” in and 0.35” in). For Installation instructions, see Installation Guide (#IS-C80MLS).
Colors
 Hunter Green, RAL6018
Dimensions (H x W x D)
 524 x 355 x 355 mm (20.7 x 14 x 14 in.)
Net Weight (each)
 7.8 kg (17 lb)
Shipping Weight
 10.5 kg (23 lb)
Included Accessories
 (2) wire nuts, (2) gland nuts, (1) right-angle screwdriver
Installer-Supplied Required Tools
 22mm (0.875 in, 7/8 in) twist-type drill bit (or other type suitable for plastic) for installing the gland nut into the enclosure.
Optional Accessories
 22mm (0.875 in, 7/8 in) twist-type drill bit (or other type suitable for plastic) for installing the gland nut into the enclosure.
