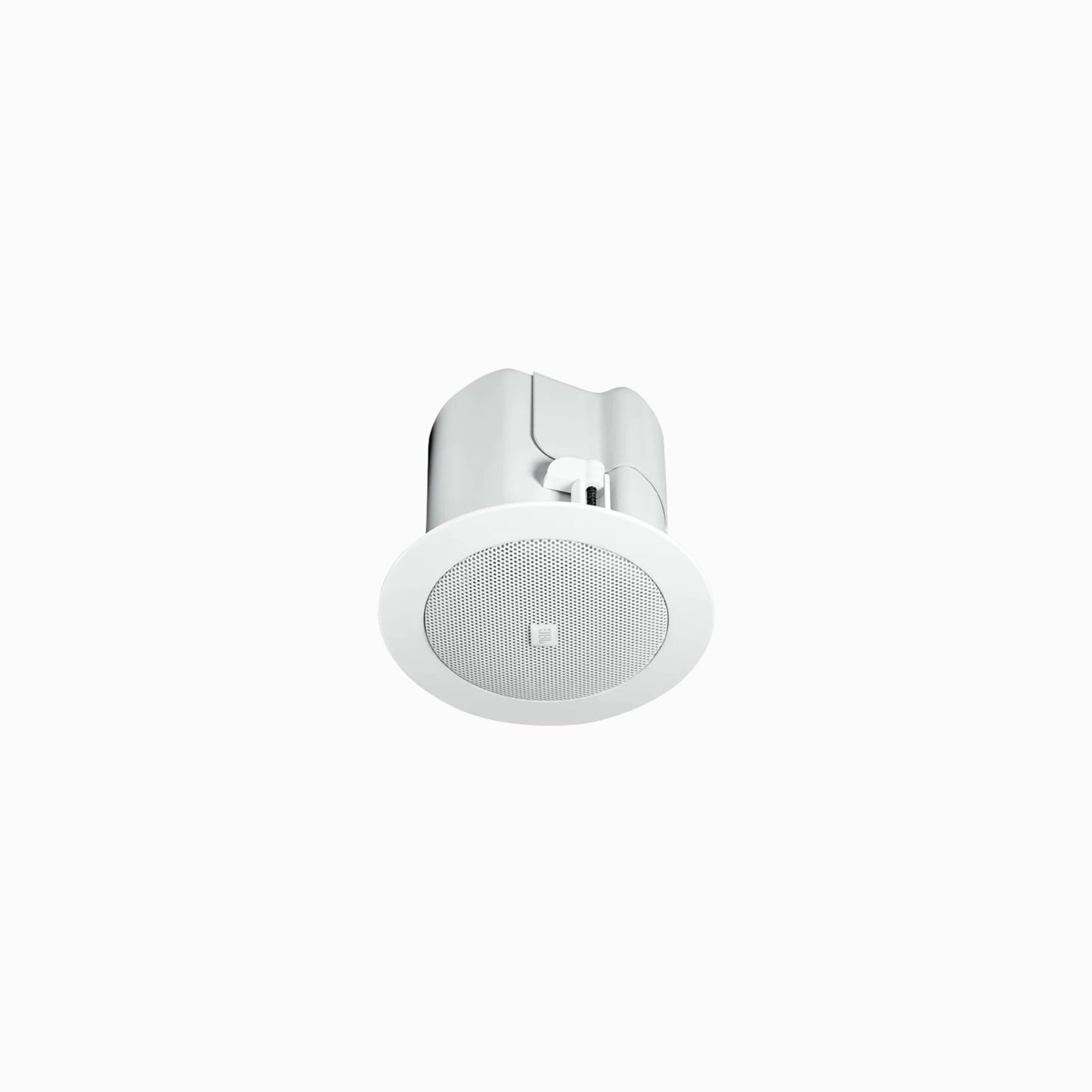

JBL Control 42C - 2.5″ 30W Ultra Compact In-Ceiling Speaker (Each)

Ultra-compact in-ceiling loudspeaker designed for commercial audio installations
2.5-inch woofer optimized for background music and paging applications
Tweeter delivers clear high-frequency audio suitable for speech and music
30 W power handling for reliable performance in low-to-moderate volume environments
Built-in multi-tap transformer for use with 70V and 100V distributed speaker systems
Switchable low-impedance mode for direct connection to standard amplifiers
Wide dispersion pattern for consistent sound coverage in small-to-medium spaces
Flush, low-profile design with removable grille for discreet ceiling integration
Durable construction suitable for continuous commercial operation
Easy installation with included mounting hardware

Description

Frequency Range	140 Hz – 20 kHz
Power Rating	IEC System Long-Term Ratings (low-Z direct): 30 Watts Continuous Program Power 15 Watts Continuous Pink Noise (60W peak), 100 hr
Sensitivity	82 dB (1kHz – 16 kHz)
Drivers	60 mm (2.5 in)
Coverage Angle	160° conical
Impedance	16 ohms
Input Connectors	Two removable locking 2-pin connectors with screwdown terminals.
Optional Accessories	MTC-RAIL tile rails MTC-42NC New Construction bracket MTC-42MR Mud Ring Construction Bracket
Included Accessories	C-ring support backing plate, knockout strain relief, cutout template, paint shield.
Dimensions (Diameter x Depth)	127mm Diameter x 94mm Diameter Depth (5.0 in x 4.2 in)
Maximum SPL (1m)	94 dB @ 1 m (3.3 ft) average, 100 dB peak
Color	White
Safety Agency	Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan	formed steel (included “blind-mount”)
Baffle/Rim	ABS baffle with UL94-V0 flame class fire rating.
Plenum Usage	Yes, backcan included
