Jbl Conceal C82W 8" Inwall/Invisible Subwoofer (Each)

Conceal C82W

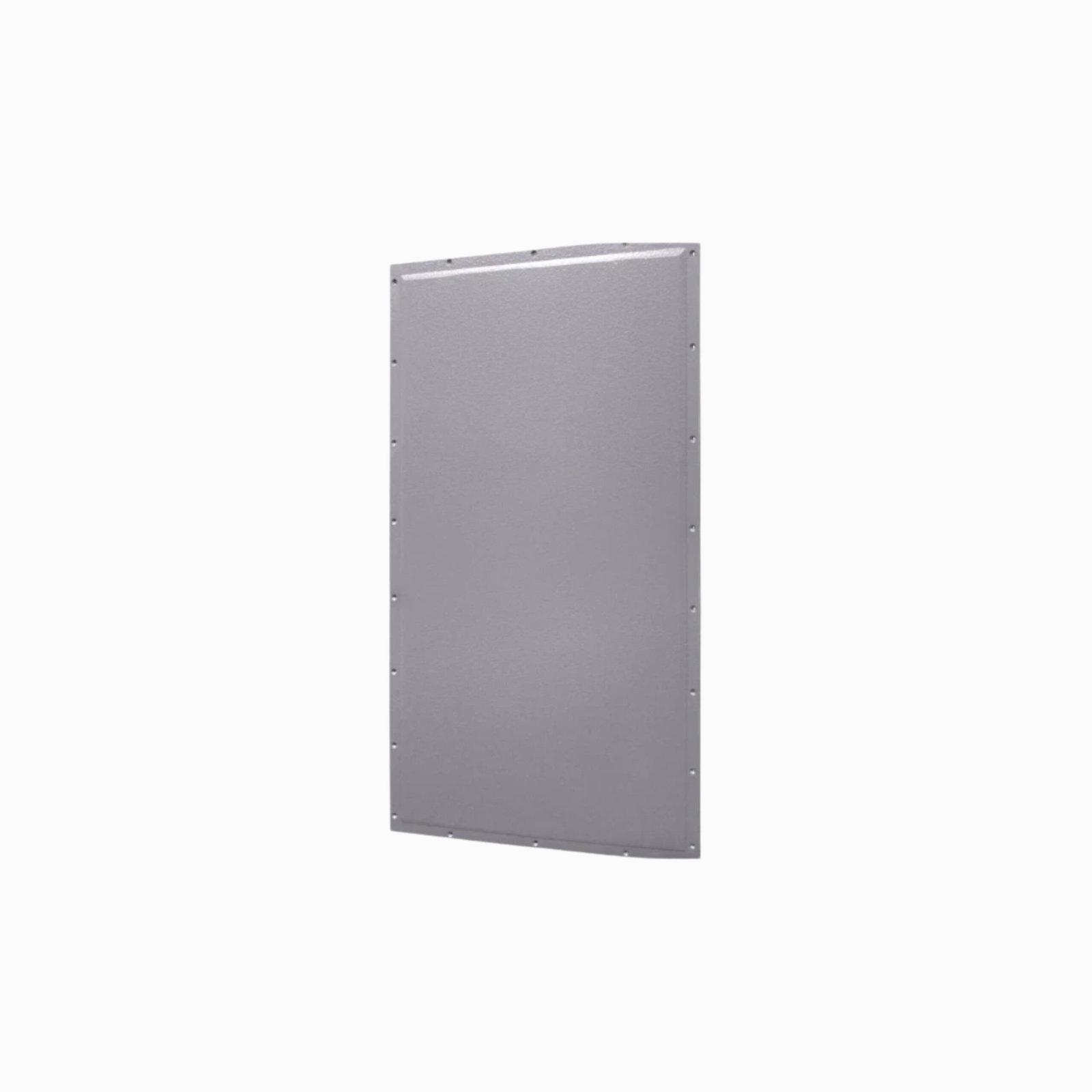

The JBL Conceal Series C82W is a dual-panel, high-performance invisible architectural subwoofer system. Each C82W panel includes a rigid frame that houses the drivers and acoustic components that would be found on a conventional visible architectural in-wall or in-ceiling loudspeaker. The frame attaches directly to the structural framing of the wall, while the face of the loudspeaker – the FidelityGlass™ panel – features a smooth and durable surface that is designed to be finished in a similar fashion to the wallboard surrounding it. With the edges of the loudspeaker flush to the wallboard, the seams are taped and spackled using common methods and techniques. Once sanded and properly prepared, you simply need to paint or wallpaper the surface of the loudspeaker to match your desired finish.

The C82W system consists of two panels that each contain two 8-inch low-frequency drivers working in tandem with the FidelityGlass panel to deliver impressive bass performance. This combination of drivers and patented technologies results in high-performance sound that typically would only be found in conventional in-room subwoofers.

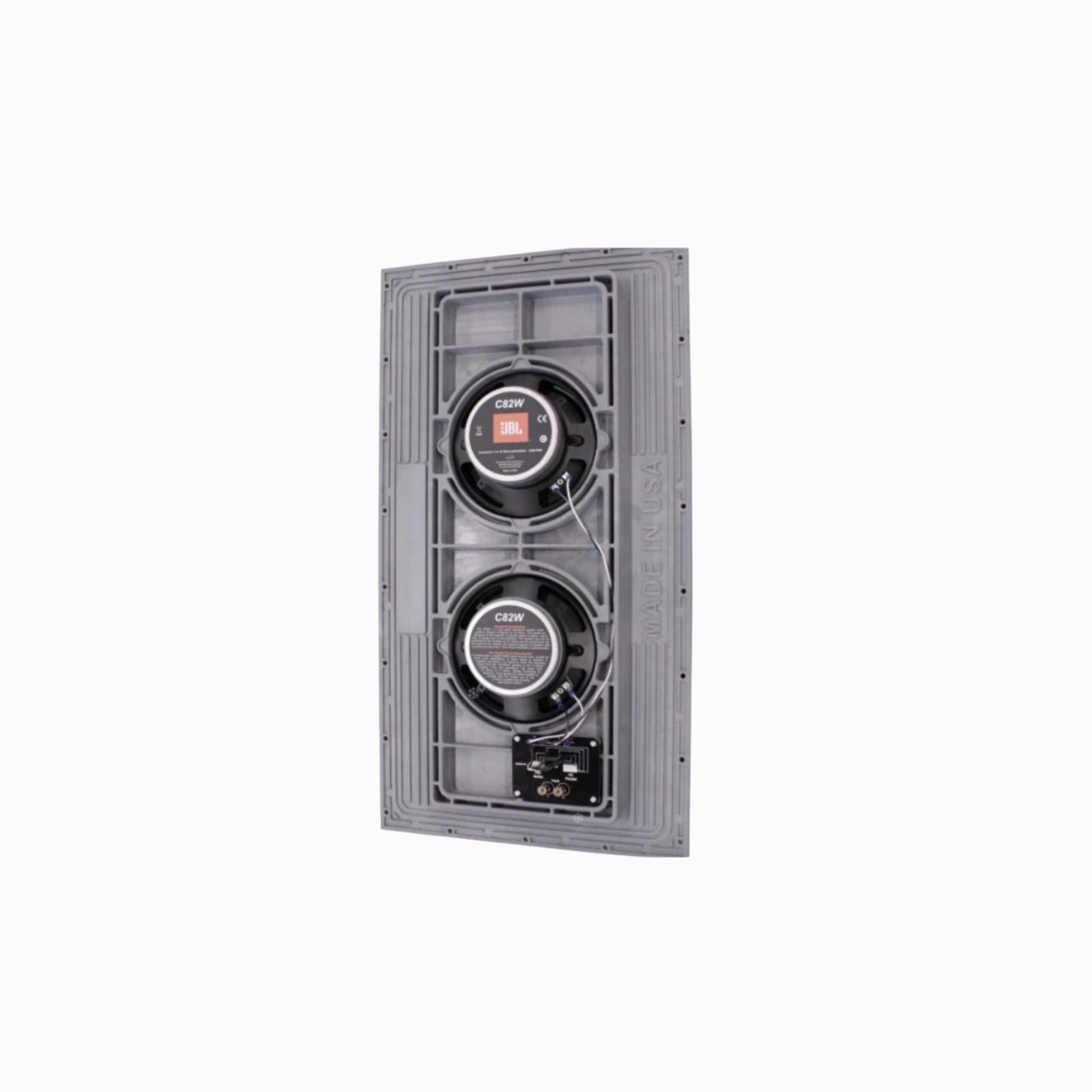

The foundation of the panel of the C82W is a compression molded baffle that provides a rigid frame for the entire assembly. The FidelityGlass acoustic panel is affixed to the frame and serves as the diaphragm for the transducers. Within the panel, dual 8-inch (200mm) high-power woofers operate in conjunction with the FidelityGlass panel and a tuned enclosure to deliver solid bass performance rivaling that of traditional in-room subwoofers. An integrated wooden back box enclosure helps to focus the sound into the room and minimize acoustic intrusion into adjacent spaces. The C82W subwoofer panels are intended to be used with external amplification tailored with the proper equalization and protection circuitry to optimize performance and ensure reliability over the long-term. JBL recommends the use of Crown CDi DriveCore™ amplifiers for use with the C82W system.

Installation of the Conceal invisible subwoofer system is achieved much as you would install a standard drywall patch. For new construction, a wooden place holder board accessory is available to mark the location while the drywall is installed. Detailed instructions are available to help ensure a proper installation. After installing and rechecking the registration of the panel against the drywall, it is key to test the loudspeakers for proper operation with an amplified sound source before moving on to the drywall taping and finishing stages.

The C82W system is the perfect complement to add solid bottom-end performance to any of the JBL Conceal Series loudspeakers in music or multi-channel audio systems. The complete invisibility of the Conceal Series products combined with their broad hemispherical acoustic coverage pattern allows for optimal placement virtually anywhere in a room, be it in a wall or ceiling location. The finished aesthetic benefits far exceed that of a traditional in-wall or in-ceiling loudspeaker resulting in a new level of performance. The JBL Conceal Series is the ultimate solution for high-performance architectural audio.

Specifications

General SpecificationsType In-Wall/In-Ceiling subwoofer systemLow Frequency Drivers 8-inch (203mm) woofers with 1.5-inch (38mm) voice coil (2 per panel)Recommended Amplifier Power 60 – 100 WRMS (per panel)Impedance Selectable 4 Ohm or 16 Ohm (each panel)Loudspeaker Sensitivity 86 dB/1W/1m measured in-roomFrequency Response 30 Hz – 300 Hz (-6 dB) measured in-roomCrossover Frequency N/A (requires amplifier with HPF and LPF)Enclosure Type Sealed, with wooden back-boxProtection N/A (requires amplifier with limiter)Input Type Dual gold-plated spring-loaded binding postsWarranty : 5 Years

DimensionsPanel Dimensions : 30″ H x 15-7/8″ W x 3-7/8″ D (762mm H x 403mm W x 98mm D)Cut-out Dimensions : 30-1/8” H x 16” W (765mm H x 406mm W)Mounting Depth : 3-3/8-inches (86mm)
