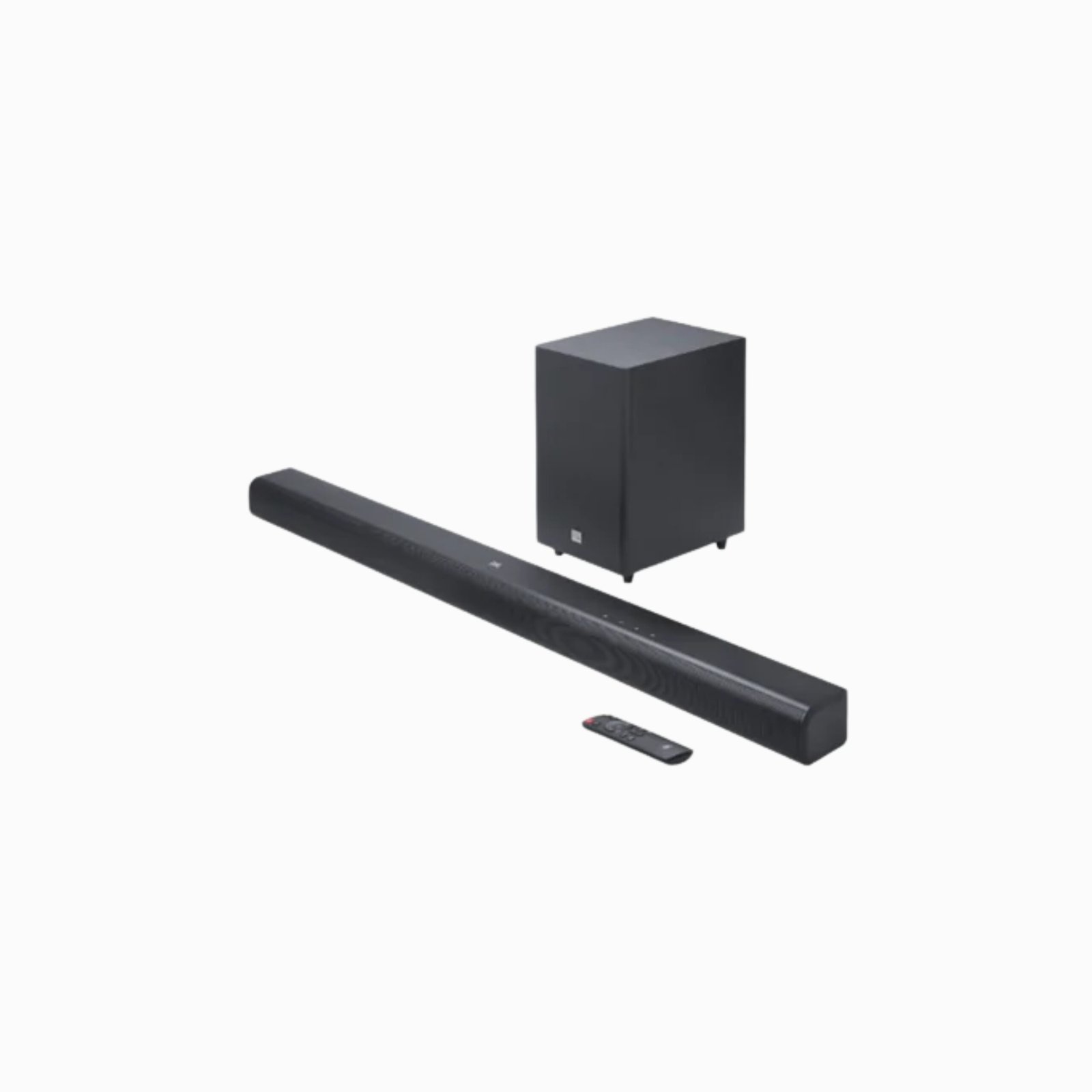

JBL Cinema SB560 - 3.1 Channel Soundbar With Wireless Subwoofer

3.1-Channel Configuration: Left, centre, and right channels in the soundbar plus a dedicated wireless subwoofer for deeper low frequencies

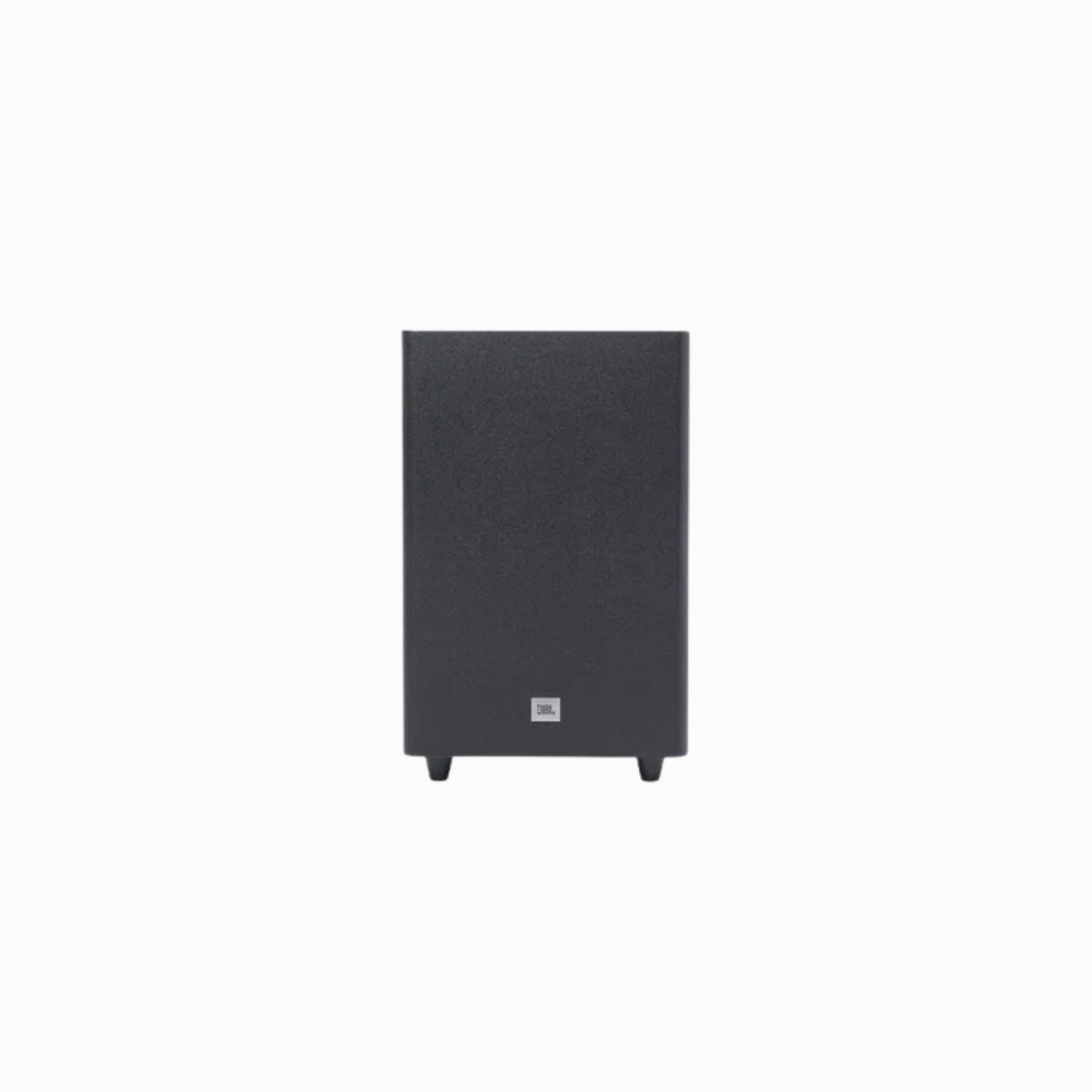

Wireless Subwoofer: Adds powerful bass without the clutter of cables between soundbar and subwoofer
Bluetooth Streaming: Stream music wirelessly from smartphones, tablets, and other devices
TV Connectivity: HDMI ARC / eARC support for high-quality audio transfer from your TV with simplified remote control sync
Multiple Inputs: Includes HDMI, optical digital, and USB playback options for versatile source connections
Clear Voice & Balanced Audio: Combined drivers and tuning deliver clearer dialogue and balanced overall sound for movies, shows, and music

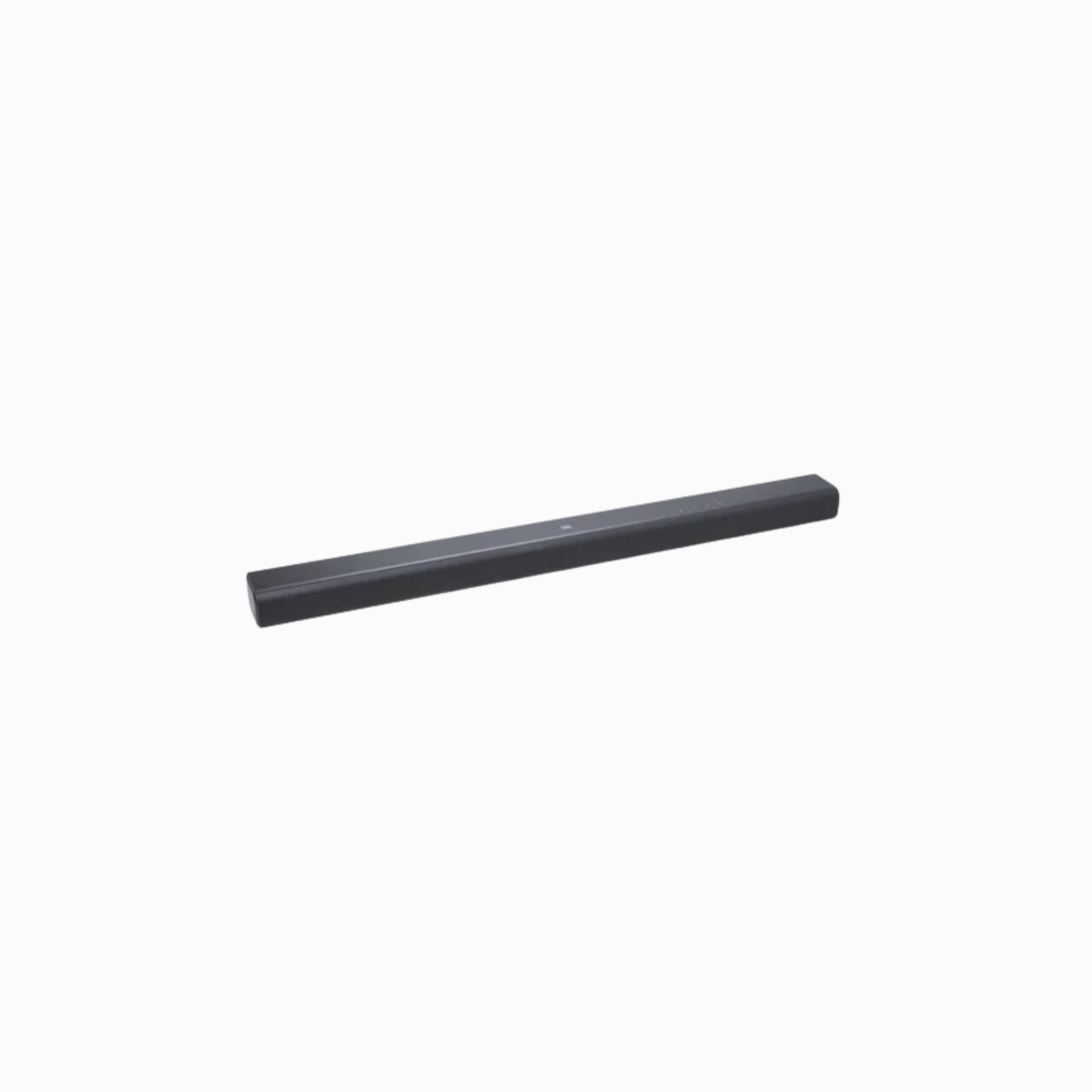

Sleek Design: Slim profile soundbar and compact subwoofer that integrate well with modern TV setups

Description

Model	CINEMA SB560
Sound system	3.1 channel
Power supply	100 – 240V AC, ~ 50/60Hz
Total speaker power output (Max @THD 1%)	250W
Soundbar output power (Max @THD 1%)	150W
Subwoofer output power (Max. @THD 1%)	100W
Soundbar transducer	3x (45 x 100) mm racetrack drivers + 2x 13mm tweeters
Subwoofer transducer	5.25” (133 mm), wireless subwoofer
Standby power	< 0.5 W
Operating temperature	0°C – 45 °C

Frequency response	45Hz-20kHz (-10dB)
Audio inputs	1 Optical, Bluetooth and USB (USB playback is available in the US version. For other versions, USB is for Service only.)

USB port	Type A
USB rating	5V DC, 0.5A
Supporting file formats	mp3
MP3 codec	MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
MP3 sampling rate	16 – 48 kHz
Bluetooth version	5.3
Bluetooth profile	A2DP 1.3, AVRCP 1.6
Bluetooth transmitter frequency range	2400 MHz – 2483.5 MHz
Bluetooth Max. transmitting power	<10 dBm (EIRP)
Bluetooth modulation	GFSK, π/4 DQPSK, 8DPSK
2.4G wireless transmitter frequency range	2402-2481 MHz
2.4G wireless transmitter power	＜10dBm (EIRP）
2.4G wireless modulation	GFSK

HDMI ARC (Audio Return Channel)	1
HDMI HDCP version	1.4

What’s in The Box?	Soundbar, Wireless subwoofer, Remote control with batteries, Power cords (up to 8pcs depending on region SKUs), HDMI cable, Wall-mount bracket kit with screws, Quick start guide, Warranty card, Safety sheet
