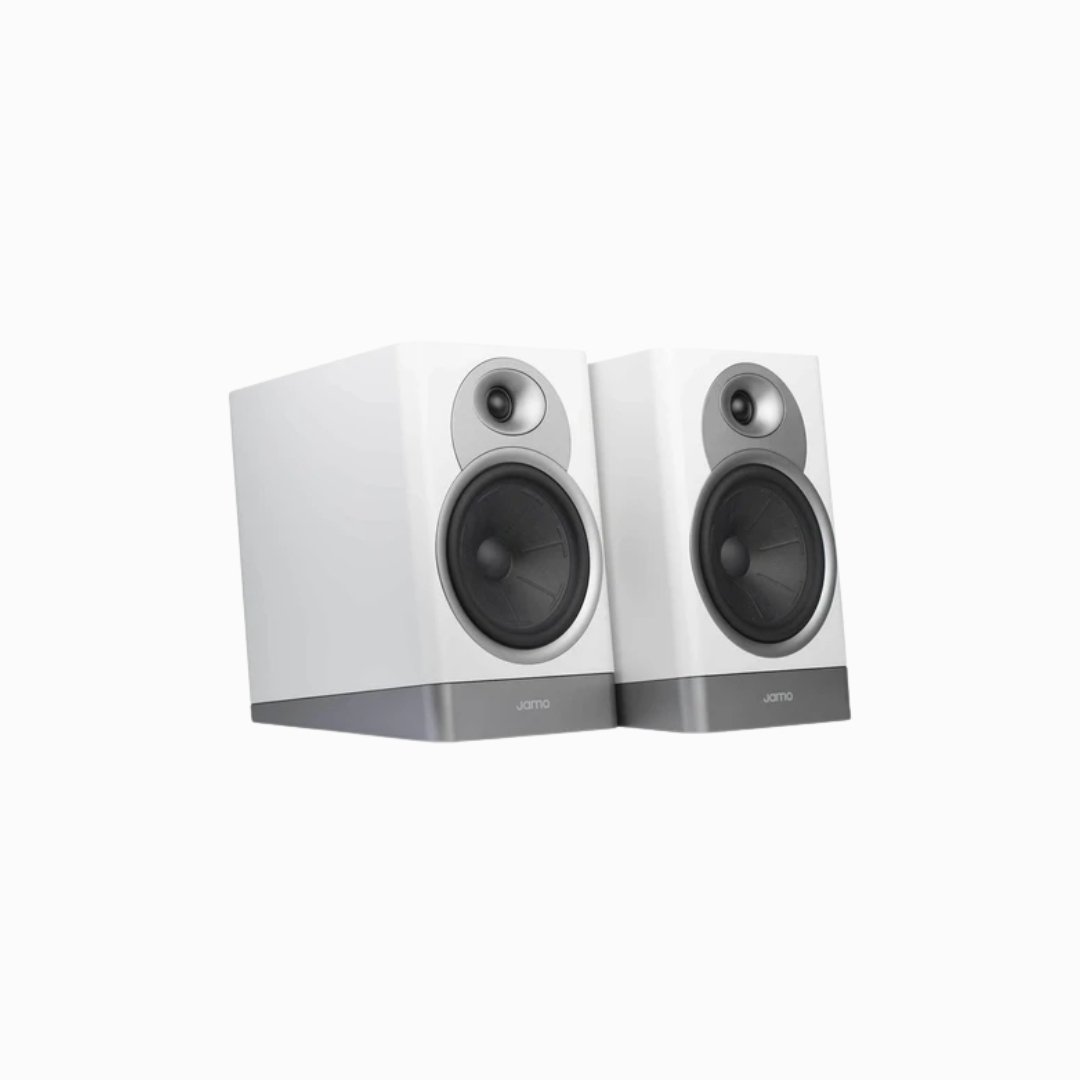

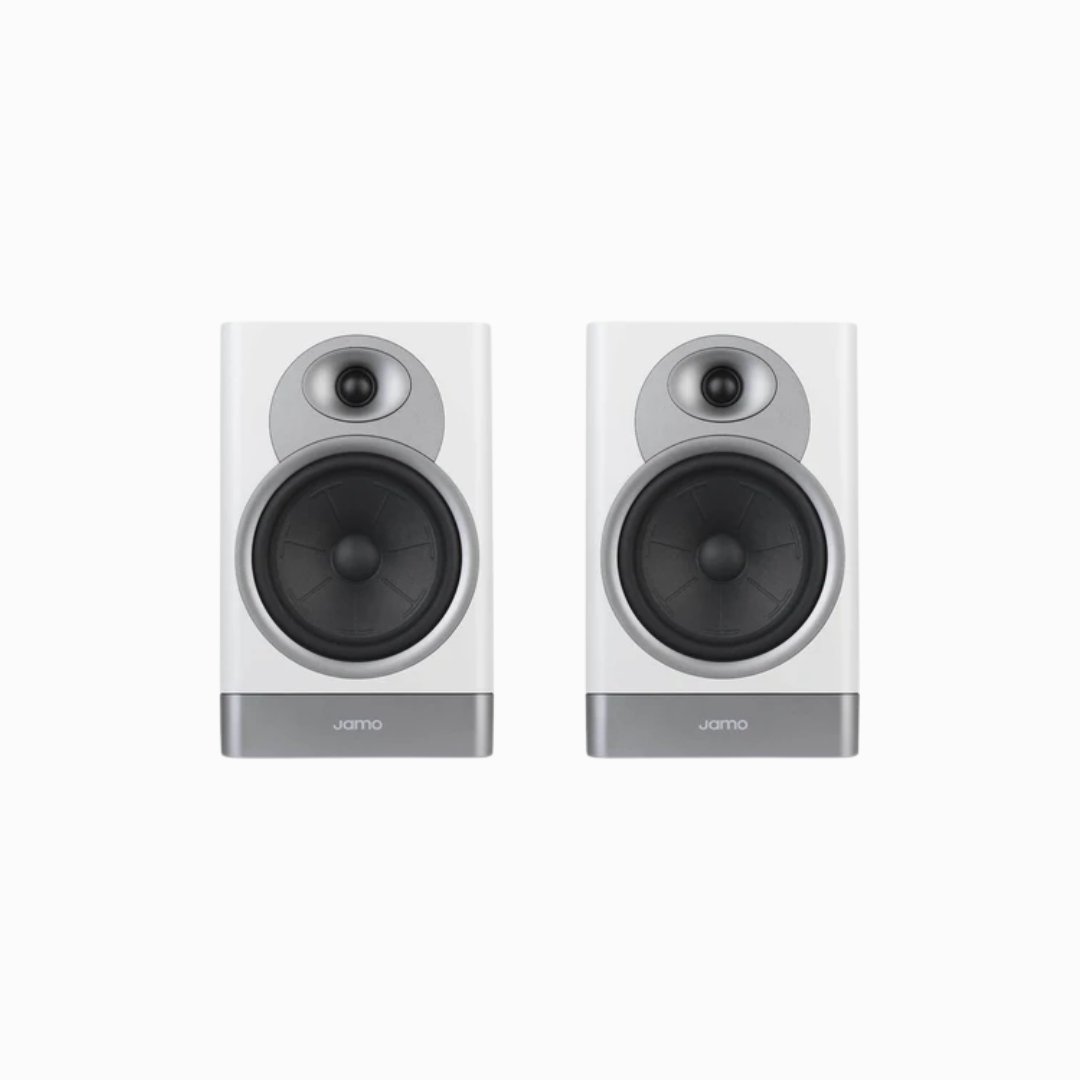

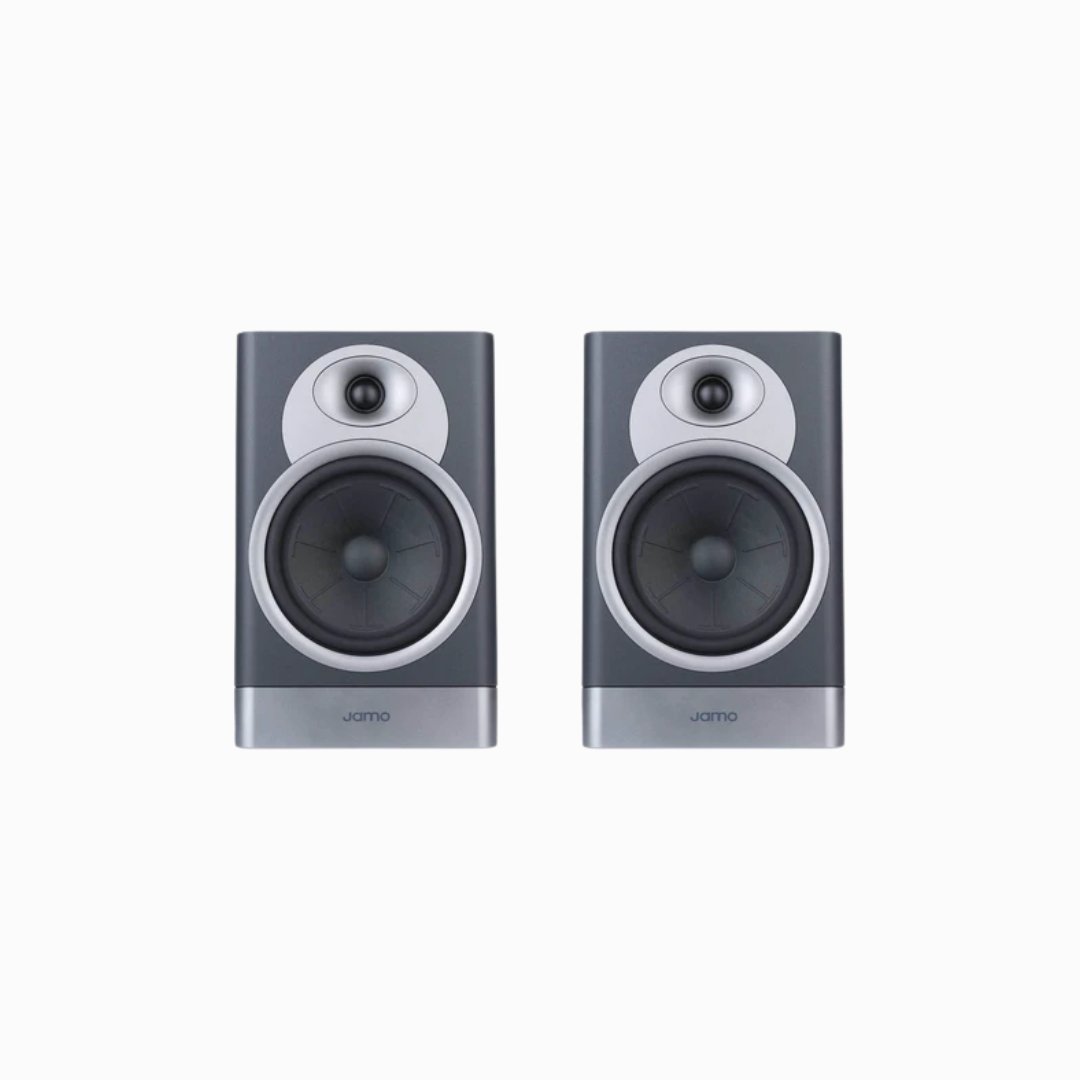

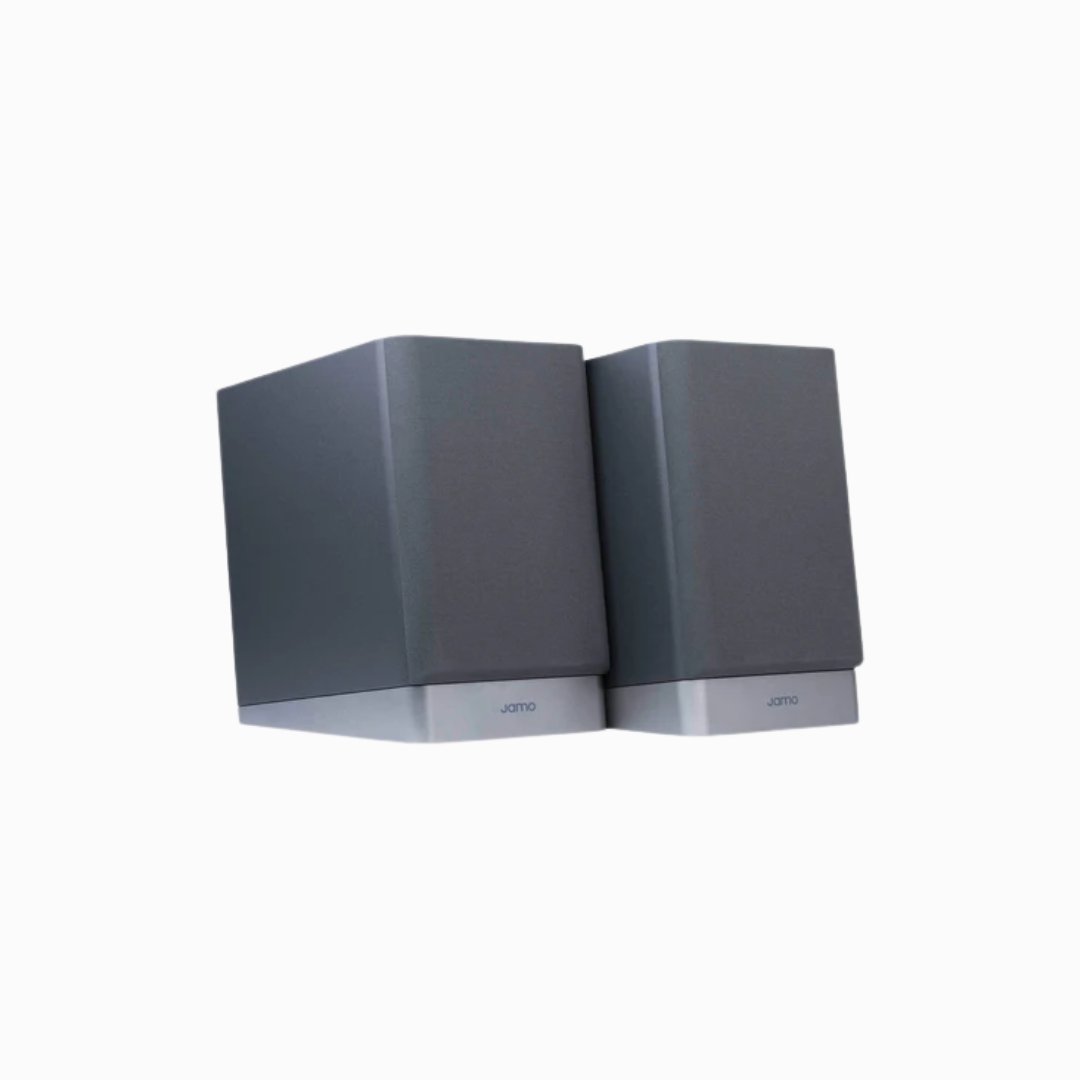

Jamo S-17B Bookshelf Speakers

The Jamo S7-17B is part of Jamo’s newer Studio7 series of passive bookshelf speakers. The line combines modern engineering with stylish Scandinavian aesthetics. Truongthanhaudio.com+3What Hi-Fi?+3exclusivit.eu+3

Key design features include:

Description

Enjoy your favorite movies, TV shows, soundtracks, and games with high-resolution and room-filling sound.

Our engineers have used top-tier components expertly voiced and validated with countless hours to offer you an incredible experience.

Warranty:

1-year manufacturer’s warranty

A SOUND AS PURE AS SCANDINAVIAN AIR
When a speaker driver produces sound, energy spreads across the speaker’s baffle towards the edge of the cabinet. Thanks to the rounded corners of the cabinet, the diffraction is reduced so the energy can dissipate gently and naturally without coloring the signal.

CRYSTAL-CLEAR HIGH FREQUENCIES

An all-new 1-inch tweeter featuring a copper Faraday ring, which increases sensitivity and reduces non-linear distortion, carries out the high-frequency duties. The tweeter and surround are made from fabric and exhibit excellent distortion characteristics and a wide bandwidth for a non-fatiguing yet detailed sound.

NATURAL BASS
The bass drivers feature embossed paper cones, high-strength motor assemblies incorporating aluminum inductance shorting rings that enhance power handling and lower distortion. The aluminum shorting ring lowers distortion for clean, dynamic bass and increases power handling as the aluminum ring acts as a heat sink. The embossed paper cone with Thor’s Hammer detailing increases the rigidity to improve the transient response for that snappy yet natural bass.

Technical Specifications:

Enclosure Type 2-Way bass reflex
HF Drivers 1’’/2.54 cm Vented tweeter with a fabric dome
LF Drivers Single 6.69’’ / 17 cm woofer – Embossed paper cone with Thor’s hammer
Sensitivity* 87.2 dB @ 2.83 V/1 m
Frequency response (±3 dB) 64 Hz – 25 kHz
Max Low-end extension (room dependent) 40 Hz
Maximum output (peak sound pressure level at 1m) 104.2 dB
Nominal Impedance 4 ohms
Continuous Power handling 100 W
Recommended Amp. Power 40-150 W
Dimensions (unit) (H x W x D) 36.5 x 23 x 38 cm 14.4 x 9 x 15 inches
Product Weight (unit) 8.37 kg / 18.5 lbs
Available Finish Blue Fjord vinyl Grey Cloud vinyl
Included accessories Rubber Feet (8)
