Description
For full-blooded home cinema action, the F3-10 subwoofer mates a 475 Watt Direct Digital (DDX) amplifier with a 250mm (10”) driver in a mid-sized cabinet. Featuring advanced DSP technology, Bass Boost mode for LFE, and a large, down-firing low-turbulence port for consistent in-room performance, the F3-10 is ideal for partnering with a wide range of home theatre speakers. With dedicated LFE and RCA inputs and filtering, phase control, a 12V trigger, and continuous or auto-sensing power-on modes, the F3-10 brings the feature and performance of high-end subs at an affordable price.
Warranty:
1-year manufacturer’s warranty
Features:
- Clean signal path and very low crossover losses
- The F500 range is as impressive with movies as it is with music
- Point Source Technology
- Performance.
Control

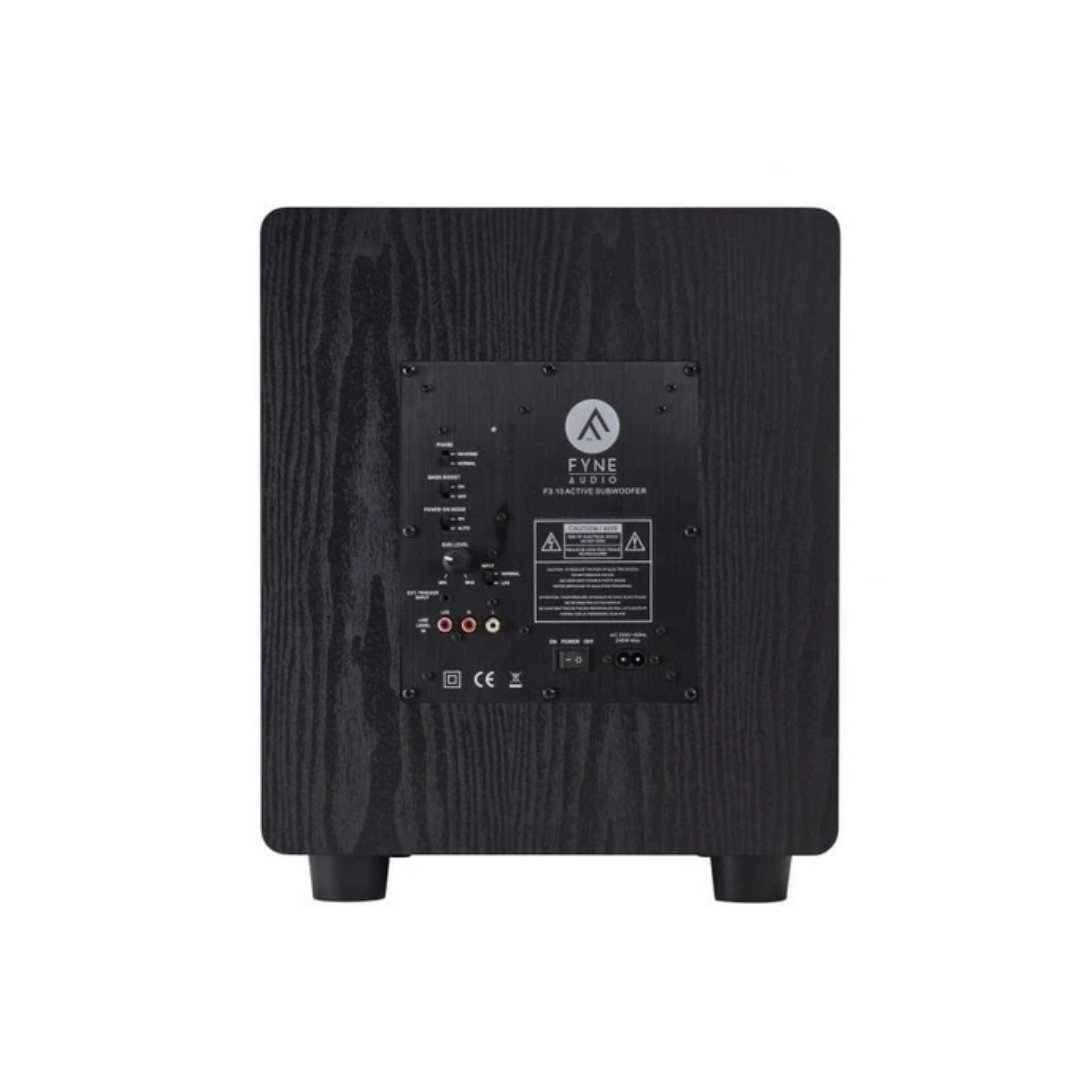

The F3 Series cutting-edge electronics and DSP engine have enabled control features normally only found in much more expensive subwoofers. The DSP controls both LFE input and stereo input 85Hz low pass filters, automatic dynamic range management, and overload protection, as well as enabling Fyne’s Bass Boost function. Engaging the Bass Boost switch delivers a +3dB lift through critical movie LFE frequencies to deliver real cinema movie performance in the home. For ease of integration with the widest range of AV systems, F3 Series subwoofers offer continuous or signal-sensing auto power-on modes, a 12V trigger, and a phase reverse switch.
Driver Technology

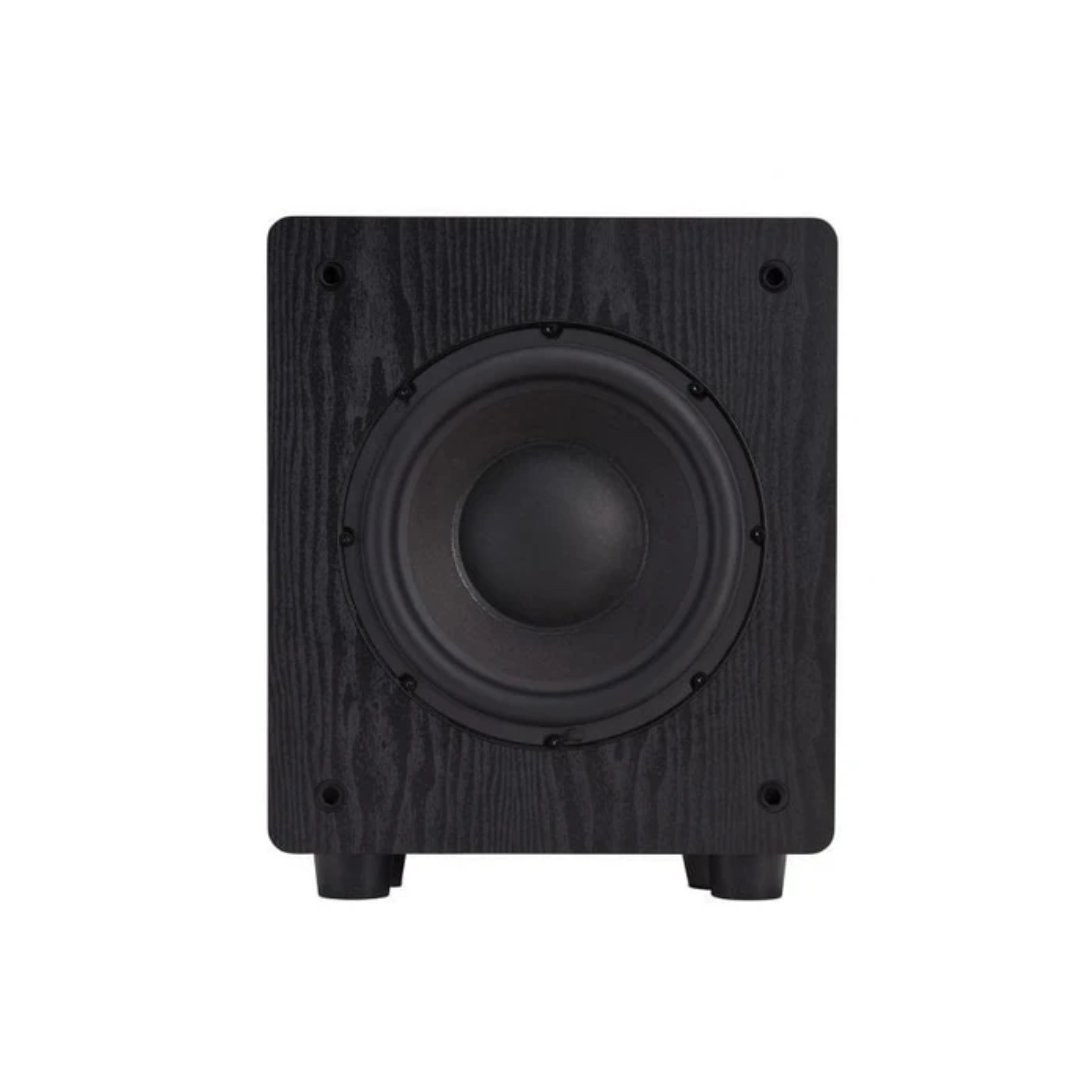

Fyne’s front-mounted F3 Series drivers deliver the ultimate in fast transient attack to make gunshots and other dynamic low-frequency effects come alive. The cone material is formed with a unique mix of fibers to create a light, stiff, and near-perfect rigid diaphragm for supremely accurate bass. Fyne’s soft rubber roll surround and deep coil and motor assembly give the cone extensive excursion and high-power handling. The result is a range of affordable subwoofers with stunning dynamics and the capability to produce low frequencies down to a class-leading 30Hz (F3-12).
Amplifier
Direct Digital Amplification (DDX®) is a patented, all-digital, high-efficiency amplifier technology designed specifically for multimedia applications. DDX is similar to a standard Class-D digital amplifier but improves upon the design with higher power, better efficiency, lower RFI output, and enhanced sonic characteristics. The result is a clean, muscular-sounding amplifier with plenty of headroom for the biggest explosions and vanishingly low distortion right down to the F3 Series’ lowest operating frequencies.
