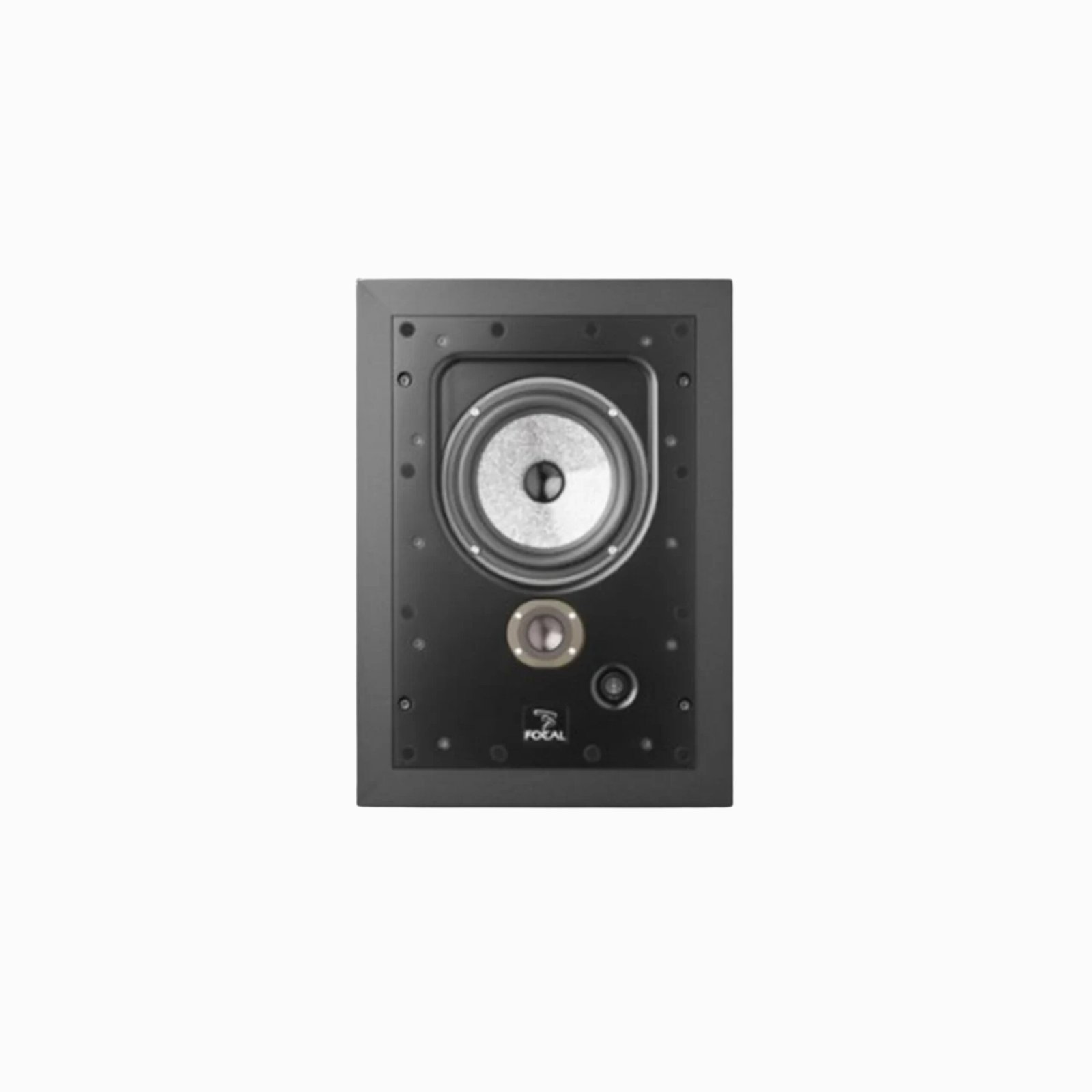

Focal Electra II IW1002 - In-Wall Speaker (Each)

Key Features

  • Premium 2-Way In-Wall Design
    Engineered for refined, high-quality audio performance in home theatre and music systems, the Electra II IW1002 offers detailed, dynamic sound directly from the wall.

  • Aluminium/Magnesium Tweeter
    High-performance inverted dome tweeter delivers smooth, extended highs with excellent clarity and low distortion for natural treble reproduction.

  • 10-Inch Woofer Driver
    Large woofer provides deep, controlled low-frequency performance with rich midrange presence for impactful music and cinematic sound.

  • Wide Sound Dispersion
    Optimized driver configuration ensures even sound coverage and immersive audio throughout the listening area.

  • Precise Crossover Network
    Advanced crossover design balances the interaction between drivers, resulting in coherent, full-range sound with minimal phase interference.

  • Flush-Mount Installation
    Designed for secure in-wall mounting with a low-profile appearance that integrates cleanly into walls.

  • Paintable, Magnetic Grille
    Includes a sleek grille that can be painted to match room décor and attaches magnetically for a refined look.

  • Rigid Back-Box Compatibility
    Can be paired with an optional back box to enhance bass response and reduce sound transmission to adjacent spaces.

  • Durable Construction
    Built with premium materials for long-lasting performance in residential installations.

  • Versatile Use
    Ideal as a main left/centre/right channel speaker in multi-channel home theatre setups or as part of a high-fidelity distributed audio system.

Description

 Focal Electra II IW1002 In-Wall Speaker (Single)

Product Description

The Focal Electra IW 1002 is an In-Wall Speaker featuring advanced Focal technologies including the AI/Mg dome tweeter used in the Electra 100 S line. The Focal IW 1002 features high-level sound performance in both hi-fi and multichannel systems in the same way as a 2-way traditional high-end speaker would, and is designed to offer high-fidelity performance from an in-wall speaker that is akin to a full-sized loudspeaker.

The Electra IW 1002 features a magnetically levelled grille, offering total integration and is ready to be painted to fit any decor. The IW 1002 is a sealed MDF speaker that exhibits traditional speaker behaviour and delivers bass quality and linearity.

The IW 1002 features a 6.5″ midbass 3rd generation W cone, which is constructed from an exclusive composite sandwich to offer unequalled rigidity resulting in playback which is neutral and accurate. The Aluminium/Magnesium tweeter offers an incredibly wide bandwidth from 2.5kHz to 30kHz, which delivers pinpoint imaging and sweet, clear high frequencies. The Focal IW 1002 uses OPC filtering and phase optimal control, as well as tweeter level adjustments and wall boost control.



 Features

Warranty length
2 Years
Brand
Focal JM Labs

Tech Specs

Type
2-way In-Wall sealed speaker
Mid/Bass
61/2″ (16.5cm) “W”
Tweeter
27mm Al/Mg inverted dome
Freq response
(±3dB): 60Hz – 30.5kHz
Sensitivity
(2.83V/1m): 88dB
Nominal impedance
8 Ω
Recommend amplifier power
25 – 150W
Tweeter adjustment
-3dB / 0dB / +3dB
Crossover frequency
2 600Hz
Frame
425 x 308mm – 4.5mm thick
Cut-out Size (HW)
379 x 262mm
Depth from the wall
37/8″ (99mm)
Net weight
6.4Kg (14.1lb)
