Description

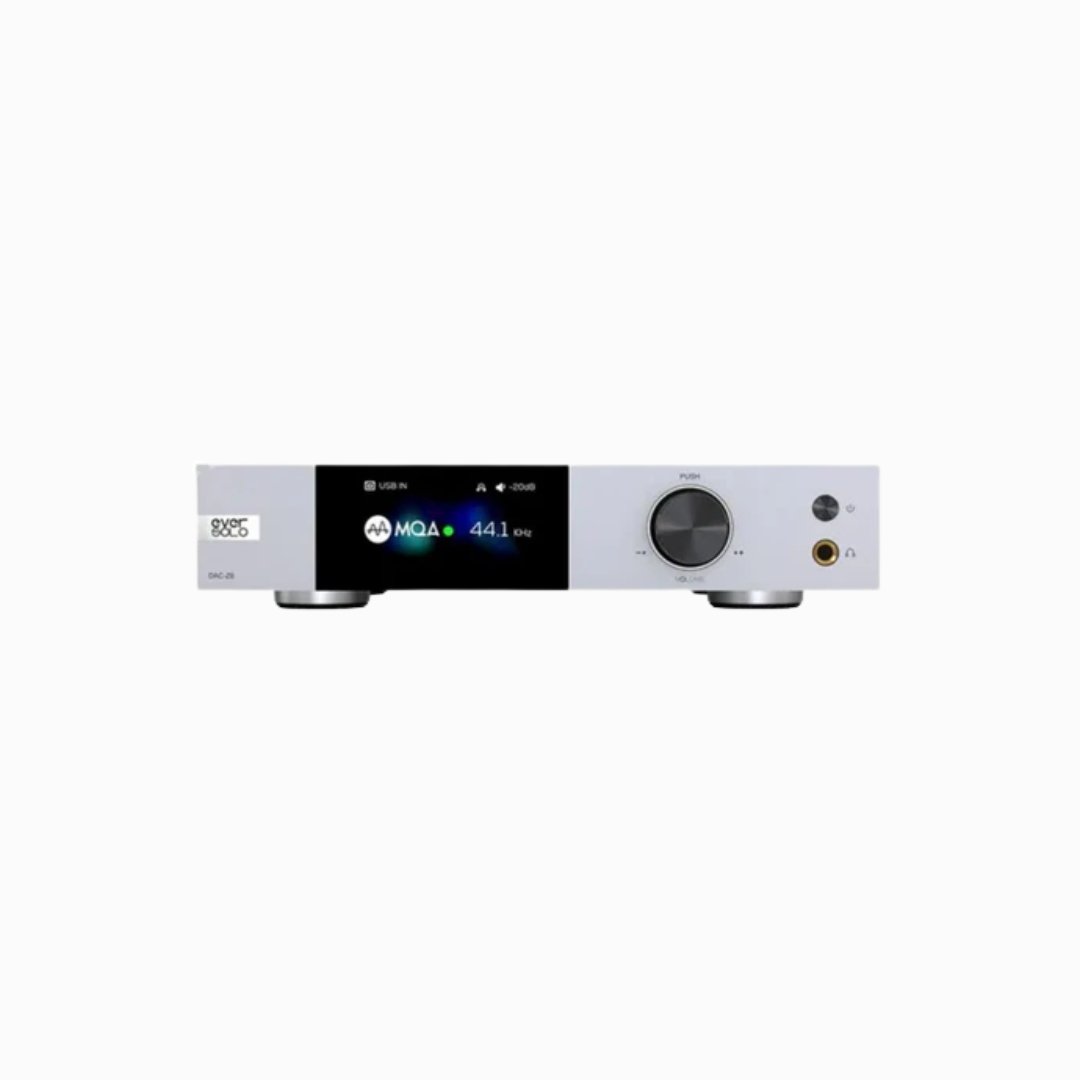

The EverSolo DAC-Z6 Digital to Analog Converter (DAC) is a high-fidelity audio device designed for audiophiles who seek exceptional sound quality. It features dual ES9068 DAC chips for independent decoding of dual channels, ensuring pristine audio performance. The DAC-Z6 supports up to DSD512 Native and PCM768Hz@32Bit decoding, providing ultra-high-resolution audio. With support for MQA full decoding and rendering, optical, coaxial, and USB inputs, it offers versatile connectivity options. The device also includes a Qualcomm QCC5125 Bluetooth 5.0 module, supporting various Bluetooth protocols like APTX HD and LDAC. The fully balanced audio architecture, differential amplifier circuit, and professional calibration contribute to its superior sound quality. Additionally, the DAC-Z6 boasts a high-performance headphone amp output, a 3-inch LCD screen with diverse VU meter modes, and an exclusive mobile phone controller app for global control. This DAC is perfect for anyone looking to enhance their audio setup with top-tier digital-to-analog conversion.
Warranty:
1-year manufacturer’s warranty
Features:
- Dual ES9068 D/A converter chip, independent decoding for dual channels.
- The 3rd generation XMOS XU316 with higher performance and faster speed.
- High precision, low jitter dual clock oscillators for synchronous processing.
- Up to DSD512 Native, PCM768Hz@32Bit decoding.
- Optical, Coaxial, and USB support MQA full decoding and rendering.
- Qualcomm QCC5125 Bluetooth 5.0 module, APTX HD/LDAC protocol.
- Fully balanced audio architecture, differential amplifier circuit, and professional calibration.
- High-performance headphone amp output, 16-300 ohm headphone driver.
- 3-inch LCD screen, with diverse VU meter modes.
- Low ripple power supply to ensure a purer power source.
- Exclusive mobile phone controller APP for global control.
Double High-Performance ED9068 DAC
Dual ES9068 DAC chips construct the Double Differential Quadruple Converter, with one ES9068 DAC chip per channel for independent D/A conversion output. The design avoids interference between channels effectively, reduces the noise floor to 6dB, and obtains better audio indicators like signal-to-noise ratio and dynamic range etc. DSD512, PCM768kHz/32Bit, and MQA hardware decoding are supported.
MQA (Master Quality Authenticated) technology enables you to play back MQA audio files and streams, delivering the sound of the original master recording.
Professional Calibration
Benefiting from Eversolo development engineers’ rich experience in analogue circuit design, professional calibration, and circuit design are adopted for the DAC-Z6. The total harmonic distortion ratio, which has been measured, is -120dB (0.00009%); the signal-to-noise ratio and dynamic range are 125dB. These industry-leading indicators are a solid foundation for excellent sound quality.
3rd Generation XMOS 316 Audio Processor
The third-generation XMOS 316 processor has a faster processing speed and better USB bandwidth, which ensures lossless transmission for high-definition audio data. USB output supports DSD512 Native, PCM768kHz/32Bit, and MQA full decoding. Optical and Coaxial output support DSD 64 (DoP) and PCM192kHz/24Bit.
High-Precision Clock Oscillators
Two low-jitter clock oscillators are integrated in the DAC-Z6. Two high-precision crystal oscillators (45.1584MHz and 49.152MHz) respectively correspond to 44.1kHz and 48kHz multiplied sampling, effectively reducing jitter and achieving more precise audio decoding.
Balanced Differential Amplification Circuit
The DAC-Z6’s analog audio circuit is a fully balanced differential amplification circuit design, which is made up of several operational amplifiers. The DACs connect to all analog outputs, including XLR, RCA, and headphone jack, through the circuit. Noise has been eliminated by resolving the cross-talk of the shared loop and improving channel separation. The high-fidelity preamp circuit supports refined volume adjustment; no additional preamp is needed, so you can connect directly to your hi-fi amp.

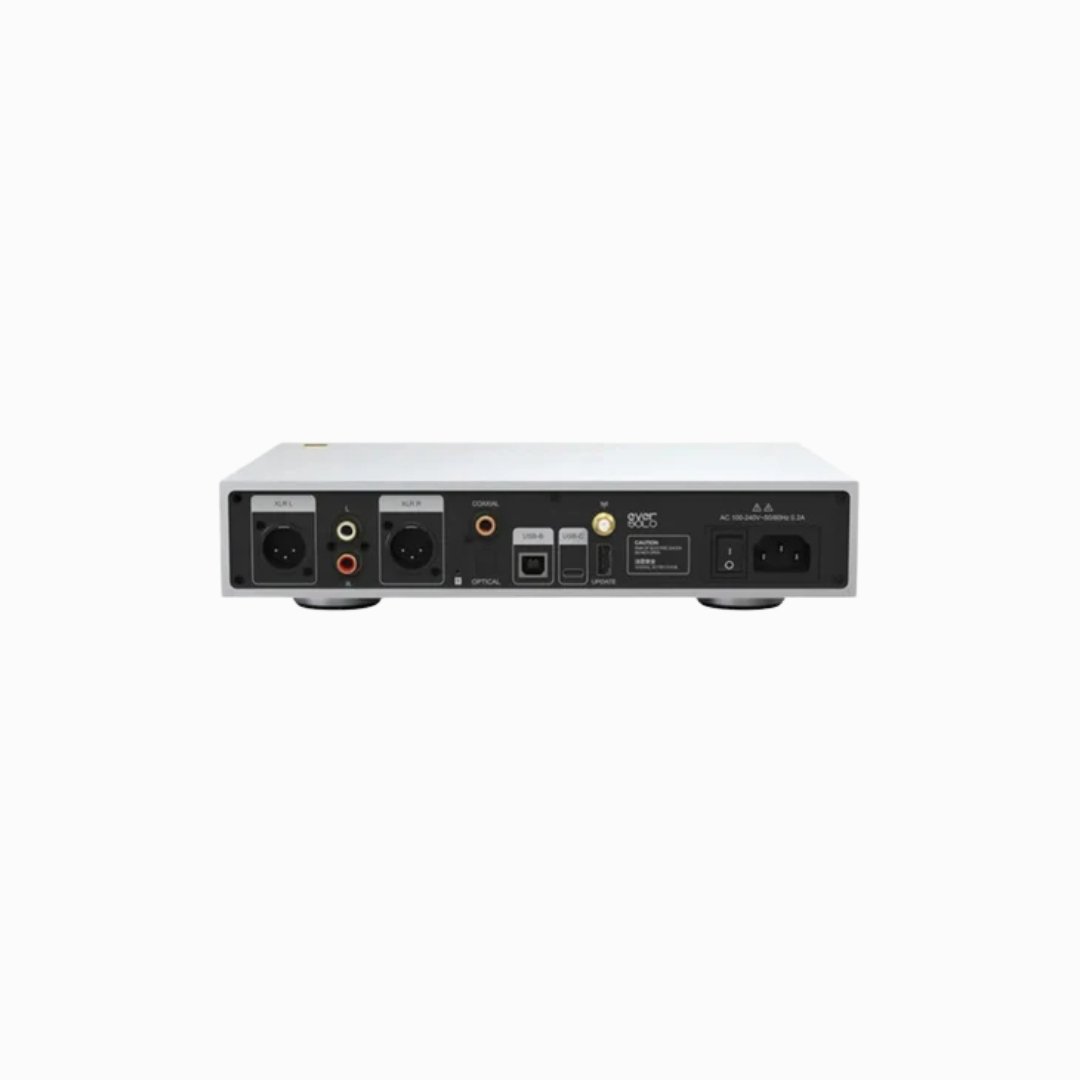

RCA and XLR Separate Outputs
In order to reduce the possible signal interference of the RCA and XLR simultaneous output, the DAC-Z6 RCA and XLR signals are output separately to achieve better, cleaner audio performance. Optionally, you can enable both connections to operate simultaneously in the device settings.
Unique Aluminium Chassis
The DAC-Z6 is made from aviation aluminium and features a CNC-machined body for solid construction. The brushed panel and frosted anodized body are a great combination of classic and modern elements. This design philosophy results in a device that makes an impression when seen on a rack with your other hi-fi equipment.
