Elemento Spider reference OEM

The function of a hifi rack is quite simple: to hold your hifi components while isolating them from any interference. It sounds simple, but it is actually impossible unless you float the components in space. The solutions to this basic problem are sometimes bizarre, exotic, ugly, absurd or very expensive.
Let us start in order and design something clean and simple: we could place everything on the floor. No rack, no (rack-related) problems. But this requires you to take up huge surfaces for a few units, and it will be very inconvenient for anybody to operate (the floor is lower than your back). So we all agree that some kind of a table is needed, and this is where the problems begin…

“Legless isn’t good for you”
Some argue that three legs are better than four, based on sound geometrical evidence. Although this is true, four legs can work just as well and allow better weight distribution, leaving the back of the components free. The so-called third leg will do fine if placed on the side (as in the TNT Flexi design), although producing an unequal weight distribution, but if it is placed at the back (as with most commercially available racks), it will disturb cables.

“Inside a drum”
We have already expressed our concern about closed racks and their ability to resonate with the music. There are many solutions, but just one Spider!

“Less is more”

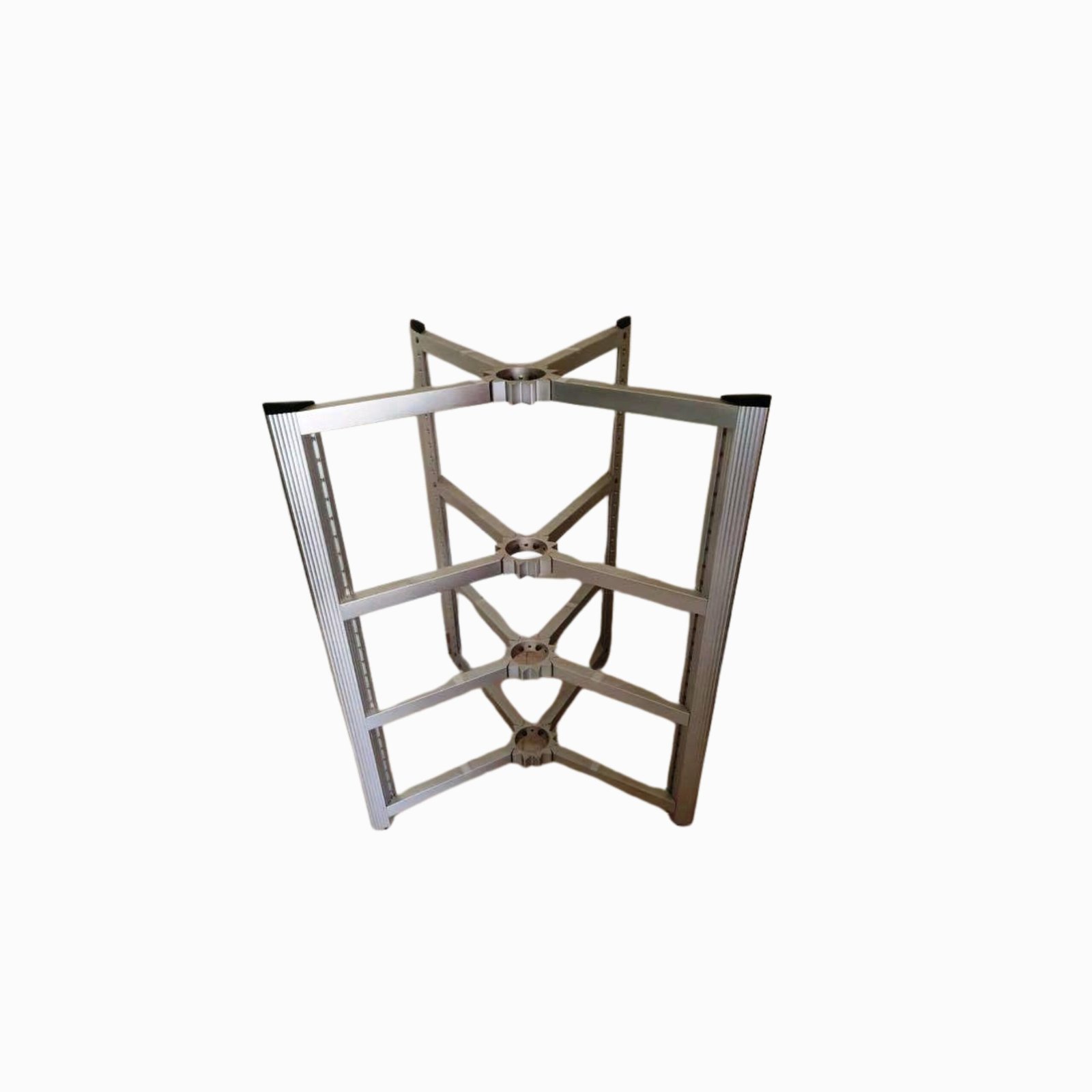

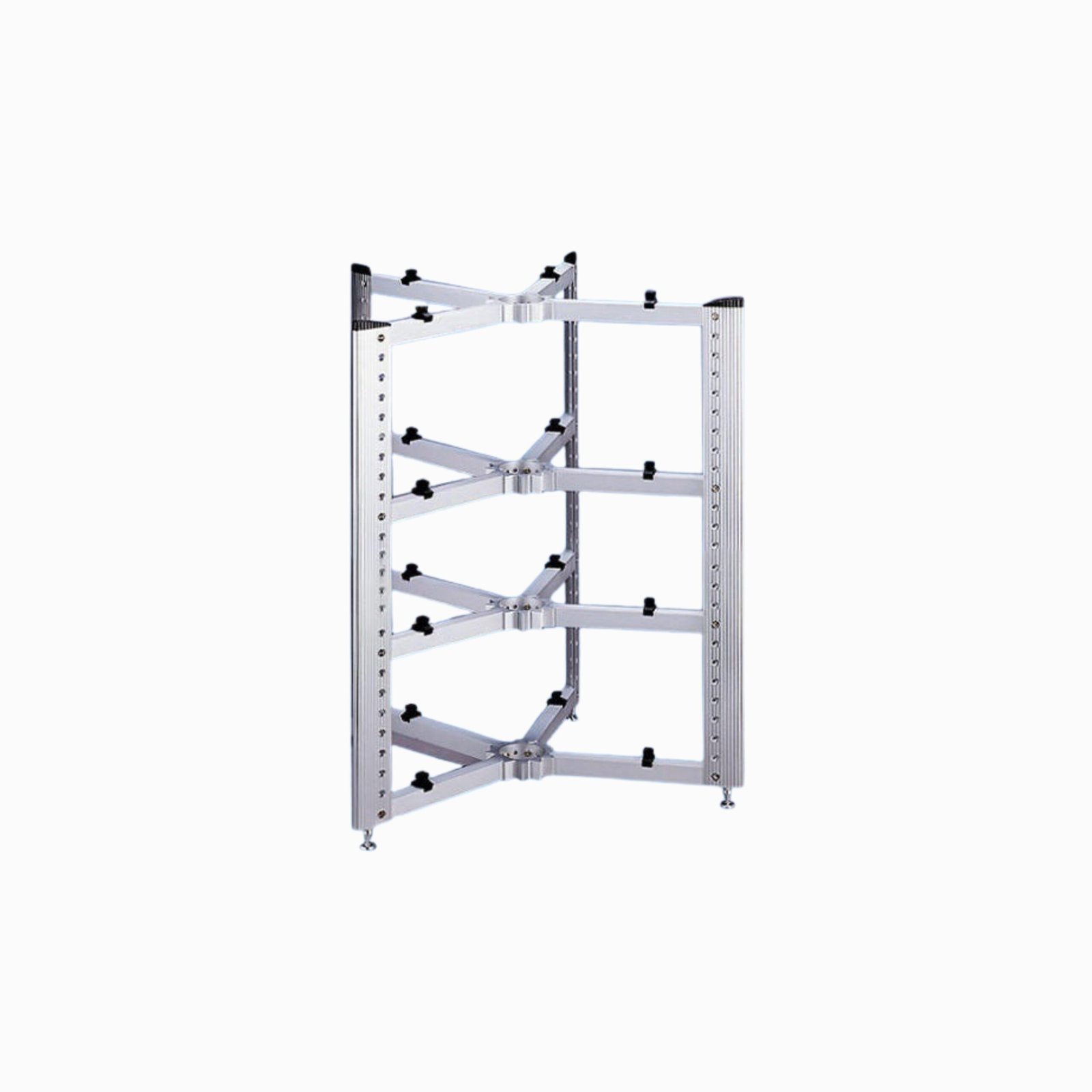

The idea behind the Spider is simple: four legs connected by four arms that come together in the middle, attached to a star-shaped metal crown. There are no separators. Therefore, the closed box effect is avoided at the source. The Spider sits on spikes. Finish is excellent; legs and connecting “star” are in polished alu-look, the connecting arms are in Canadian maple wood and optionally T6063 solid aluminium

Modulus
To understand the Spider, one has to understand the modular concept behind it. Its legs are made

of metal, have an asymmetrical section and holes to connect with the arms (with screws). The holes are at regular intervals and allow very flexible placement of the arms, depending on the size of the HiFi components. If you have a Spider with 60cm legs (!), you can place a number of components depending on their size. If you were to change any of these, you could easily readjust
the spider to the new measurements.
At one end of the leg, spikes can be connected. The other end can be connected to another leg element with a robust connector. This can go on forever until you have the desired leg length. The four arms are simply wooden elements that are screwed onto the legs and at the other end to the central star-shaped metal part. And here comes a simple but clever trick. Since the arms are of different lengths and can be connected to the central star at different angles, one can actually produce a variable holding surface with different lengths and depths. Any shape and weight can be accommodated, now or in the future. The racks that we know do not allow for this kind of flexibility.

Floating Elements
We never spoke about separating planes because the components are directly placed onto the arms on robust rubber feet. No holding surfaces mean no resonances (at least those due to them…). The overall structure is simple, robust, effective and elegant.

Tips
No separators can become a problem if one component at the bottom of the rack gets very hot (like a big amp), so you may want to add a surface to insulate the component above. We had to do this to protect my CD player. The same is necessary for a turntable on spikes. The Spider can hold up to 50 Kg/level,

Conclusions
The Elemento Spider works like a spider’s web. It looks wonderful, and it completely eliminates closed rack resonances. Its flexibility justifies its price. One can always add an element or modify the structure without having to change everything, while its attractive metal/wooden finish makes the Spider easy to integrate with its surroundings. Several more exotic racks are available, some making use of the most complex antiresonance solutions, and they are often very expensive. The Spider looks like a naked tree which can do one amazing thing: let your precious HiFi sound-machines float into the Music

Dimension: 580mm X 520mm X * 875mm (W * D * H )
Material: aluminium/wood

Weight Capacity – 40 kgs per shelf

Installation Guide
https://soundfoundations.in/wp-content/uploads/elemento-Spider-installation.pdf

The Spider rack reviewed here
http://www.hifi-advice.com/Finite-Elemente-Pagode-vs-Spider-review.html

The product being sold is a four-shelf rack, Frame only, and all shelves are height adjustable – all electronic equipment and shelves shown in the pictures are for visual representation.

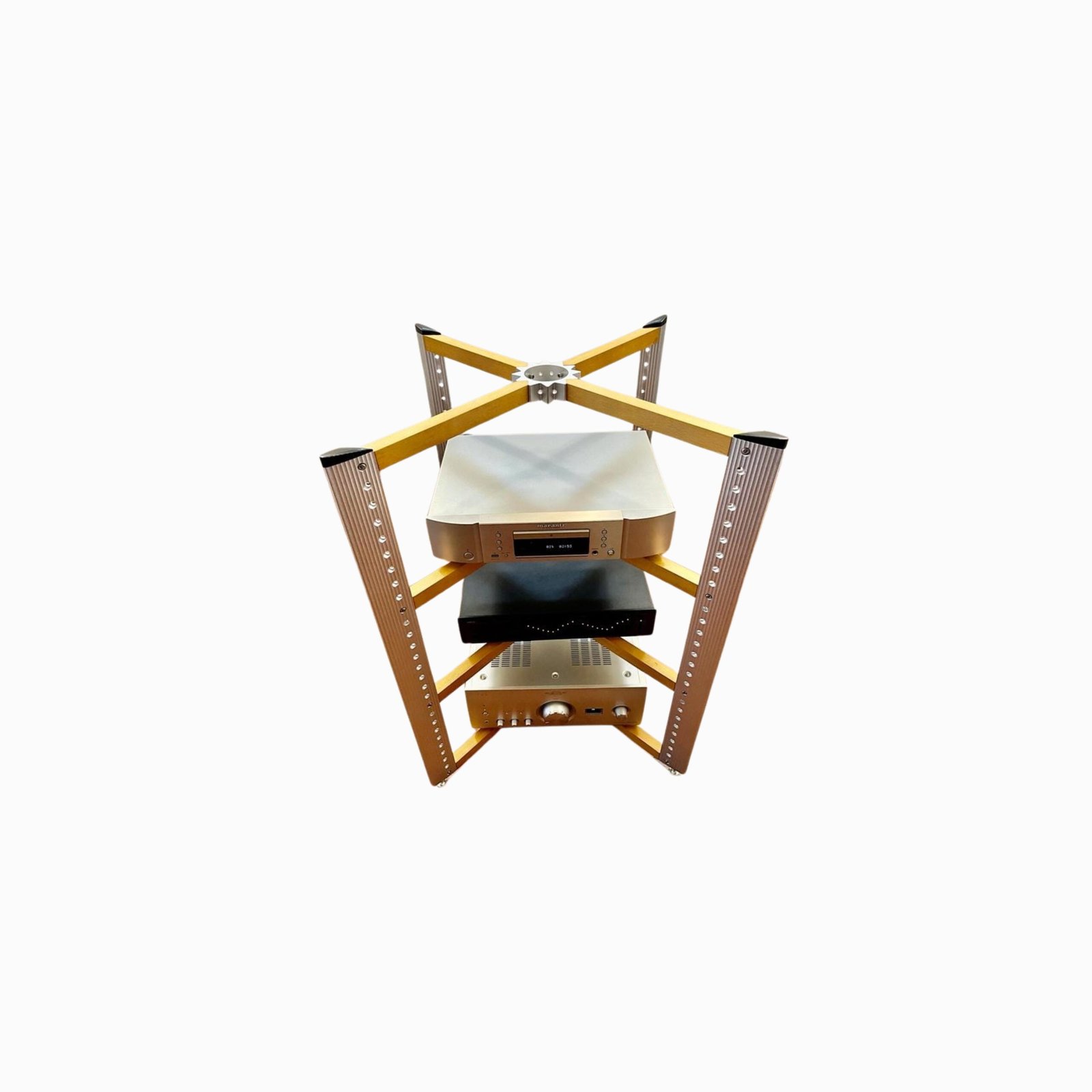

One of the pictures is a three-shelf format- that is to be considered for representational purposes only.

Two Options Are Available – Please select accordingly

Shelves are OPTIONAL – They can be requested or bought additionally if required, in case an enthusiast wants to load a turntable or wants to place two small equipment side by side. Alternatively, one can just buy a Pane of glass locally and plonk it on if need be
