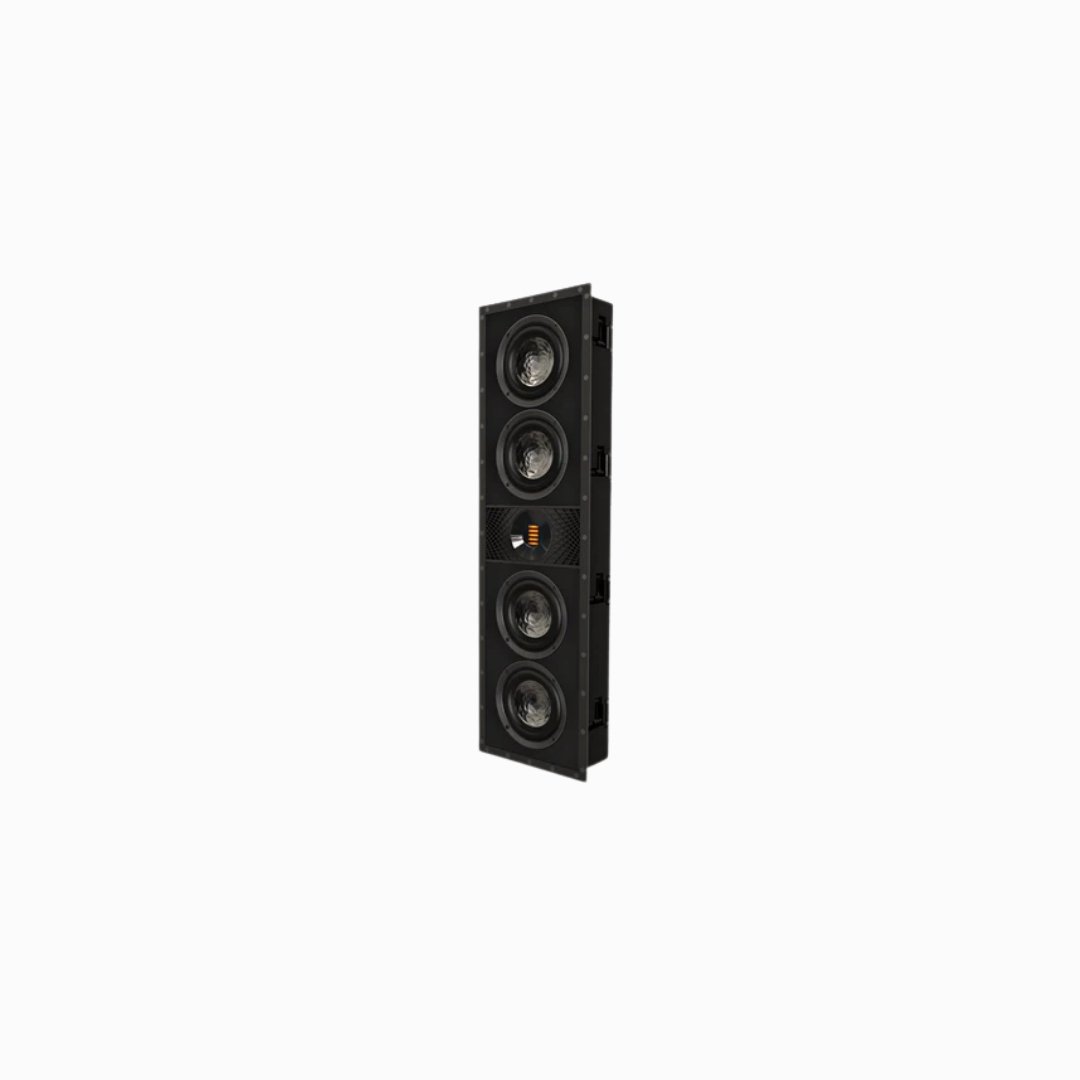

ELAC Vertex III IW-VJ63-M 6″ In-Wall Speaker Crystal Cone JET Folded Ribbon Tweeter D2PR

    • The ELAC Vertex III IW-VJ63-M is an architectural (in-wall) loudspeaker engineered for high performance in custom home theater or stereo setups where space is constrained. It uses ELAC’s high-end driver technologies — notably the JET “Folded Ribbon” (air-motion-transformer) tweeter for extremely fast, detailed high frequencies, paired with “Crystal Membrane” aluminum-sandwich cone woofers for stable, accurate mid-bass behaviour.

      Although it’s built to mount flush into a wall, it retains much of the character of full-sized ELAC floor/stand speakers — meaning strong dynamics, clarity, and integration with premium systems. The “M” designation (Medium) indicates a mid-sized variant in the IW-VJ63 series (which includes “S” for small, “M” medium, and “L” large). The sealed enclosure (or side/floor open version, depending on model) helps reduce sound leakage to adjacent rooms, making it more home-friendly in regard to passive sound transmission.

Description

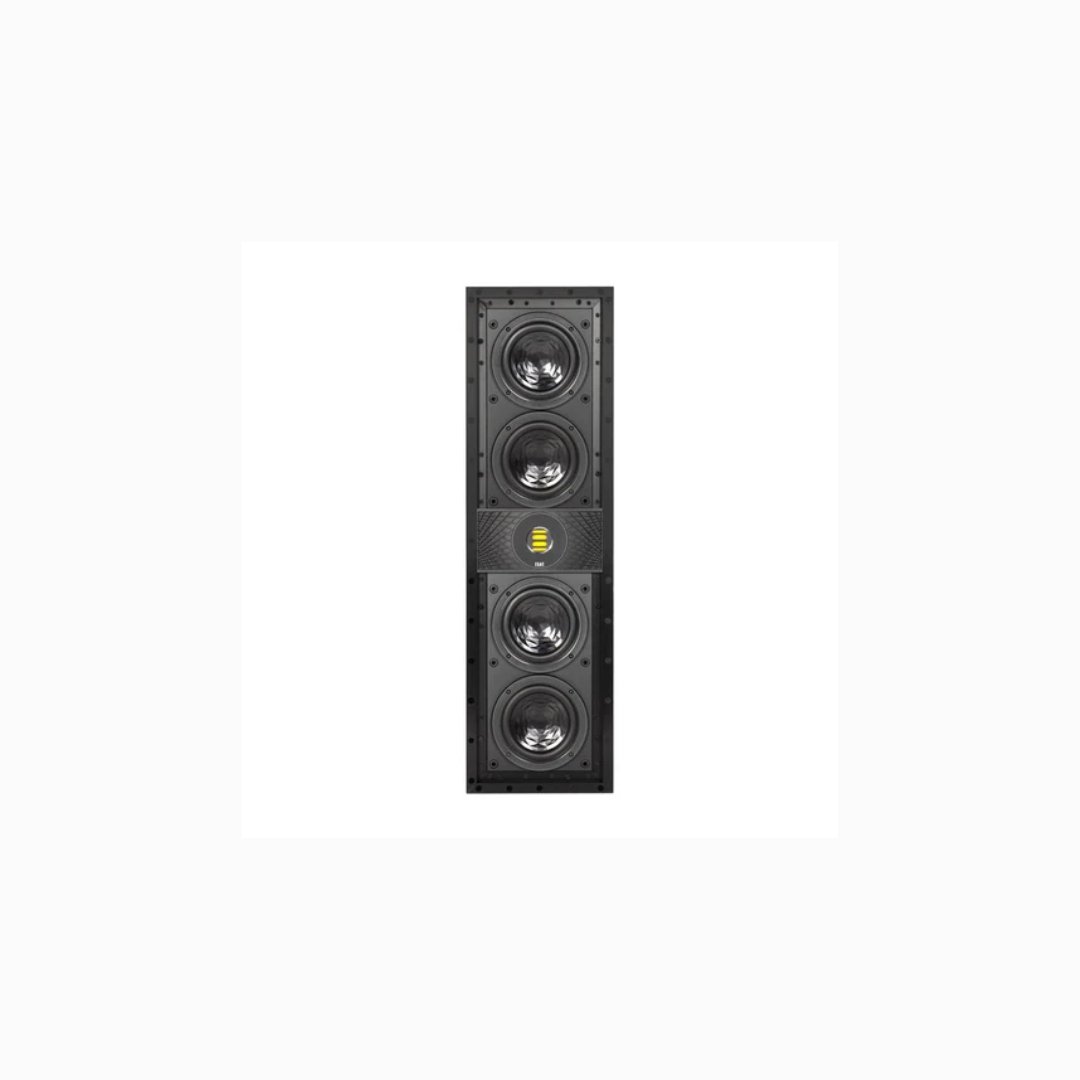

The ELAC IW-VJ63M is an in-wall, ultra-high-quality speaker designed for projects which require high-definition sound. They feature a jet folded ribbon tweeter, (2) active 6″ crystal aluminum sandwich cone woofer, and (2) 6″ crystal aluminum sandwich cone passive radiator to assist with lower bass response.
ELAC is one of the oldest audio manufacturers in the world. The company’s philosophy has always been to think beyond the present and focus on the future. It all started on September 1st, 1926, in Kiel, Germany, when Electroacoustic GmbH was founded. The company’s original focus has been on the research of sound transmission in air and water and the development of sonar technology.

Warranty:

3-year manufacturer’s warranty

Technical Specifications:

Enclosure type passive radiator, sealed
Tweeter 1 x Jet Fodled Ribbon Tweeter
Woofer 2 x 6-inch Crystal Aluminum Sandwich Cone
Passive Woofer 2 x 6-inch Crystal Aluminum Sandwich Cone
Crossover frequency 450 / 2,400 Hz
Frequency response 42 to 50,000 Hz
Sensitivity 88 db at 2.83 v/1m
Max power input 160 watts
Nominal impedance 4 Ohms
Binding posts 5-way metal

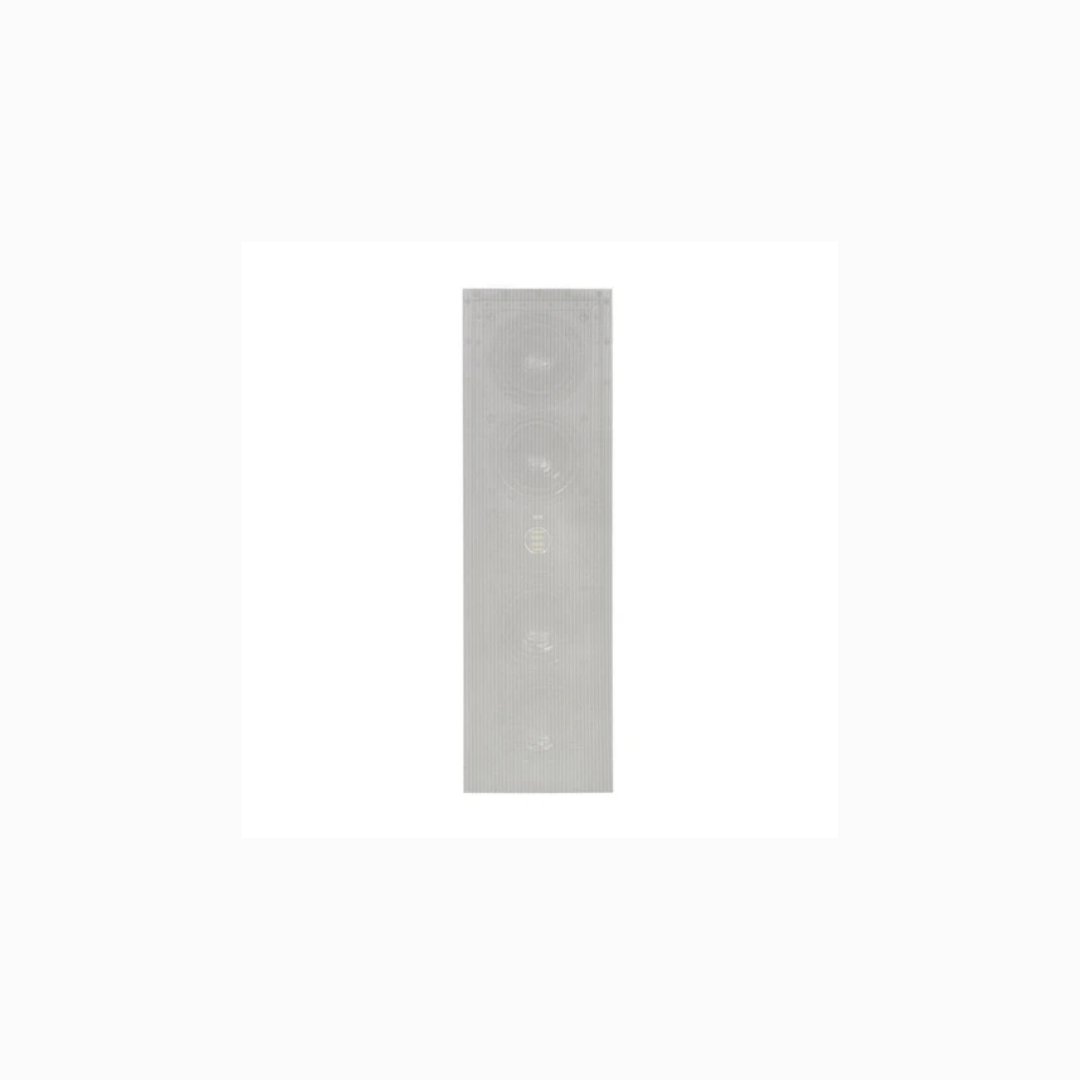

Grille Magnetic White Paintable Grill
Height 33.54″ / 851.91mm
Width 9.76” / 247.90mm
Depth 3.82” / 97.02mm
Cut-out Height 32.68″ / 830.07mm
Cut-out Width 8.9″ / 226.06mm
