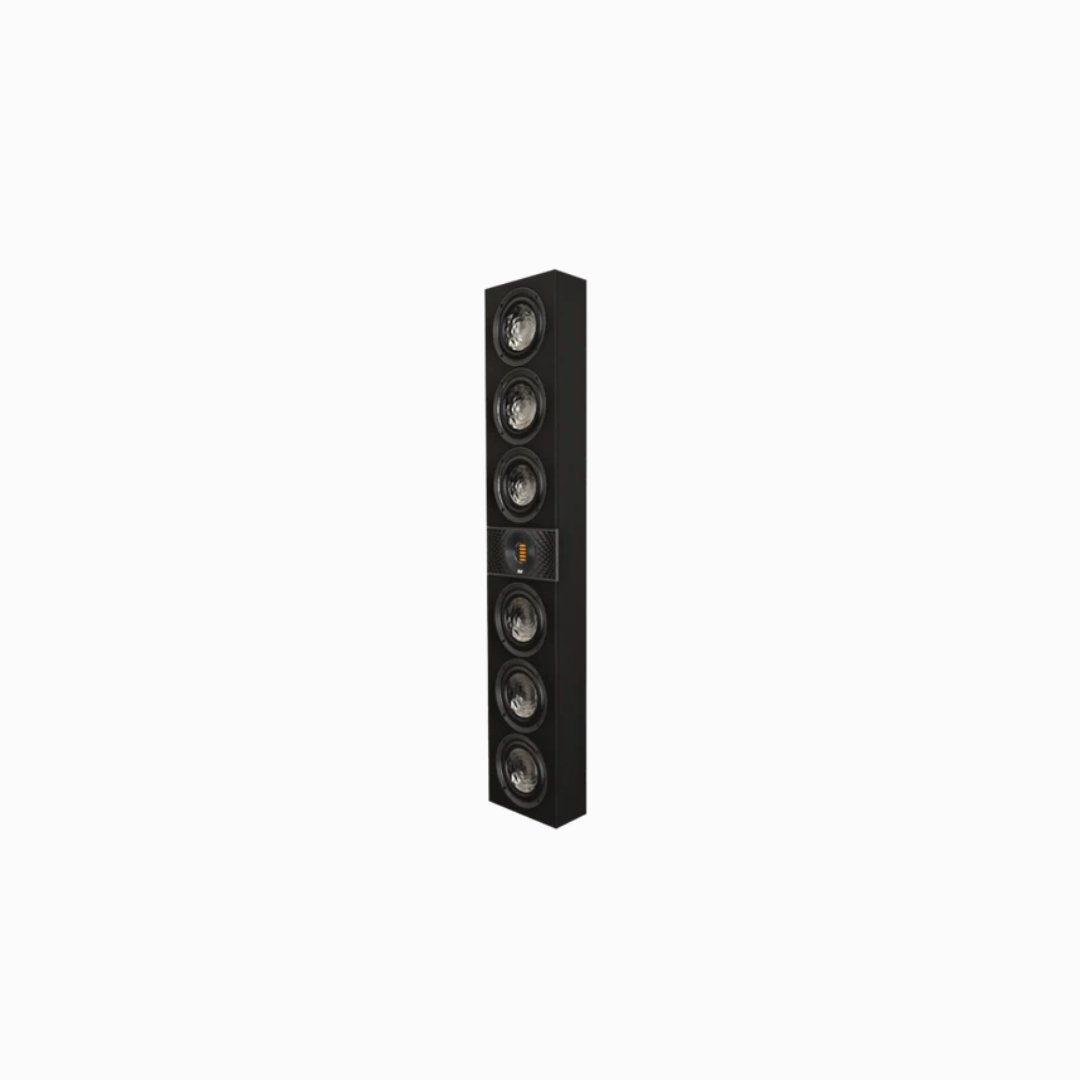

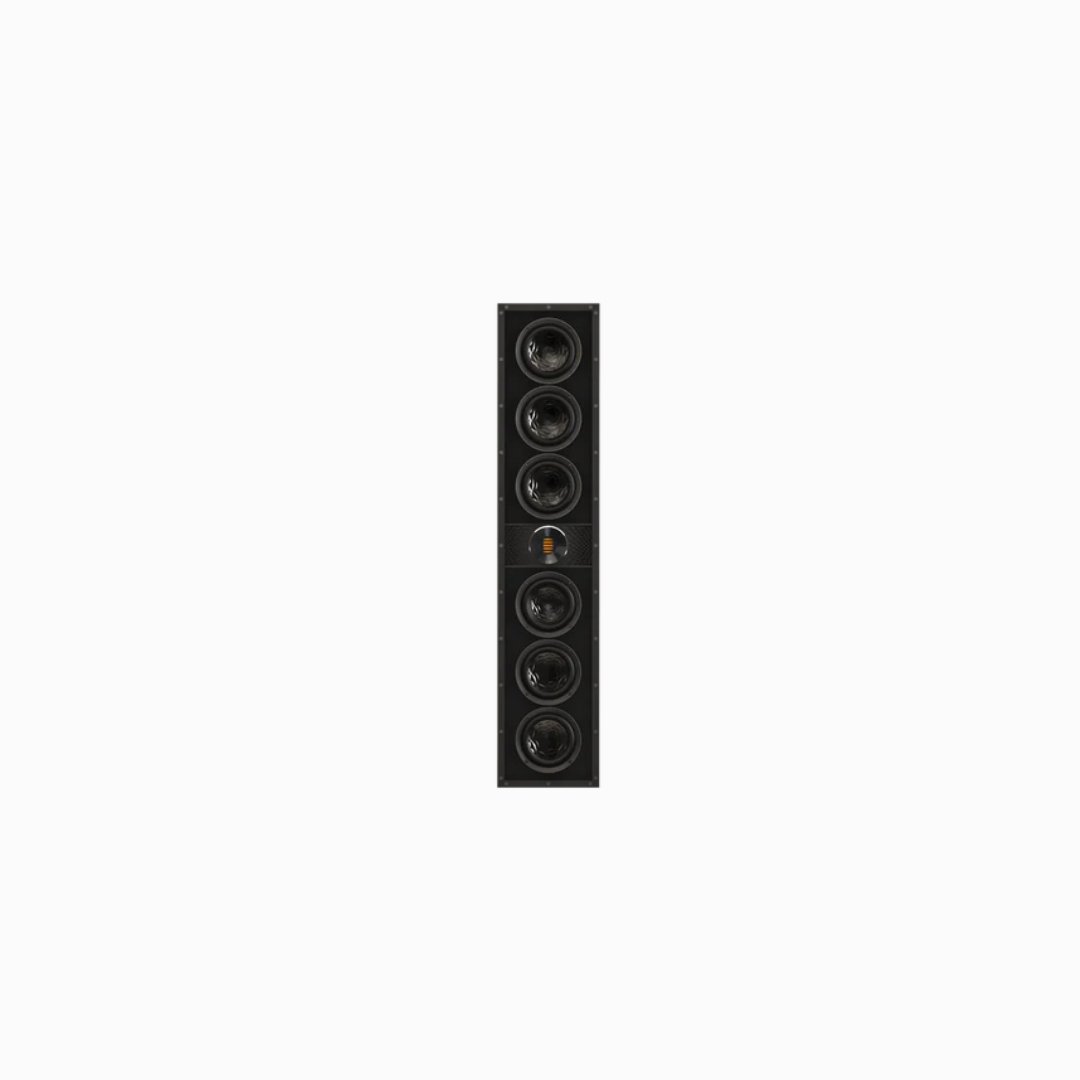

ELAC Vertex III IW-VJ63-L 6″ In-Wall Speaker Crystal Cone JET Folded Ribbon Tweeter 2D4PR

    • The ELAC Vertex III IW-VJ63-L brings high-fidelity performance into a sleek architectural form-factor by combining ELAC’s advanced driver technologies with a fully sealed in-wall enclosure. The speaker features a JET “Folded Ribbon” (Air Motion Transformer) tweeter mounted in a deep spheroid waveguide for refined directivity and ultra-fast transient response. The mid/bass section uses dual 6″ “Crystal Membrane” aluminum-sandwich cone woofers (active) together with four 6″ passive radiators, allowing the slim cabinet to move much more air and reach impressively deep bass for an in-wall design.

Description

The ELAC IW-VJ63L is an in-wall, ultra-high-quality speaker designed for projects that require high-definition sound. They feature a jet-folded ribbon tweeter, (2) active 6″ crystal aluminum sandwich cone woofer, and (4) 6″ crystal aluminum sandwich cone passive radiator to assist with lower bass response.

Warranty:

3-year manufacturer’s warranty

Technical Specifications:

Enclosure type passive radiator, sealed
Tweeter 1 x Jet Fodled Ribbon Tweeter
Woofer 2 x 6-inch Crystal Aluminum Sandwich Cone
Passive Woofer 4 x 6-inch Crystal Aluminum Sandwich Cone
Crossover frequency 450 / 2,400 Hz
Frequency response 38 to 50,000 Hz
Sensitivity 88 db at 2.83 v/1m
Max power input 160 watts
Nominal impedance 4 Ohms
Binding posts 5-way metal

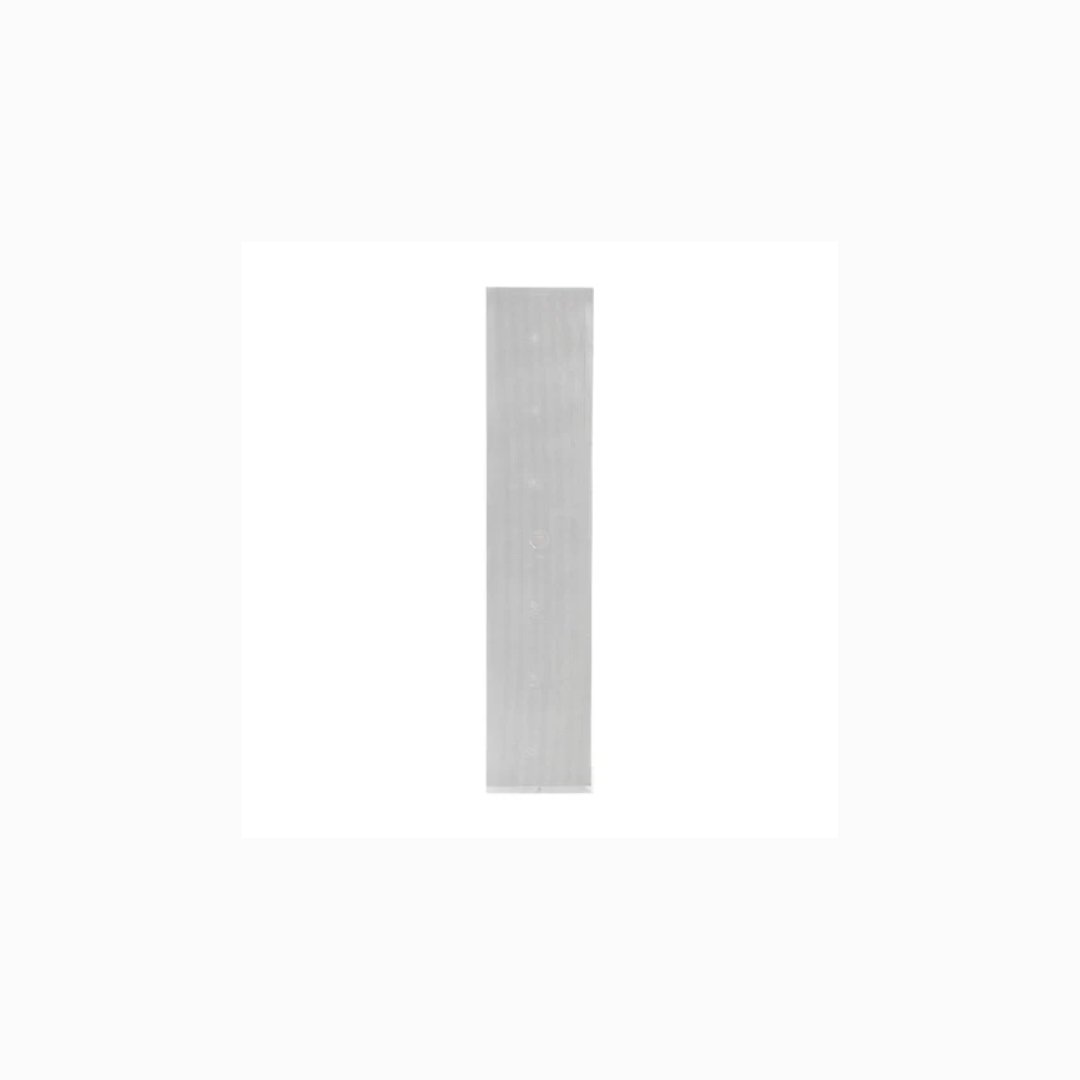

Grille Magnetic White Paintable Grill
Height 46.61″ / 1183.89mm
Width 9.76” / 4.42mm
Depth 3.82” / 1.73mm
Cut-out Height 45.75″ / 20.75mm
Cut-out Width 8.9″ / 226.06mm
