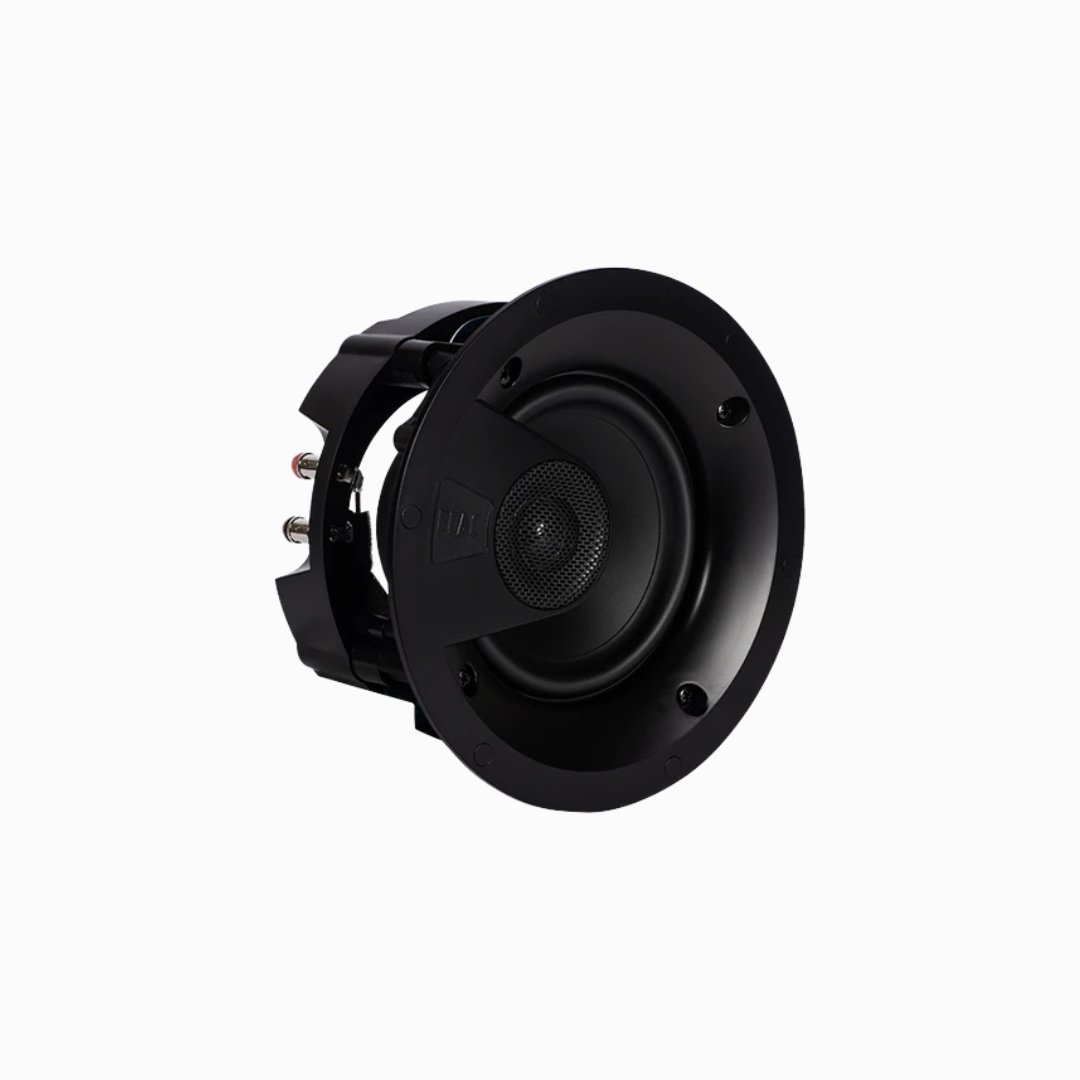

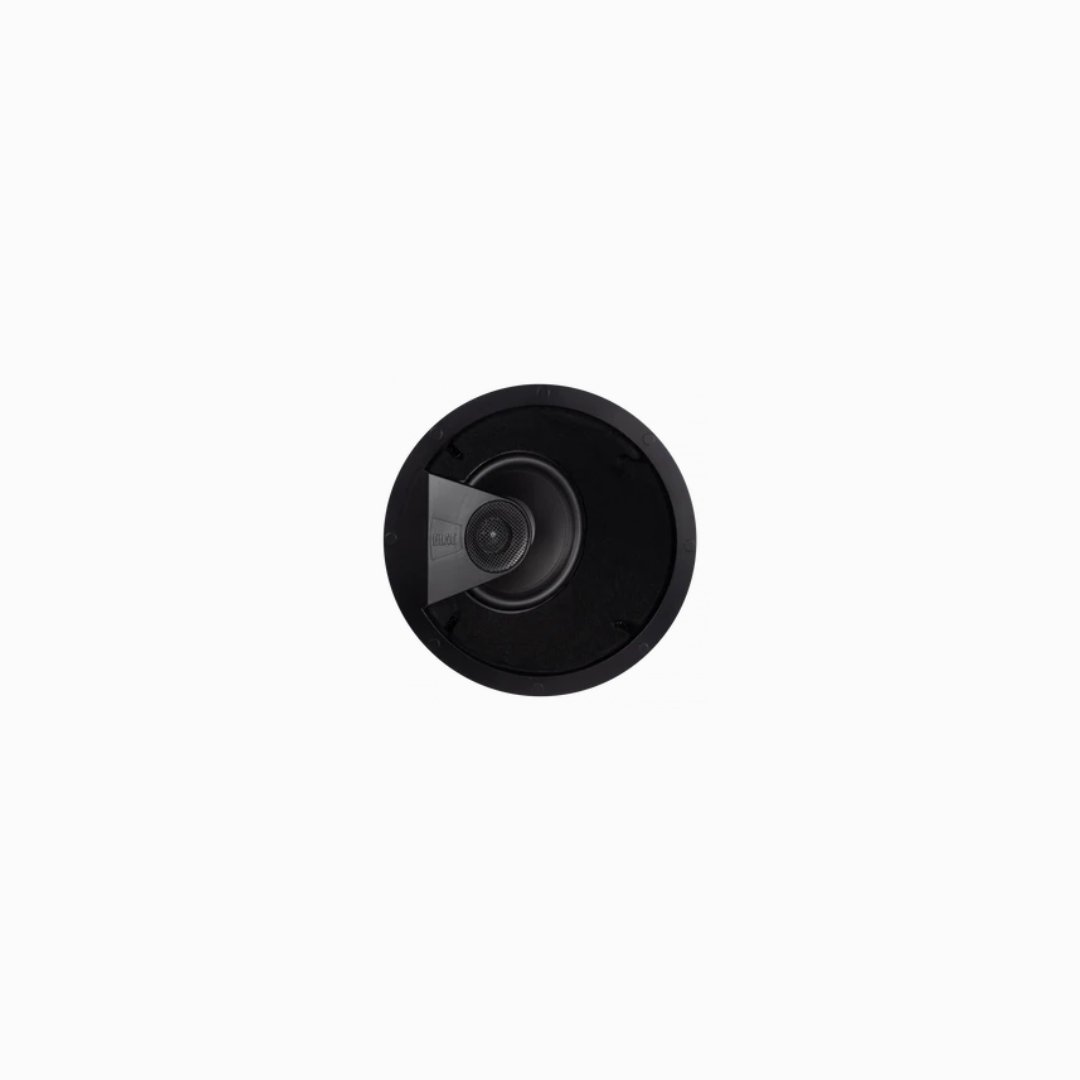

Elac Vertex IC-V61-W 6.5" 50W RMS In-Ceiling Speaker (Each)

The ELAC Vertex IC-V61-W is a high-fidelity in-ceiling loudspeaker from ELAC’s Vertex Series I. It’s designed to deliver clean, musical sound while blending into your ceiling, making it a great option for home theater surround or height channels, distributed audio systems, or living-room audio where you don’t want bulky floor or shelf speakers. It uses a 1″ soft-dome tweeter paired with a 6.5″ polypropylene cone woofer, driven via an audio-grade crossover, to produce smooth highs and solid midrange performance. Its quoted frequency response is 45 Hz to 20 kHz, with sensitivity around 90 dB (2.83 V / 1 m), and it is rated for amplifier power in the 30–120 W range with a nominal impedance of 6 Ω. The grille is magnetic and paintable, so the speaker can virtually disappear in the ceiling, and mounting depth is fairly modest, making installation in many ceilings feasible.

Description

We understand the importance of having audio to enhance a living space, with minimal aesthetic intrusion. With a slim profile, the easily installed Vertex in-ceiling speakers expand the line of our Integrator Series of custom products. Keeping our philosophy of delivering high-end sound, the Vertex series of speakers will complement any conventional floorstanding or bookshelf loudspeaker.

Warranty:

2-year manufacturer’s warranty

Features:

Audiophile-grade 6.5″ 50W (RMS) in-ceiling home theatre speaker
Custom-designed 6.5″ polypropylene cone woofer + 1″ dome tweeter
Heavy-duty metal spring terminals
Designed to blend in for a seamless install

Custom Silk-Dome Tweeter
Custom silk dome tweeters have been developed for low mass and smooth, extended high-frequency response.

Custom-designed Woofers with Polypropylene Cone
Polypropylene is employed due to its improved internal damping and smooth high-frequency roll-off.

Intricate Crossover
A custom multi-element crossover with audio-grade components is implemented to ensure a smooth transition between the drivers.

Technical Specifications:

Speaker Type	2-way, rear side open
Tweeter	1 x 1-inch soft dome
Woofer	1 x 6.5-inch polypropylene cone
Crossover frequency	3,000 Hz
Frequency response	45 to 20,000 Hz
Sensitivity	90 dB at 2.83 v/1m
Recommended amplifier power	30 to 120 wpc
Nominal/peak power handling	50/120 wpc
Nominal Impedance	6 Ohm
Binding posts	Heavy-duty metal spring terminals
Finish	Black baffle/White grille
Grille	Metal magnetic / Paintable
Accessories included	Cutout template, manual
Dimensions (diameter)	9.31 in / 236.5 mm
Cut-out (diameter)	8.11 in / 206 mm
Mounting depth	4.37 in / 111 mm
