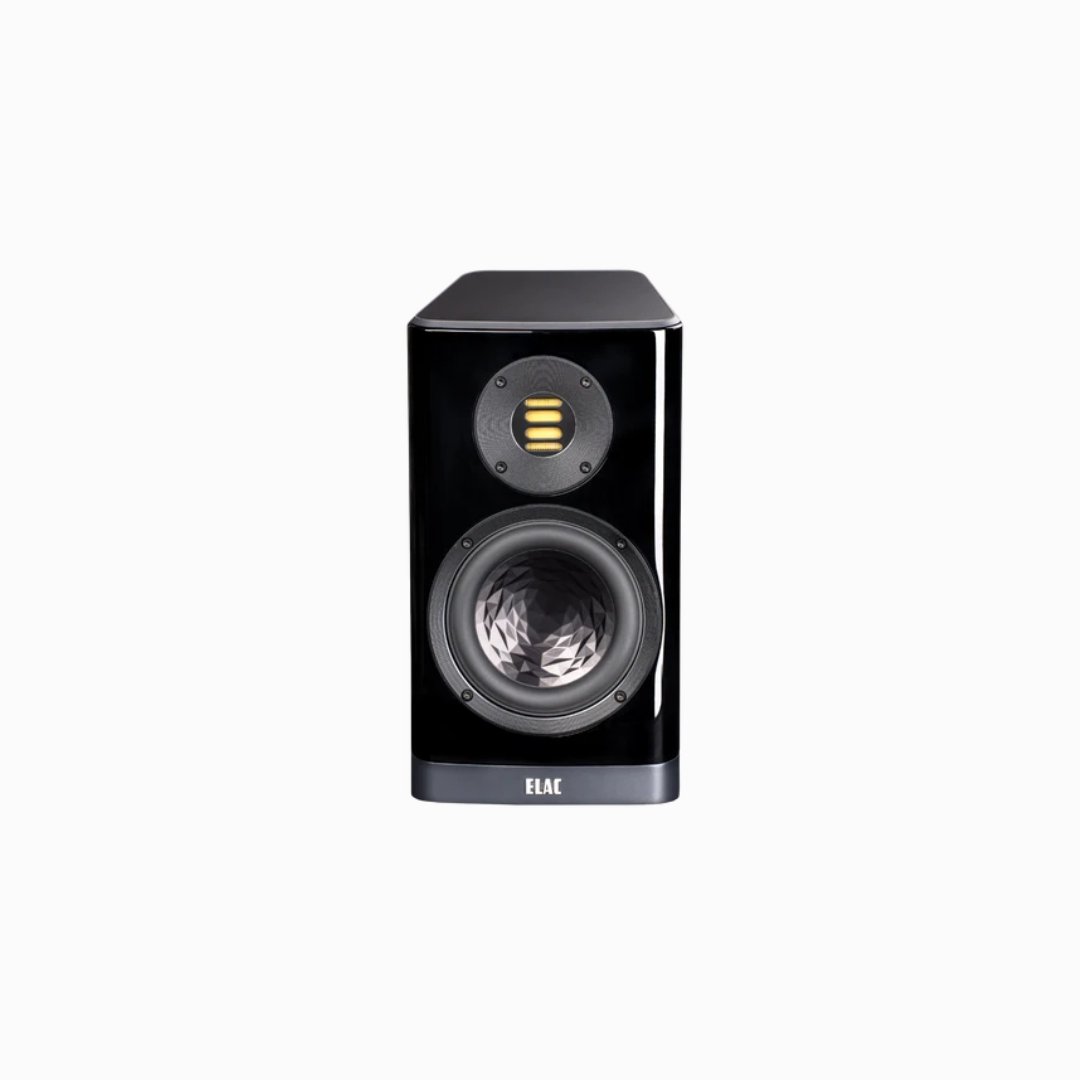

ELAC Vela VBS403 Bookshelf Speakers

The ELAC Vela BS403 is a finely crafted 2-way bookshelf loudspeaker that combines high-end driver technology with elegant cabinet design. It features a 150 mm (≈ 5.9″) AS-XR aluminium-sandwich woofer paired with the acclaimed JET 5 ribbon tweeter, which offers exceptionally wide bandwidth and fast transient response. elac.com+2B&H Photo Video+2 The down-firing bass reflex port is integrated into a precision-machined aluminum base, allowing flexible placement while maintaining solid low-frequency performance. Audio Warehouse+1 With a frequency response of approximately 41 Hz to 50 kHz, a sensitivity of 86 dB (2.83 V/1 m) and nominal impedance of 4 Ω (with dips to ~3.2 Ω), it is designed to pair with quality amplification in the ~40-200 W/channel range. ProHiFi India The cabinet is styled with high-gloss lacquer or veneer finishes (Black, White, Walnut) and a compact form (≈ 362 × 191 × 240 mm, ≈ 7.1 kg each), making it suitable for bookshelf or stand-mount use while offering audiophile-grade performance.

Description

A complex design: high-class lacquered and wooden veneered cabinets, which have a trapezoid shape and are angled rearward.

The design catches eyes but conduces acoustics, too. The sound of VELA shows its family background in the successful series 400. But the advantages are distinct. The angling of the cabinet in combination with the new wave-guide of the JET tweeter improves the definition of stereo and multi-channel audio in modern furnishing. But there are more than the obvious changes. For example, the optimized drivers are able to reproduce high-energy transients more precisely.

Warranty:

3 years manufacturer’s warranty

Features:

40 to 200W Recommended Amplifier Power
2-Way Speaker Design
5.9″ AS XR Cone Woofer
JET 5-Folded-Ribbon Tweeter
41 Hz to 50 kHz Frequency Response
Down-Firing Port

Form Supports Function

The convex-shaped baffle and the big radii of the cabinet promote the acoustics because the influences of the cabinet on frequency response are reduced.

Close to Action

The bottom plate is made of aluminum and features a down-firing bass reflex port, which gives advantages in positioning the speaker.

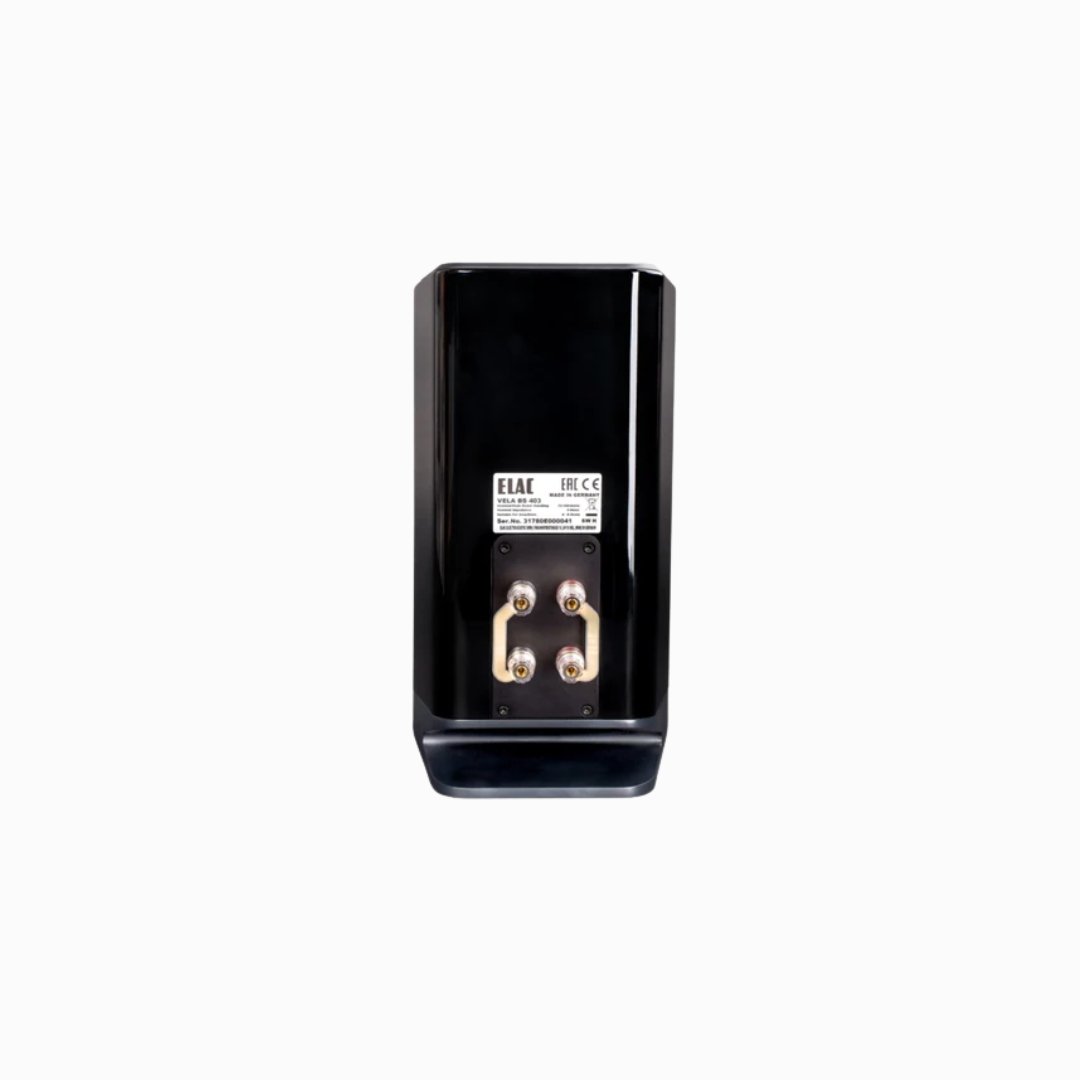

Flexible Connectivity

Thanks to its flexible connections, the Vela series offers the ability to use bi-wiring and bi-amping.

Technical Specifications:

Speaker System
Speaker Configuration	2-Way
Power Handling	70 W RMS 100 W Peak
Recommended Amplifier Power	40 to 200 W per Channel
Bi-Amp Capability	Yes
Drivers	1 x Folded Ribbon Tweeter (per Speaker) 1 x 5.91″ / 150 mm Cone Woofer (per Speaker)
Enclosure Type	Bass-Reflex
Ports	1 x Down-Firing (per Speaker)
Frequency Response	41 Hz to 50 kHz
Impedance	4 Ohms
Wired I/O	2 x Binding Post Pair Input
Crossover	2.4 kHz
Sensitivity	86 dB
Physical
Placement & Mounting Options	Tabletop/Bookshelf
Dimensions	7.5 x 14.3 x 9.4″ / 191 x 362 x 240 mm (Each)
Weight	15.7 lb / 7.1 kg (Each)
