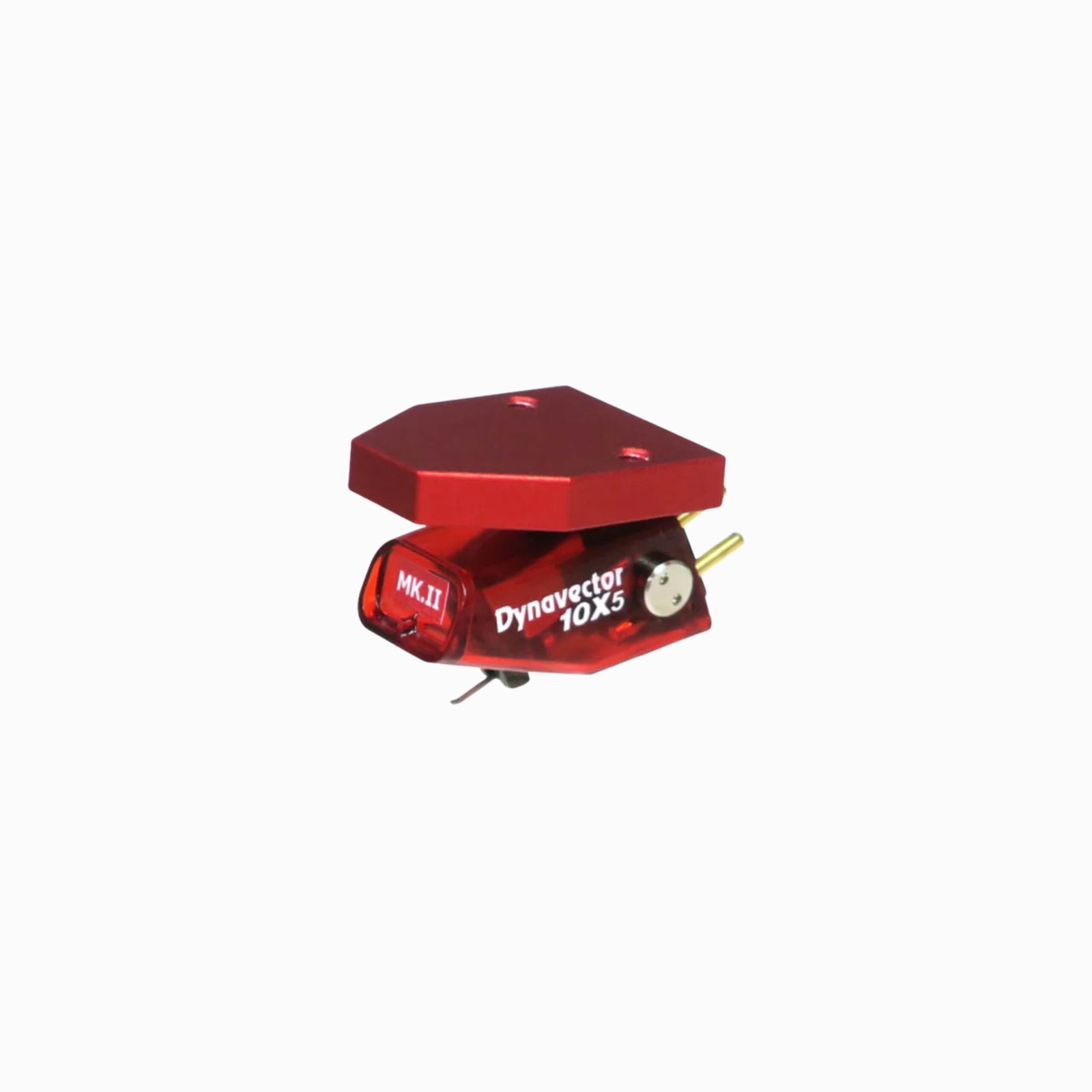

Dynavector DV-10X5 MKII MC Cartridge With Aluminium Cantilever

Key Features

High-Output Moving-Coil Design

  • Output of approximately 2.8 mV.

  • Works with most MM or high-output MC phono inputs.

  • Provides the clarity, detail, and dynamics typical of MC cartridges.

Aluminium Cantilever

  • Equipped with a 6 mm hardened aluminium pipe cantilever.

  • Enhances rigidity and ensures precise groove tracking.

  • Improves transient response and accuracy.

Shibata III Stylus

  • Nude diamond Shibata III line-contact stylus.

  • Maximizes groove contact and retrieves high levels of detail.

  • Excellent tracking on inner grooves and older records.

Flux-Damper & Softened-Magnetism Technology

  • Reduces magnetic distortion and ensures smoother signal generation.

  • Provides cleaner, more natural sound reproduction.

Rigid Aluminium Body

  • Cartridge body made from solid aluminium alloy.

  • Minimizes resonance for improved clarity and tighter imaging.

Description

Dynavector DV-10X5 MKII – MC Cartridge with Aluminium Cantilever

High-Output Moving Coil Design
Features a high-output MC configuration, allowing use with most MM phono stages while still offering the speed and detail of moving coil technology.

Aluminium Cantilever Construction
Precision aluminium cantilever provides excellent rigidity and low mass for accurate groove tracking and reduced distortion.

Advanced Stylus Profile
Equipped with a finely polished stylus designed to trace record grooves with high accuracy, revealing fine musical detail and texture.

Wide Compatibility with Tonearms
Medium compliance design makes it suitable for a wide range of tonearms, from many popular mid to high-end turntables.

Rich, Dynamic Sound Signature
Tuned for a musical and engaging presentation, combining solid bass, open midrange, and smooth, extended highs.

Low Noise & Channel Separation
Engineered for excellent channel balance and separation, resulting in a spacious stereo image and quiet backgrounds.

Ideal Upgrade from MM Cartridges
Perfect for vinyl enthusiasts looking to step up from moving magnet designs into moving coil performance without needing a dedicated low-output MC stage.

Robust Build Quality
Solid body construction and carefully assembled internals ensure durability and consistent performance over many hours of listening.



Specification Details
Type High-output Moving Coil (MC) with flux damper & softened magnetism
Output Voltage 2.8 mV @ 1 kHz, 5 cm/s
Channel Separation 25 dB @ 1 kHz
Channel Balance 1.0 dB @ 1 kHz
Frequency Response 20 – 20,000 Hz (±2 dB)
Compliance 12 mm/N
Tracking Force 1.8 – 2.2 g
Impedance 150 Ω
Recommended Load Impedance > 1000 Ω
Cantilever 6 mm hardened aluminium pipe
Stylus Tip Nude Diamond “Shibata III” Line Contact
Weight 7.5 g
