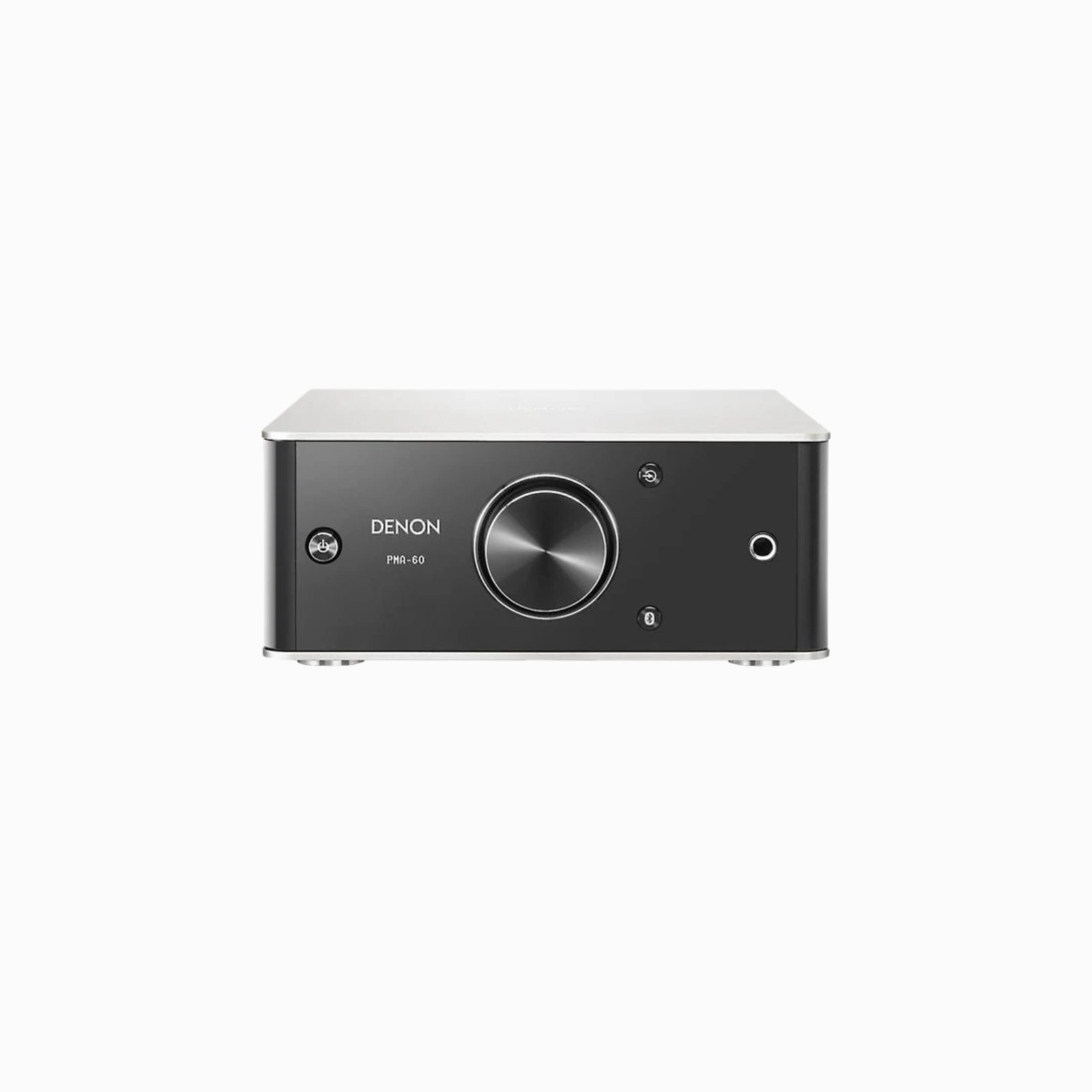

Denon PMA-60 - Digital Integrated Stereo Amplifier (Black)

Key Features

Power & Amplification

  • Compact, high-current digital amplifier design for clean, dynamic stereo power

  • Delivers reliable output suitable for efficient bookshelf and floor-standing speakers

  • Stable drive into a variety of speaker loads for flexible pairing

Built-In DAC & Digital Connectivity

  • Integrated high-resolution DAC for clear, detailed digital music playback

  • USB-B input for direct connection to computers and digital audio sources

  • Optical and coaxial digital inputs for CD players, streamers, and other digital devices

  • Digital audio processing optimized for natural, low-distortion sound

Analog Inputs & Controls

  • Multiple analog line-level inputs for versatile source connection

  • Front-panel volume and source controls for easy listening adjustments

Design & Build

  • Sleek, compact chassis with a minimalist aesthetic in black finish

  • User-friendly front panel layout with clear display and intuitive controls

Application

  • Ideal for desktop audio systems, small living rooms, and space-constrained setups

  • Suited for digital music playback from computers, streamers, TVs, and portable devices

  • Pairs well with bookshelf speakers for crisp, detailed stereo performance

Description

  • Enjoy high-resolution stereo sound with the Denon PMA-60 Digital Integrated Stereo Amplifier. The unit features a Class-D amplifier section that incorporates Qualcomm DDFA technology to produce a nuanced yet powerful sound with up to 25W of power per channel at 8 Ohms. When connected to a Mac or Windows computer via the USB-DAC port, the integrated DAC utilizes Advanced AL32 digital audio processing to playback PCM files up to 384 kHz/32-bit, with enhanced dynamic range and improved resolution at low levels.



    Amplifier

    Configuration 2-channel
    Type Class-D, with Qualcomm DDFA technology
    Power Output 8 Ohms: 25 W + 25 W (1 kHz, T.H.D. 0.1%)
    4 Ohms: 50 W + 50 W (1 kHz, T.H.D. 1.0%)
    Speaker Impedance 4 to 16 Ohms
    Total Harmonic Distortion 0.004% (digital in, rated output -3 dB, 8 Ohms, 1 kHz)
    S/N Ratio 110 dB (digital in, 25 W, 8 Ohms, 1 kHz, IHF-A)
    Digital Input Signal Audio Formats: Digital audio interface (Linear PCM)
    Coaxial Input: 0.5 Vp-p/50 Ohms
    Optical Input: More than -27 dBm
    Wavelength: 660 nm
    Input Sensitivity Aux: 0.13 V, 22 kOhms

    Connectivity

    Audio Inputs Analog Aux Input: 1 x stereo RCA pair (L/R)
    USB-DAC port: 1 x USB Type-B
    Digital Audio: 2 x optical ports and 1 x coaxial port
    Audio Outputs Speaker Terminals: 2 x speaker binding post pairs for bare wires, pin connectors, banana plug connectors
    Subwoofer Terminal (Pre Out): 1 x RCA, for powered subwoofer
    Headphones: 1 x 1/4″ / 6.3 mm jack
    Bluetooth Communication System: Bluetooth version 3.0
    Transmission Power: Maximum 2.5 mW (Class 2)
    Maximum Communication Range: Approximately 32.8′ / 10.0 m in line of sight
    Frequency Band: 2.4 GHz band
    Modulation Method: FHSS (frequency-hopping spread spectrum)
    Supported Profiles: A2DP 1.3, AVRCP 1.5
    Supported Codecs: aptX Low Latency, AAC, SBC
    Supports NFC function
    Other Ports 1 x AC power input

    D/A Converter

    USB DSD (2-Channel)
    Sampling Frequency: 2.8, 5.6, 11.2 MHz
    Bit Length: 1-bit

    Linear PCM (2-Channel)
    Sampling Frequency: 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz
    Bit Length: 16-, 24-, 32-bit

    Coaxial / Optical Linear PCM (2-channel)
    Sampling Frequency: 32, 44.1, 48, 88.2, 96, 176.4, 192 kHz
    Bit Length: 16-, 24-bit

    System Requirements

    Mac Mac OS X 10.10, 10.11
    macOS 10.12
    Windows Windows 7, 8, 8.1, 10
    USB USB 2.0: USB high speed, USB Audio Class version 2.0

    General

    Power Supply 120 VAC, 60 Hz
    Power Consumption Typical: 35 W
    Standby: 0.2 W
    Dimensions 10.2 x 7.9 x 3.4″ / 258.0 x 200.0 x 86.0 mm
    Weight 6.0 lb / 2.7 kg

    Packaging Info

    Package Weight 9.45 lb
    Box Dimensions (LxWxH) 13 x 12.4 x 9.7″
