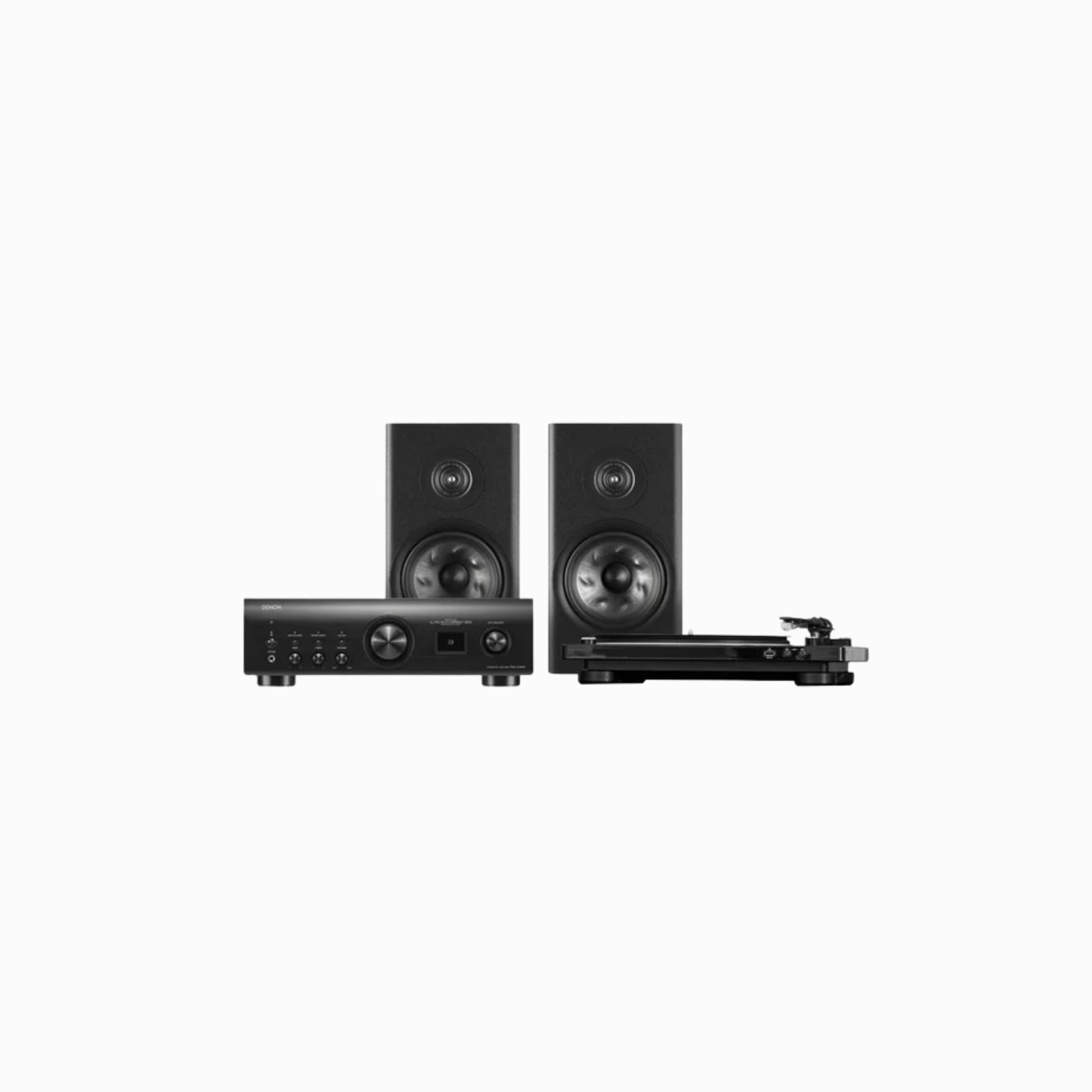

Denon PMA-1700NE Stereo Network Amplifier + Denon DP-450USB Turntable + Polk Audio Reserve R200 Bookshelf Speaker (Stereo Bundle Package)
Category: Bookshelf

Denon PMA-1700NE Stereo Network Amplifier + Denon DP-450USB Turntable + Polk Audio Reserve R200 Bookshelf Speaker (Stereo Bundle Package)

Key Features

Denon PMA-1700NE – Stereo Network Integrated Amplifier

  • Network Streaming: Built-in support for modern streaming protocols and services, making online and network-stored music easily accessible

  • High-Current Design: Strong, stable power delivery for dynamic playback with tight control over speakers

  • High-Resolution DAC: Built-in digital-to-analog conversion for high-resolution digital sources

  • Versatile Inputs: USB-B for computer audio, optical/coaxial digital, and analogue inputs for a wide range of sources

  • Colour Display & Intuitive Controls: Easy setup and navigation of network streaming and source selection

  • Phono EQ: Built-in phono stage lets you connect a turntable directly without a separate preamp

Polk Audio Reserve R200 – Bookshelf Speakers (Pair)

  • Dynamic Balance® Drivers: Carefully designed woofers for nuanced low and midrange response

  • Tuned Port® Technology: Improves bass extension and power handling

  • Turmoil™® Tweeter: Smooth, detailed treble with wide dispersion

  • Solid Enclosure: Reduces cabinet resonance for cleaner sound

  • Versatile Placement: Works well on stands, shelves, or desktops

Ask a question
Delivery & Return

Description

Denon PMA-1700NE Stereo Network Amplifier + Denon DP-450USB Turntable + Polk Audio Reserve R200 Bookshelf Speaker (Stereo Bundle Package)

Reserve R200 Platinum System with Denon Hi-Fi Bundle

PREMIUM HI-FI SYSTEM WITH DENON DP-450USB TURNTABLE & DENON PMA-1700NE AMPLIFIER

Get the ultimate compact turntable setup that has both amazing sound and elegance through premium bookshelf speakers, a semi-automatic turntable with USB recording, and a powerful amplifier complete with Bluetooth and key inputs. This bundle includes dual Reserve R200 bookshelf speakers, a Denon DP-450USB turntable, and a Denon PMA-1700NE amplifier.

  • 2.0 channels
  • Denon PMA-1700NE amplifier
  • 1″ Pinnacle Ring Radiator tweeters
  •  Denon D-450USB turntable
  • 6.5″ Turbine Cone woofers
  •  X-Port for deep bass

VINYL SETUP

What better sounds like

Experience all the nuance and detail of your vinyl collection with reference-level Reserve R200 bookshelf speakers, the top-of-the-line Denon DP-450USB turntable, and the ultra-powerful Denon PMA-1700NE amplifier.

Reference quality sound

Pinnacle Ring Radiator Tweeter

The Pinnacle Ring Radiator Tweeter’s distinctive pointed shape guides the dispersion of high-frequency sounds around a room. This innovation widens the sweet spot and allows you freedom to enjoy your music and movies wherever you choose to sit.

Turbine Cone Woofer

Our pioneering turbine design delivers a significant increase in cone rigidity without increasing mass. This innovation means the woofer can move with increased accuracy and speed to deliver enhanced sound resolution, enabling you to experience a breathtaking level of detail in your music and movies.

X-Port

Traditional ported speaker designs increase low- frequency performance, but often mask midrange details due to port resonances. Polk’s proprietary X-Port uses specially tuned eigentone filters to cancel out unwanted resonances. With X-Port, you get the best of both worlds: tight, distortion-free bass and a superbly detailed midrange.

Reserve R200

PREMIUM BOOKSHELF SPEAKERS (PAIR)

As the larger bookshelf speaker in the series, the R200 excels in delivering extra bass power thanks to its 6.5” turbine cone woofer and larger cabinetry. Perfect for listening in a stereo pair, as part of a front stage, or as surround components in a larger system. Named “Bookshelf Loudspeaker of The Year” by The Absolute Sound.

  • Exceptionally impactful bass
  • Beautiful stereo reproduction
  • Smooth midrange and detail
  • Excellent home cinema detail

FLAGSHIP SOUND

What Better Sounds Like

As we get older, we learn what better looks like, feels like, tastes like, and even drives like. But nobody teaches us what better sounds like. Better isn’t best – it’s the road to best.

Reference quality sound

Amazing Sound and Elegance

With understated elegance, the Reserve line has a minimalist design with universal appeal. Inheriting Polk’s flagship transducer array, the R200 produces exceptional sound that rivals competitor speakers that sell for twice the price.

Pinnacle Ring Radiator Tweeter

The Pinnacle Ring Radiator Tweeter’s distinctive pointed shape guides the dispersion of high-frequency sounds around a room. This innovation widens the sweet spot and allows you freedom to enjoy your music and movies wherever you choose to sit.

Turbine Cone Woofer

Our pioneering turbine design delivers a significant increase in cone rigidity without increasing mass. This innovation means the woofer can move with increased accuracy and speed to deliver enhanced sound resolution, enabling you to experience a breathtaking level of detail in your music and movies.

PURE, UNMASKED SOUND

Patented X-Port

Traditional ported speaker designs increase low- frequency performance, but often mask midrange details due to port resonances. Polk’s proprietary X-Port uses specially tuned eigentone filters to cancel out unwanted resonances. With X-Port, you get the best of both worlds: tight, distortion-free bass and a superbly detailed midrange.

DP-450USB

PREMIUM BELT-DRIVEN HI-FI TURNTABLE WITH USB

Give your vinyl collection the precision sound it demands at home, or record via the USB output to transform cherished vinyl tracks into MP3 or WAV file formats and take them with you. With its pre-mounted MM cartridge, built-in phono preamp and carefully engineered tonearm with auto lift and playback stop, the DP-450USB plays back your entire vinyl collection in pristine quality, from vintage finds to the latest releases—all with trusted Denon sound quality.

  • Reference sound
  • Built-in phono pre-amp
  • Belt-driven
  • USB direct recording
  • Semi-automatic operation
  • MM cartridge

Create Digital Files of Vinyl Records

Integrated USB-A output allows for one-touch recording of your favorite vinyl records onto a USB drive as MP3 or WAV format files. Play your albums on the DP-450USB or record and take them with you to enjoy trusted Denon sound wherever you go.

Easy Setup and Operation

Takes minutes to unbox and quickly operate for novice and seasoned vinyl fans. Plug the DP-450USB into your favorite amplifier or system and immediately begin reconnecting with your vinyl collection – it’s that easy.

Speed Selector

Supports playback at 33 1/3 rpm, 45 rpm, and 78 rpm. Easily play your entire vinyl collection and enjoy its full breadth – even your cherished, vintage 78’s.

PMA-1700NE

2 CH. 140W INTEGRATED AMPLIFIER WITH USB-DAC

Featuring advanced ultra-high current single push-pull circuit power, Advanced AL32 Processing, and MM/MC phono equalizer, the Denon PMA-1700NE integrated amplifier delivers extraordinary sound quality with precise detail.

  • Stereo amplifier
  • AL32 Processing
  • Precise electrical controls
  • 70W per channel (8 ohms)
  • USB-DAC
  • MM/MC phono

Discover an amplifier that delivers sound you can feel

Wide bandwidth captures everything from deep bass to detailed highs.

Powerful & faithful amplification

Powerful sound from an integrated amplifier

Engineered with premium Denon technologies, this amplifier drives two channels at 140W.

Faithful audio reproduction

Advanced AL32 Processing Plus delivers the richly detailed sound the artist intended.

Build integrity with selected components

With more than 110 years of audio excellence, Denon products are built to last.



Specifications

Reserve R200

SPECIFICATION

Speaker Type
 Standmount
UOM (Sold As)
 Pair

TRANSDUCER

Tweeter
 1″ Pinnacle Ring Radiator
Mid-range/Mid-bass
 –
Woofers
 6 ½” Turbine Cone
Overall Frequency Response
 39Hz – 50kHz
Frequency Response (-3dB limits)
 51Hz – 38kHz
Recommended Amplifier Power
 30 – 200W
Amplifier Output Compatibility
 8Ω / 6Ω / 4Ω
Minimum Impedance (ohms)
 3.8Ω
Sensitivity (2.83V/1m)
 86dB

CROSSOVER

Tweeter/Mid-range Crossover Frequency
 3000
Mid-range/Mid-bass Crossover Frequency
 –

MEASUREMENTS

Product Dims W x H x D (Includes width of feet)
 190 x 359 x 353.8mm
7.5 x 14.1 x 13.9 in
Product Weight (each)
 19.1 lbs/8.7 kg
Shipping Weight
 43.4 lbs/19.7 kg

CABINETRY

New CRC (Mid-Range Enclosure Type)
 –
Mid-Bass / Woofer Enclosure Type
 Rear X-Port
Available Finishes
 Black/Walnut
Feet
 Rubber pads
Wall-Mountable (keyhole slots)
 No
Binding Posts: Nickel-plated 5-Way
 Single

CERTIFICATIONS NON-SAFETY AND REGULATORY

Hi-Res Certified
 Yes
IMAX Certified
 No
Shipping Dims (WxHxD)
 533 x 448 x 452mm
(21 x 17.6 x 17.8) in

DP-450USB

FEATURES

Motor: AC / DC
 No / Yes
Drive System: Belt / Direct
 Yes / No
Bearing: Ceramic / Metal
 No / Yes
S-Type tonearm
 Yes
Operation: Automatic / Manual
 No / Yes
Speed: 33-1/3 & 45 RPM
 Yes / Yes
Wow & flutter
 0.10 % (WRMS)
Phono EQ built in (switchable)
 Yes
Stylus (MM / MC)
 Yes / No
Stylus version
 DSN-85
Belt Rubber Silicon
 Yes / No
Dust Cover Included
 Yes
Power Cord Built-In / Removable
 Yes / No
Tone Arm Style
 Static balanced type

SPECIFICATIONS

Rated Output
 2.5 mV / 1 kHz
Frequency Range
 20 Hz – 20 kHz
S/N ratio
 62dB
Rated Output Phono EQ
 150 mV / 1 kHz
Frequency Range Phono EQ
 20 Hz – 20 kHz

INPUTS OUTPUTS

Phono (MM) In
 Yes
RCA Output
 Yes
USB Input / Output
 Yes / Yes
USB Functions
 Music Recording (Software Included)

GENERAL

Available colors: Premium Silver / Black
 No / Yes
Maximum Dimensions (W x D x H) in inches
 16.2 x 13.7 x 5.2
Weight in LBS
 12.4
Carton Maximum Dimensions (W x D x H) in Inches
 20.1 x 10.2 x 17.2
Carton Weight (inc. product) in LBS
 17 lbs

PMA-1700NE

GENERAL

Unit (W x D x H)
 434 x 410 x 135mm
17.1 x 16.1 x 5.3in
Cabinet Size (W x D x H)
 434 x 374 x 135mm
17.1 x 14.7 x 5.3in
Net weight
 17.6kg
38.8lb
Packaging Dimensions (W x D x H)
 548 x 520 x 249mm
21.6 x 20.5 x 9.8in
Packaging gross weight
 20.4kg
45lb
Carton Color
 2 Color
Cushion / Packing
 4 Separate / Sheet
Panel Color
 SP / BK
Front (Center) Panel
 Aluminum
Side cover
 SECC with 4 straight emboss
Side screw
 SP: Nickel / BK: Black
Rear Panel
 SECC t1.0mm
Chassis Material
 SECC t1.2mm
Bottom Layer
 Single
Volume Knob
 Aluminum
Input Selector
 Aluminum
Bass/Treble/Balance/ Phono Sel knobs
 Aluminum
Power button
 Aluminum
Other knob/button (LOUDNESS, SOURCE DIRECT, etc)
 Mold (Source Direct, Analog Mode, MM/MC)
Foot
 ABS resin with rigid rib
w/Hot stamp
(H: 20mm)
Heatsink for Power Amplifier
 Extruded Aluminum

SPECIFICATIONS

Rated Output Power
 70W + 70W
(8ohm,20Hz-20kHz,THD0.07%)
140W + 140W
(4ohm, 1kHz, THD0.7%)
Speaker Impedance
 A or B : 4 ~ 16ohm
A + B : 8 ~ 16ohm
Frequency Response
 5Hz – 100kHz (0~ -3dB)
Total Harmonic Distortion
 0.01 % (Rated output: –3 dB),
8 ohm/ohms, 1 kHz
Dumping Factor
 100 and over
Input Sensitivity: Phono input
 MM: 2.5 mV / 47 kohm
MC: 200
RIAA Deviation
 20 Hz – 20 kHz ±0.5 dB (MM/MC)
Phono Maximum Input
 MM : 130mV / 1kHz
MC : 10mV / 1kHz
Input Sensitivity: CD/LINE/RECORDER
 125 mV / 19 kohm
Input Sensitivity: Power Amp input
 0.85V / 47kohm (EXT. PRE)
Signal to Noise Ratio
 PHONO (MM): (89dB)
PHONO (MC): (74dB)
CD: (107dB)
Tone Control
 BASS : 100Hz ±8dB
TREBLE : 10kHz ±8dB
Power Consumption
 295W
at Standby
 0.2W TV autoplay off
0.4W TV autoplay on

AUDIO FEATURE

Power Amplifier Circuit
 New UHC-MOS
Single Push Pull (7)
Power Trans
 Dual El Core
Pre Amplifier Circuit
 Variable Gain Preamplifier
(OP AMP)
Volume
 Electric
(MUSES 72323)
Bass / Treble / Mid / Balance Control
 Yes / Yes / No / Yes
Type of Tone Control
 Electric
Controlled by Potentiometer
Headphone Circuit
 Use Poweramplifier
Source Direct
 Yes
Analog Amp Mode
 Yes (button on front panel)
Other
 70
DAC Circuit
 PCM1795
Digital Filter
 Fixed
Digital Processing
 Advanced AL32 Processing Plus
DAC Master Clock Design (Doesn’t Support Network Playback)
 Yes
Asynchronous mode (for USB-B input)
 yes
Isolator (for USB-B input)
 Yes
Full Isolation

CONNECTIVITY

Phono Input
 Yes (MM / MC)
*default=MM
Analog Input (include Phono) / REC Out (RCA)
 4/1 (PHONO/ CD/ AUX/ RECORDER)
Optical input/output (Maximum Support)
 2 / 0 (192kHz/24bit)
Coaxial input/output (Maximum Support)
 1 / 0 (192kHz/24bit)
Ext. Pre Input (Power Amp Direct)
 Yes(Ext.Pre)
2 sets of Speaker Output
 Yes (Bi-wiring)
Speaker Terminal
 Gold Plated
Headphone Output
 1
(Turn off the speaker when inserting headphones)
Remote Control Bus Terminal
 Yes (mini)
AC Inlet
 Yes
Wi-Fi
 No
HEOS
 No
USB B (USB DAC)
 1 (Rear)
Module or Main Device
 New XMOS
(XU210-256-TQ128 )
PCM Sample Rate
 ~384kHz/32bit
DSD Audio Streaming (DoP)
 ~11.2MHz
Roon Certification
 Yes(Roon Tested)
TBD

CONTROL

Remote Controller
 System Remote
(w/CD Player Control)
Unit control (Button)
 Push Switch: 1
POWER
Tact Switch : 3
ANALOG MODE, SOURCE DIRECT, MM / MC
Unit control (Knob)
 5
VOLUME, INPUT SELECTOR, BASS, TREBLE, BALANCE
LED
 POWER: 1 Red / Green
ANALOG MODE: 1 Green
SOURCE DIRECT: 1 Green
MM / MC :1 Green
Front Panel Display
 Yes
(OLED 128 x 100 dot)
MXS4036-A
Display Language
 Alphabetical
Dimmer for Front Display
 Bright / Dim / Dark / Off
Control with App via Network Player (Use Remote Control Bus)
 Yes
TV Auto-play (Opt/Coax digital-in detector)
 Yes
Last Function Memory
 Yes
Auto Standby Mode
 Yes
Owner’s Manual
 Web Manual
E2: (English, German, French, Italian, Dutch, Spanish,
Swedish, Polish, Russian)
E3: (English, French, Spanish)
E1C: (Simplified Chinese)
JP: (Japanese)
Paper
JP: (Japanese)
Quick Start Guide
 Paper
E2: (English, German, French, Italian, Dutch, Spanish,
Swedish, Polish, Russian)
E3: (English, French, Spanish)
E1C: (Simplified Chinese)
JP: (Japanese)
Remote Controller
 Yes
Battery
 Yes (AAA x2)
Power Cord
 Yes
