Denon PMA-1700NE Integrated Network Amplifier
Denon PMA-1700NE Integrated Network Amplifier - Image 2
Denon PMA-1700NE Integrated Network Amplifier - Image 3
Denon PMA-1700NE Integrated Network Amplifier
Denon PMA-1700NE Integrated Network Amplifier
Denon PMA-1700NE Integrated Network Amplifier
Category: Amplifier

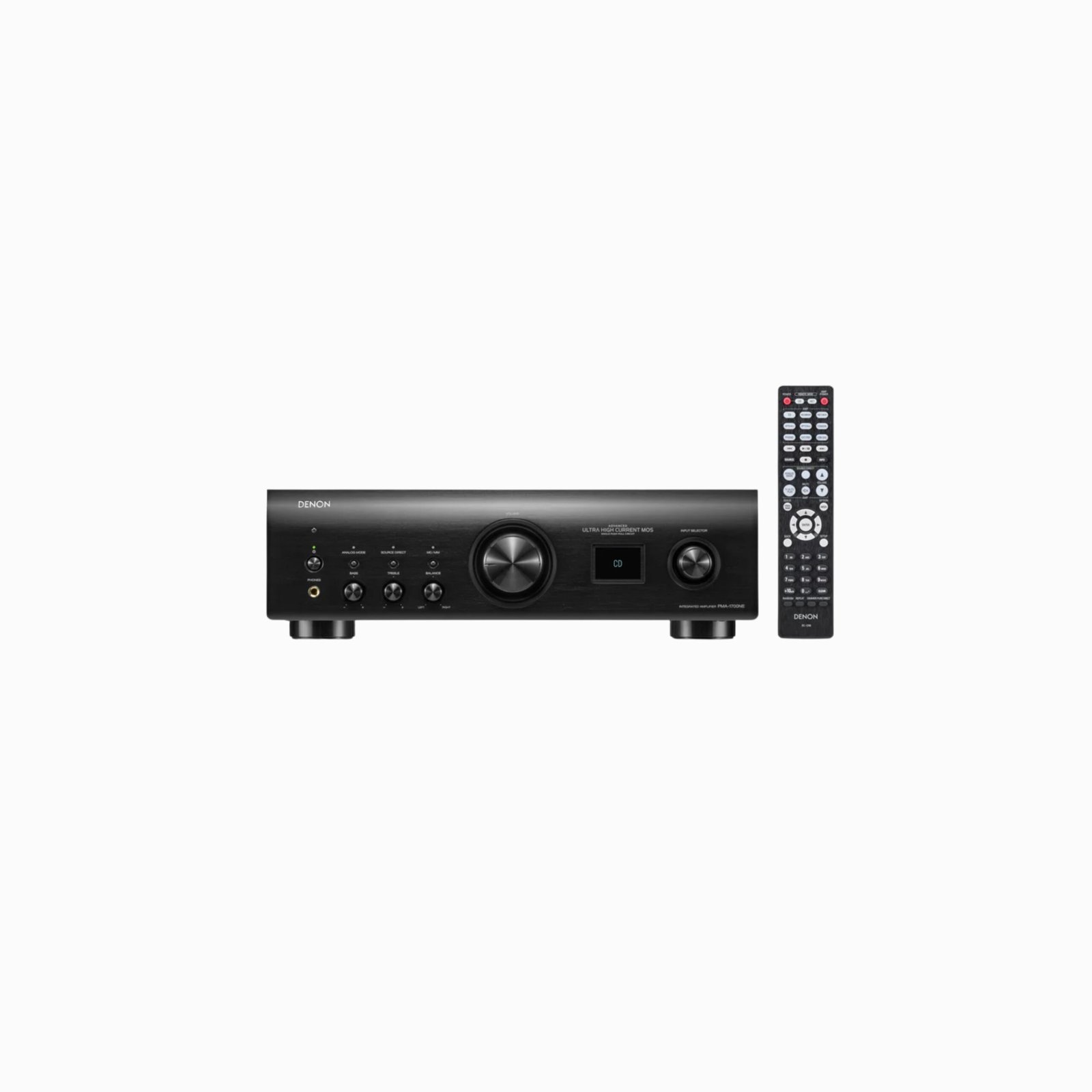

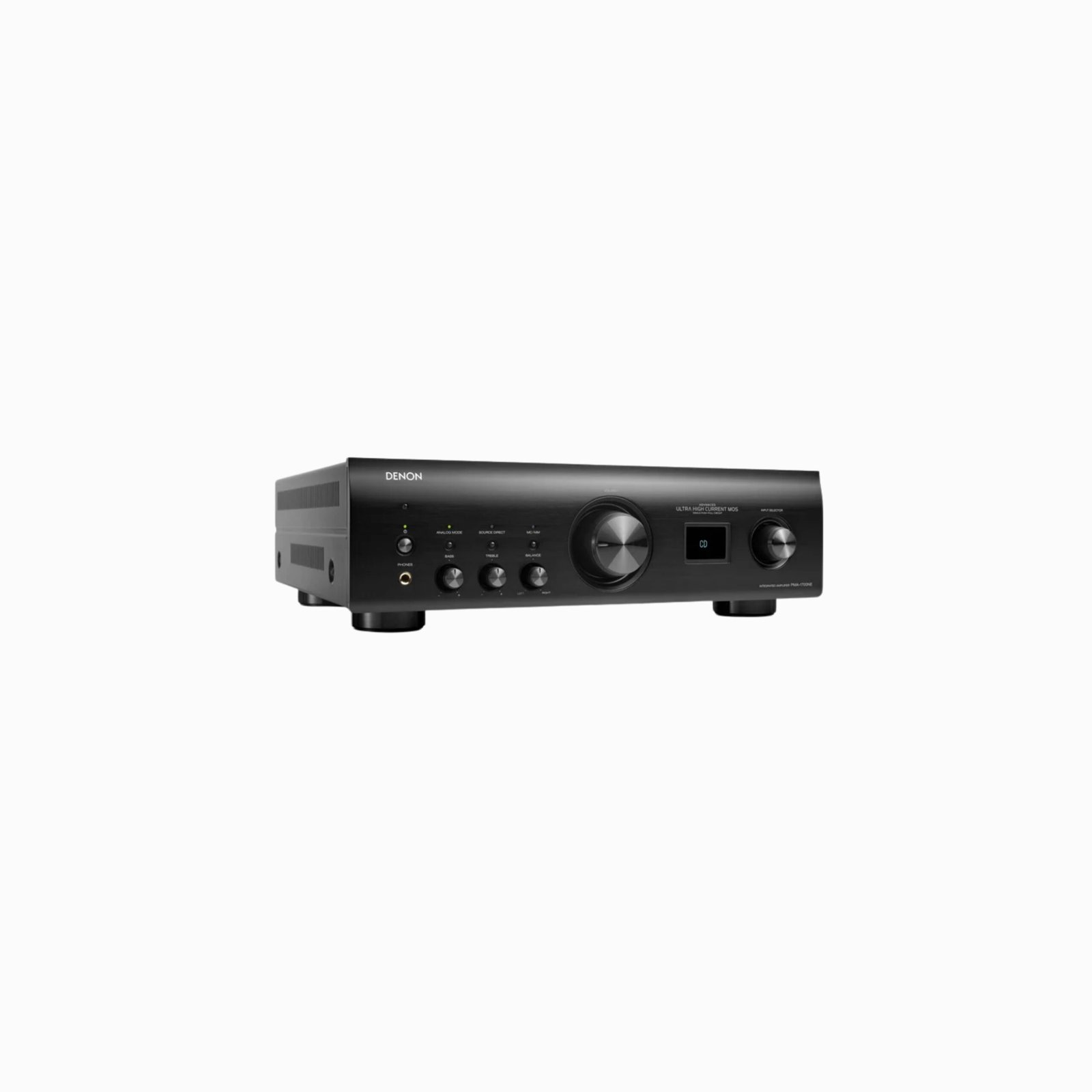

Denon PMA-1700NE Integrated Network Amplifier

Key Features

  • High-performance integrated amplifier with built-in network streaming capabilities

  • Network audio streaming via Wi-Fi and Ethernet for access to online services and local music libraries

  • High-resolution audio support including FLAC, WAV, ALAC, and DSD for detailed playback

  • Class A/B amplification with robust power output per channel for dynamic, expressive sound

  • Advanced DAC stage for accurate digital-to-analog conversion and improved clarity

  • Multiple digital inputs including optical and coaxial for direct connection to TVs, media players, and digital sources

  • Analogue inputs for turntables (with optional phono stage), CD players, and other line-level sources

  • Bluetooth wireless streaming support for easy smartphone and tablet connectivity

  • Subwoofer output for extended low-frequency performance in music and home theatre applications

  • Tone controls and source direct mode for tailored or pure signal paths

  • Front-panel display and intuitive controls for easy system operation

  • Remote control included for convenient adjustment from the listening position

  • Sleek, high-quality build designed to integrate into premium stereo systems

Ask a question
Delivery & Return

Description

PMA-1700NE Integrated Amplifier

Featuring advanced ultra-high current single push-pull circuit power, Advanced AL32 Processing, and MM/MC phono equalizer, the Denon PMA-1700NE integrated amplifier delivers extraordinary sound quality with precise detail.

Powerful sound from an integrated amplifier

Engineered with premium Denon technologies, this amplifier drives two channels at 140W.

Faithful audio reproduction

Advanced AL32 Processing Plus delivers the richly detailed sound the artist intended.

Build integrity with selected components

With more than 110 years of audio excellence, Denon products are built to last.

High-power 140W integrated amplifier

Drive your loudspeakers with 140 Watts of power per-channel into 4 Ohms. This integrated amplifier offers compatibility with the widest range of 6 speaker types and impedances for operational stability.

Advanced AL32 Processing Plus

Advanced AL32 Processing Plus supports high-resolution 384 kHz/32-bit audio sources. The algorithms restore information that was lost during the digital recording to ensure detailed playback.

USB-DAC

To accurately synchronize digital circuits, the PMA- 1700NE provides USB-DAC functions that support high resolution up to 11.2-MHz DSD and 384- kHz/32-bit PCM input signals. Crafted with exceptional quality, the DAC suppresses jitter and ensures optimal precision in D/A conversion.

High-precision electrical controls

The PMA-1700NE embraces electrical volume, balance, and tone controls while preserving the analog feeling of operation. The unique mechanism offers smooth, linear control.



Specifications

Unit (W x D x H)
 434 x 410 x 135mm
17.1 x 16.1 x 5.3in
Cabinet Size (W x D x H)
 434 x 374 x 135mm
17.1 x 14.7 x 5.3in
Net weight
 17.6kg
38.8lb
Packaging Dimensions (W x D x H)
 548 x 520 x 249mm
21.6 x 20.5 x 9.8in
Packaging gross weight
 20.4kg
45lb
Carton Color
 2 Color
Cushion / Packing
 4 Separate / Sheet
Panel Color
 SP / BK
Front (Center) Panel
 Aluminum
Side cover
 SECC with 4 straight emboss
Side screw
 SP: Nickel / BK: Black

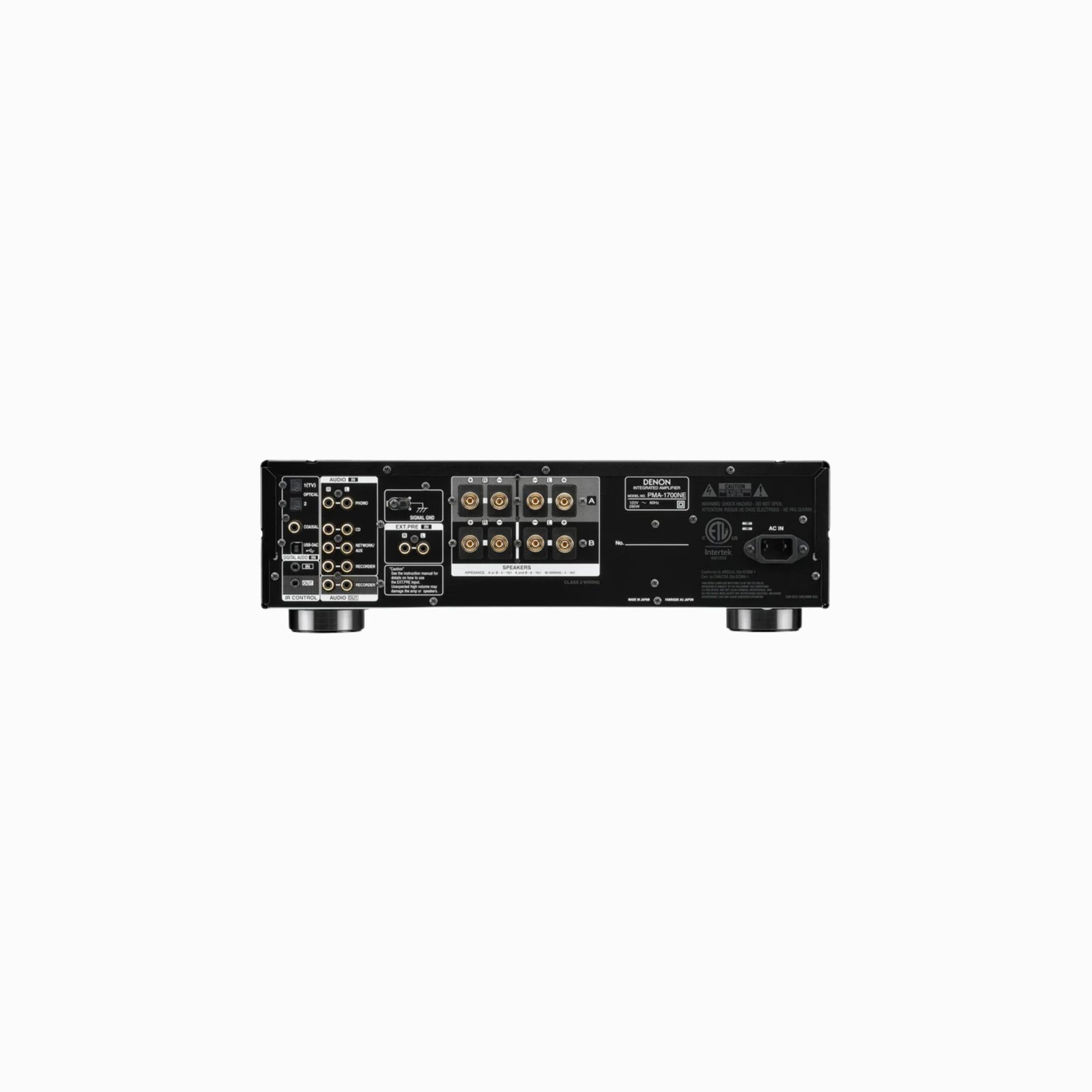

Rear Panel
 SECC t1.0mm
Chassis Material
 SECC t1.2mm
Bottom Layer
 Single
Volume Knob
 Aluminum
Input Selector
 Aluminum
Bass/Treble/Balance/ Phono Sel knobs
 Aluminum
Power button
 Aluminum
Other knob/button (LOUDNESS, SOURCE DIRECT, etc)
 Mold (Source Direct, Analog Mode, MM/MC)
Foot
 ABS resin with rigid rib
w/Hot stamp
(H: 20mm)
Heatsink for Power Amplifier
 Extruded Aluminum
Rated Output Power
 70W + 70W
(8ohm,20Hz-20kHz,THD0.07%)
140W + 140W
(4ohm, 1kHz, THD0.7%)
Speaker Impedance
 A or B : 4 ~ 16ohm
A + B : 8 ~ 16ohm
Frequency Response
 5Hz – 100kHz (0~ -3dB)
Total Harmonic Distortion
 0.01 % (Rated output: –3 dB),
8 ohm/ohms, 1 kHz
Dumping Factor
 100 and over
Input Sensitivity: Phono input
 MM: 2.5 mV / 47 kohm
MC: 200
RIAA Deviation
 20 Hz – 20 kHz ±0.5 dB (MM/MC)
Phono Maximum Input
 MM : 130mV / 1kHz
MC : 10mV / 1kHz
Input Sensitivity: CD/LINE/RECORDER
 125 mV / 19 kohm
Input Sensitivity: Power Amp input
 0.85V / 47kohm (EXT. PRE)
Signal to Noise Ratio
 PHONO (MM): (89dB)
PHONO (MC): (74dB)
CD: (107dB)
Tone Control
 BASS : 100Hz ±8dB
TREBLE : 10kHz ±8dB
Power Consumption
 295W
at Standby
 0.2W TV autoplay off
0.4W TV autoplay on
Power Amplifier Circuit
 New UHC-MOS
Single Push Pull (7)
Power Trans
 Dual El Core
Pre Amplifier Circuit
 Variable Gain Preamplifier
(OP AMP)
Volume
 Electric
(MUSES 72323)
Bass / Treble / Mid / Balance Control
 Yes / Yes / No / Yes
Type of Tone Control
 Electric
Controlled by Potentiometer
Headphone Circuit
 Use Poweramplifier
Source Direct
 Yes
Analog Amp Mode
 Yes (button on front panel)
Other
 70
DAC Circuit
 PCM1795
Digital Filter
 Fixed
Digital Processing
 Advanced AL32 Processing Plus
DAC Master Clock Design (Not Support Network Playback)
 Yes
Asynchronous mode (for USB-B input)
 yes
Isolator (for USB-B input)
 Yes
Full Isolation
Phono Input
 Yes (MM / MC)
*default=MM
Analog Input (include Phono) / REC Out (RCA)
 4/1
(PHONO / CD / NETWORK, AUX/ RECORDER)
Optical input/output (Maximum Support)
 2 / 0 (192kHz/24bit)
Coaxial input/output (Maximum Support)
 1 / 0 (192kHz/24bit)
Ext. Pre Input (Power Amp Direct)
 Yes(Ext.Pre)
2 sets of Speaker Output
 Yes (Bi-wiring)
Speaker Terminal
 Gold Plated
Headphone Output
 1
(Turn off the speaker when inserting headphones)
Remote Control Bus Terminal
 Yes (mini)
AC Inlet
 Yes
Wi-Fi
 No
HEOS
 No
USB B (USB DAC)
 1 (Rear)
Module or Main Device
 New XMOS
(XU210-256-TQ128 )
PCM Sample Rate
 ~384kHz/32bit
DSD Audio Streaming (DoP)
 ~11.2MHz
Roon Certification
 Yes(Roon Tested)
TBD
Remote Controller
 System Remote
(w/CD Player Control)
Unit control (Button)
 Push Switch: 1
POWER
Tact Switch : 3
ANALOG MODE, SOURCE DIRECT, MM / MC
Unit control (Knob)
 5
VOLUME, INPUT SELECTOR, BASS, TREBLE, BALANCE
LED
 POWER: 1 Red / Green
ANALOG MODE: 1 Green
SOURCE DIRECT: 1 Green
MM / MC :1 Green
Front Panel Display
 Yes
(OLED 128 x 100 dot)
MXS4036-A
Display Language
 Alphabetical
immer for Front Display
 Bright / Dim / Dark / Off
Control with App via Network Player (Use Remote Control Bus)
 Yes
TV Auto-play (Opt/Coax digital-in detector)
 Yes
Last Function Memory
 Yes
Auto Standby Mode
 Yes
Owner’s Manual
 Web Manual
E2: (English, German, French, Italian, Dutch, Spanish,
Swedish, Polish, Russian)
E3: (English, French, Spanish)
E1C: (Simplified Chinese)
JP: (Japanese)
Paper
JP: (Japanese)
Quick Start Guide
 Paper
E2: (English, German, French, Italian, Dutch, Spanish,
Swedish, Polish, Russian)
E3: (English, French, Spanish)
E1C: (Simplified Chinese)
JP: (Japanese)
Remote Controller
 Yes
Battery
 Yes (AAA x2)
Power Cord
 Yes
