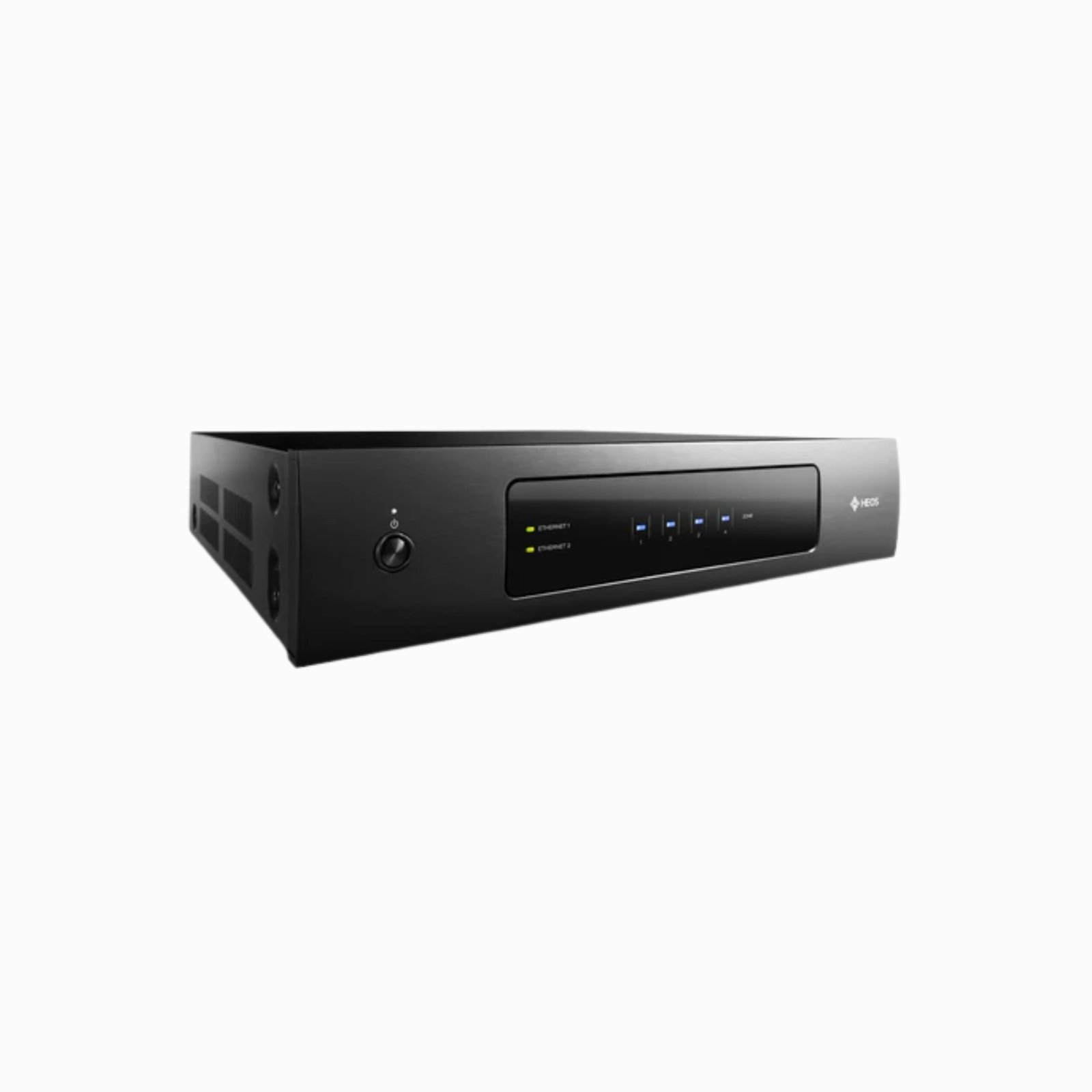

Denon HEOS Drive HS2 Multi-Room Audio Amplifier

Key Features

Four Independent Zones: Drives up to four separate stereo zones (8 channels total) with individual source and volume control.
High Power Output: 60W per channel (8Ω) or 120W (bridged, 8Ω) with robust Class D amplification.
High-Resolution Audio Support: Streams FLAC, WAV, ALAC up to 24-bit/192kHz and DSD (2.8/5.6 MHz).
HEOS Multi-Room Integration: Stream music via Wi-Fi, Ethernet, Bluetooth, or AirPlay 2 to multiple rooms.
Professional CI Ready: Control4, Crestron, RTI, and other automation system compatibility.
Flexible Connectivity: Preamp outputs, analog and digital inputs per zone, USB port, and dual RJ-45 Ethernet connections.
Voice Assistant Support: Works with Alexa, Google Assistant, and Siri (through compatible devices).
Expandable System: Combine with additional HEOS devices for a scalable, full-home audio solution.

Description

Designed by custom integration specialists for custom integration professionals, HEOS Drive is a unique 4-zone whole home audio distribution system with 8 channels of Class D amplification, all in a single 2U-tall chassis that features both Dolby Digital and Dolby Digital+ decoding with stereo downmixing.

Rated at 60 watts per channel into each of the 8 channels, 1 or 2 stereo amp pairs can be bridged for single-channel high power output (130 watts), and the HEOS Drive features low impedance drive capability (4 ohms).

Warranty:

1-year manufacturer’s warranty

Features:

Whole-home amplified multi-zone audio (4 HEOS zones)
8 Channels Class D digital amplification; 60 WPC 8 ohms; 4 ohms compatible; bridge mode
Pre-amp outputs for each zone
Dual RJ-45 Ethernet LAN ports
Stereo/Mono selectable output
Only 2U high; removable rack ears included
3rd Party Controllable
Dolby Digital/Dolby Digital+ downmixing to stereo

Music Subscription Services
The HEOS app lets you choose from popular subscription streaming services, including Rhapsody, Pandora, Spotify and TuneIn, iHeartRadio, SiriusXM, and other services that offer DRM-free tracks. More services will be added soon.

Internet Radio Stations
Choose from your favorite internet radio stations and listen to MP3, AAC, and WMA streaming audio tracks.

Music Formats Supported
HEOS Drive HS2 supports MP3 and WMA music files, including purchased WMA downloads, as well as AAC (MPEG4) and FLAC (lossless) file types, along with WAV files. Supports 32 kHz, 44.1 kHz, and 48 kHz sampling rates.

Picture Formats Supported
HEOS Drive HS2 supports JPG, PNG, BMP, and GIF album art picture formats.

USB Drives Supported
HEOS Drive HS2 supports USB thumb drives via the built-in USB port. Music content on a USB drive can be played back locally or on any or all HEOS players on your network.

“Availability of music services may vary by region. Not all services may be available at the time of purchase. Some services may be added or discontinued from time to time based on the decisions of the music service providers or others. Visit usa.denon.com/us/heos for announcements and details.”

Technical Specifications:

Power Supply	100-240 Volts AC / 50-60 Hz auto-switching
What’s In The Box	HEOS Drive HS2 / AC power cord x 4 / Ethernet Cable / Quick Start Guide / 2 rack ears
Controls & Indicators	Power/standby / Ethernet status 1/2 / Zones 124 active status
Weight	15.9 lbs / 7.2 kg
Multiple Language Support	English / French / Spanish
Dimensions (H x W x D)	88mm x 430mm x 402 mm (without rack ears) / 88mm x 483mm x 402 mm (with rack ears)
Operating Temperature Range	41dF-95dF / 5dC-35dC
Product Finish	Black
