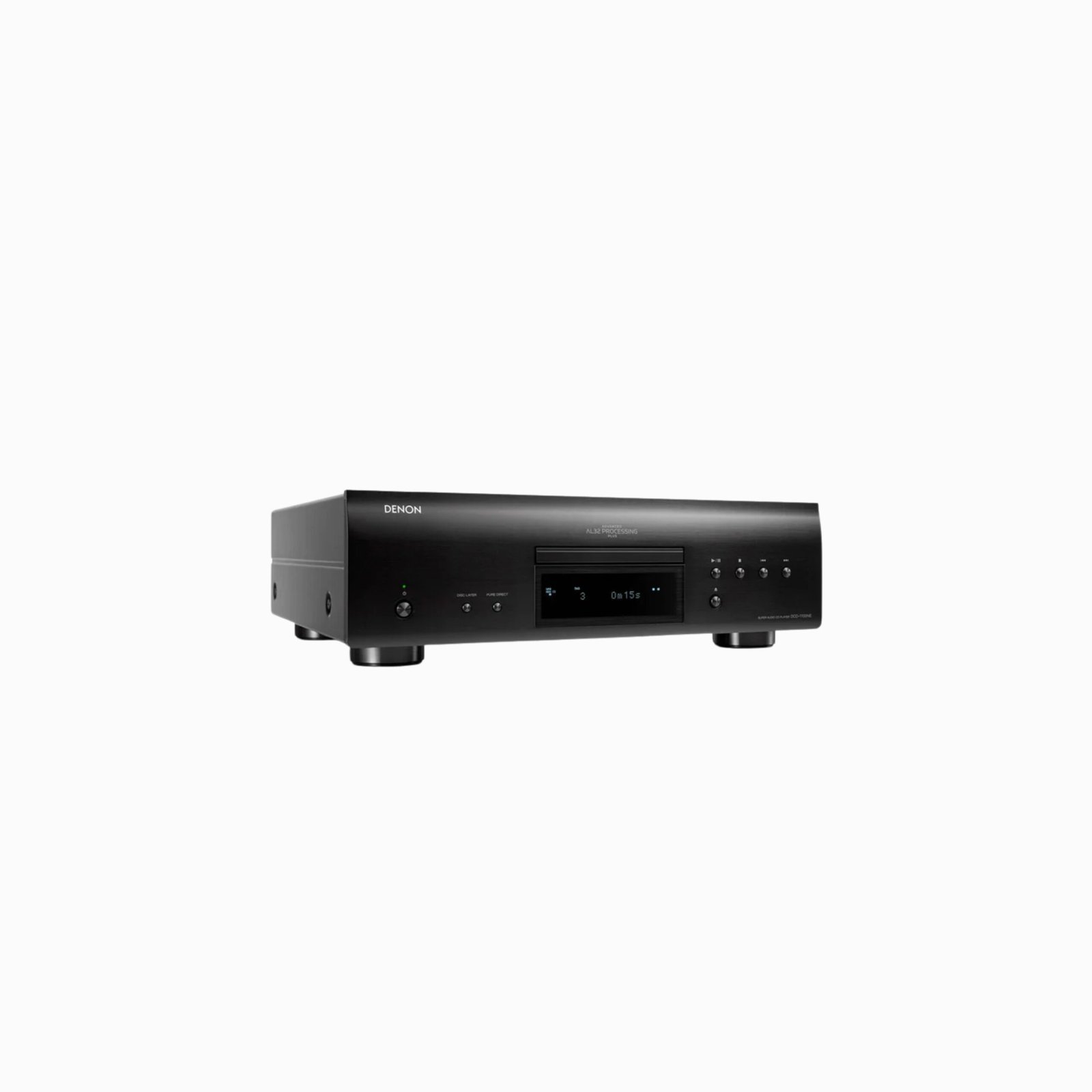

Denon DCD-1700NE - CD/SACD Player With Advance AL32 Processing

Key Features

CD and SACD playback for standard audio CDs and high-resolution Super Audio CDs.

Advanced AL32 Processing Plus technology for up-sampling and data interpolation to deliver smooth, detailed, and natural sound reproduction.

High-resolution audio support, including lossless formats up to 24-bit/192 kHz and DSD playback from compatible discs.

Suppress Vibration Hybrid (S.V.H.) disc drive mechanism designed to reduce vibration and ensure accurate disc reading.

DAC Master Clock design that minimizes jitter and enhances digital-to-analog conversion accuracy.

Pure Direct mode for the cleanest audio path by disabling unnecessary circuits and displays during playback.

Stereo analog outputs plus optical and coaxial digital outputs for flexible connectivity.

Short signal paths in the internal circuitry to preserve audio integrity and reduce interference.

Solid build quality and refined audio tuning for high-fidelity performance.

Key Features

CD and SACD playback for standard audio CDs and high-resolution Super Audio CDs.

Advanced AL32 Processing Plus technology for up-sampling and data interpolation to deliver smooth, detailed, and natural sound reproduction.

High-resolution audio support including lossless formats up to 24-bit/192 kHz and DSD playback from compatible discs.

Suppress Vibration Hybrid (S.V.H.) disc drive mechanism designed to reduce vibration and ensure accurate disc reading.

DAC Master Clock design that minimizes jitter and enhances digital-to-analog conversion accuracy.

Pure Direct mode for the cleanest audio path by disabling unnecessary circuits and displays during playback.

Stereo analog outputs plus optical and coaxial digital outputs for flexible connectivity.

Short signal paths in the internal circuitry to preserve audio integrity and reduce interference.

Solid build quality and refined audio tuning for high-fidelity performance.

Description

Unit (W x H x D mm)	434 x 135 x 384
Cabinet Size	434 x 135 x 374
Net weight	9.0kg
Packaging Dimensions (W x H x D mm)	543 x 250 x 515
Packaging gross weight	11.7kg
Power Consumption	24W
at Standby	0.1W
Front (Center) Panel	Aluminum
Function button	Aluminum
Open / Close button	Aluminum
Power button	Aluminum

Frequency Response)	SACD:2Hz – 50kHz (-3dB) CD:2Hz – 20kHz (-0.5dB)
Harmonic distortion	SACD: 0.0010% CD: 0.0016%
S/N	SACD: 119dB CD: 117dB
Dynamic Range	SACD: 112dB CD: 101dB
Line Output Level	2.0Vrms (10kohm)

DAC Circuit	TI　Advanced Current Segment PCM1795(192k/32bit) ×1
Digital Filter	Fixed
Digital Processing	Advanced AL32 Processing Plus
DAC Master Clock Design (Not Support Network Playback)	Yes

Mechanism	TD-505 FOR DM
Disc Type	SACD/CD/CD-R/CD-RW DVD-R/+R/-RW/+RW
SACD	Yes (Stereo Layer/Multi-D/M)
SUPER AUDIO CD TEXT	Yes
Playability of files recorded on CD-R/RW : MP3 / WMA / AAC / WAV / FLAC / ALAC / AIFF	Yes / Yes / Yes / Yes (~48kHz/24bit) / Yes (~48kHz/24bit) / Yes (~48kHz/24bit) / Yes (~48kHz/24bit)
Playability of files recorded on DVD R/RW : MP3 / WMA / AAC / WAV / FLAC / ALAC / AIFF / DSD (DIFF / DSF)	Yes / Yes / Yes / Yes (~192kHz/24bit) / Yes (~192kHz/24bit) / Yes (~96kHz/24bit) / Yes (~196kHz/24bit) / Yes(~5.6MHz)
Firmware Update	Yes(FE/BE, MCU)

Fixed Analog Output (RCA)	Cinch x 1 (Gold Plated)
Optical input/output (Maximum Support)	0 / 1
Coaxial input/output (Maximum Support)	0 / 1

Remote Controller	System Remote (Amp and CD Player Control)
On-Product Buttons	Power Disc Layer Pure Direct Play/Pause Stop Fwd/Rev Open/Close
LED	POWER: 1 Green
Front Panel Display	Single Line
Dimmer for Front Display	Bright / Dim / Dark / Off
Control with App via Network Player (Use Remote Control Bus)	Yes

Pure Direct Mode	Yes
Last Function Memory	Yes
Remote Control Bus Terminal	Yes
Remote Control	Yes (controllable PMA-1700NE)
Battery	Yes (AAA x2)
Power Cord	Yes
Other	Stereo RCA Cable x1
Timer Play (Need external audio timer)	Yes
Auto Standby Mode	Yes
